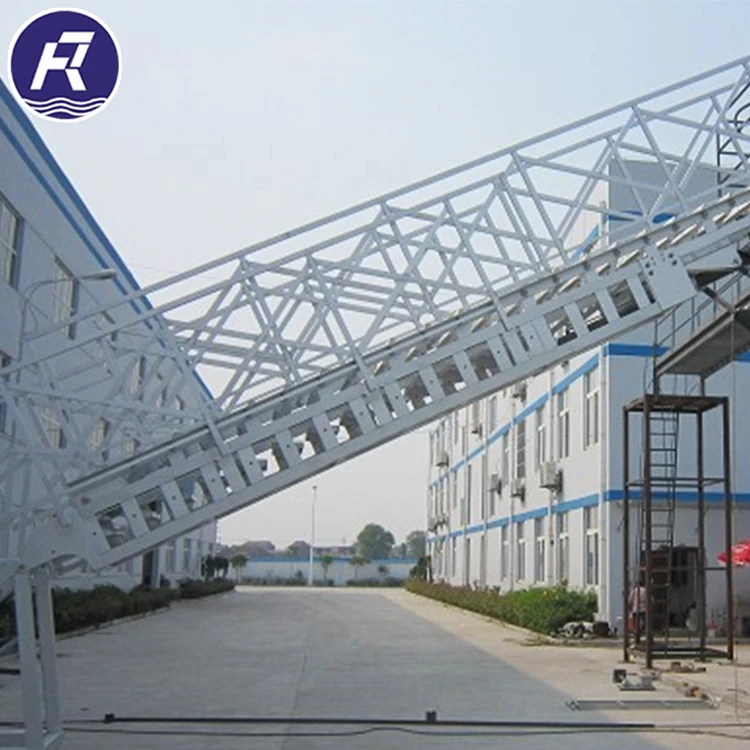

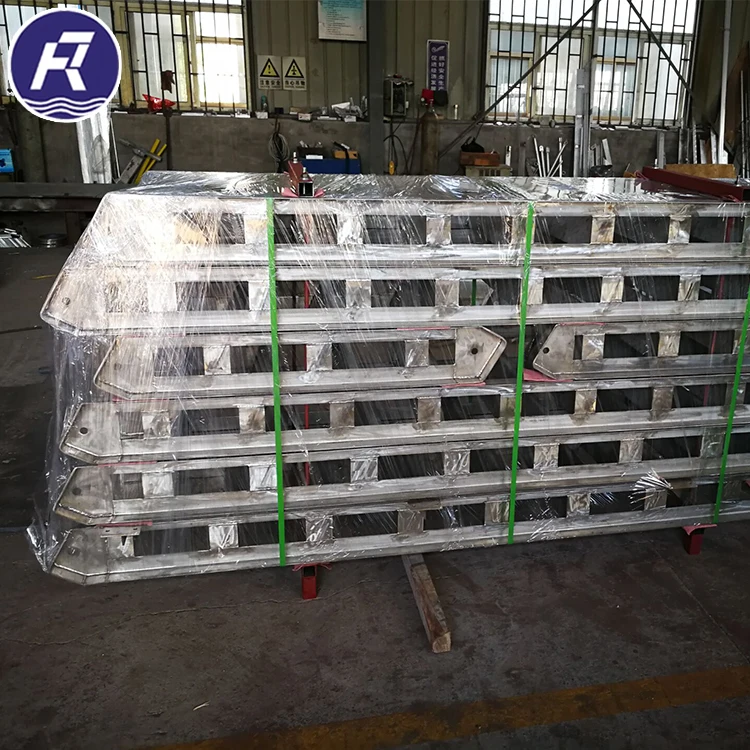

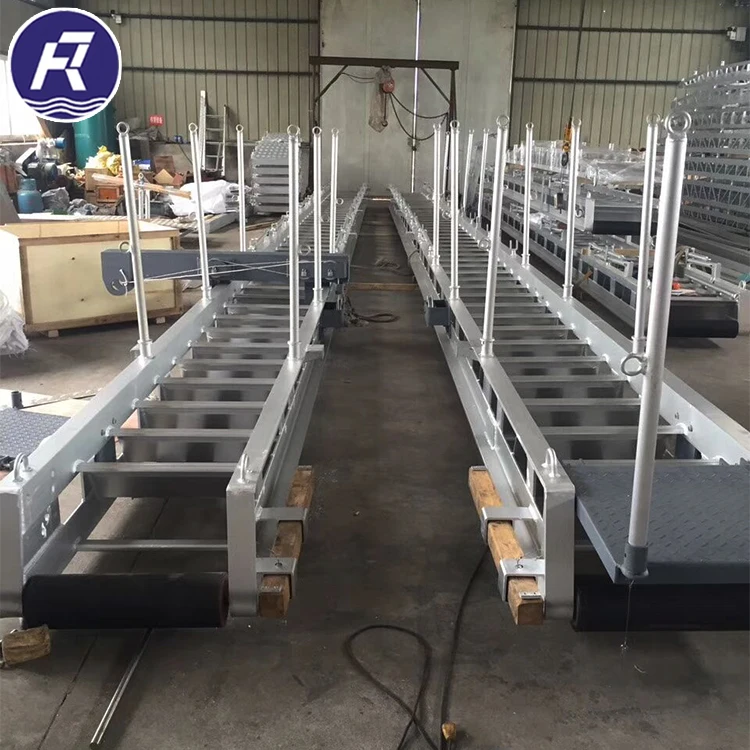

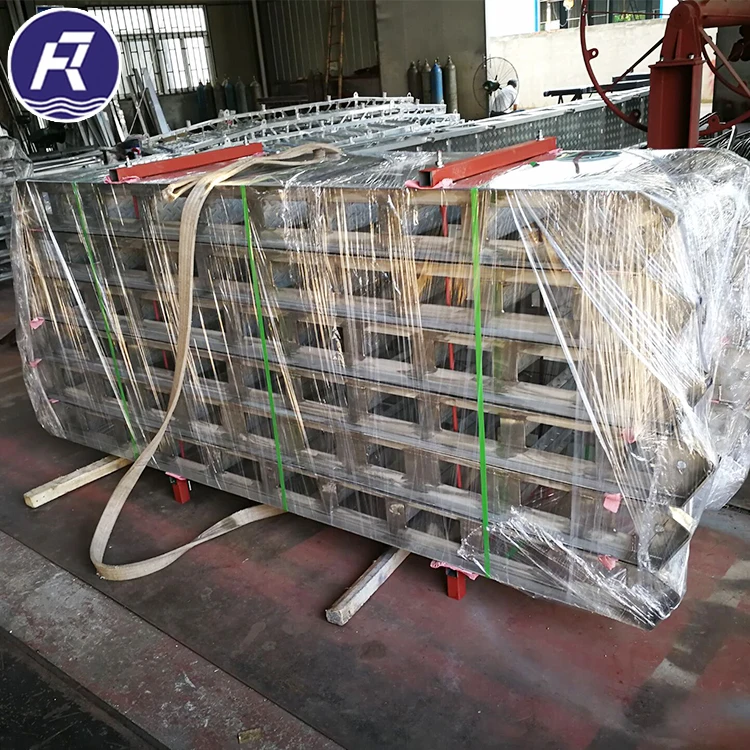

Marine Aluminium accommodation Ladder with wheels

Marine Aluminium accommodation ladder

with wheels

Product Description:

Our production of aluminum ladder as Marine officers after the ship docked at the pier up and down, there are two type of Springboard (type A and type B),Type A is integral springboard, Type B is removable(Facilitate collection). In order to meet customer demand, We also developed a flatbed , accommodation , small portable aluminum ladder, Products comply with CB * 3116-82 standard, With a lightweight, secure , and high intensity.

Technical requirements:

l         All of the aluminum parts comply with CB * Z92-91 to an oxidation treatment, ladder maximum angle of 30°,After the completion of the ladder should not skew, distort , deform.Reference ISO7061-93to the strength test,Supported at both ends of the ladder,Two stepping load 75Kg of pressure,After unloading,No permanent deformation.

l         Standard configuration of ladder

l         Ladder (Movable pulley, hook) Plug-in railings, Nylon rope handrails

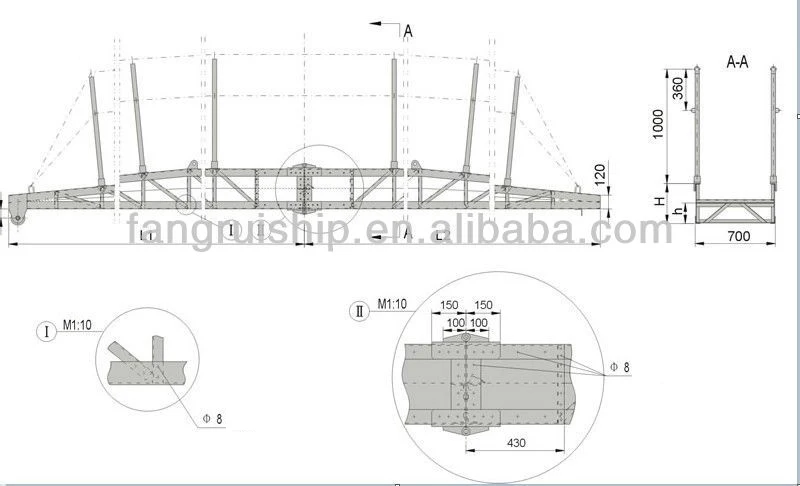

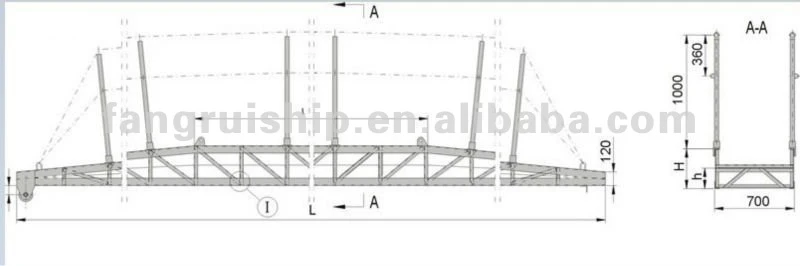

The dimensions of the aluminum ladder:

The ladder standard width of 600mm, Can widen or decrease according to the customer's requirements. Type A8 means: length 8m , wid 0.6m Integral aluminum ladder .Type B8 means: length 8m , wid 0.6m Detachable ladder.
