abs plastic vacuum forming machine

Product Overview

Description



1.   disposable food container vacuum forming machine Main Features

1.High-speed consecutive moulding. The technical process is: sheet feeding heating-moulding-cooling-demoulding-cutting-sorting.

2.Particular block temperature control: Adopt special far infrared electro-heat equipment with dense plane, so the heating temperature is even with less energy consumption.

3.Equipped with air cooling and circulation water cooling classis. make the forming speed faster and guarantee the forming quality.

4.With enclosed type heating for electrothermal furnace, the heating is even with less energy loss, besides, you may use manual switch to control the movement of electrothermal furnace, so it is helpful for controlling the product quality in the production process.

5. Bl-line sharp chain transformation is the guarantee of high speed running stably.

6.Specially equipped with secondary vacuum and moulding as well as the electric adjustment  function, when process high precision product, the forming is easier with high quality.

2.pameter of machine in blue color

Model	RJD-720	RJD-610	RJD-620
Overall forming dimension	(L) 780-1200MM	(L) 780-1130MM	(L) 500-750MM
	(W)600-720MM	(W)480-610MM	(W)480-620MM
	(H) 0-180MM	(H) 0-180MM	(H) 0-180MM
Working speed	3-8cycle/min	2.5-7.5cycle/min	2-7cycle/min
Vacuum pump capacity	XD-100	XD-100	XD-75
Air pressure	0.8mpa	0.8mpa	0.8mpa
Power supply	380V(50HZ)	380V(50HZ)	380V(50HZ)
Max power consumption	35KW	30KW	22Kw
Process sheet Thickness	0.1-1.2MM	0.1-1.2MM	0.1-1.2MM
Raw material	PP PS PET PVC ABS	PP PS PET PVC ABS	PP PS PET PVC ABS
Machine size	6.9*1.5*2.5M	6.6*1.5*2.5M	6.2*1.5*2.4M
Machine weight	2500KG	2000KG	1800KG

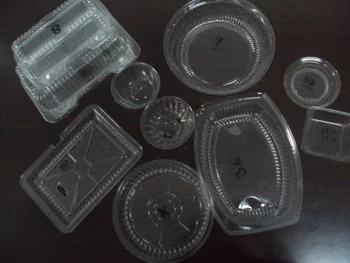

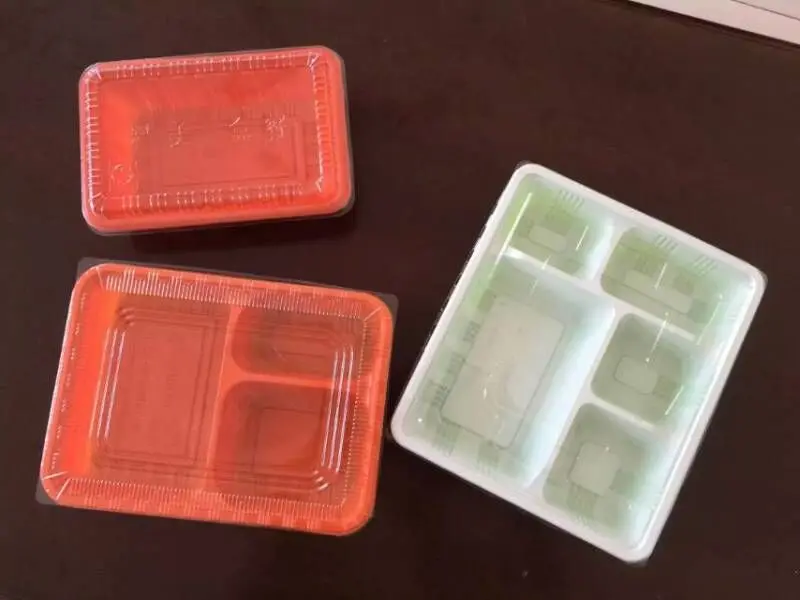

3.company brief introduce and mould picture

Junda Machinery Co., Ltd. professionally manufactures and develops plastic packaging machinery. theromoforming machine , ,vacuum forming machine , sheet extruder . to produce kinds of plastic products such as food conainers , cups, lids . trays,dishes. cosmetic packaging ,oral liquid packaging ...welcome customers' design

4. certification for machines
