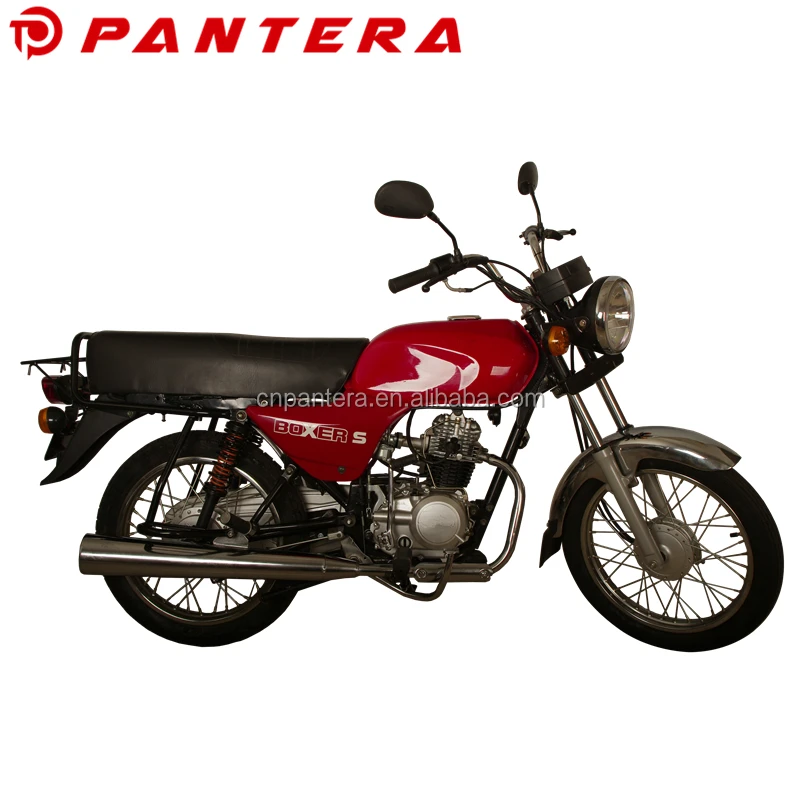

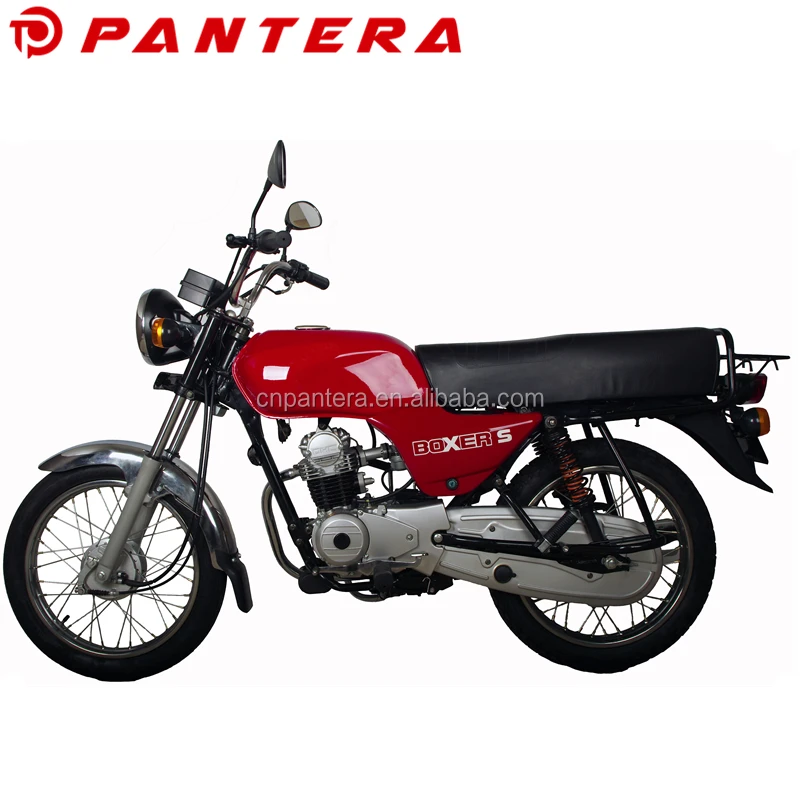

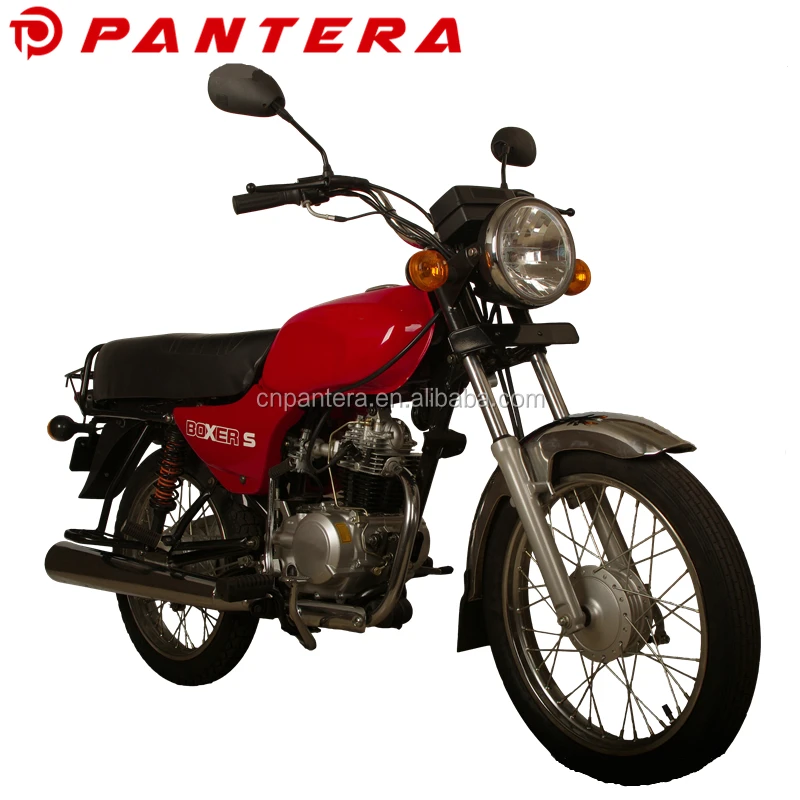

CKD SKD Package 100cc Boxcer Motos Motorcycle For Rwanda
Specification
ENGINE
Engine Type:
Single cylinder,wind-cooled,Four-stroke
Displacement (ml):
97
Bore X Stroke (mm):
53x45
Compression Ratio:
9.6:1
Max. Power (kw/r/min)
4.5/8000
Max. Torque (N.m/r/min):
6.5/6000
Max. Speed (Km/h):
≥90
Lubrication:
Pressure ,splash
Clutch Type:
Multiplate wet clutch, Manual
Ignition:
CDI
Starting System:
kick start
Transmission System:
Chain drive
CHASSIS
Front Brake:
drum brake
Rear Brake:
Drum brake
Front Tire:
2.75-17
Rear Tire:
3.00-17
Battery:
12V/7Ah
DIMENSIONS
L X W X H (mm):
1980*765*1150
Seat Height (mm):
880
Wheelbase (mm):
1260
Min. Ground Clearance(mm):
150
Max. Permissionable Weight (kg):
150
Rider Capacity:
1 Person
Others
Packing Size (mm)::
1600×450×760
Container Loading(40HQ):
174units CKD 105units SKD
Product Description
Optional:
1. Wheel type: spoke wheel or alloy wheel
2. Front brake: drum brake or disc brake
3. Remote control
4. Displancement :50cc to 110cc.
5. We can offer all the colors which you likeWarranty:
1.we offer engine 6000 kms and one year warranty on the basis of normal riding.
2.we offer 1% easy broken spare parts freely.
easy broken spare parts list:
No.
spare parts name
1
carburetor
2
electric parts
3
headlight assy
4
meter assy
5
L. front turning light
6
R. front truning litht
7
L. rear turning light
8
R. raer turning light
9
tail light assy
10
front and rear inner tube
11
rearview mirror
12
pasoes
13
chain
14
handle switch
15
handle bar
16
cable
17
battery
18
seat
19
rear shock
20
footrest
21
starting arm
22
gear pedal
23
muffler
Note: the above spare parts packaged separately, carton packaging, standard marks.
Packaging & Shipping
Production Line
We have 2 different packing method of the motorcycle, one is SKD, the other is CKD. One container can load more CKD than SKD. After customer get the bikes, SKD is easy assemble, but need more freight. CKD can save more freight, but need worker to assemble completely.
1. CKD: plywood box or carton
2.SKD: steel frame + carton or wooden frame + carton
We check our new cub motorcycle 100% one by one to make sure they are all what you ordered,
to make sure the quantity and in good condition.
Company Information
Pantera Group , one of the widely reputed and highly reliable exporter and wholesaler of motorcycles ,including dirt moto, cub motorcycle, chopper, street motorcycle, racing motorcycle . Some of our
competitive items are exported to different part of the world, such as C90 motorcycles are popular
in Morocco market and Forza are so hot in Tunisia market.
All products are brand new and ship straight our from the supplier. Then are offered with high
quality with competitive price. Should you be interested in any products , please let us know
your requirements, quantity, style and sizes.
Any questions from your will be attached great importance and solved in time. We sincerely
hope to establish business relations with your esteemed company.
Why Choose Us:
1.Good knowledge and rich experience on different market can meet special requirements.
2.Strong professional technical team and advanced technology ensures to produce the high, stable quality specialized motorcycle and electric bikes.
3.Provide all the details of this motorcycle to you during the mass production. your complaints and requirements are highly respects.
4..Special cost control system ensure to provide the most favorable price.
5.OEM service is welcome.
6.Our aim: ensure the satisfiction of the customers.
FAQ
1.What’s the delivery time for production?
Honestly, it depends on the quantity and the season you place the order. It is about 20 to 30 working days. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
2.What’s your payment term of transaction? We accept T/T, and if it is necessary, L/C is considerable. You can choose the one which is the most convenient or cost effective for you.
3.Can I use my own brand name on the motorcycles? Yes, you can use your own brand name or our brand name "PANTERA".
4. What's the MOQ? The MOQ (minimum order quantity) is 105 units of this model.
