CE approved hot sale product powder coating oven racks ce spray booth

Name: CE approved hot sale product powder coating oven racks ce spray booth
SKU: 60060260899
Availability: InStock

Price:

Quantity:

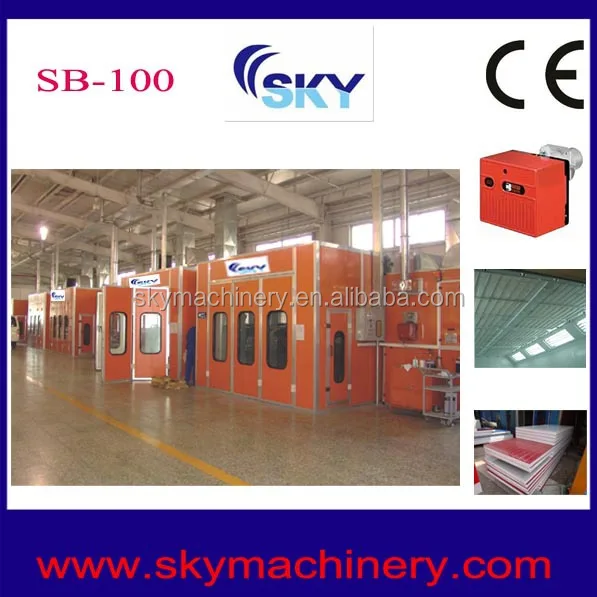

CE approved hot sale product powder coating oven racks ce spray booth SB-100

Product Description

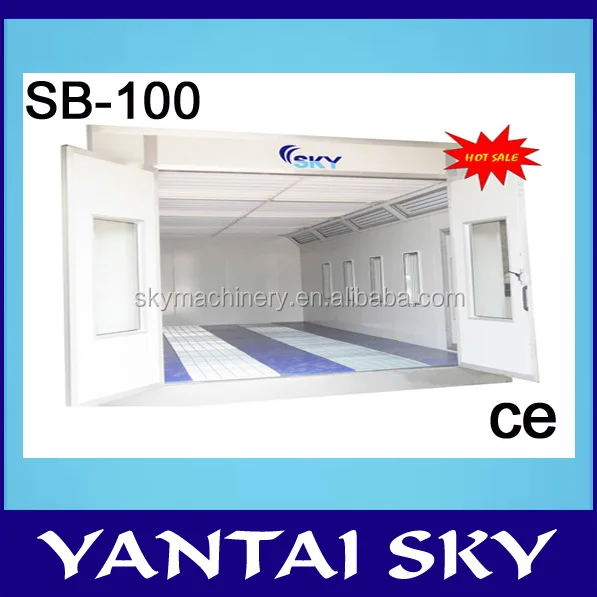

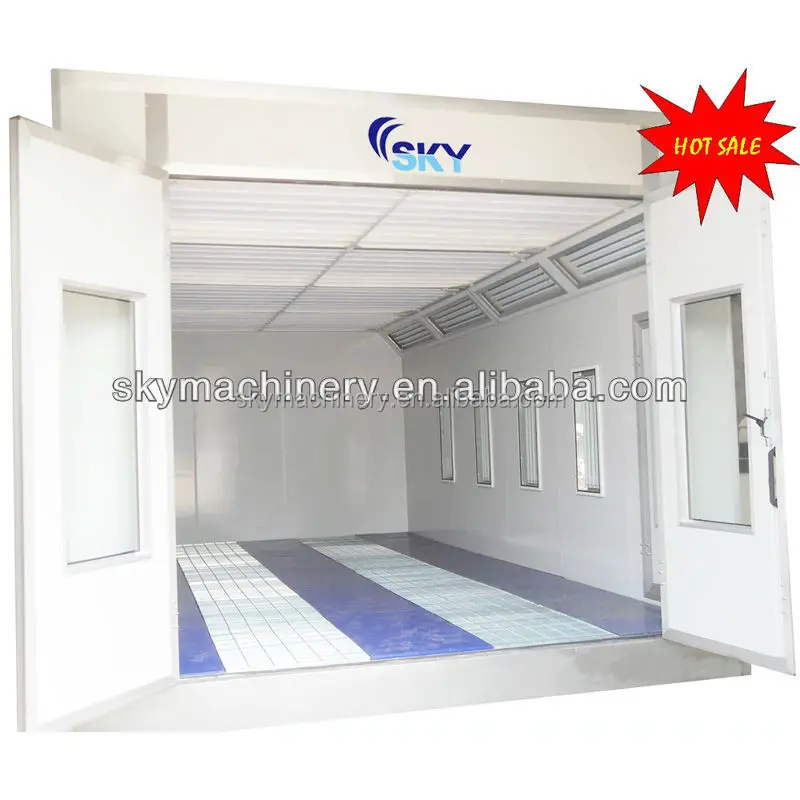

SB-100

Spray Booth (Down Draft)

Size:7050x5250x3600mm

Air velocity: 0.25m/s

DETAILS :

Dimensions:	Length (mm)	Width (mm)	Height (mm)
Booth Outside	7,000	5,200	3,600
Booth Inside	6,900	3,900	2,750
Entrance Door	Equipped with Handle & Lock	3,000	2,700
Personnel Door	Equipped with Handle & Anti-Explosion Lock	800	2,000

Features:	Total Power 10.5 KW; 380v/3phase/50hz	Noise < 80 db
1. Walls & Ceiling	- Panels 50 mm thick, with foam in the middle and color steel on both sides
2. Basement System	- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple - Grid Plates (Galvanized)* 2rows - Diamond Plates (Powder Coated or Galvanized)* 3rows
3. Heating System	- Diesel Burner (Italy RIELLO, G10)* 1unit - Heating Exchanger (Stainless Steel material)* 1unit - 8~15 minutes reaching the baking temperature 60~80 degree Celsius - Cabinet (rock-wool insulation) * 1unit; Air Ducts * 2pcs
4. Filter System	- Primary Filter* 1set, filtering rate > 83% - Air-Intake Filter* 1set, filtering rate > 97% - Air-Exhaust Filter* 1set, filtering rate > 70%
5. Air System	- Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each - Air velocity 0.25 m/s - Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit
6. Illumination	- Ceiling Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design - Side Lights * 32pcs, 36w each, with Light Fixtures, anti-explosion design
7. Control Panel	- *1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc.
** Included	- All Hardware, Fasteners, and Sealants

Our Services

YANTAI SKY MACHINERY CO,LTD has concentrate on doing best services since founded.

1.one year warranty;

2.24 hours online replay ;

3.we can make special design for client ;

4.Manufacture price;

5.one-top services
