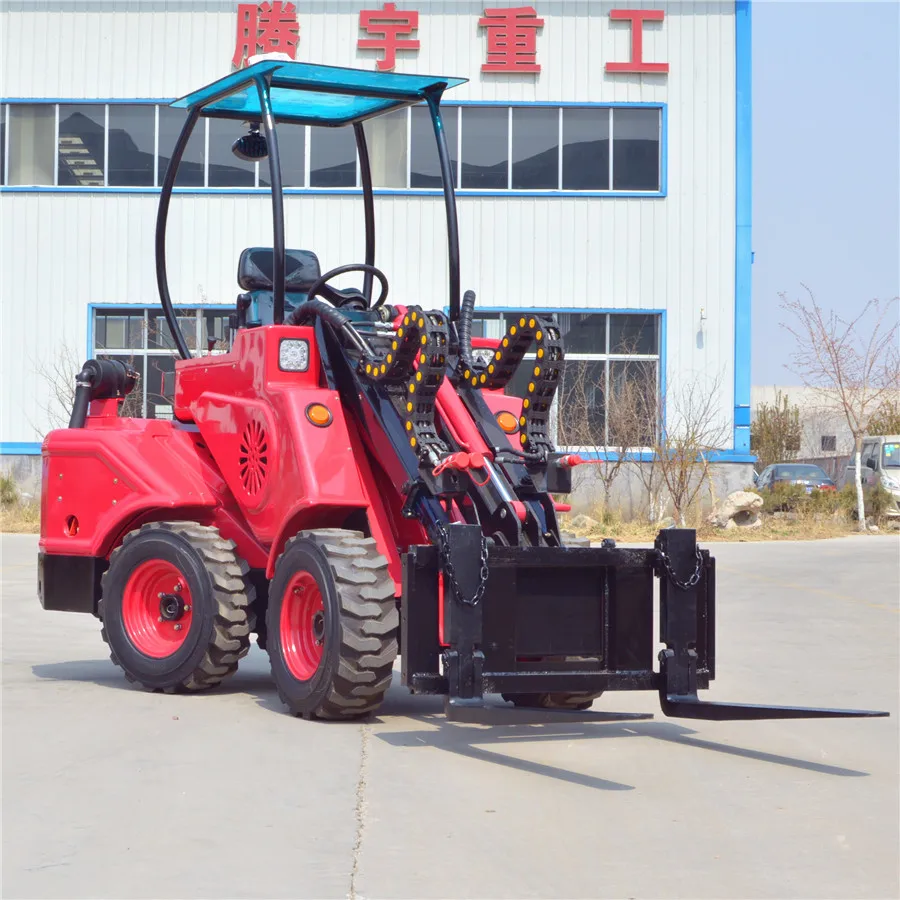

grass fork used front end loader farm tractor made in China with 0.5 ton load

Product Overview

Description

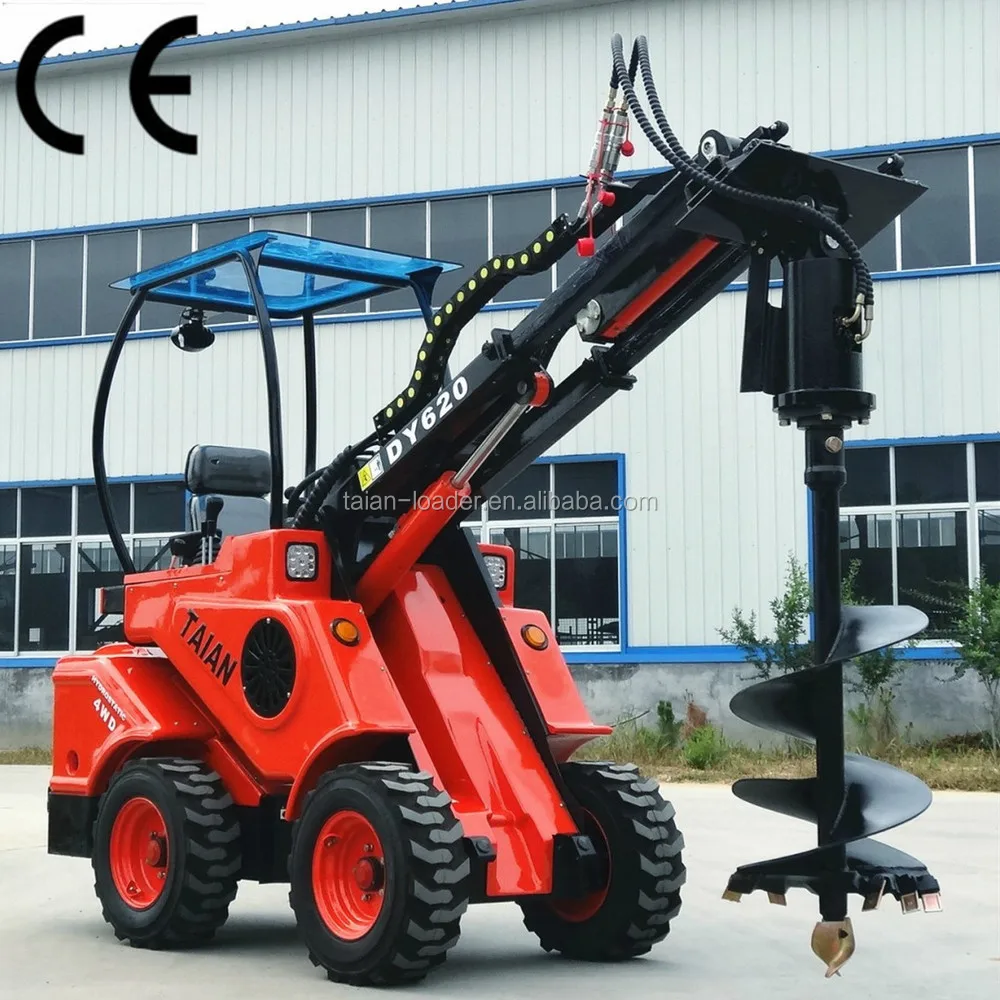

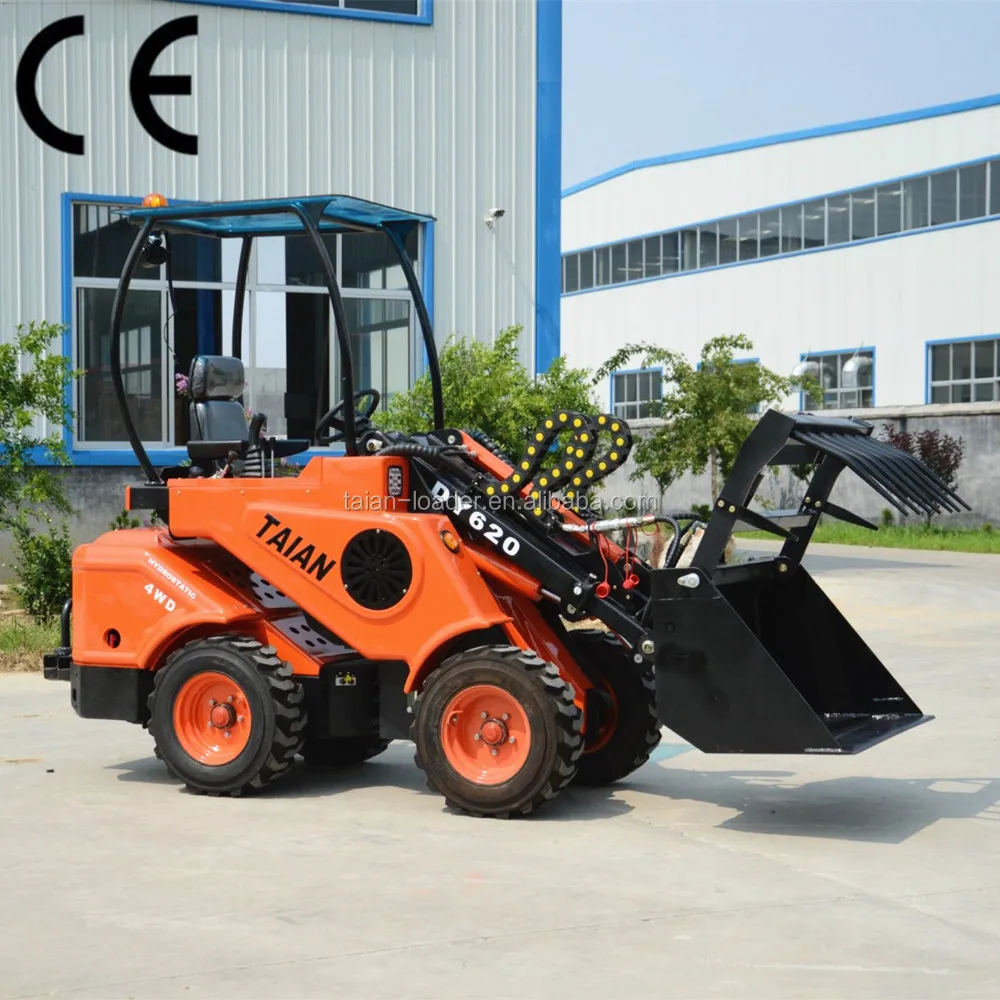

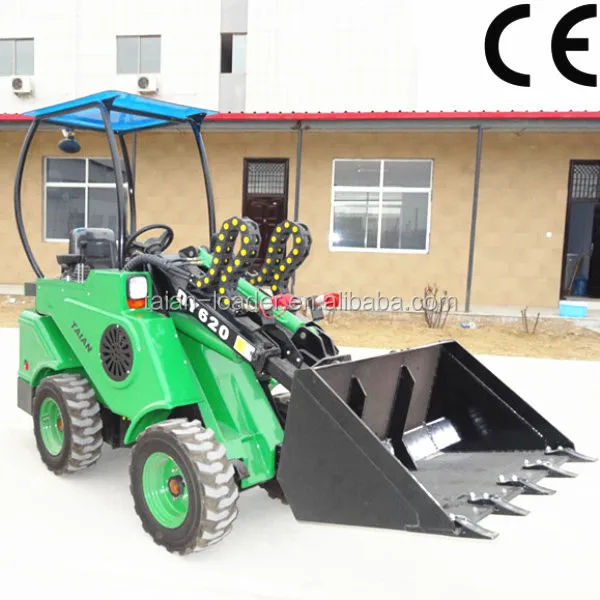

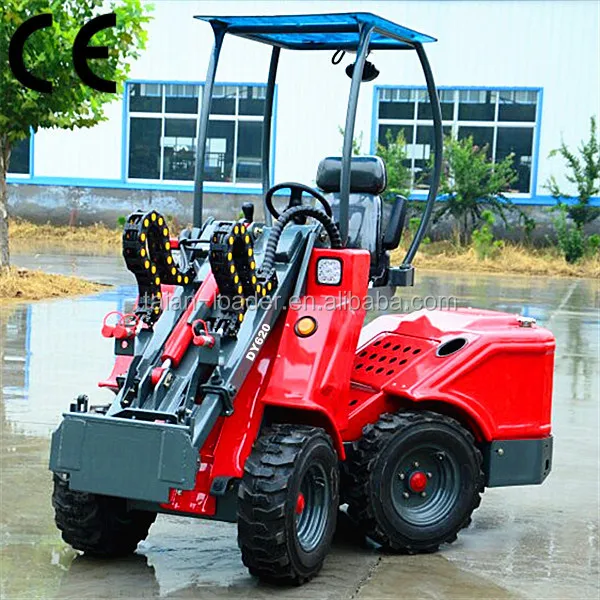

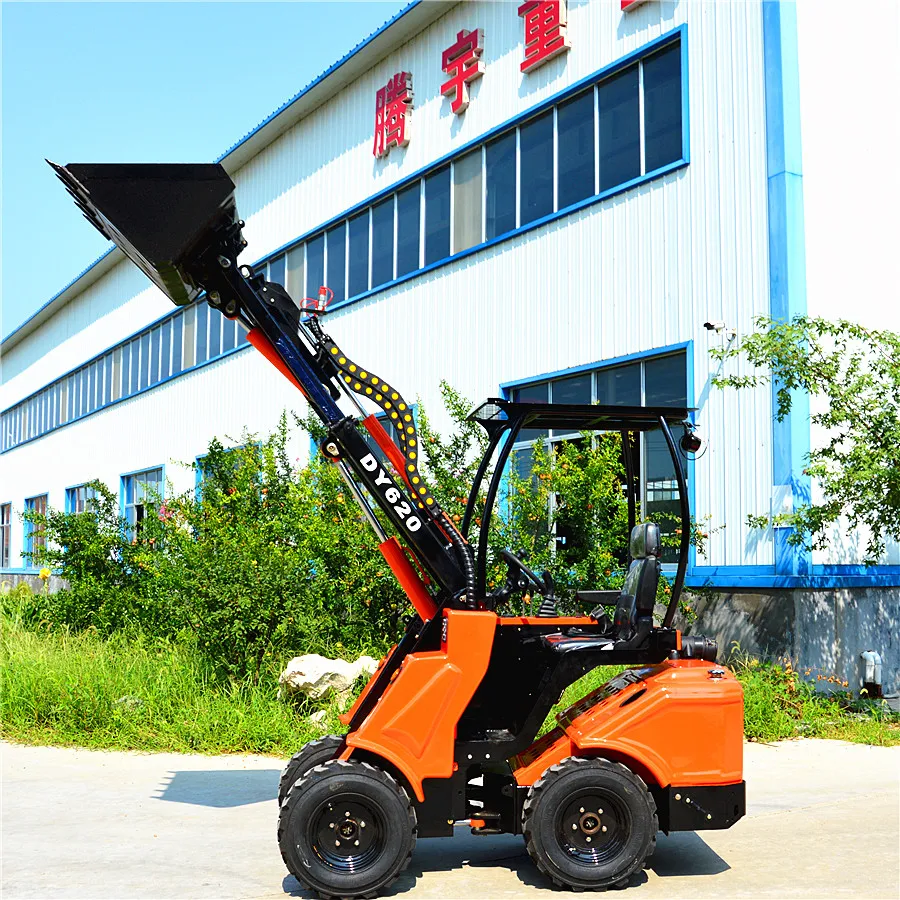

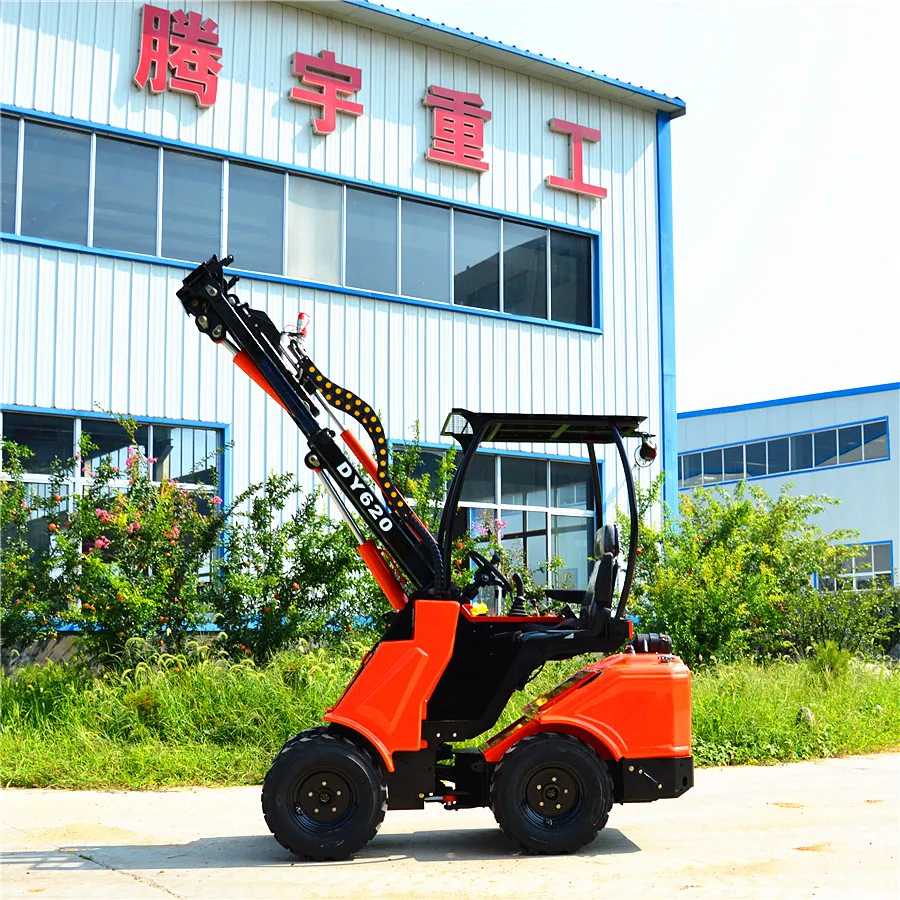

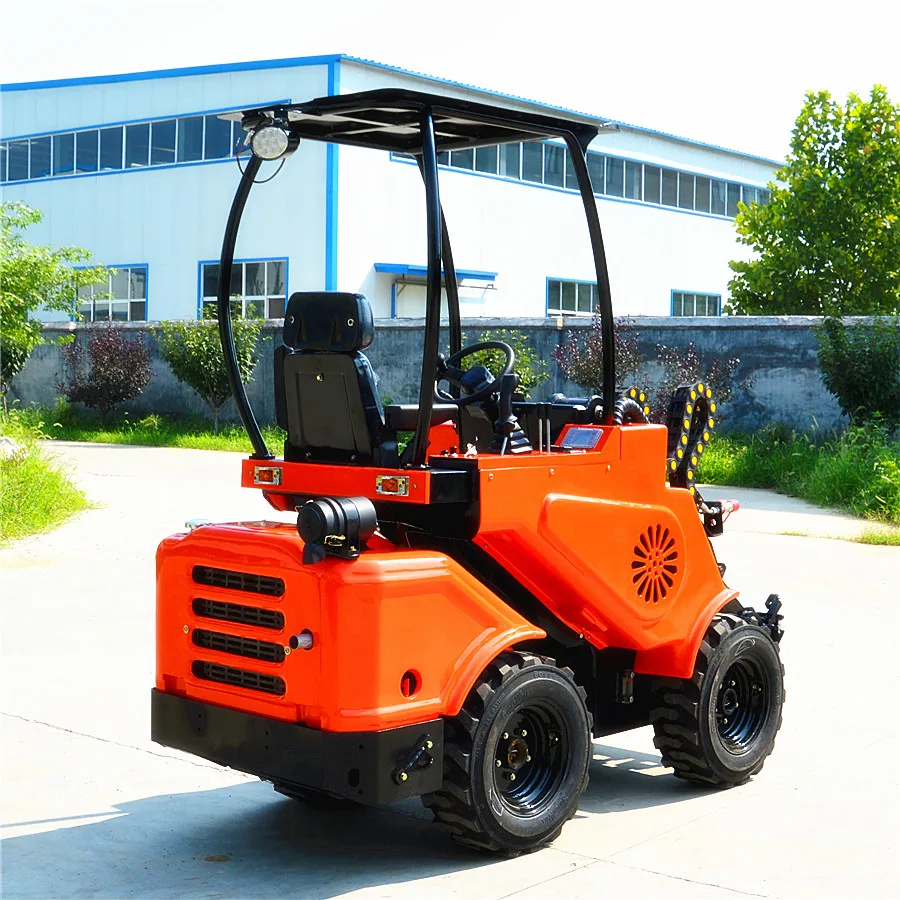

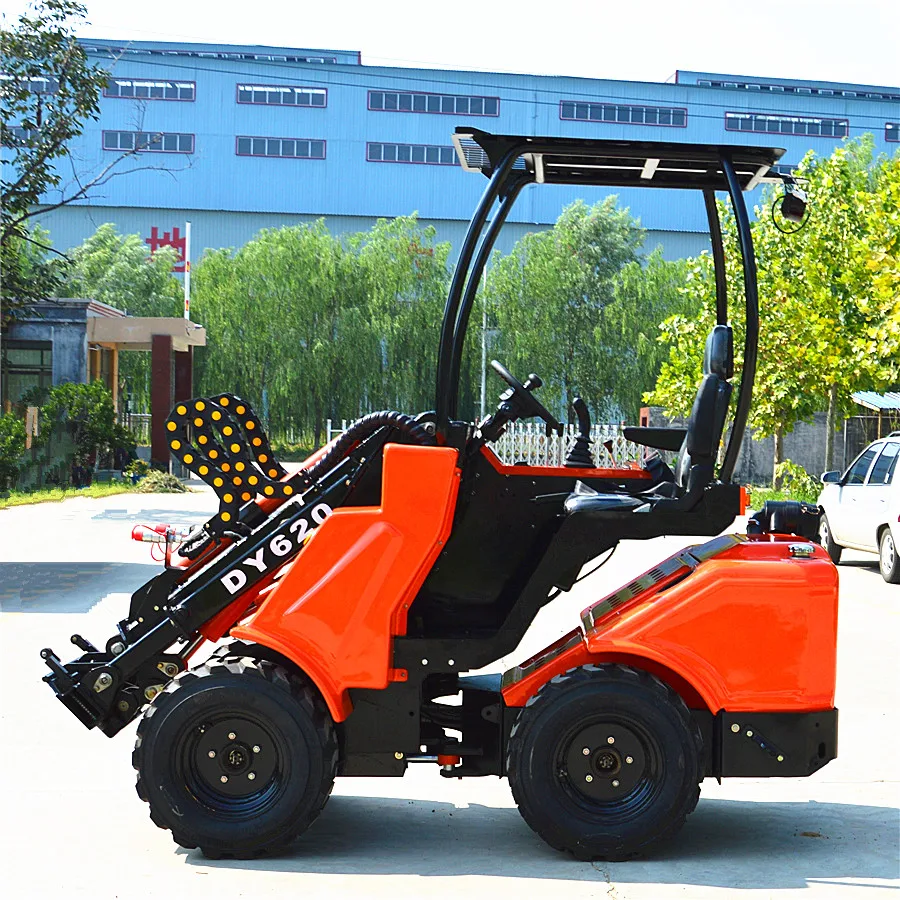

articulated mini wheel loader DY620

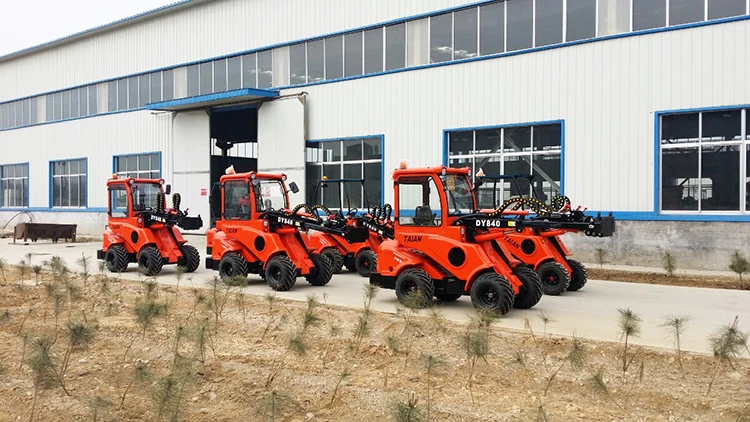

DY series telescopic loaders have three models, DY620, DY840 and DY1150, width from 980mm to 1500mm offered best solution to narrow space works, and front articulated design makes the turning radius much smaller which also helps a lot. Telescopic boom offers wider usage.





Safety

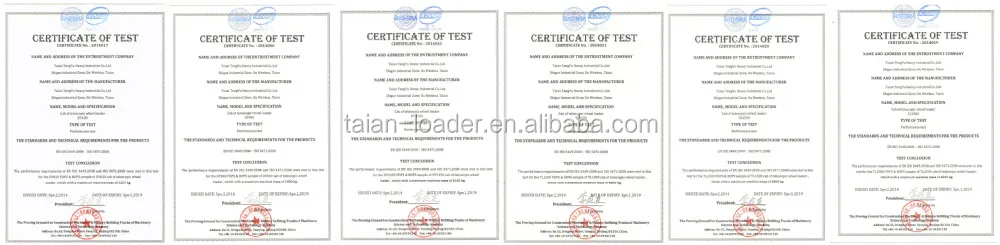

ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.

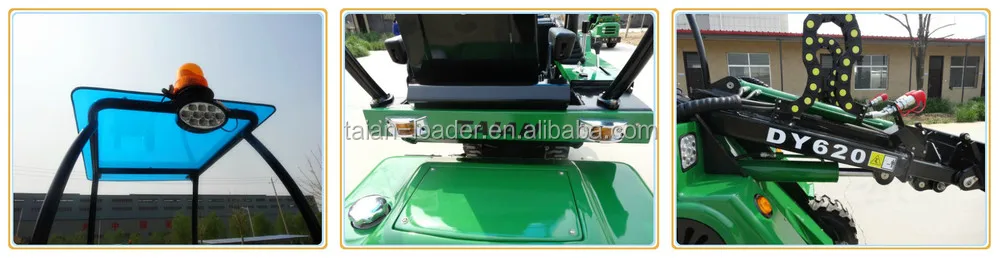

Top rotating warning light give an eye-catching signals to people around.

Warning signals for maintenance and operating protect the machine from over-use.

Reversing beeper and lights, traffic lights, rear and front working lights well protects people around and also the operator.

Cylinder protection can prevent any possible damage caused by the boom falling down.

Thanks to the front articulated design, it greatly reduce the tilt possibility.



Power

All models have separately four hydraulic wheel motor, they are real four wheel drive hydrostatic dive.

All machines adopts world famous Kubota/Perkins which guarantees the quality and meanwhile more powerful.

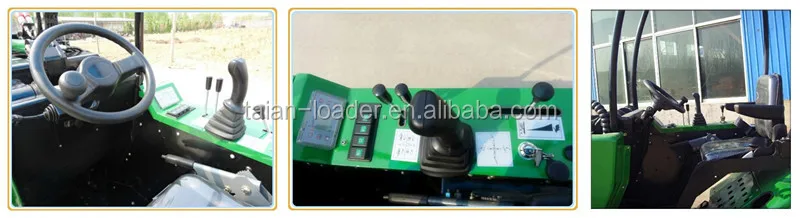

All the actions of the machine can be achieved by only joystick/levels, buttons and switches, reasonable arrangements of all the controls makes the operating biggest comfortable.

Thanks to the quick coupling system, you can change into different attachments in just one minute, which is very simple and convenient.

We always take customers’ any possible needs into consideration, there’s cigar-lights on each machine.

We equipped window hook for the closed cabin so that the window can be opened a bit and offer better ventilation



Usage

The compact size and the telescopic boon widely increase its usage.

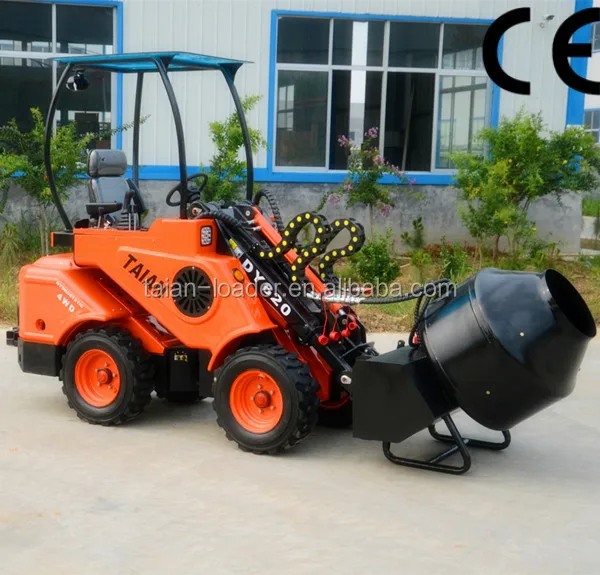

Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery.

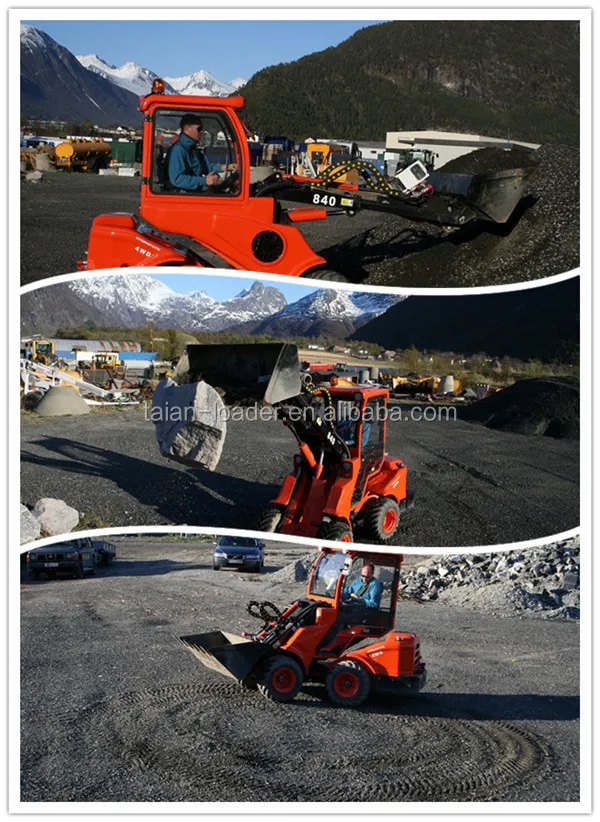

With all the above features, our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.

All the above features are standard on our machine, you do not need to pay extra money for any of them.



Model	DY620
Max. length	2195 mm
Max. width	980 mm
Max. height	2320 mm
Max. reach(boom extended)	3000mm
Max. reach(boom retracted)	2480mm
Bucket capacity	300L
Rated loading capacity	500kg
Tipping load	800kg
Min. turning radius	1980mm
Turning angle	400
Speed	10 km/h
Weight	1100 kg
Standard tire	23X8.5-12
Tire pressure	2.8 bar
Oil tank capacity	35L
Pressure	190bar
Working oil flow	16.5L/min x 2
Tracking oil flow	50L/min
Oil model(mineral oil)	L-HL46
Engine brand	Perkins 403D-07
Number of cylinder	4
Cooling system	Water cooling
Rated power	12.5Kw
Rotation speed	2800 r/min
Fuel tank capacity	18L
Battery capacity	55Ah
Voltage	12v
OPPTIONS
Standard Bucket
Counterweight
Collapsible Roll Bar
Trailer hook

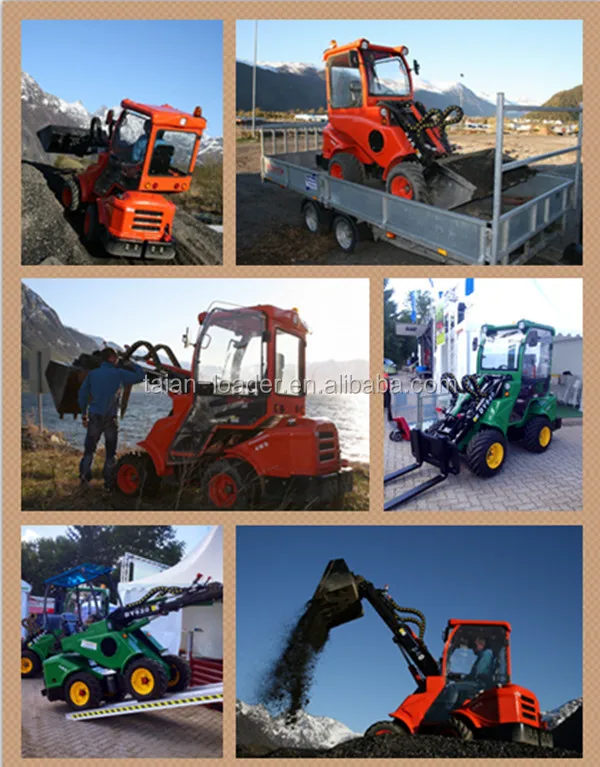

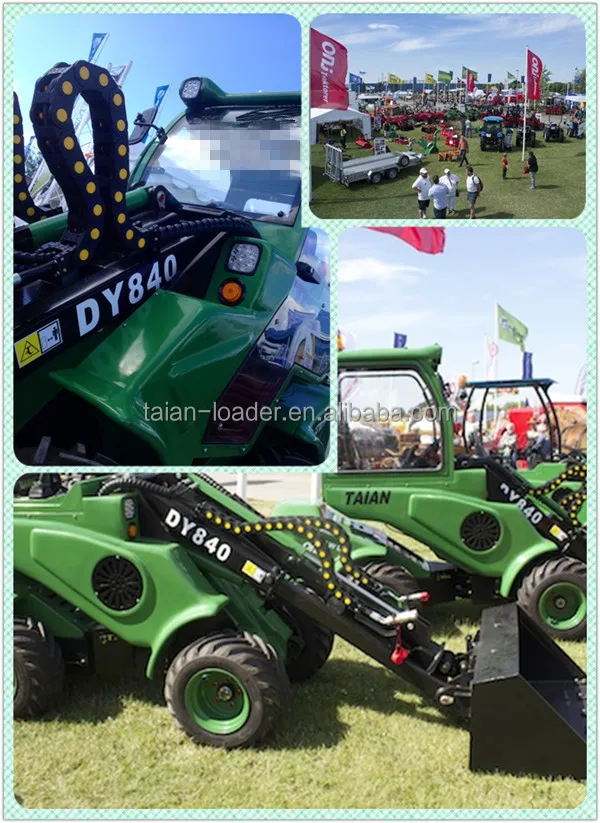

Our wheel loader has been exported many countries all over the world,especially for Europe market:
