RYZ1650Q Full Automatic flatbed die cutter machine
With Stripping(CE)
Product Description

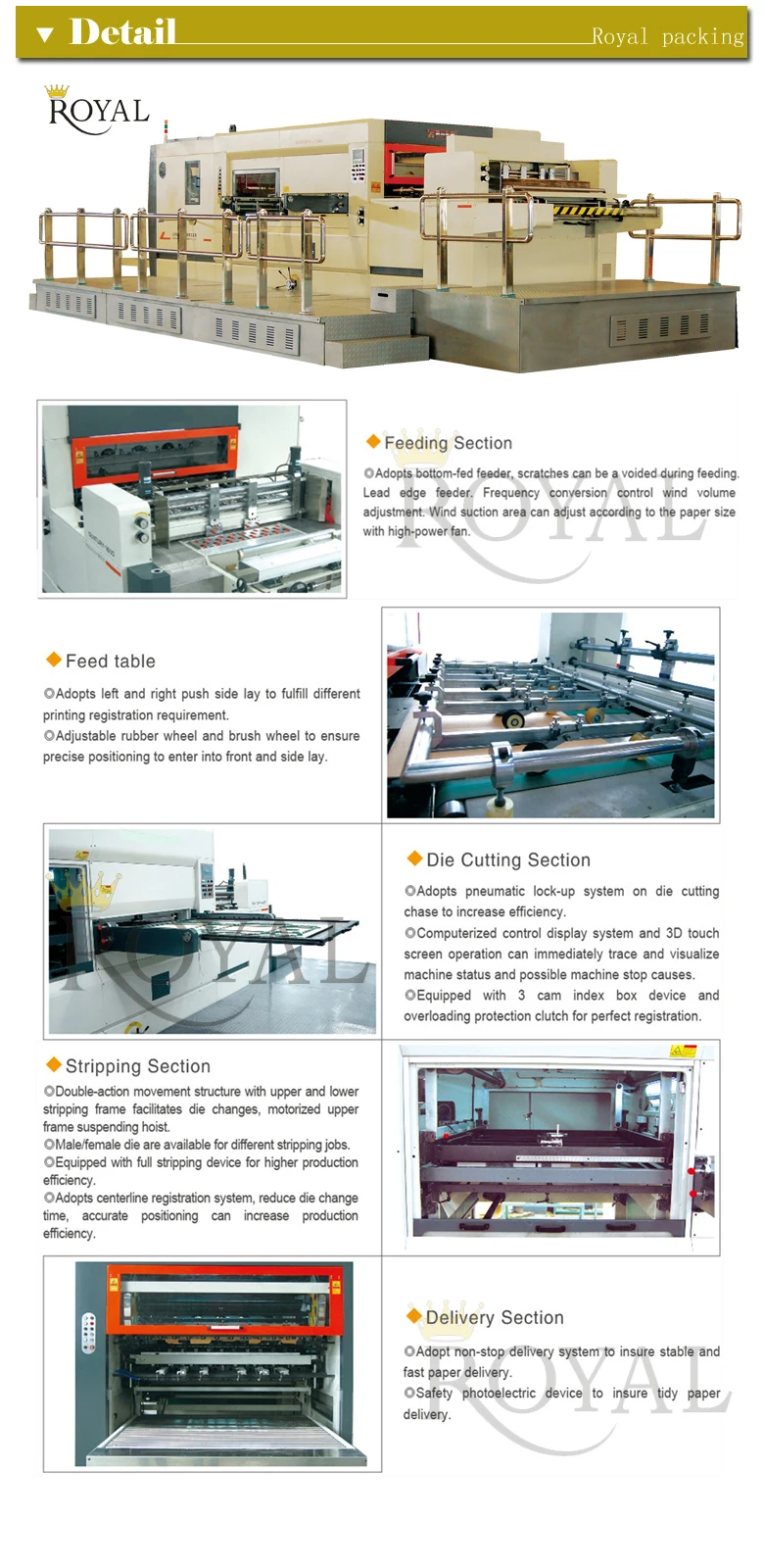

RYZ1650Q Lead edge feeder automatic die cutting machine with stripping section is our high-end high speed machine. They can die cut the corrugated board less than 9mm. High speed and precision lead edge feeder, complete stripping, automatic non-stop delivery and safety photoelectric detection device, etc. insure the process with high quality and efficiency.
Model
RYZ1500Q
RYZ1650Q
Max. Paper Size
1500*1100mm
1650*1200mm
Min. Paper Size
600*500mm
650*500mm
Max. Cutting Size
1480*1080mm
1630*1180mm
Max. Cutting Pressure
320x104N
400x104N
Stock Range
1.5mm≤Corrugated board≤8.5mm
1mm ≤Corrugated board≤8.5mm
Die Cutting Accuracy
±0.5mm
±0.5mm
Max. Mechanical Speed
4800s/h
4500s/h
Cutting Rule Height
23.8mm
23.8mm
Pressure adjustment
±0.9mm
±1.5 mm
Minimum Front Margin
10mm
10mm
Inner Chase Size
1500*1100mm
1650*1200mm
Total Power
41.5KW
39KW(double servo without air compressor)
Machine Dimension
10075*5170*2460mm (include the work platform)
10575*5372*2550mm (include the work platform)
Machine Dimension
9505*2820*2460mm (exclude the work platform)
10005*2920*2550mm (exclude the work platform)
Total Weight
31t
38t
Packaging & Shipping
Company Information
FAQ
Our Services
We have more than 16 years's experience in manufacturing paper machinery field.
Top quality, Competitive price, Timely delivery and Heart-to-heart service.
Warrantee: One year guarantee, life-long maintenance.
