3 phase 80-240V stepper motor driver YH3722

Price:

Price in USD:Details

Quantity:

Product Description

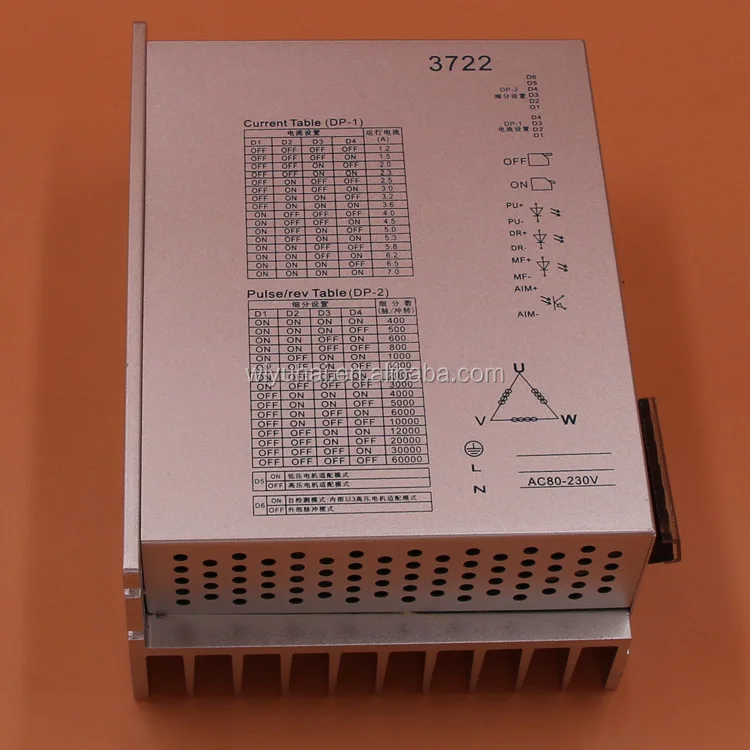

YH3722 3-phase stepper driver

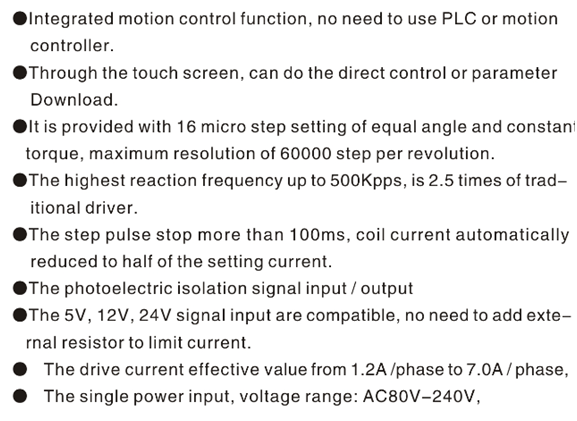

Key Features:

1,AC80 to 240V Supply Voltage

2,H-Bridge, 2 Phase Bi-polar Micro-stepping Drive

3,Suitable for 2-phase, 4, 6 and 8 leads step motors, with Nema size 23 to 42

4,Output current can be selected from 1.2 ~ 7.0A peak

5,Current reduction by 50% automatically, when motor standstill mode is enabled

6,Pulse input frequency up to 200 kHz

7,Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs

8,Selectable resolutions up to 600000 steps

9,Over Voltage, Coil to Coil and Coil to Ground short circuit protection. Key

Introduction:

Description:

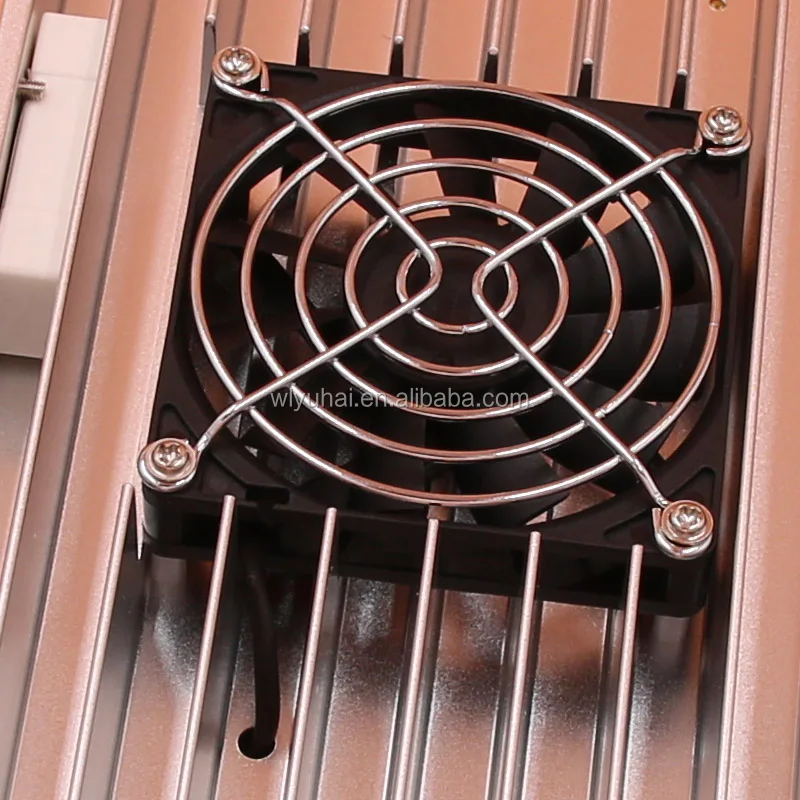

Cooling	Natural Cooling or Forced Convection
Environment	Space	Avoid dust, oil frost and corrosive gases
	Ambient Temperature	0°C-50°C
	Humidity	40 -80%RH
	Vibration	5.9m/s² Max
Storage Temp.	-10°C -80°C
Weight	Approx. 1.5 Kg
