XQ6032 Portable Knee type Servomill Horizontal Milling Machine
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60061091811):
Product Overview
Description

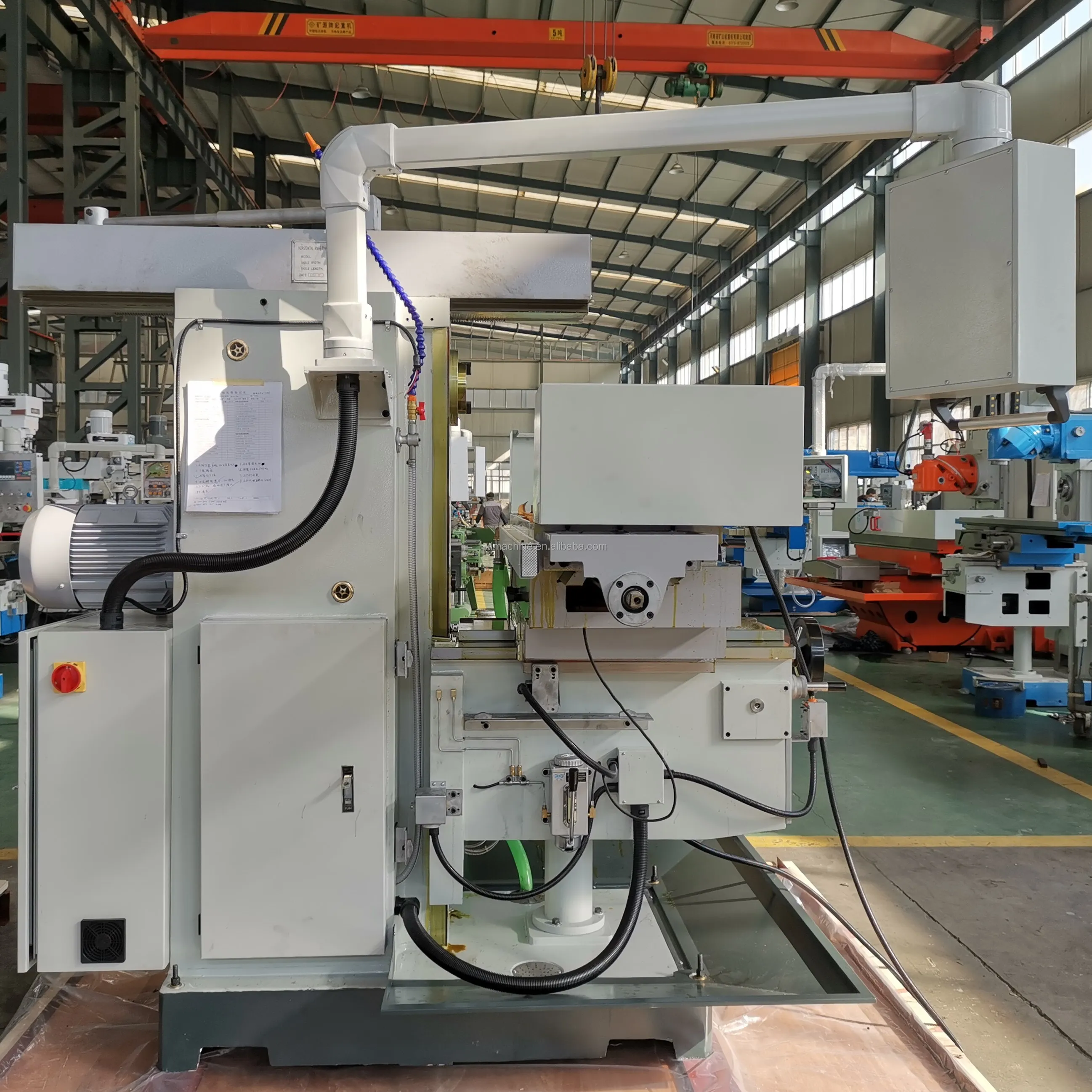

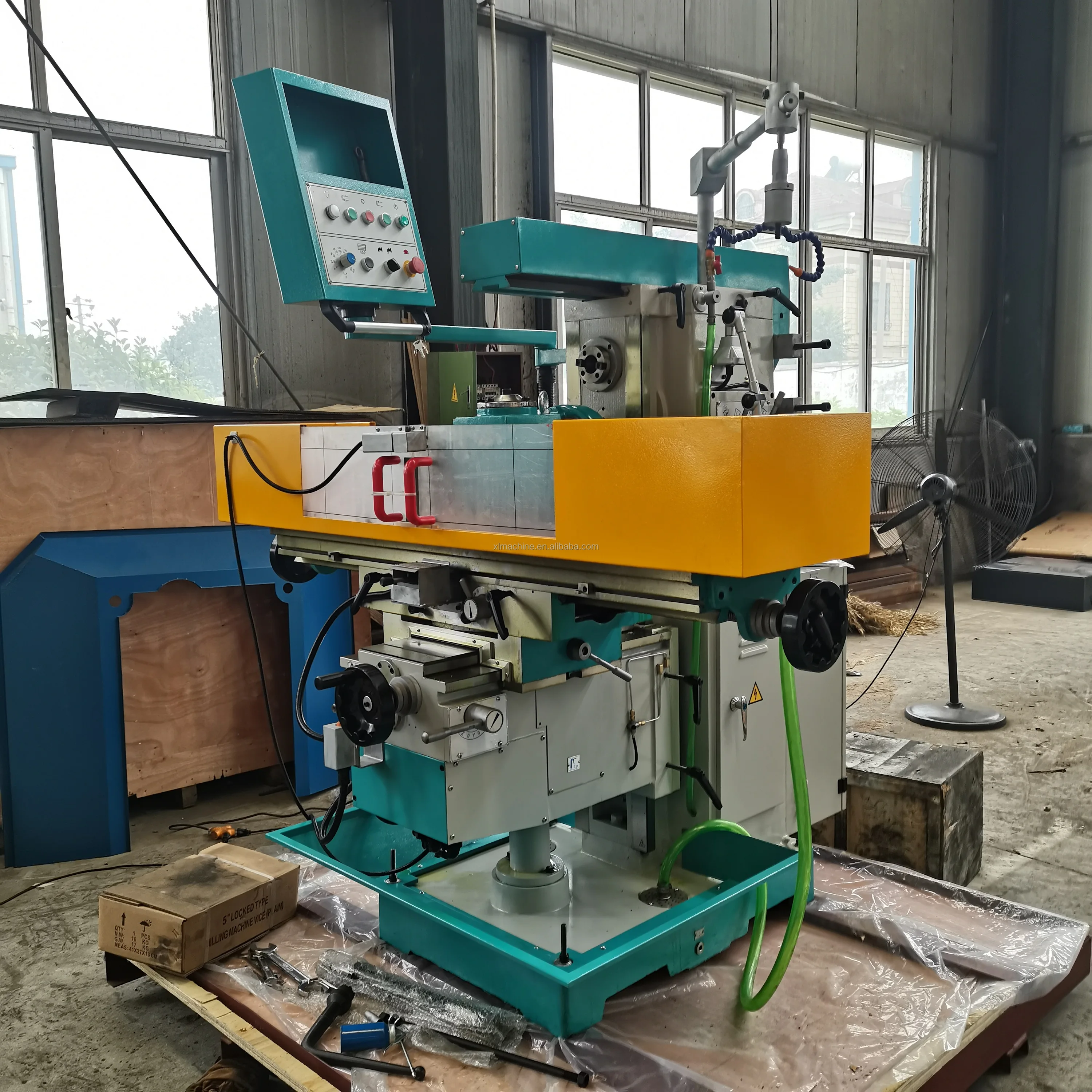

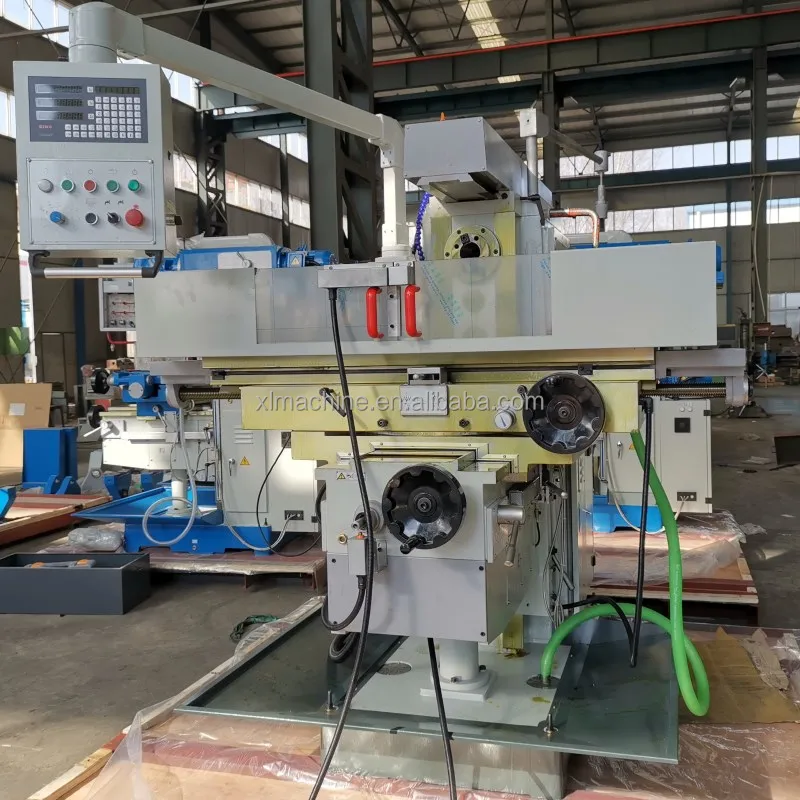

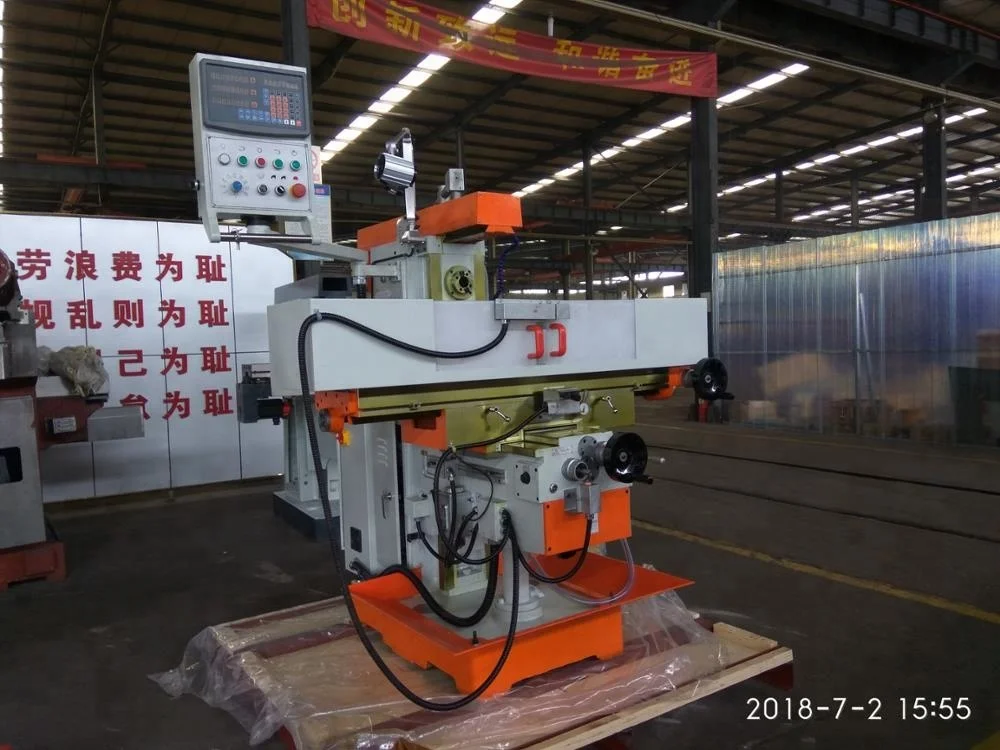

XQ6032 Portable Knee-type Servomill Horizontal Milling Machine
XL6032/XL6036(big model)
XL6032/XL6036(small model)
Brief Introduction
1). horizontal type milling machine
2). 12 spindle speeds, gear driven directly, good rigidity
3). table driven by servo motor
4). rotary table model is hot sell
Specificaitons of This Series
ITEM | UNIT | XL6036 XL6032 | XL6036C XL6032C | XL6036CL XL6032CL | ||
Table size | mm | 1325*360 1325*320 | 1600*360 1600*320 | |||
Table travel (X/Y/Z) | mm | 750/320/450 | 1100/320/450 | 1300/320/450 | ||
Table feed(X/Y/Z) | mm/min | 30-750/20-500/15-375 (8 steps) | ||||
table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | ||||
Spindle taper | IS050 | |||||
Distance between spindle axis and table surface | mm | 20-470 | ||||
Distance between spindle axis and arm surface | mm | 175 | ||||
Spindle speed range | r.p.m | 60-1800 (12 steps) | ||||
Slots (NO./width/pitch) | mm | 3/18/70 | ||||
Main motor power | Kw | 5.5 | ||||
feed servo motor torque | N.m | 10 | ||||
Overall size | mm | 1800*2100*1870 | 2245*2100*1870 | 2520*2100*1870 | ||
Net weight | kg | 2400 | 2450 | 2500 | ||
model continued:
ITEM | UNIT | XQ6032 XL6030 | XQ6032A XL6030A | XQ6032B XL6030B | XQ6032C XL6030C | |||
table size | mm | 1270*320 1270*300 | 1370*320 1370*300 | 1270*320 1270*300 | 1370*320 1370*300 | |||
table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |||
spindle taper | 7:24 ISO50 | |||||||
table rapid speed (X/Y/Z) | mm/min | 1335/1335/1000 | ||||||
table feed speed (X/Y/Z) | mm/min | 30-830/30-830/23-625 | ||||||
T-slot (N/W/D) | 3/14/80 | |||||||
horizontal spindle speed | rpm | 35-1500 (12 steps) | ||||||
distance from spindle axis to table surface | mm | 75-475 | ||||||
distance from spindle axis to ram | mm | 155 | ||||||
main motor | kw | 3 | ||||||
torque of AC servo motor | N.m | 10 | ||||||
overall size | mm | 1720*1680*1730 | 1820*1680*1730 | 1720*1680*1730 | 1820*1680*1730 | |||
N.W. | kg | 1500 | 1550 | 1600 | 1650 | |||
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
