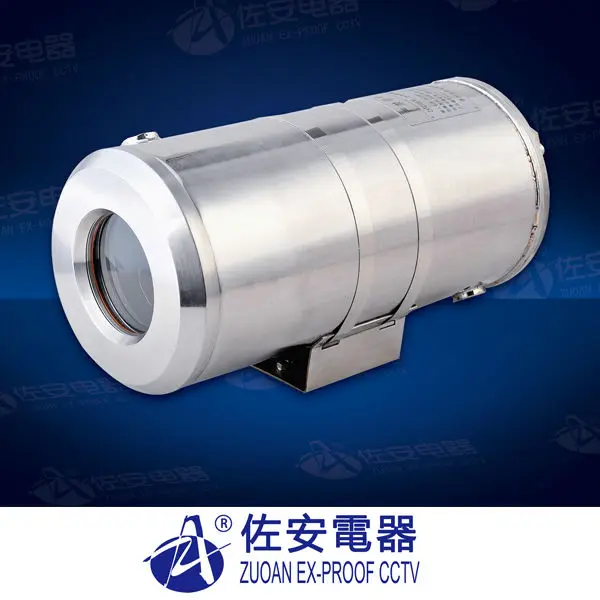

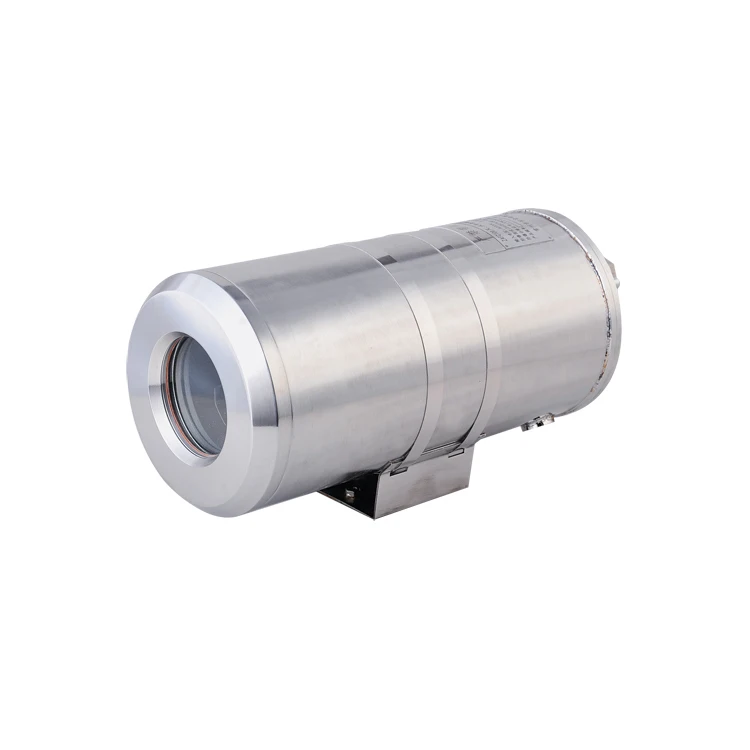

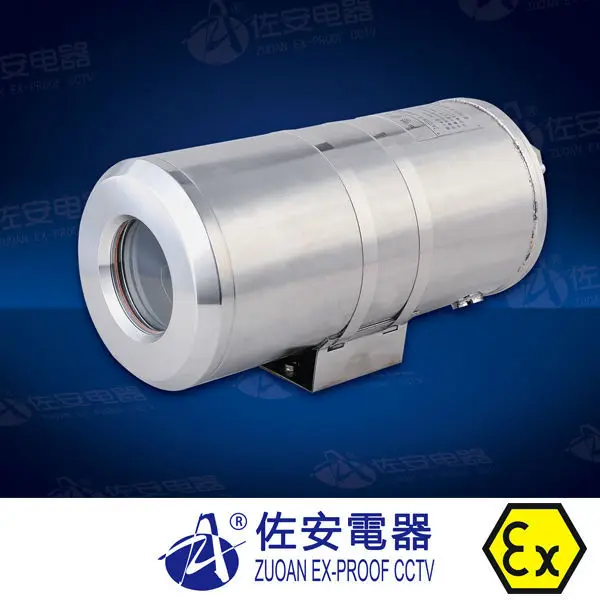

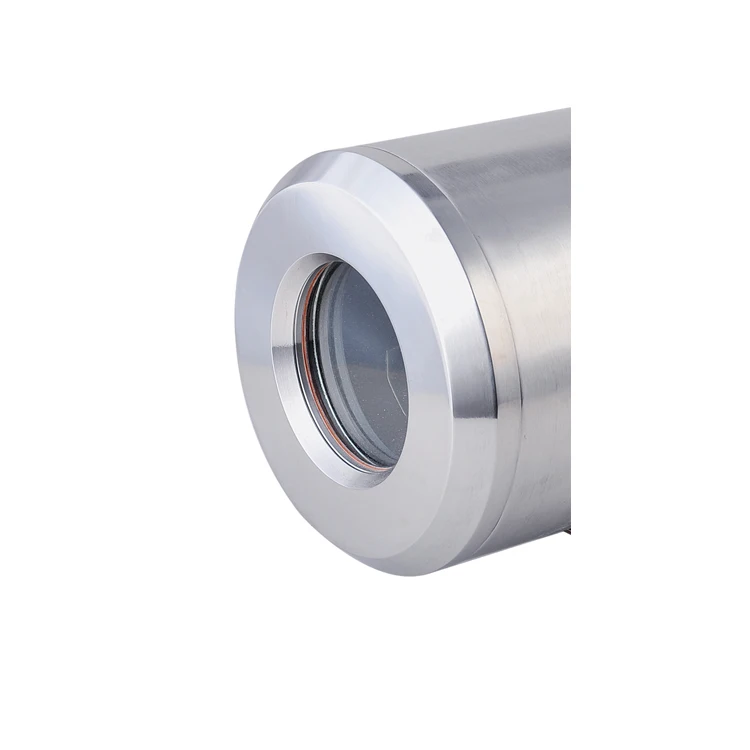

 High Temperature Resistant Air Water Cooling Camera housing For Furnance



 ZAFC106-S-7 ALI

Air water cooling camera description:

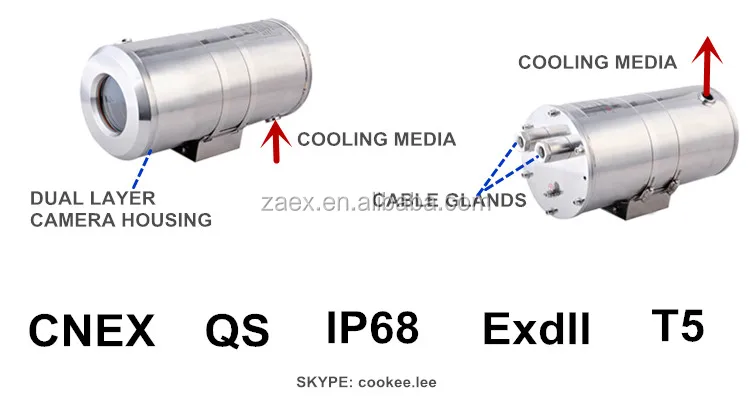

top 10 High Temperature Resistant Air water Cooling Camera housing ,ZAFC106 explosion proof high temperature camera takes the double stainless steel, Dissection can be water, cold air and other cool media. It suits for the circumstances with high temperature, and with explosive gas and dust. The inner construction is broad, and can install any kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is high. It is widely used in steel, glass factory, furnance monitoring system.

ZAFC106-S-F, air cooling camera housing

ZAFC106-S-S, water cooling camera housing



air water cooling camera main features:



·CNEx certificated
·Adopts two layers of stainless steel 304 or 316L for high temperature resistant
·Surface finish: electropolished or corrosion resistant paint finish
·IP68

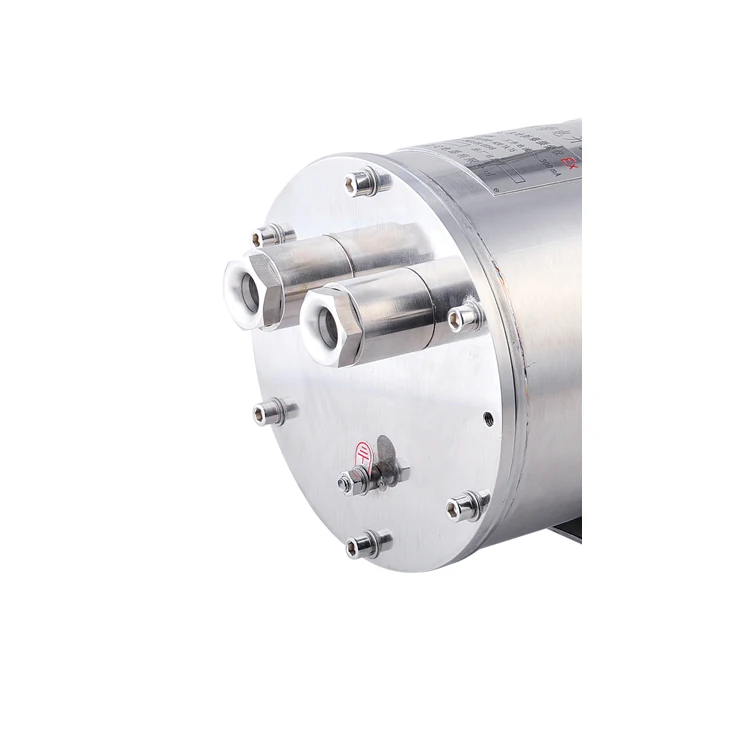

·2 cable glands
·Tempered glass with nanometer paint film
·Cooling way: compress air or auto running water
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder,  auto-heating,
·Output: AV/optical fiber/twisted pair


Product Parameter:



ModelZAFC106-S-FZAF106-S-S
Atmospheric pressure 80KPa~106Kpa80KPa~106Kpa
Ambient Temperature–25°c~+150°C (-13°~302°F)0°c~+250°C (32°~482°F)
Relative Humidity≤95% (+25°C)≤95% (+25°C)
Ex-proof markCNEX:   ·ExdⅡCT6  /·DIP A20 TA, T5
CNEX certificate no. CNEx 13.4248
Ingress ProtectionIP67IP67
Voltage InputAC85-220V,AC24V, DC24V,DC12V, optional
Power supply (within)AC85-265V
Tempered window glassΦ 100x thick:8 mm (in),Φ 80x thick:12 mm (in)
Overall dimension
LxWxH		375*163*185mm
14.8x6.4x7.3in		375*163*185mm
14.8x6.4x7.3in
Internal usable area260*80*80mm
10.2x3.1x3.1in		260*80*80mm
10.2x3.1x3.1in
Net weight9.1KG / 20LBS9.1KG / 20LBS
MaterialSS304 (industrical chemical factories, outdoors and so on)
SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
Auto-heatingoptionaloptional
Cooling Waypress airtap water
Cooling media pressure≤35°C(95°F), air supply:0.4-1.0L/s----------
Lens decoderoptionaloptional
OutputAV/ optical fiber/ twisted-pairAV/ optical fiber/ twisted-pair
Relative products

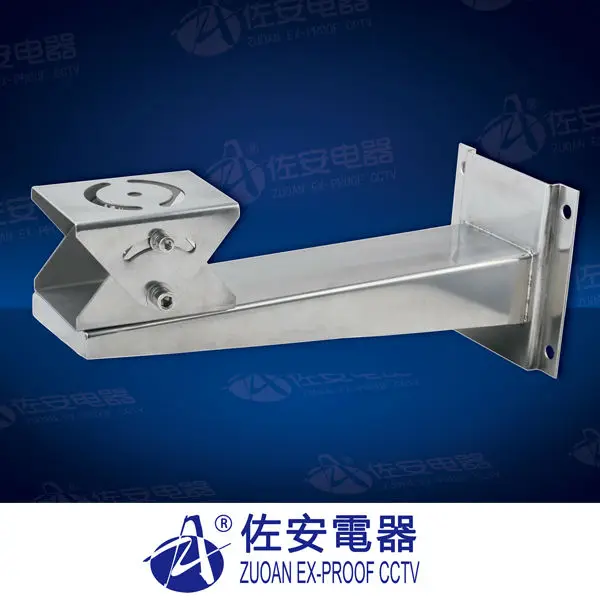

Brackets and Pan& tiltZAZ100-B,  bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series
ZAY200B,  pan and title for ZAF100A,100B,102, 106 series

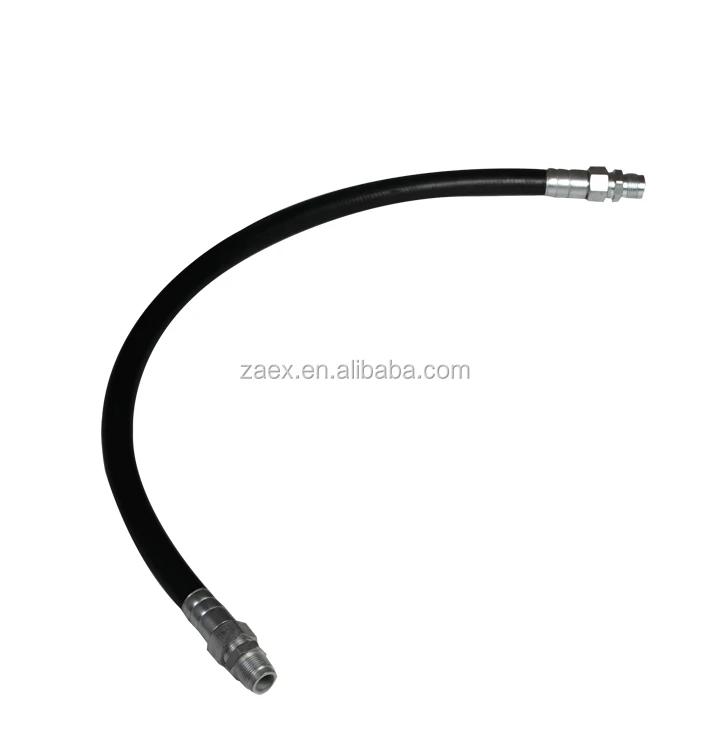

Flexibility tubeexplosion proof flexibility tube,NGe25×1000, NGe25×1500, NGe25×2000
 {φ25MM× 1000MM (L), φ25MM× 1500MM (L), φ25MM× 2000MM (L)}

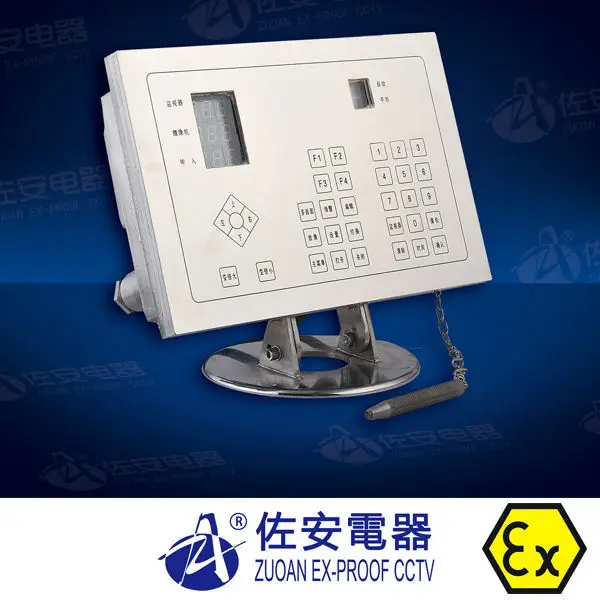

OthersZAJS400, ex-proof monitor ; ZAJ320, screen control panel; ZA-JXD4 junction box;
ZAJ320 optical transceiver ;ZAJ300, ditital video server(DVS) box, ZAJ340, hard disco video;
ZAJ340,network video recoder
