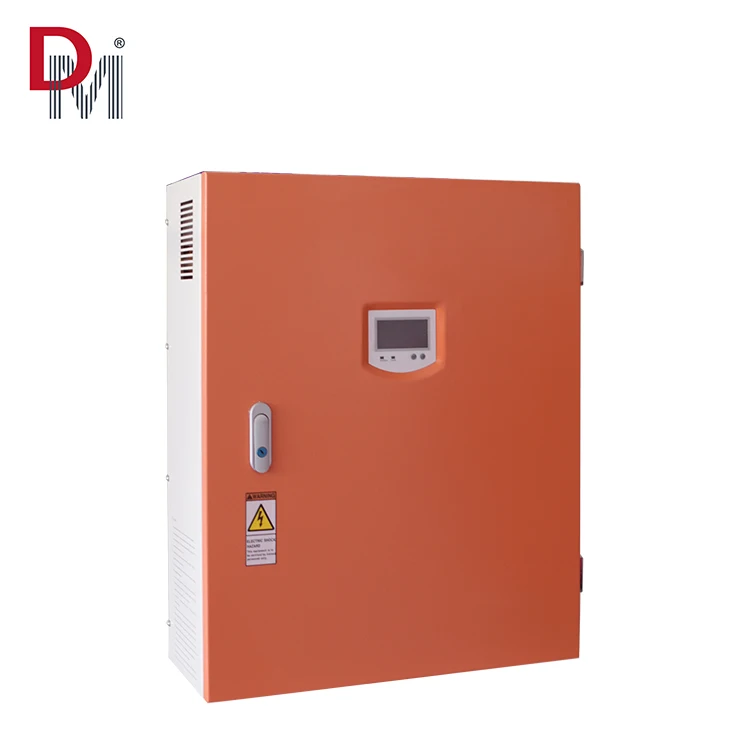

MPPT Solar Charge Controller 380V 30A 50A 60A 80A For 11KW 30KW Solar Power
- Category: >>>
- Supplier: Jinan Deming Power Equipment Co. Ltd.
Share on (60062141503):
Product Overview
Description
More produce
MPPT Solar Charge Controller 380V 30A 50A 60A 80A For
11KW-30KW Solar Power
Product Overviews
Properties of the solar charge controller
1. Design for off-grid solar power system.
2. Applicable to different kinds of batteries.

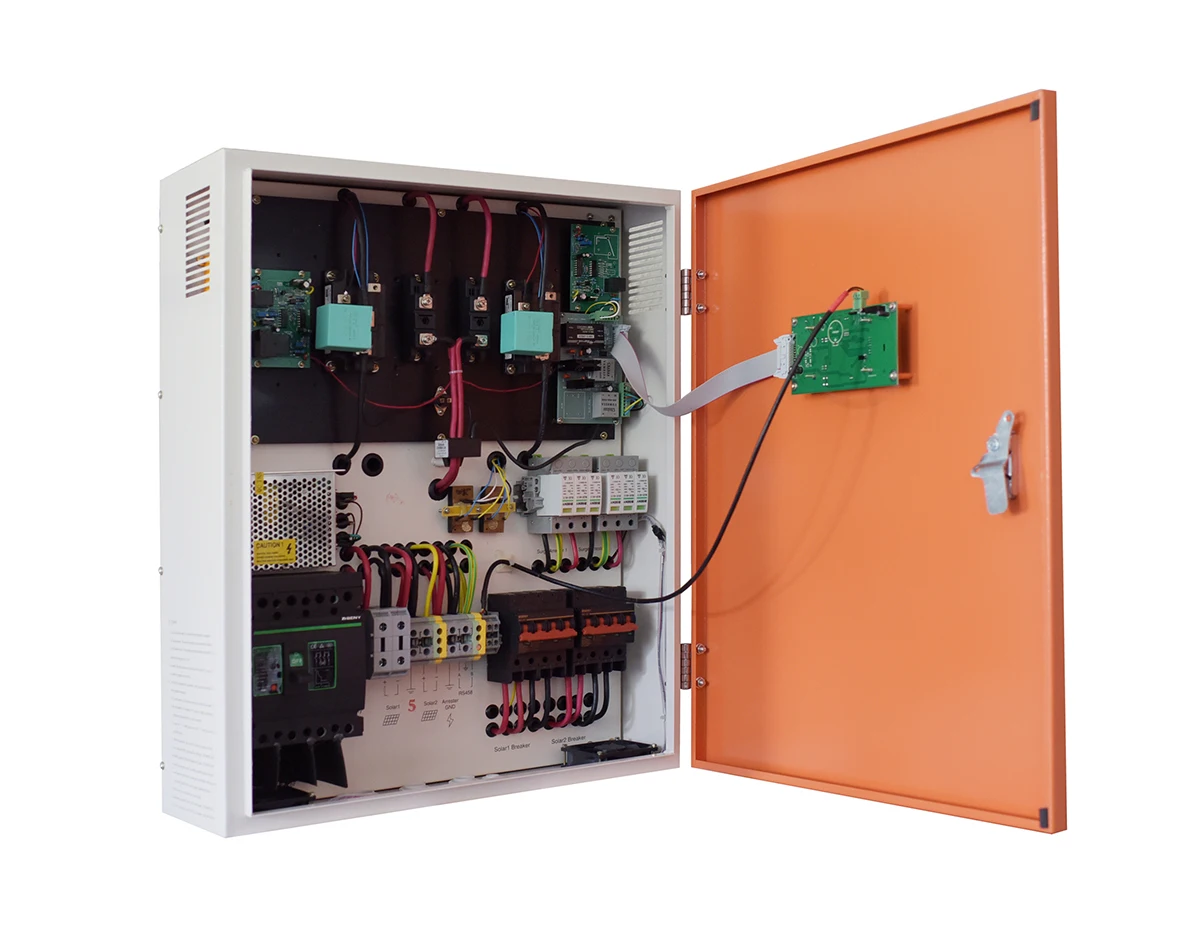

3. Modular design with simple structure and easy maintenance.
4. Automatic power control function.
5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.
6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.
7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.
8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)
9.Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.

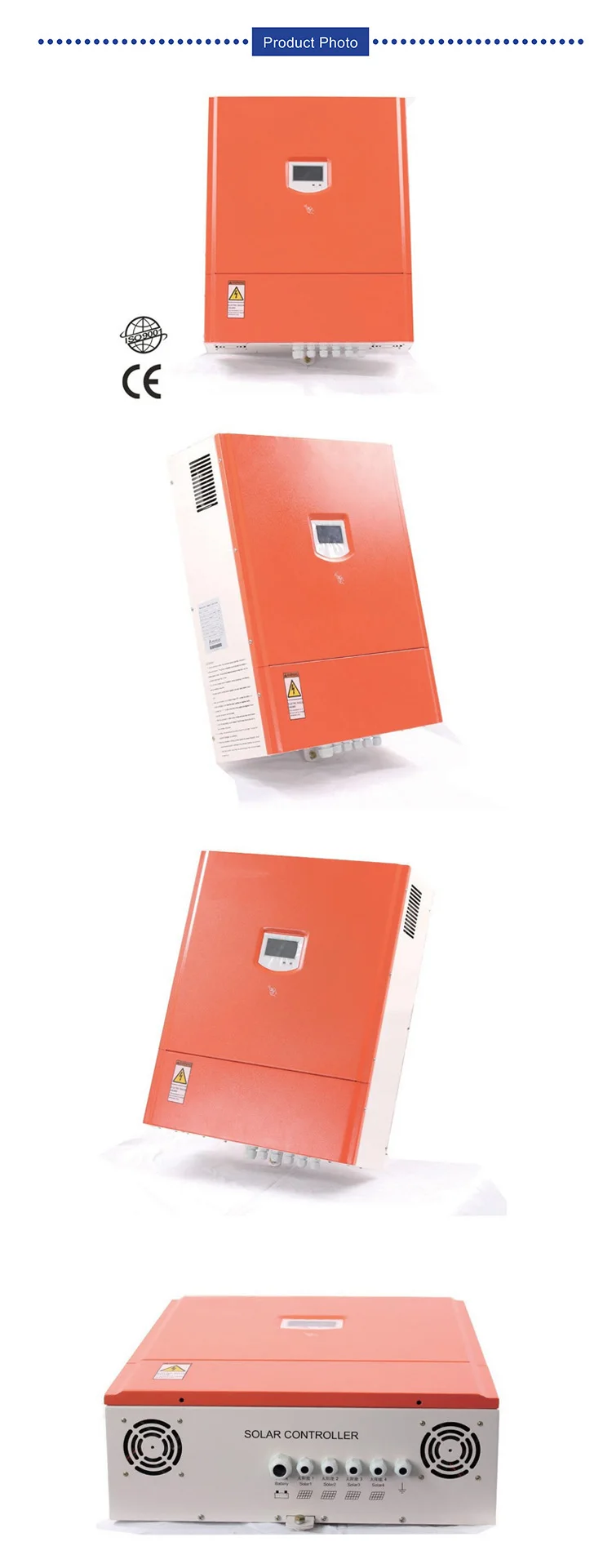

Detailed Images
Technical Data Sheet Of MPPT Solar Charge Controller 380V 30A 50A 60A 80A For 11KW-30KW Solar Power
Model | 384V30A | 384V50A | 384A60A | 384V80A |
Battery group rated voltage | 384V | 384V | 384V | 384V |
PV Rated current | 30A | 50A | 60A | 80A |
Input PV module road number | 1 | 1 | 1/2 | 2 |
Function | MPPT charge mode, auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc. | |||
Display mode | LCD | |||
Display content | solar panel voltage, solar panel current, solar panel power, battery voltage, charge current | |||
PV Max. input (open circuit) voltage | 750V | 750V | 750V | 750V |
PV Max. power | 11.5KW | 19.2KW | 23KW | 30KW |
Input DC voltage rang | 320-464V | 320-464V | 320-464V | 320-464V |
Floating Charge Voltage (adjustable) | 442V | 442V | 442V | 442V |
Stop charge voltage | 464V±2 | 464V±2 | 464V±2 | 464V±2 |
Recharge voltage | 432V±2 | 432V±2 | 432V±2 | 432V±2 |
Voltage drop between PV and battery | 1.5V | |||
Max itself power consumption | 100mA-150mA | |||
Work environment temperature | -30-60°C | |||
Relative humidity | <90% No condensation | |||
Applicable altitude | <3000m | |||
Noise (1m) | <40dB | |||
Degree of protection | IP20(Indoor) | |||
Cooling method | Forced air cooling | |||
*Communication interface (optional) | RS485/USB/GPRS/Ethernet | |||
*Temperature compensation(optional) | -4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C | |||
Product size(mm) | 520*430*200mm | 520*430*200mm | 760*600*180mm | 760*600*180mm |
Product Weight(kg) | 10kg | 10kg | 28kg | 28kg |
