T8 SMD 2835 led strip pcb for tube light /flexible aluminum PCB strip/rigid strip pcb (60062148507)

Share on:


Price:RUB 22.75
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

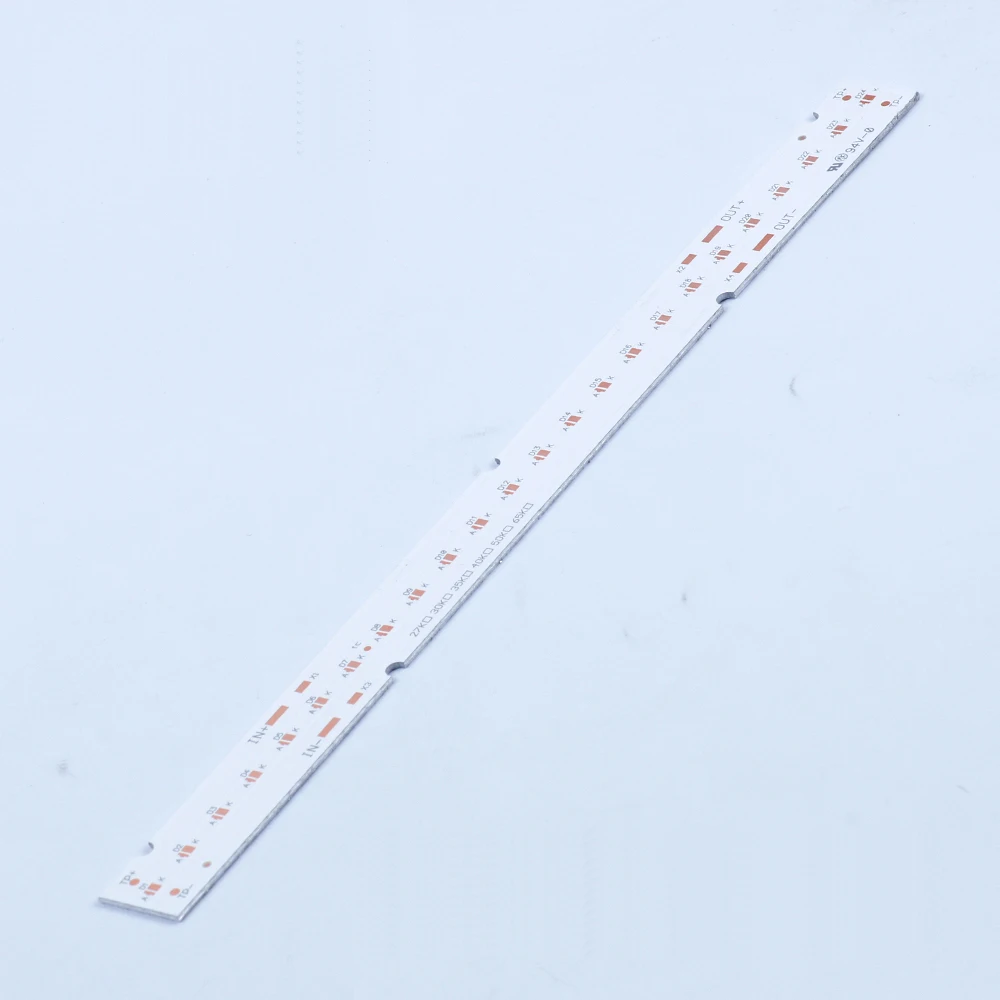

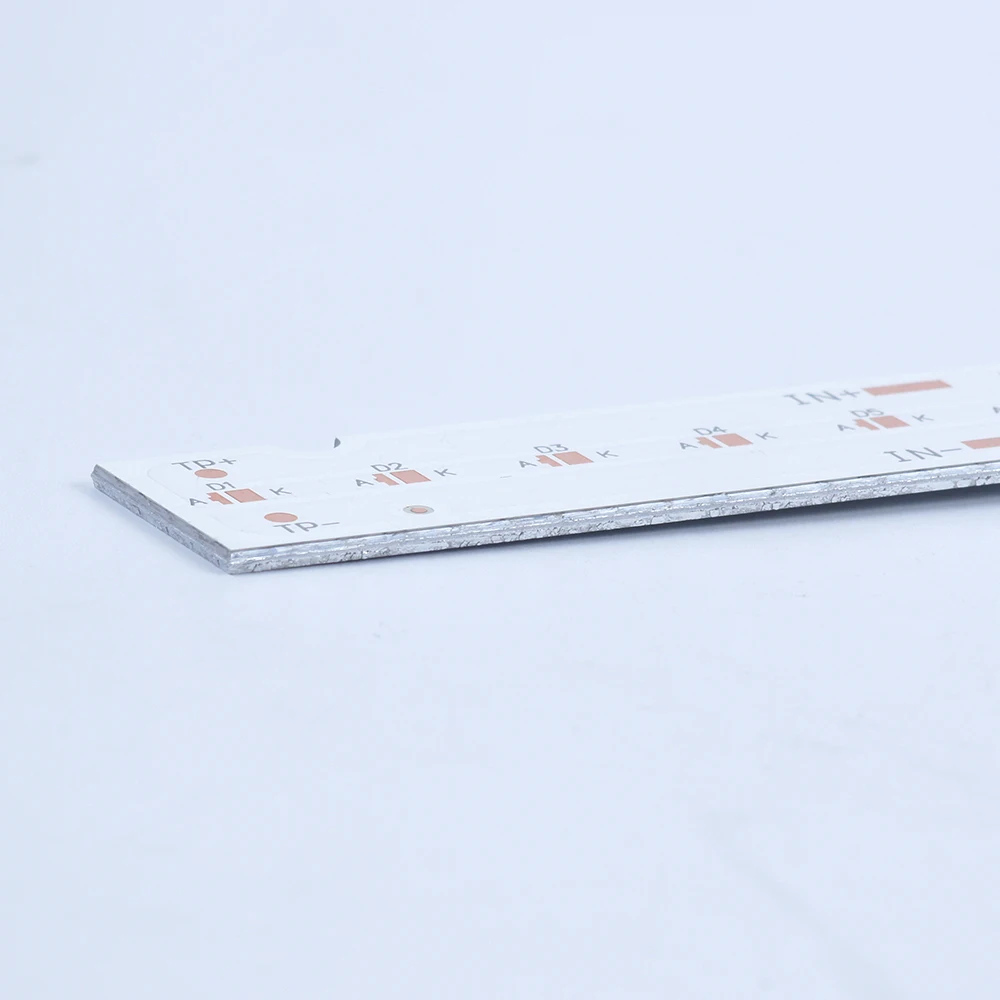

                  LED PCB for tube light strip aluminum PCB rigid stirp pcb














Factory numberAL9518
Size560x10.2mm
Thickness1.0MM
thermal Conductivity1w/mk
surface treatmentlead free HASL
solder maskwhite
copper thickness1oz
led source2835 0.2w/pcs








Our Ability: PCB design+PCB production+LED purchase+Assembly



Payment :50% before production ,full payment before shipping by TT or Paypal.



Delivery Time: 2-4days for sample,mass production  depends  on the QTY.







Our Services



Our Experience:

 1. 10 years experience manufacturer in pcb field.



 2.We join in international LED Lighting exhibition every year.



 3. Mature pcb technology and proven pcb equipment.



4. Excellent service and prompt delivery



 5. Our pcb get ISO and UL Certificates and meet ROHS stand







♦We can do for you:







 u 1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB.



 u 1-6 oz copper thickness.



 u 0.2 mm hole size.



 u 0.1 mm line width/space.



 u PCB design and layout.



 u Assembly,component purchase.







 Our PCBs are used for wide range of electronic products,



 Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,



 Telecomunication ,LED, etc.





 The information about our company's process capacity for your reference:



Item

Manufacture Capability

Material

FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based

Layer No.

1-16

Finished Board thickness

0.2 mm-3.8mm’(8 mil-150 mil)



Board Thickness Tolerance

±10%

Cooper thickness

0.5 OZ-11OZ (18 um-385 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02’(0.5mm)

Images

Min Trace Width (a)

0.1mm (4 mil)



Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)



SMD Pitch (a)

0.2 mm(8 mil)



BGA Pitch (b)

0.2 mm (8 mil)



Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)



Soldermask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL

2.5um

Lead free HASL

2.5um

Immersion Gold

Nickel 3-7um Au:1-5u''

OSP

0.2-0.5um

Outline

Panel Outline Tol (+/-)

CNC: ±0.125mm, Punching: ±0.15mm

Beveling

30°45°

Gold Finger angle

15° 30° 45° 60°

Certificate

ROHS, ISO9001:2008, SGS, UL certificate

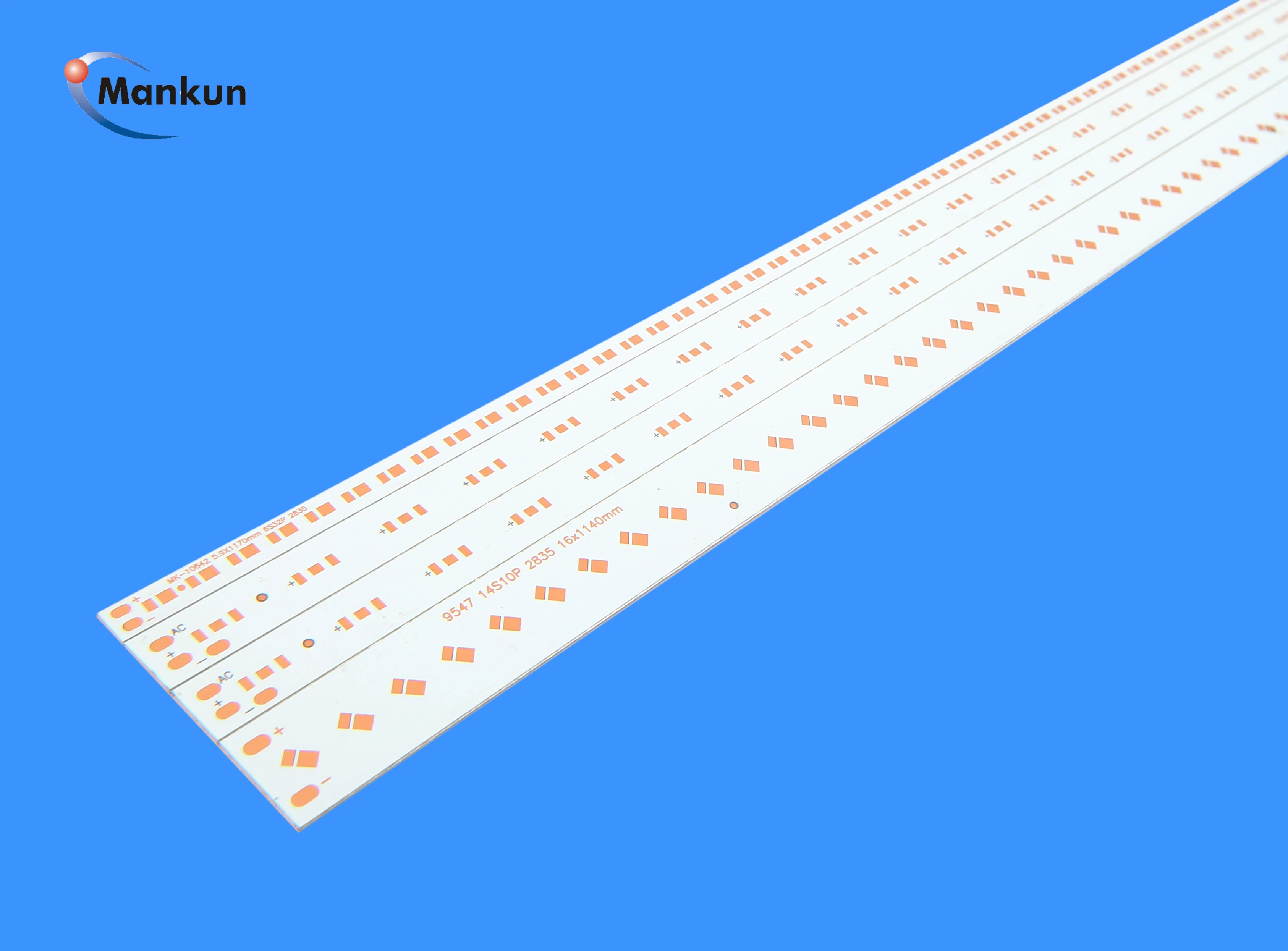

 ♦ some Products show :







 Our Market :






   Welcome the whole world friends send inquiry to us and visit Mankun



Packaging & Shipping



Shipping Method and Payment terms:



 1. By DHL, UPS, FedEx, TNT using clients account.

 2. our DHL, UPS, FedEx, TNT forwarder.

 3. By Paypal,T/T,Western Union,etc.

 4:Samples full payment before production, mass production 30%deposite,70%balance before shipping











let us see our Production line:






DSC00078 .JPG





 Mankun Office:











Mankun in 2013 Moscow LED Lighting Exhibition





 Our Servcie:

1.Reply your inquiry in 24 working hours.

2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality PCB.





There are many PCB Suppliers in China,why you can choice Mankun Electronic.



1. We are a professional Metal Core Manufacturer.



2. All of the products to meet all the demands.



3. Make sure the lead time and offer the best quality for the customers.



4.ERP system track with production scheduling,ensure the lead time for our customers.



5.Native Chinese and English communication and high technical support to solve the problems to improve the new requirements for you, such us design improvements, production etc.



6.No MOQ, trial/small/mixed/bulk orders are all welcome.



7.International Certificates: UL:E334090 &ISP9001:2000 Certificated.







Do not hesitate to contact with us! We are looking forward to hearing from you soon.



Welcome the whole world friends send inquiry to us and visit Mankun
