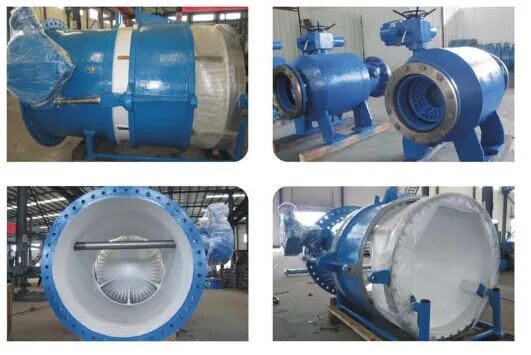

Fixed Cone Valve

Product Overview

Description

Fixed Cone Valve



Description



Fixed Cone valves are largely used in applications requiring control of water under free discharge (into the atmosphere). This kind of valves controls and dissipates enormous amounts of energy by breaking up the discharge water into a large, hollow, expanding jet.







Applications:



It is capable of operating throughout its range without cavitation or vibration.It is often used in below systems:



1 Water discharging valve for hydro turbine generator set in accidents situation(by-pass free discharging valve)



2 Discharging valve for Dam of reservoirs



3 Reservoirs water supply pipeline flow regulating valve



4 Water pressure control valve for each region of City water supply system



Fixed Cone Valve Properties and Features

1 The relationship between Valve Open degree and discharging fluid is linear scale in the full whole range.Can precisely control and adjust fluid.

2 Have an excellent energy dissipating performance.

3 Have an excellent cavitation protection function

4 small Handling torque

5 low and small vibration

6 Tight sealing, long lasting working life

7 Low Friction loss



Structures



1 Spray nozzle



2 valve body



3 Guide rail



4 Blade



5 Gasket ring



6 sleeve gate



7 Cone body



8 valve seat



9 Back valve body



10 water deflector



11 sliding block



12 swing arm



13 valve shaft



14 driving head





Fixed Cone Valve Main Components and Materials
