Trustworthy china supplier small capacity modular absorption chiller

Product Overview

Description

Trustworthy china supplier small capacity modular absorption chiller



HCM-W series of water cooled industrial chillers is mainly used in cooling molds made by plastic molding machines. This product can accurately control mold temperature, shorten injection cycle and accelerate product shaping, improve the surface finish of plastic products, reduce surface marks and internal stress on plastics, make sure the product neither shrink nor deform. It also applies to the plating industry, food industry, electronics manufacturing, dyeing industry, ultrasonic mechanical cooling and so on.





Features of water chiller



1) Cooling range: 5 °C ~ 35 °C.

2) Water tank made of SUS304 stainless steel.

3) P.I.D temperature control, temperature control is accurate and reliable.

4) PC board fault indication when a failure occurs, you can accurately detect the fault or abnormity.

5) Using an independent anti-freezing temperature controller to prevent freezing.

6) Compressors and pumps are equipped with overload devices.

7) Low and high voltage switch control, flexible and adjustable, well protects the compressor.

8) Hydrophilic chip condensers to have better heat exchange effect.

9) Spiral shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.

10) Refrigerant: R22, environmentally friendly refrigerant R410A is also optional.

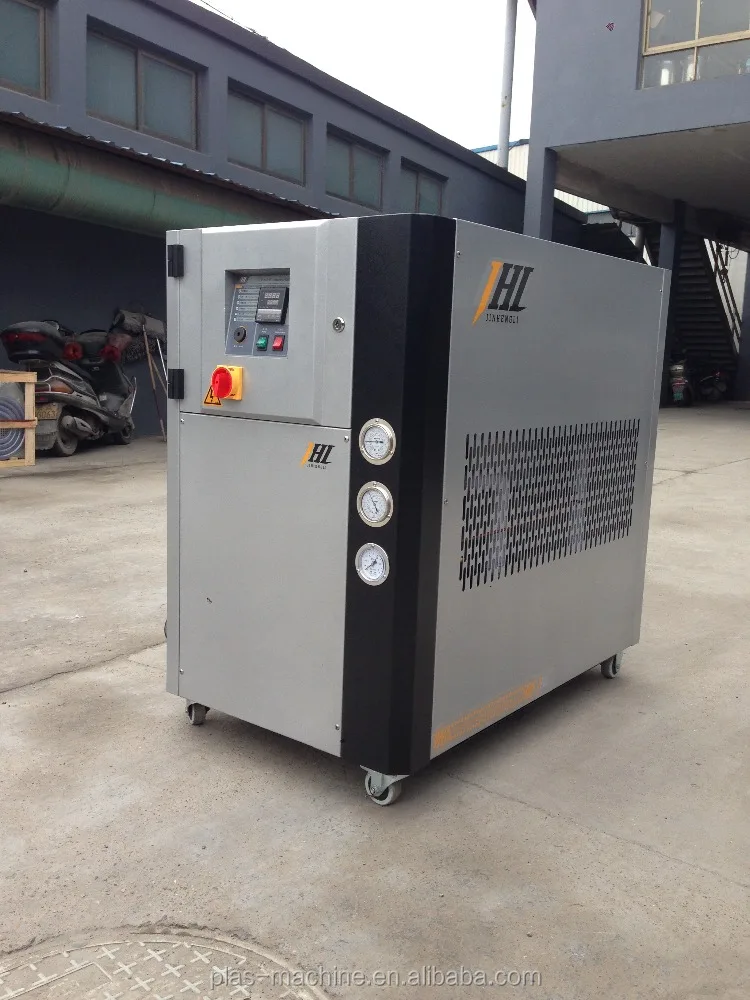

Picture of water chiller HCM-5W

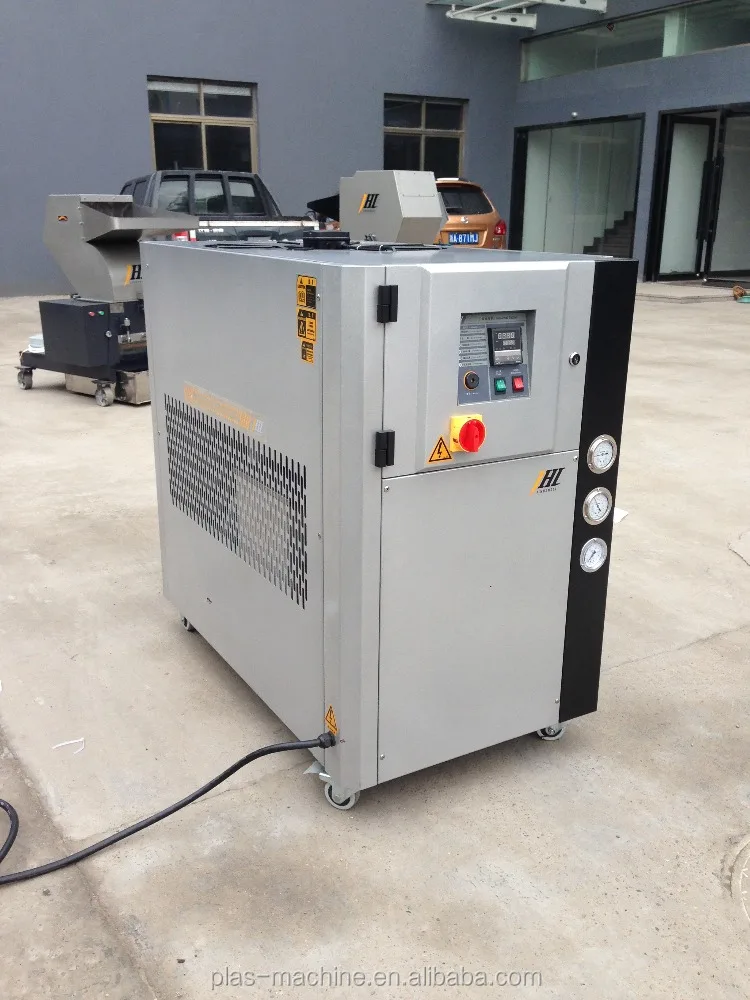

Picture of  industrial Air cooled chiller  HCM-5A

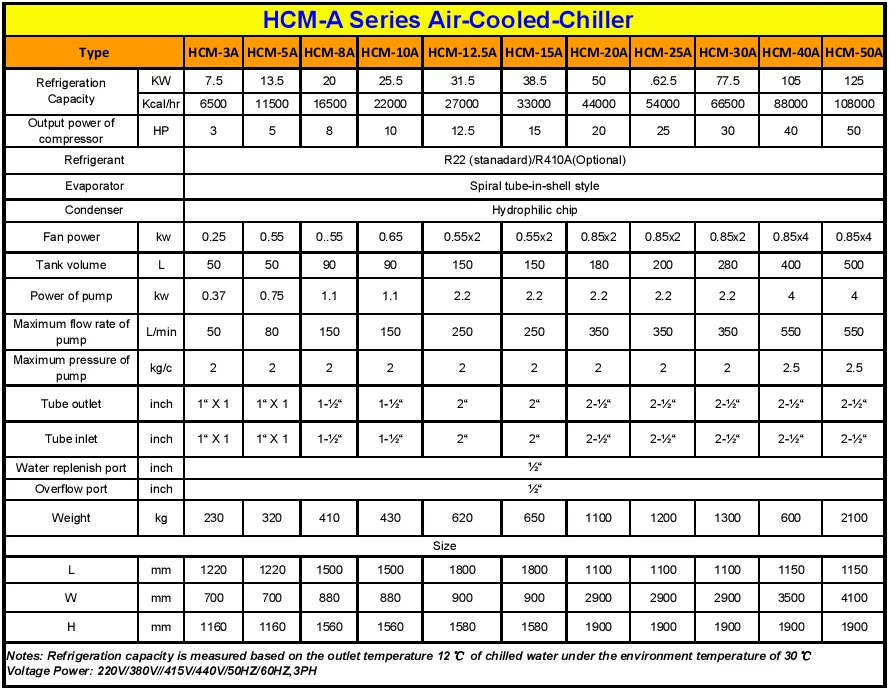

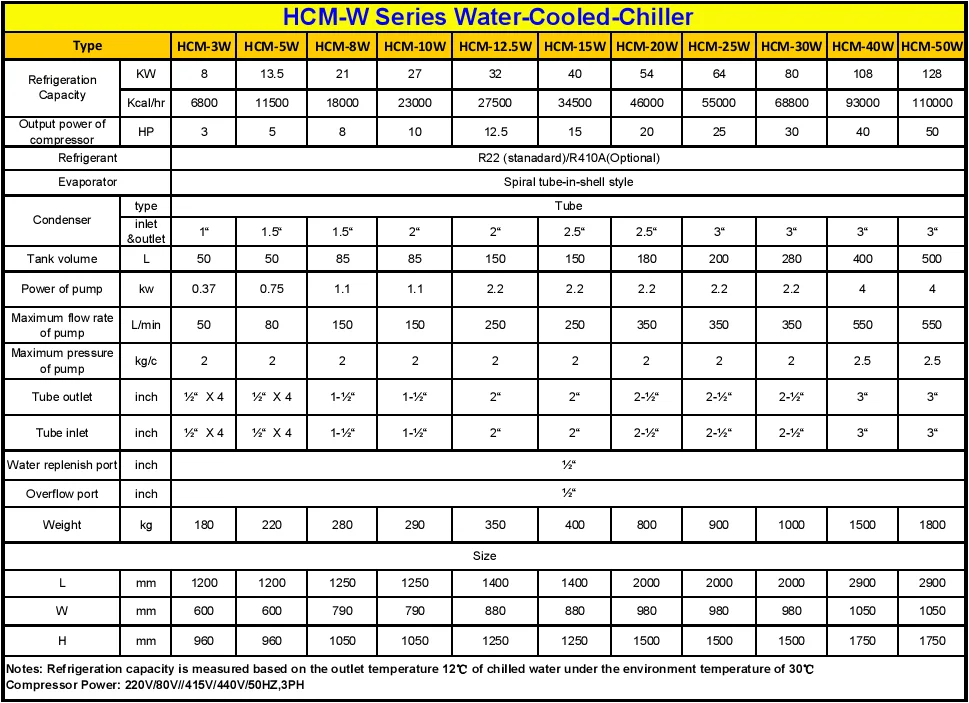

Specifications











Safety Device



1. There is aniti-freezing temperature controller to prevent freezing

2. There is low and high voltage switch controller to well protect the compressor

3. Compressors and pumps are equipped with overload devices

4. The power is of reverse protection







Setting Brand



1. Expansion valve (Brand: Emerson, America)

2. Drying filter(Brand: Emerson, America)

3. Applicants (Brand: Schneider, France)

4. Compressor (Brand: Dakin, Japan/Copeland, America)







Notes



1. Refrigerating capacity is measured at an amibient temperatre of 30℃, outlet water temperature at 12℃. So, when the outlet tempearutre is higher, the refrigeratting capacity will be even higher.

2. We reserve the right to change specifications without piror notice







Our Product Range

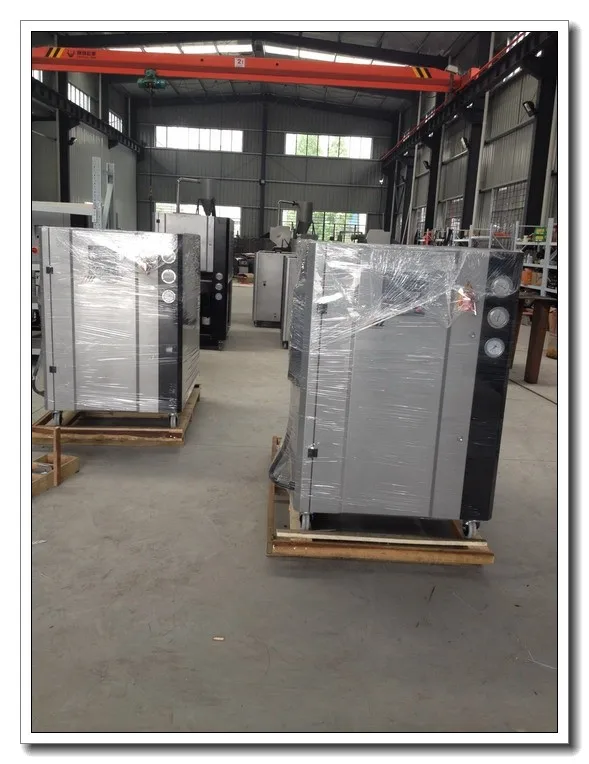

Packing & Shipping







About us



Hangzhou Hengli Plastic Machinery Co., Ltd. is a professional manufacturer of auxiliary equipment for plastic Injection, Mold and Extrusion machines, and we have been in the plastic machine field for almost three decades, specialized in Plastic granulator, Hopper dryer, Plastic dehumidifier ,Plastic Mixer, Vacuum Autoloader, Plastic granulator,Cooling chillers,Mold Temperature Controller and so on.

Clients' continuous recognition and confidence in our products not only enriched our product range and also accelerated growth of our company. "Contributing to the World through high quality and low cost" it is our goal. This is made possible by more than 25 years of profound experience and plastic field.
