outdoor flexible led curtain,led video curtain/rental video wall/led mesh curtain/mesh panel
[ Characteristic of Rental LED Display Screen ]
Famous Brands Raw Material Selection
1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.

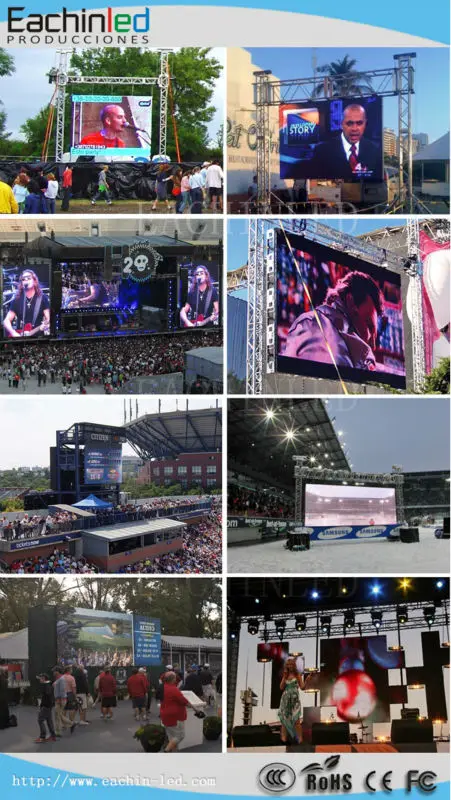

[Photos of Rental LED Screen]

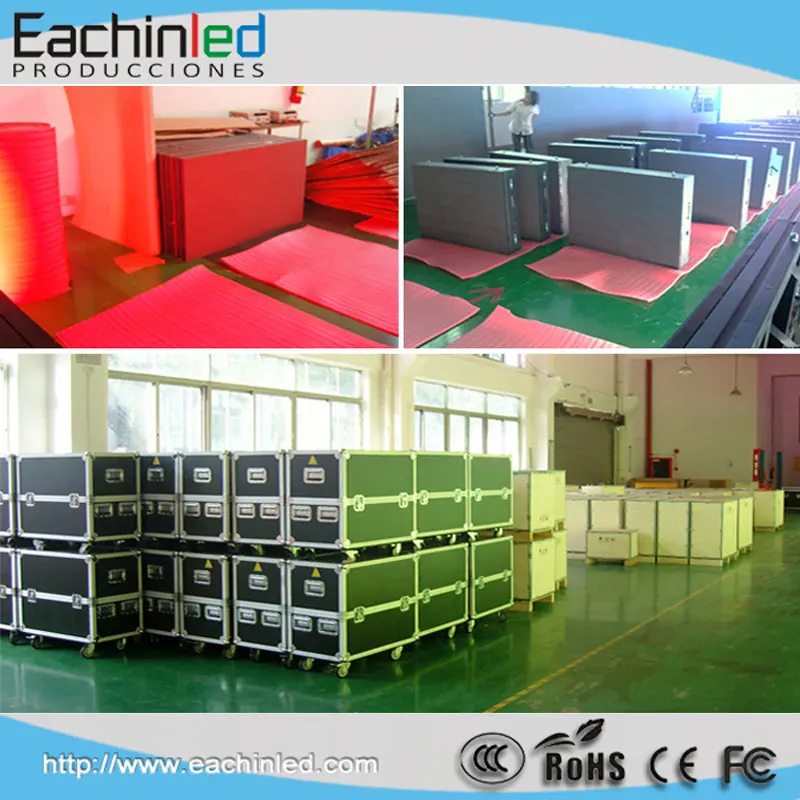

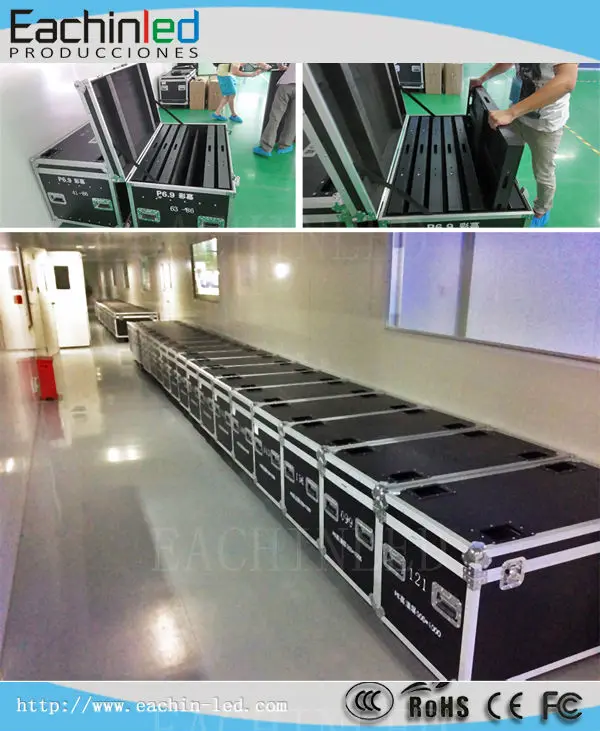

Packaging & Shipping

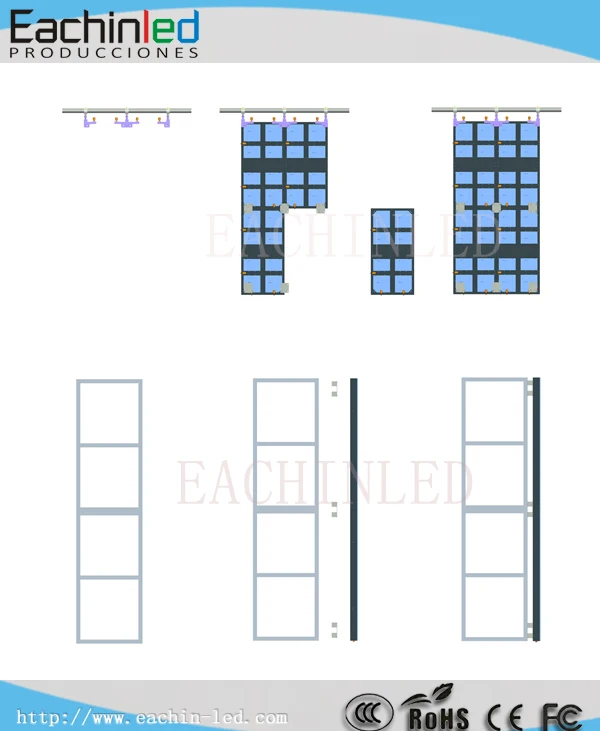

[Hanging The LED Curtain Display Screen]

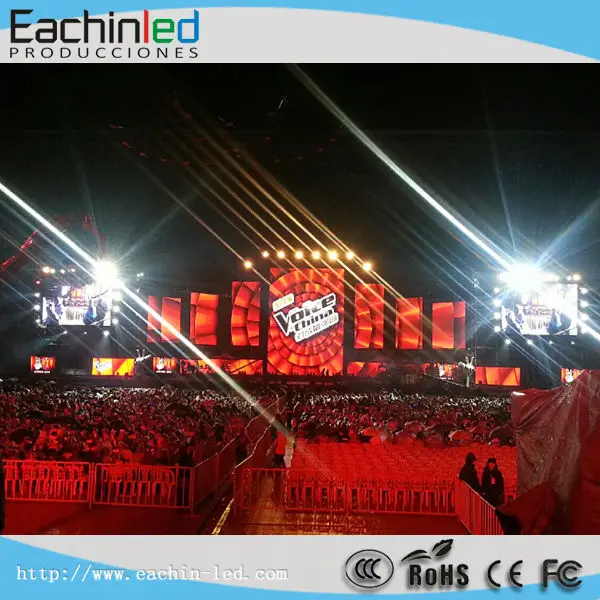

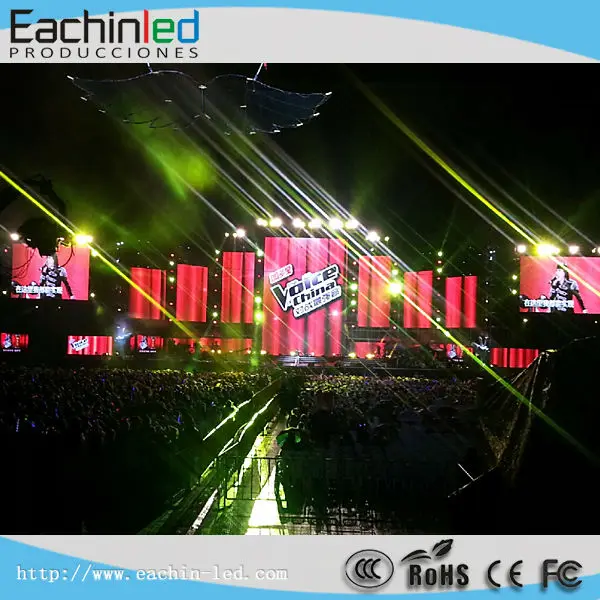

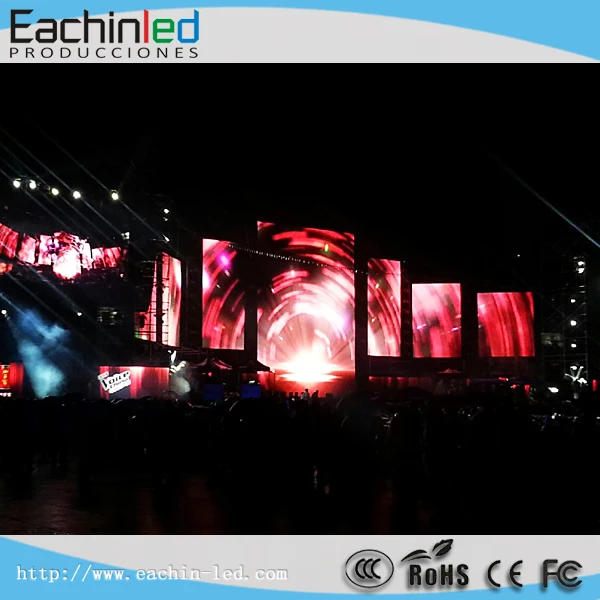

[Photos of Project On Rental Aluminum LED Display Screen]

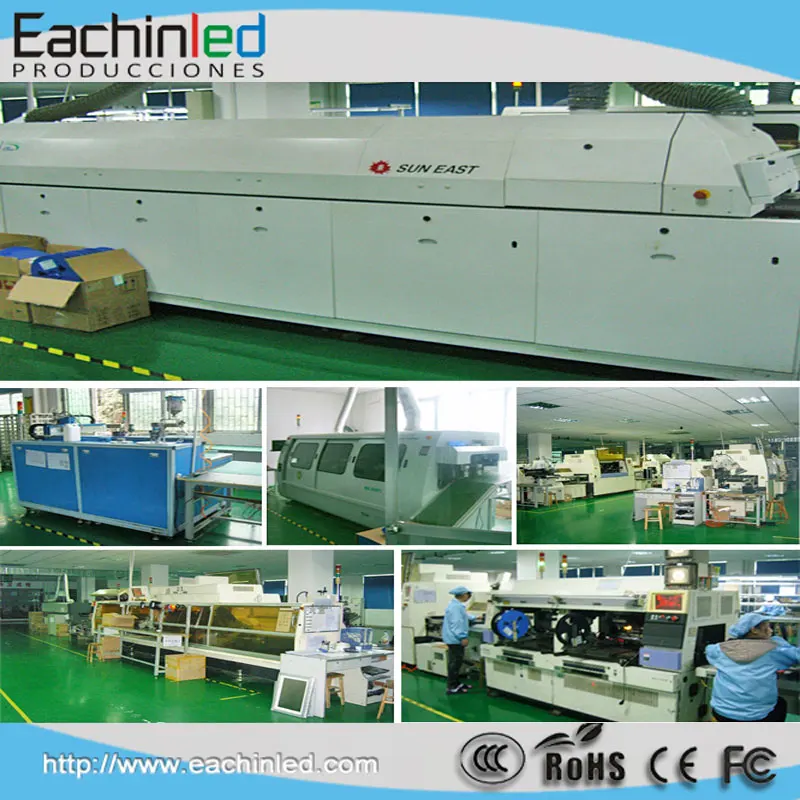

[Company Information]
[Specification of LED Video Curtain Display Screen]
Aluminum Rental LED Curtain Display Screen
Module
Pitch/mm
P6.944 (Indoor)
P5.2 (Indoor)
P8.925 (Outdoor)

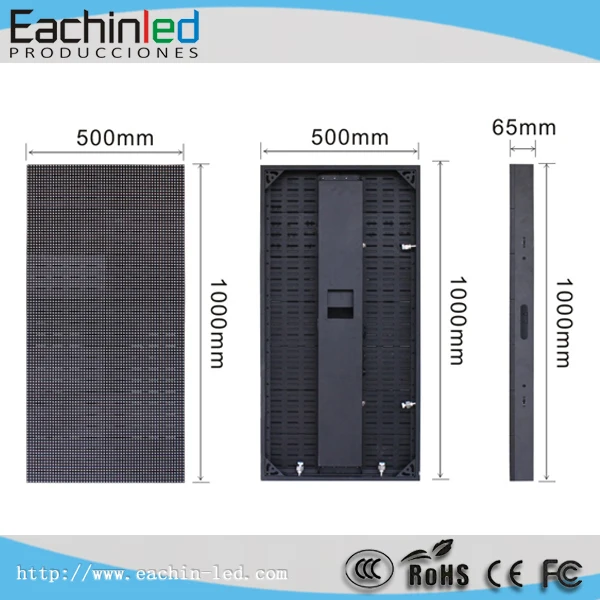

Cabinet size/mm
500x1000
500x1000
500x1000
Density of pixel/(dots/m2)
20,736
36,864
12,544
Led encapsulation
SMD3528
SMD3528
SMD3535
Resolution of module
72x144
96x192
56x112
Main
Optimum viewing distance
≥7
≥5
≥8
View angle / °
140 H,120 V
140 H,120 V
140 H,120 V
Average power consumption/W/m2
150
120
400
Max power consumption/W/m2
300
200
800
Driving method
1/9 scan constant current
1/8 scan constant current
1/4 scan constant current
Refresh rate Hz/S
≥2500
≥2500
≥2500
Luminance of white balance
≥1500cd/m2
≥150cd/m2
≥5500cd/m2
Operation of Environmental Temperature/°C
below 30 to above 50
Working voltage
110-220 VAC/+/- 10%
Grey scale/color
displaying colors≥16.7M(synchronized)
Brightness adjustment
256 levels of each color(manually),8 levels of each color(automatically)
Input signal
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system
linsn(sending card,receiving cards and Hubs)
Average of non-failure life
>5,000h
Life span
>100,000h
Functionless dot rate
<0.0001
[Our Services]
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
