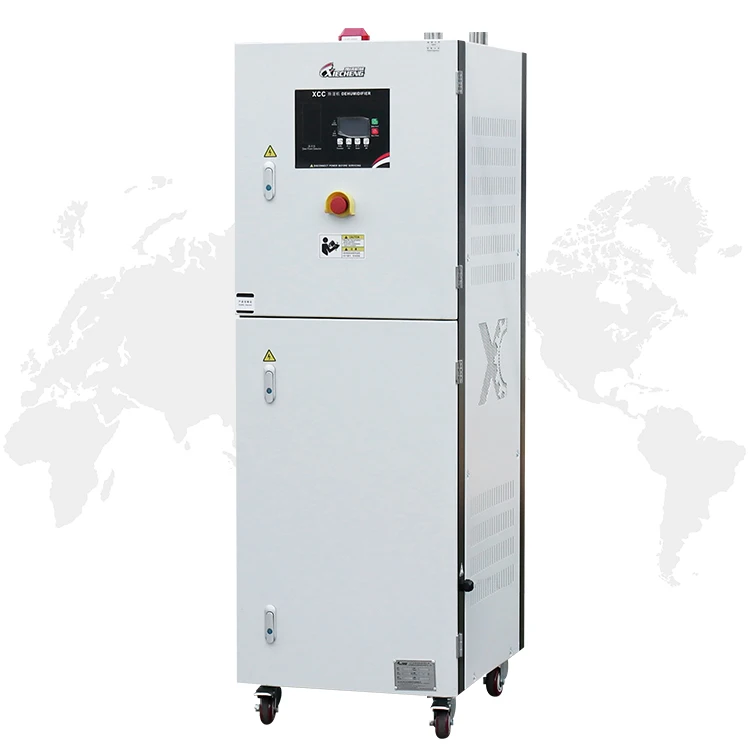

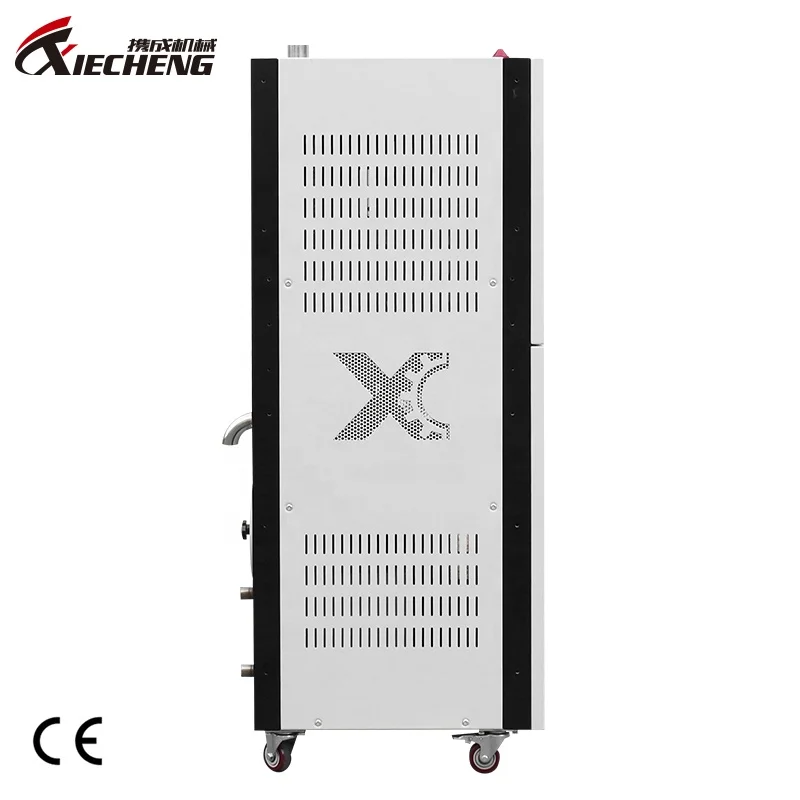

Automatic Desiccant Rotor Dehumidifying Dryers for Plastic industry
- Category: >>>
- Supplier: Guangdong Xiecheng Intelligent Equipment Co. Ltd.
Share on (60064135377):
Product Overview
Description
Product Description
Honeycomb Dehumidifier
The honeycomb dehumidifying series are mainly used to dry hygroscopic engineering plastics, , such as PA, PC, PBT, PET, etc.
The honeycomb rotor can provide stable low dew point dry air and it will not pollute the raw materials due to the aging of molecular sieve like in a double-barrel molecular sieve dehumidifier. This series provide a variety of air volume models for selection, and the maximum dry air volume can reach 4000m3/hr.
The honeycomb rotor can provide stable low dew point dry air and it will not pollute the raw materials due to the aging of molecular sieve like in a double-barrel molecular sieve dehumidifier. This series provide a variety of air volume models for selection, and the maximum dry air volume can reach 4000m3/hr.
Product Specifications
Model | XC-D30H | XC-D50H | XC-D80H | XC-D120H | XC-D150H | XC-D200H | |||||
Process Air Flow(m³/hr) | 30 | 50 | 80 | 120 | 150 | 200 | |||||
Process Blower (kw) | 0.25 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | |||||
Regen Blower (kw) | 0.25 | 0.25 | 0.25 | 0.25 | 0.37 | 0.37 | |||||
Regen Heater (kw) | 3 | 3 | 3.5 | 3.5 | 4 | 5.4 | |||||
Pipe Dia. (mm) | 2" | 2" | 2.5" | 2.5" | 3" | 3" | |||||
Voltage | 3Φ, 400V,50Hz | ||||||||||
H(mm) | 1670 | 1670 | 1670 | 1730 | 1730 | 1970 | |||||
W (mm) | 560 | 560 | 560 | 650 | 650 | 700 | |||||
D(mm) | 710 | 710 | 710 | 900 | 900 | 1200 | |||||
Weight (kg) | 120 | 120 | 120 | 140 | 215 | 225 | |||||
Cooling Water Pipe Diameter | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | 3/4' | |||||
If you want more sizes, please contact us for details

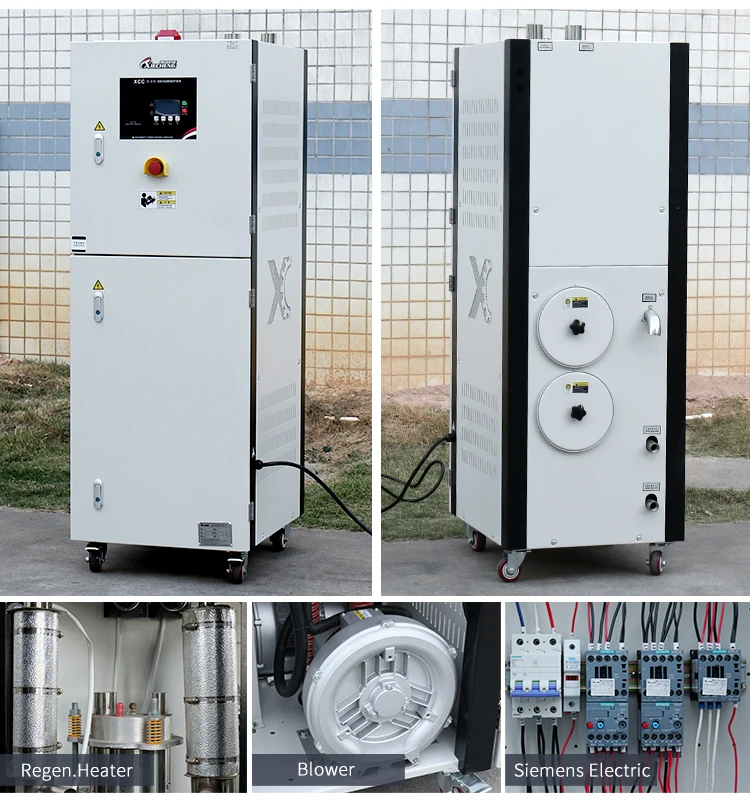

Product Actual Shooting
Product Details

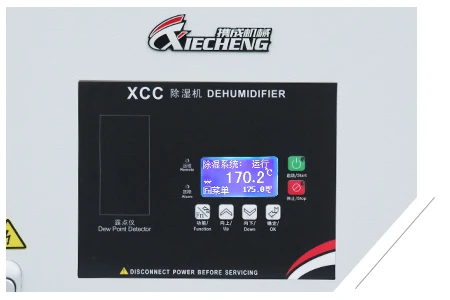

01 LCD Controller
Industry leading LCD microcomputer controller with temperature control accuracy of ± 0.1 ℃

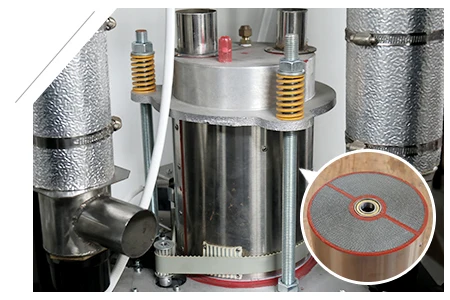

02 Honeycomb Rotor
The honeycomb rotor can provide stable low dew point dry air and it will not pollute the raw materials due to the aging of molecular sieve like in a double-barrel molecular sieve dehumidifier.

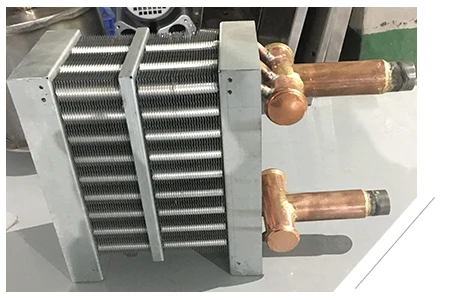

03 Double Cooler Structure
Adopted double cooler structure to ensure lower return air temperature and low dew point for the large models.

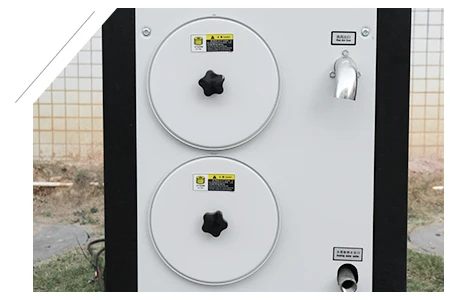

04 Air Filter
With internal return air filter to avoid dust from materials damaging the honeycomb.

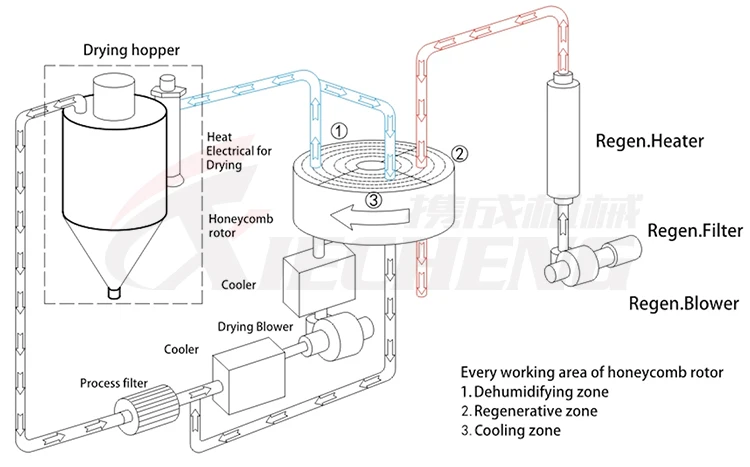

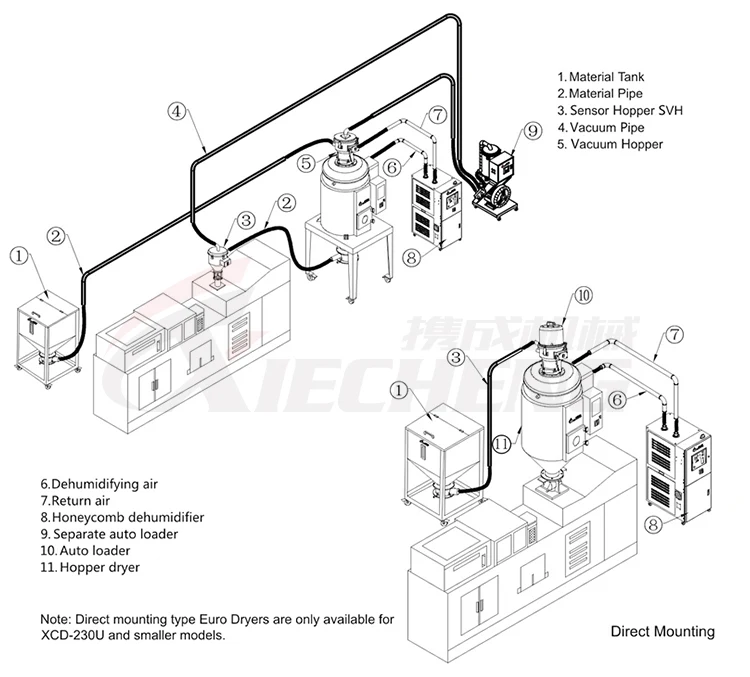

Working Principle

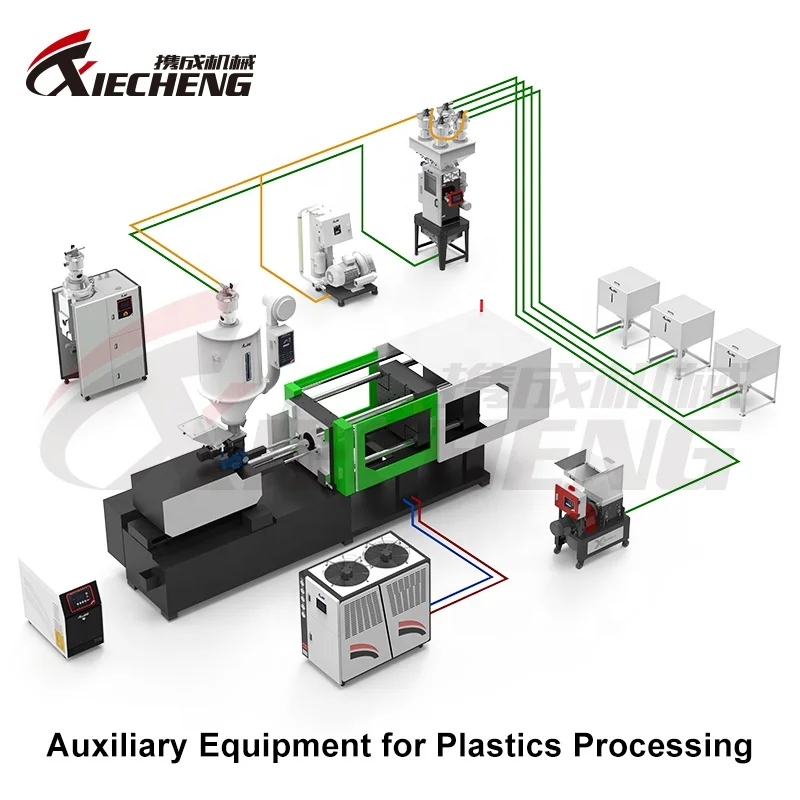

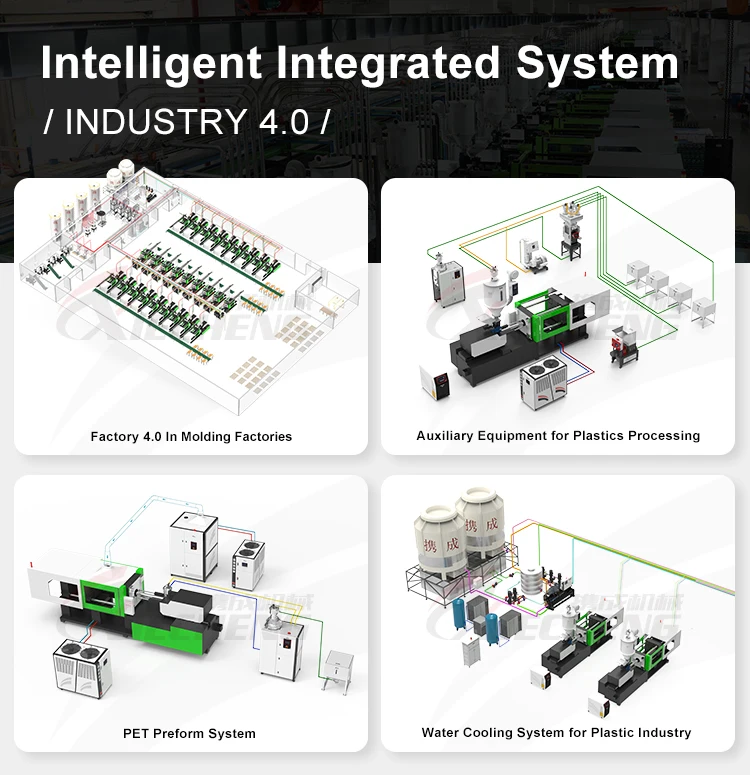

Application Range
