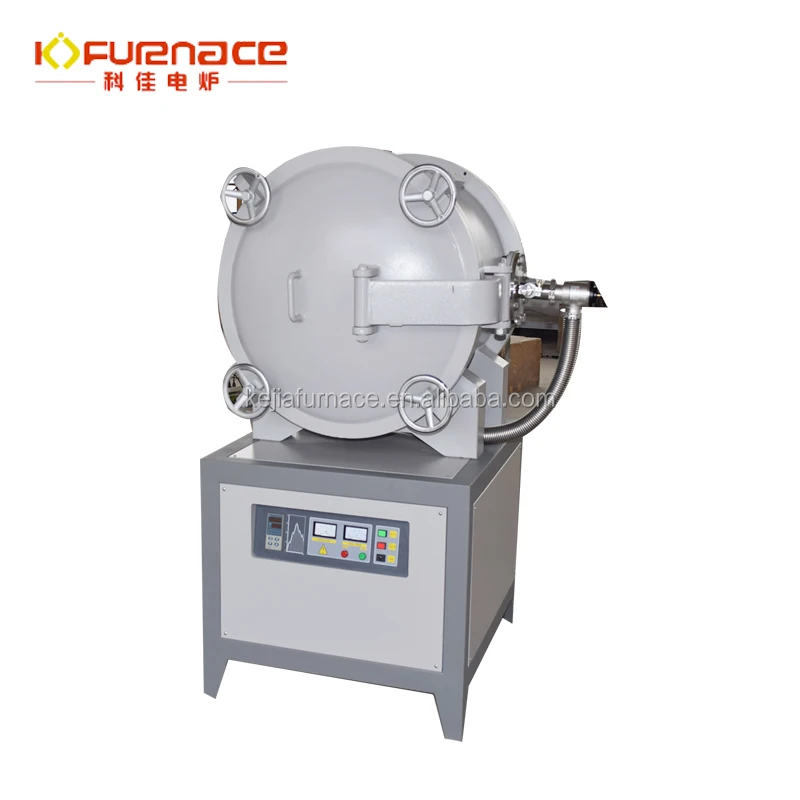

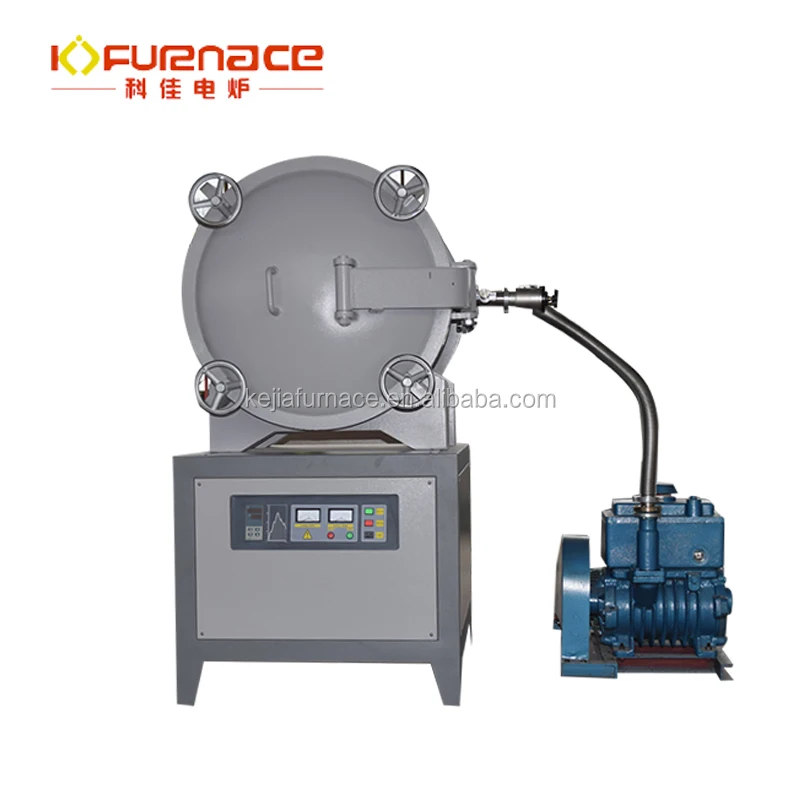

Fast cooling vacuum heat treatment oven/hydrogen annealing furnace

Product Overview

Description

industrial vacuum drying oven / inert gas vacuum heat treatment furnace



Introduction for heat treatment Vacuum Furnace

Kejia high temperature vacuum atmosphere furnaces facilitate operation of firing

cycles where atmosphere condition can be altered during operation cycle, from

oxidizing, (such as air to inert atmosphere), or argon/nitrogen to vacuum. This type

of vacuum furnace makes multi-atmosphere process in one cycle possible: binder

burn out in air and parts sintering under vacuum or inert gas atmosphere. These

atmosphere furnaces are designed for accurate air/inert gas flow rate control,

accurate temperature control, excellent temperature uniformity, long lasting

performance and safe operations. This vacuum atmosphere furnace is ideal for

vacuum atmosphere brazing, sintering, surface treatment, thermal heat treatment

and high temperature material process including stainless steel, titanium, aerospace

material, silicon carbide wafer, other metals and ceramics.

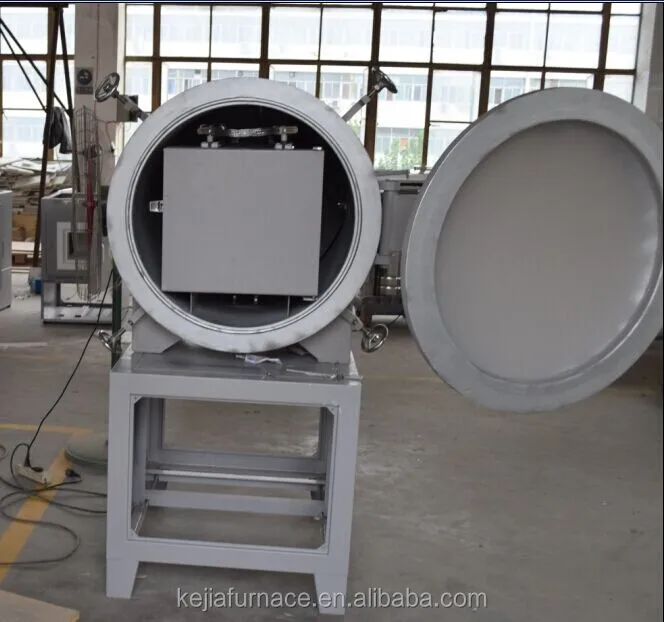

vacuum furnace



Features for Heat treatment Vacuum Furnace

1.Excellent temperature uniformity

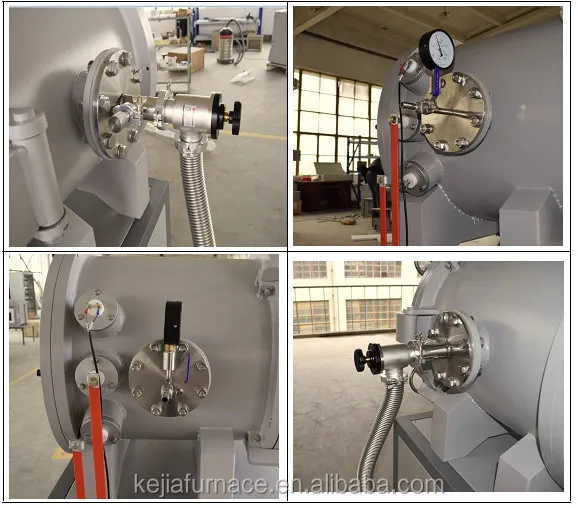

vacuum furnace

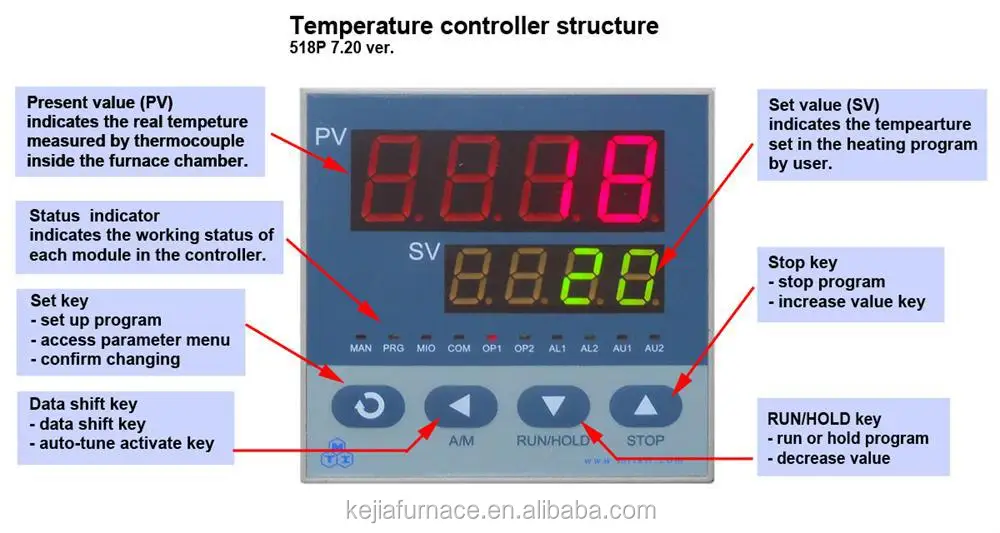

2.51 Segment Easy Use PID Programmable Temperature Controller, allows

the control of heating rates, dwells (time holds) and cooling rates

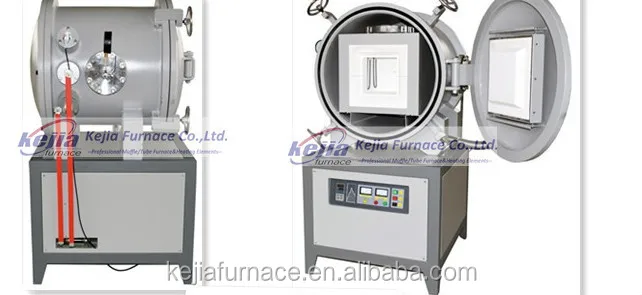

vacuum furnace

Technical Parameter for Heat Treatment Vacuum Furnace



Model	1200XV	1400XV	1700XV
Max temperature	1200C	1400C	1700C
Working temperature	1100C	1300C	1600C
Heating rate	0~20C/min	0~15C/min	0~15C/min
Accuracy of  temperature control	+/-1C	+/-1C	+/-1C
Heating elements	Electric resistance  wire with molybdenum	SiC rode	MoSi2 rode
Refractory material	1430 type alumina  ceramic fiber	1600 type alumina  ceramic fiber	1800 type alumina  ceramic fiber
Furnace structure	Double water  cooling system	Double water  cooling system	Double water  cooling system
Thermocouple	K	S	B
Max.Vacuum level(supporting customized  products)	7X10-3 Pa	7X10-3 Pa	7X10-3 Pa
Normal voltage	110-415V 50/60Hz	110-415V 50/60Hz	110-415V 50/60Hz
Chamber Size	150x150x150mm (6"x6"x6") 150x150x200mm (6"x6"x8") 200x200x200mm (8"x8"x8") 200x200x300mm (8"x8"x12") 250x250x300mm (10"x10"x12") 300x300x400mm (12"x12"x16") 350x350x400mm (14"x14"x16") 400x400x400mm (16"x16"x16") 500x500x500mm (20"x20"x20")
