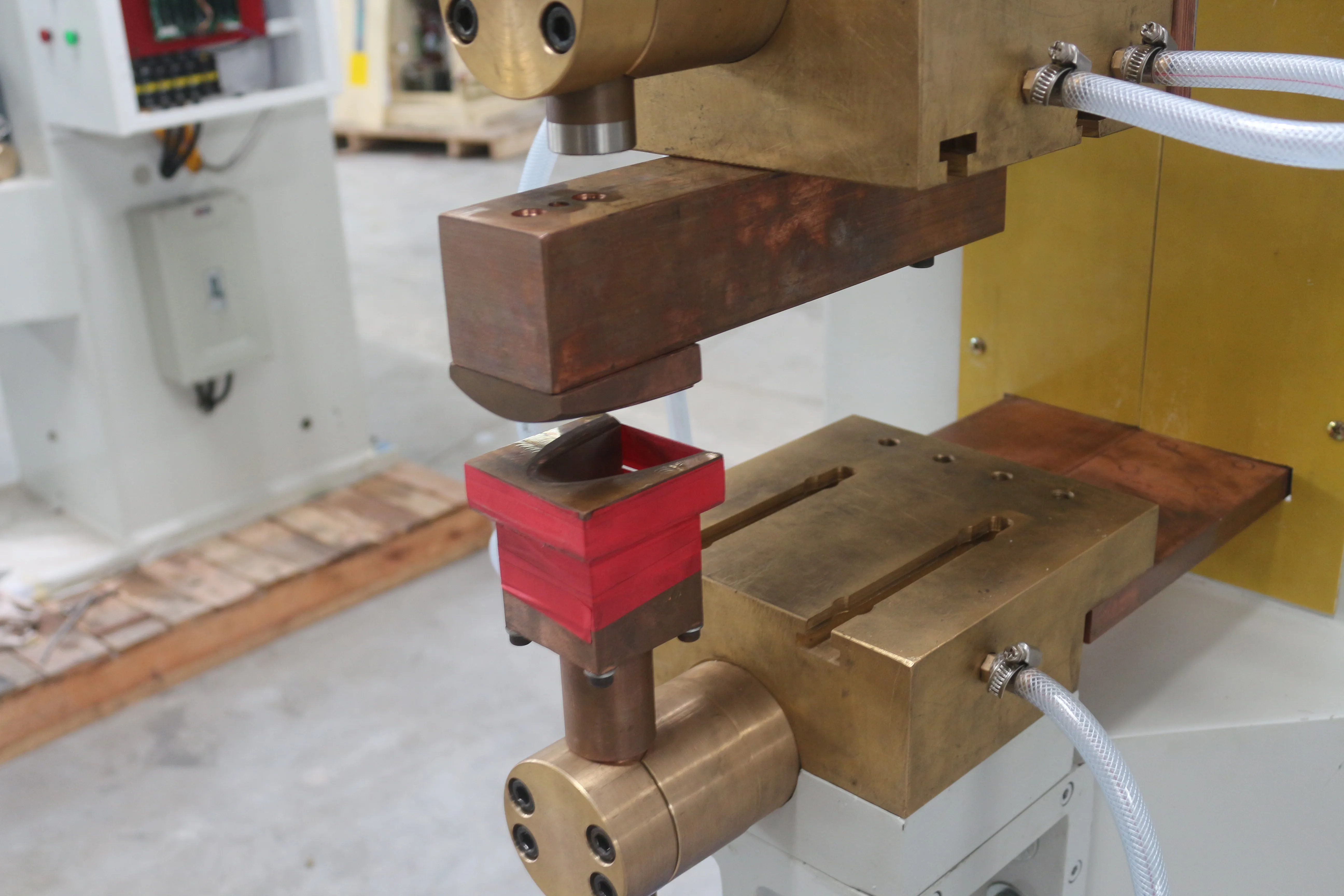

HWASHI HOT Sale stainless steel Water Kettle Spout Spot Welding Machine

Medium Frequency Inverter DC Spot Welding Machine is an advanced welding machine with wide application. The welding transformer is in small size but the output energy is large. Three-phase AC will be converted into DC after being rectified. Then the DC will be converted into medium frequency 1000Hz square wave to be connected to a primary welding transformer through invert circuit which is composed of IGBT. The MF square wave will become small pulse DC to the electrode for welding workpiece through the depressurization and rectifying process in the aluminium copper medium frequency inverter dc spot welding machine. The invert will adjust the duty ration of IGBT through the feedback primary or secondary current so as to achieve a constant current of the welding process.

Application

Sensor, LED and its lead, copper foil, and varnished wire, relay, watch, capacitor slug and lead, copper wire, resistance pin,
inductance, battery and connecting link, socket, silver contact and copper sheet, welding lightning with tungsten and molybdenum
material, etc.

·Multiple times of continuous discharging
·Be able to finish welding at one time
·Firm joint
·No black coating after welding, no oxidation
·Low cost
·No need of subsidiary materials
·Precise mould designed
·Convenient and simple all-directions adjustment
·Suitable for welding of multiple types of products.


·Welding Control System: The AC pulse spot welder that we produce can be matched with many types of welding controllers.
·Silicon Controlled: Adopt the SEMIKRON, IXYS from West Germany or IR Silicon controlled from United States;
·Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.
·Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good  permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.
