CE RoHS DVI/DMX Waterproof Module Point Light Source RGB Pixel Led

Product Overview

Description

CE RoHS DVI/DMX Waterproof Module Point Light Source RGB Pixel Led

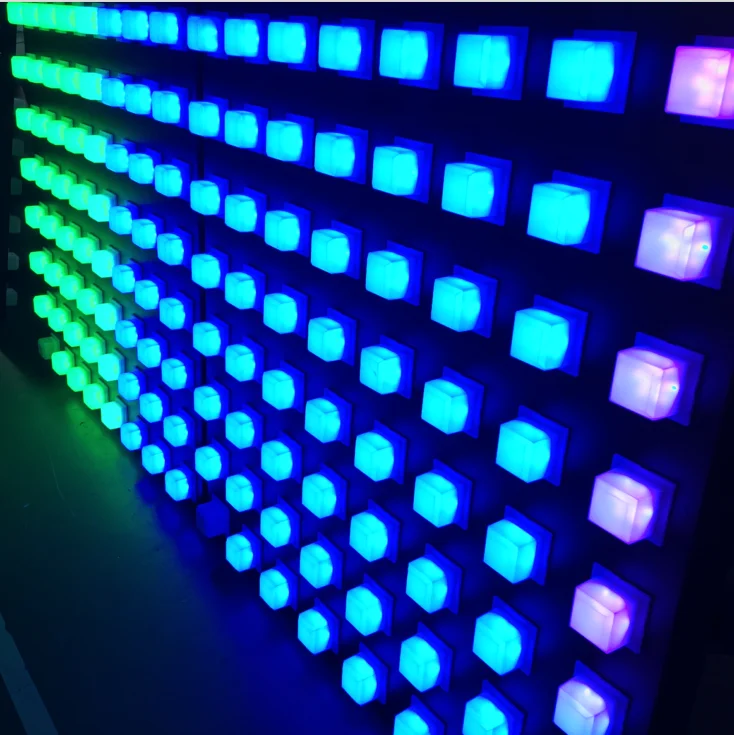

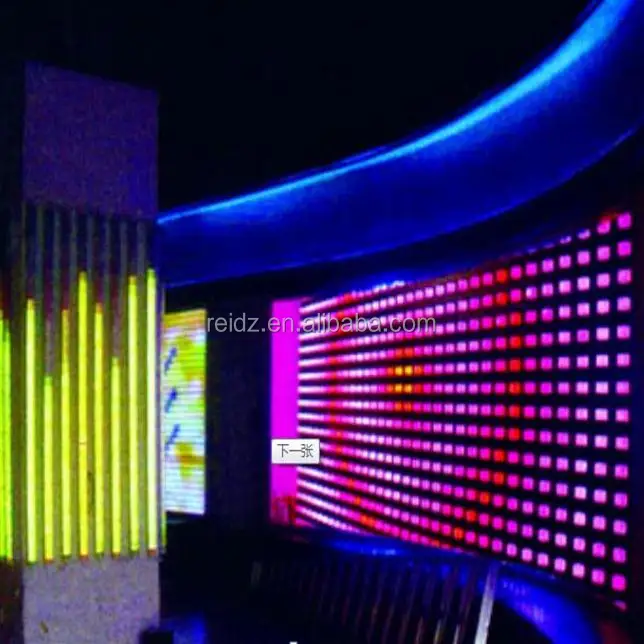

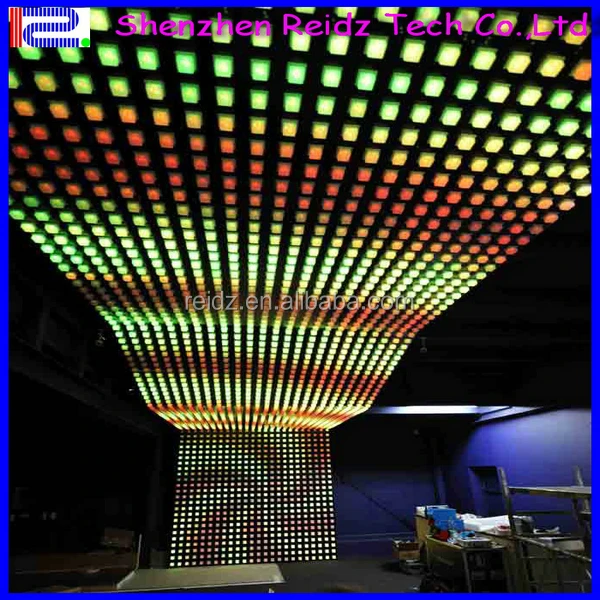

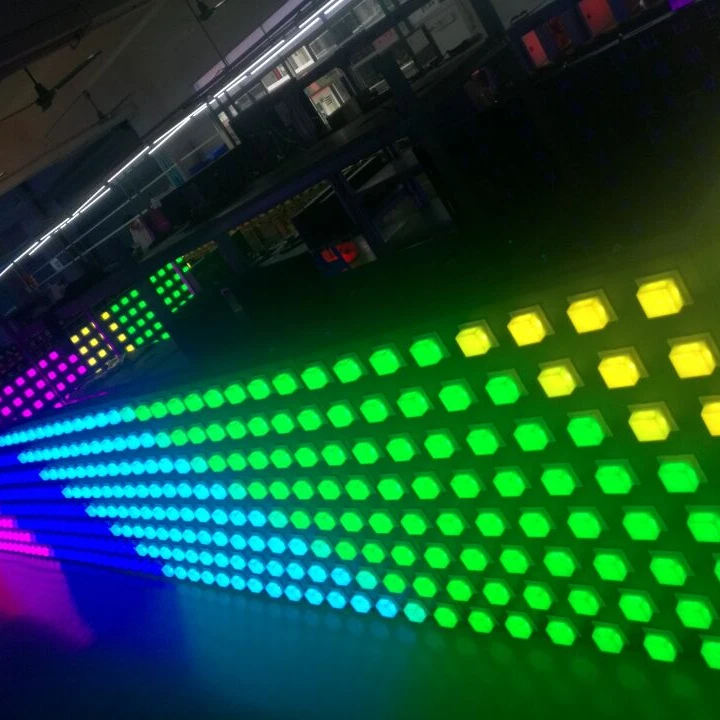

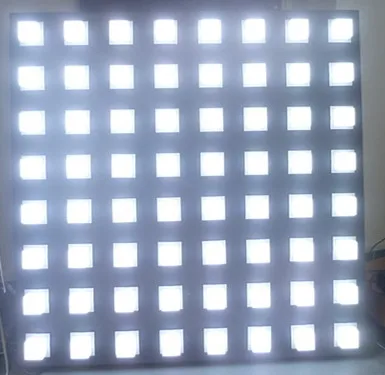

We call this led light as LED pixel light,the square housing dimension is W66*L66*H45mm , it has a small PCB with SMD5050 LEDs inside,  the LED lighting color is RGB full color, you can use DMX led controller to control it, it also can work with Artnet controller and Madrix software.  For this led pixel light, we provide 3pcs LEDs, 6pcs LEDs and 9pcs LEDs version for your option. The led pixel lights can be installed on wall or ceiling with a panel, just like it as the attached photos. You  can only buy the led pixel light, you also can buy the pixel lights with our aluminum panel. This led pixel matrix light is widely used for night club, disco, bar, Casino, Mall lighting decoration project.



Item No.	RZ-DGY3103-F	RZ-DGY3106-F	RZ-DGY3109-F
Housing Dimension	W66*L66*H45mm	W66*L66*H45mm	W66*L66*H45mm
Quantity of LEDs	3pcs SMD5050	6pcs SMD5050	9pcs SMD5050
Max Power(W)	0.6 W	1.2W	1.8W
Working Voltage(V)	DC12V	DC24V	DC12V
Emitting Angle(Dgree)	120	120	120
Housing Color	Milk white	Milk white	Milk white
Housing Material	PC plastic	PC plastic	PC plastic
IP Grade	IP65	IP65	IP65
Lighting Color	RGB	RGB	RGB
Gray Levels	256	256	256
Control Mode	DMX512/SPI	DMX512/SPI	DMX512/SPI
