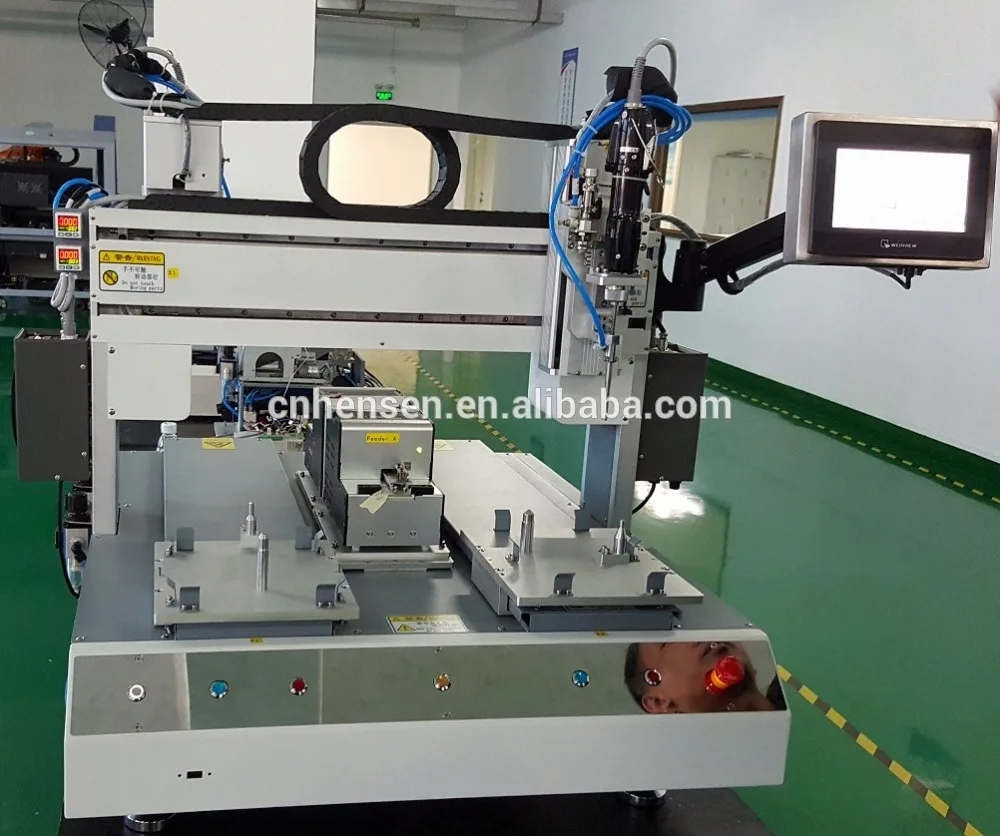

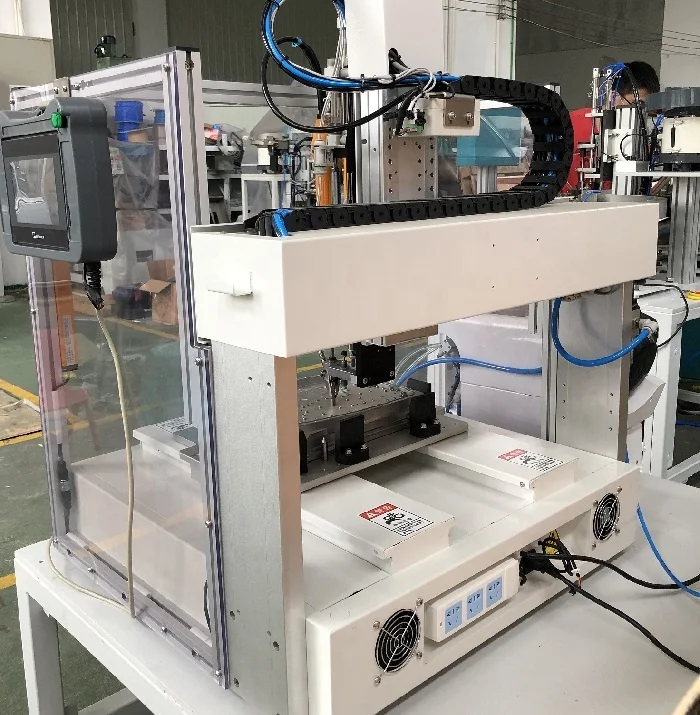

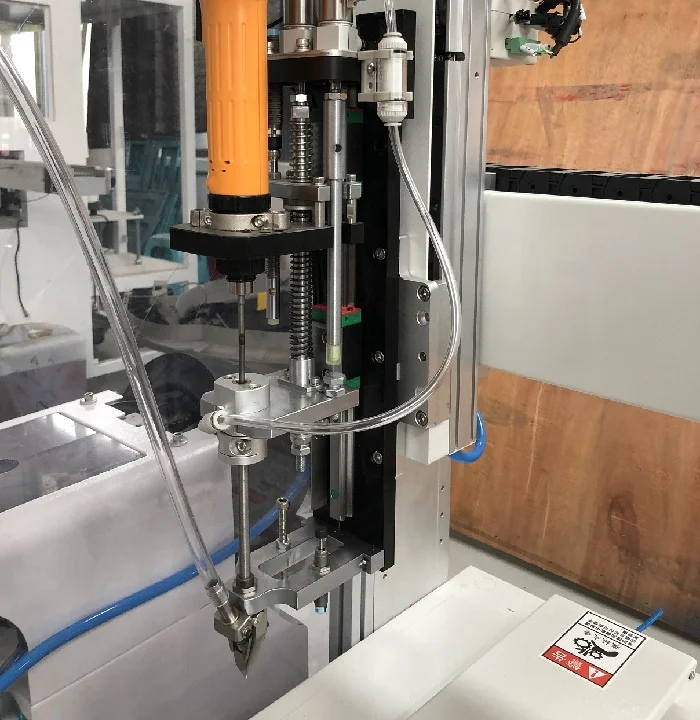

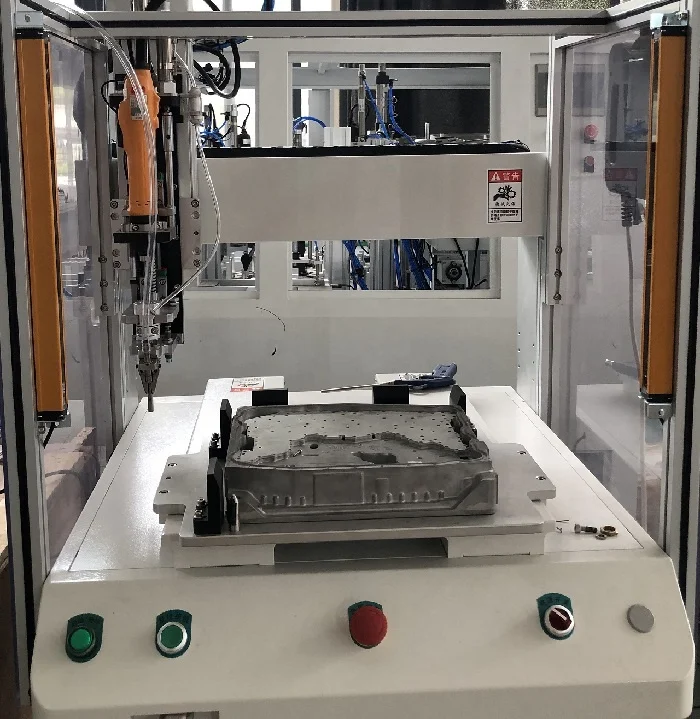

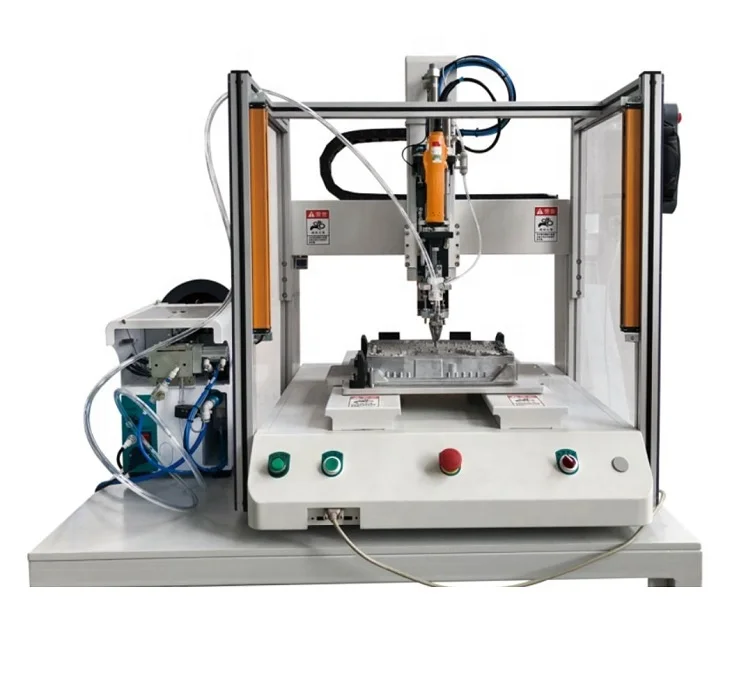

XYZ Module Auto Screw Insertion Machine, desktop screw tightening machine

Technical Parameters
Machine size : 500 * 620 * 630 (L * W * H)
Screwing range : 200 * 390 * 70mm (X * Y * Z)
Drive mode: 4-axis precision stepper drive
Positioning accuracy : ± 0.02mm
Control system : PLC + touch screen control system
Screw delivery method: draw style
Screw feeding quantity :1 -2 group
Screw delivery method: Teach-
Efficiency : Min <1.5s
Program storage capacity : 100 groups , 100 points / group
Communication port : USB
Power supply : 220VAC, 50HZ
Air source : 0.4Mpa
Total Weight : 60kg
Advantages
1. One machine can reduce 30% human power, you can reduce two screwing workers.
2. can be set through the touch screen coordinate value and the product of the screw , can be applied to a variety of common
products . If the screw on the product specification is basically the same , you only need to replace the fixtures they can use
the product , the entire process is completed in less than 10 minutes .
3. monitor the entire quality of the equipment lock screw , in the event of bad touch will alarm and display the type of defective
products
4. Automatic clutch after the screwdriver reach the torque, ensure that each lock screws Vice torque control ± 10%.
5. main parts are die steel production , abrasion resistant plastic deformation , equipment, body spray paint , oil and scratch
resistant .
6. humane touch -screen operation and ease of operation , external technical parameters and manual test function can be directly
adjusted by technicians.
7. The machine are small, save production line pace, easy moving.
