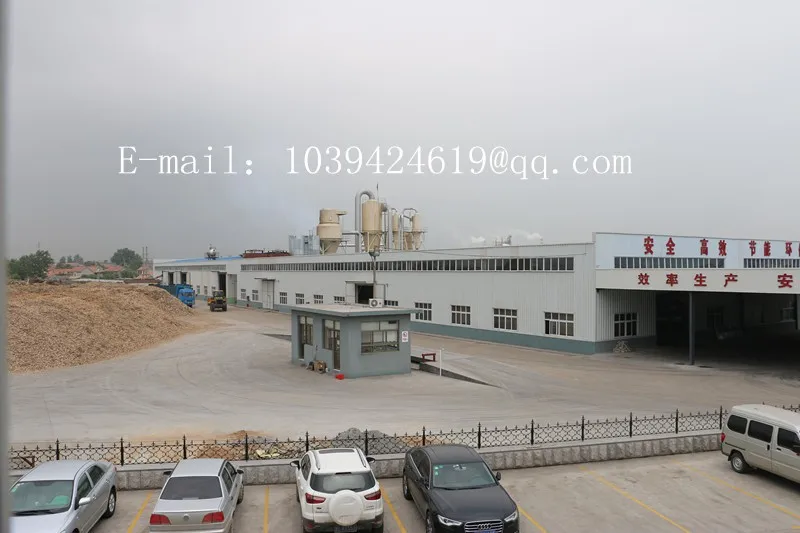

Particle board plant /Chipboard plant in the full production line

Product Overview

Description

 The following is produce craft flow:



 ^{Partcle board is made from small-diameter wood, wood branches, wood residues, saw dust, furnitue leftovers, phragmites and bagasse, etc, and via Chip preparation, Drying & screening, Glue applying, Forming and hot press, Cutting size, and Sanding, etc. Finished boards can be used for furniture, building, packing, vehicle and sheep decoration and lamination.}



1. Chip preparation section

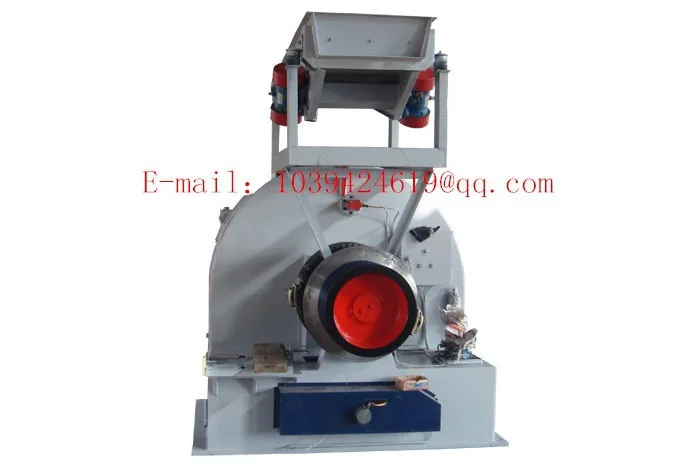

 Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip silo, and then infeed to the knife-ring flaker by which the chips are turned to flakes, then the  flake stored in wet flake silo.

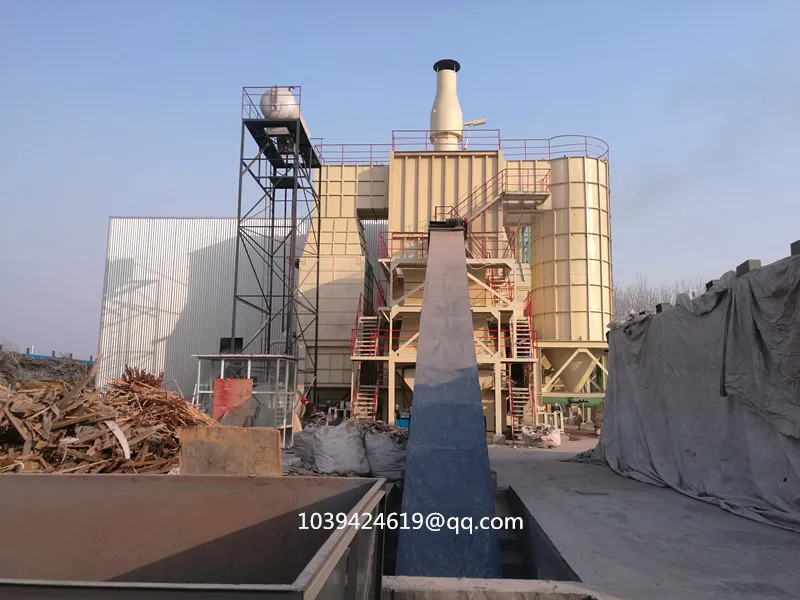

 ^{2. Drying and sifting section

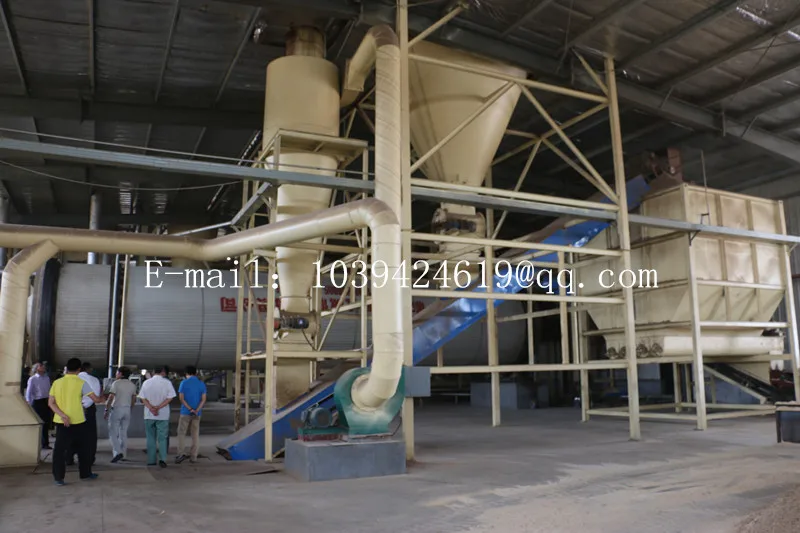

     The flakes discharged from the wet flake silo are conveyed to the Three passage hot-air dryer. Qualified core flakes are stored in core flake silo; oversize flakes are send to double-stream mill to be re-crushing, and transported to surface flake silo.}

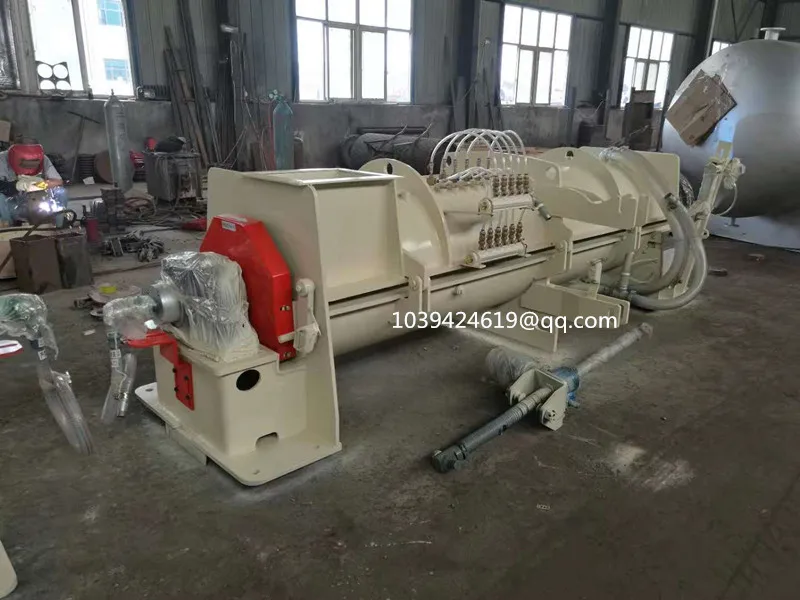

^{3. Glue regulating and applying section
      After scaled, the core and surface flakes are to be effectively  and uniformly mixed with qualified glue independently in their glue blenders respectively.}





^{4. Forming and hot-pressing section

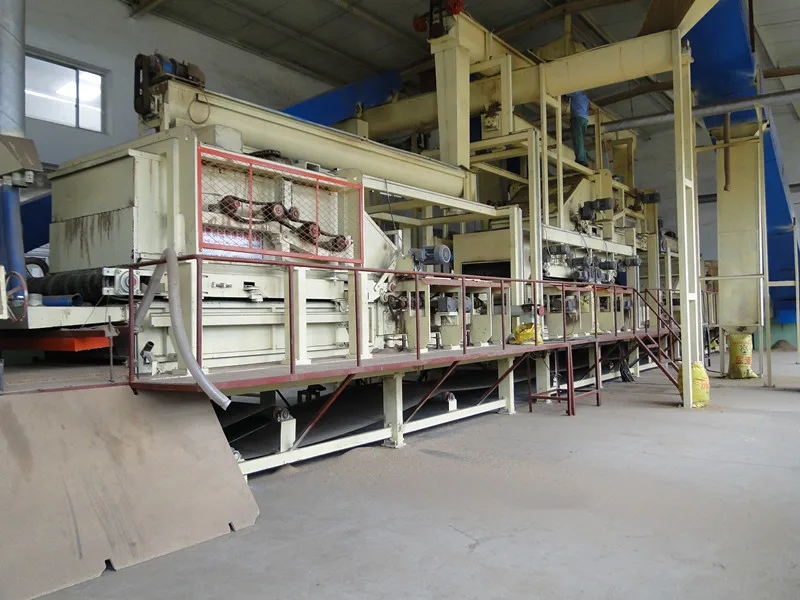

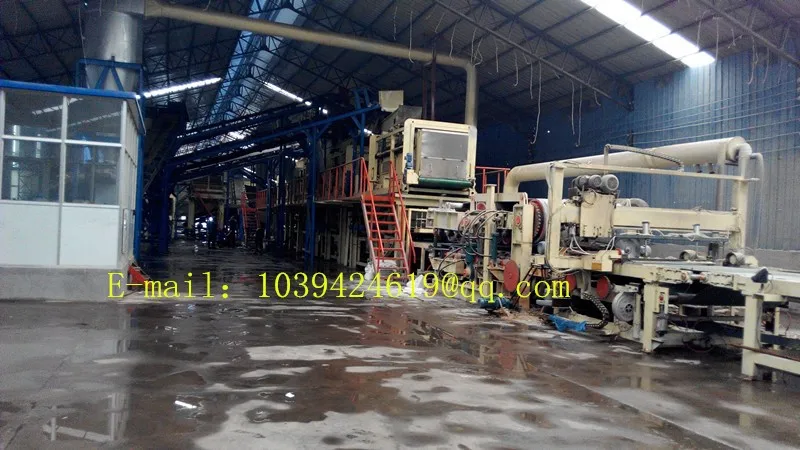

     The surface and core flakes are sent into Diamond-roller classic forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, Multi-roller pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.}





 ^{5.Cooling and sizing section

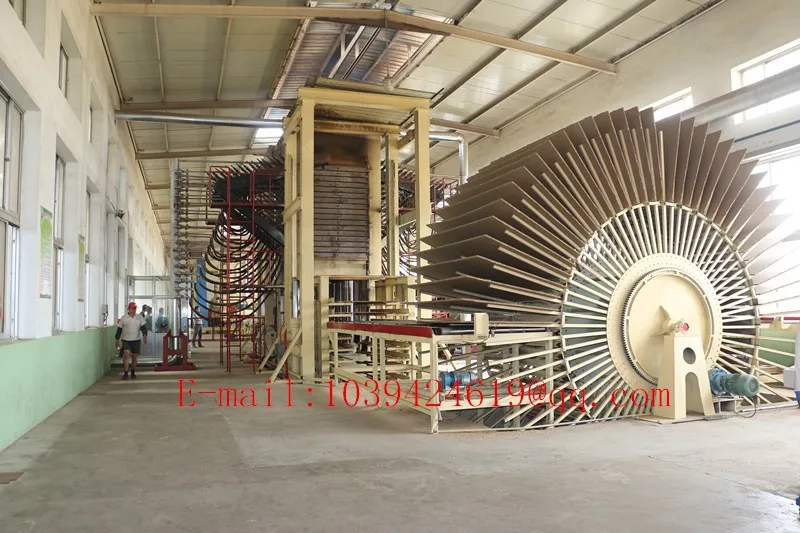

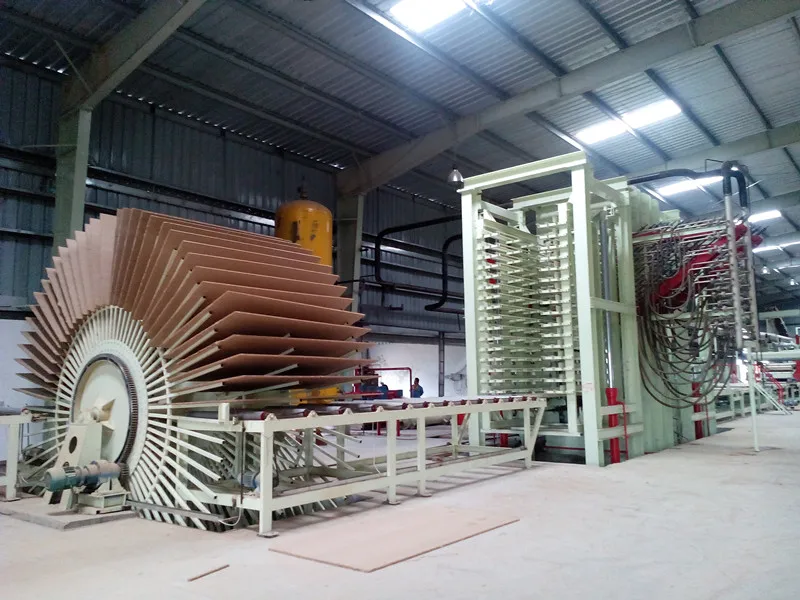

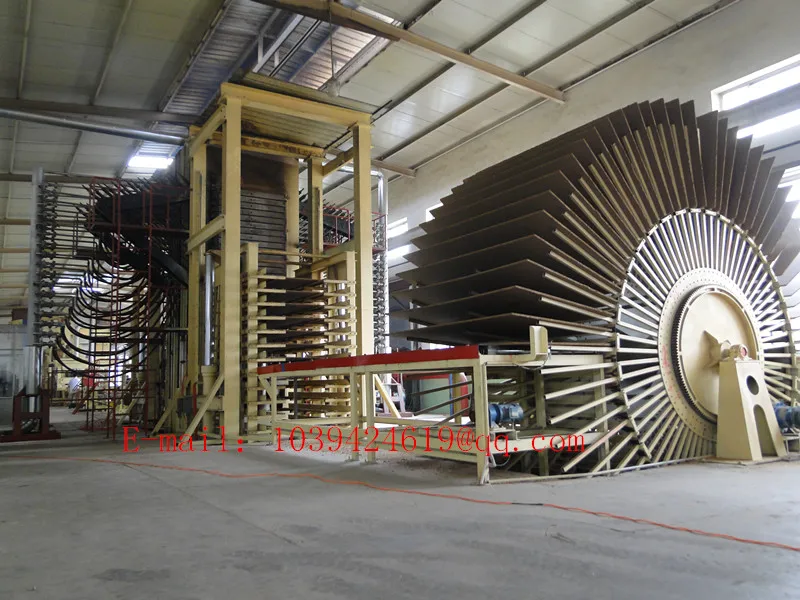

     The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming sawand become  a qualified particle-board, stacked on the hydraulic lift.}



 ^{6. Sanding Section

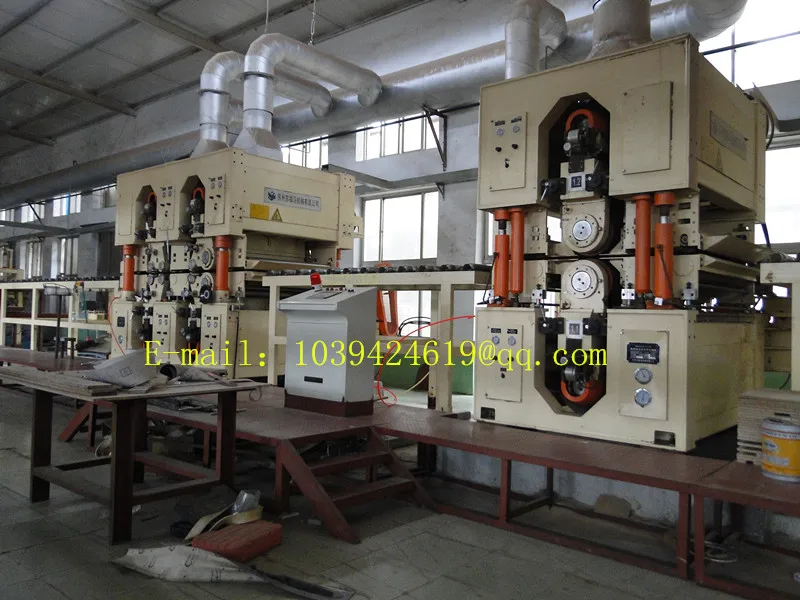

      The board are sanded, checked and stored .
      PLC control is used in mat-forming section.}
