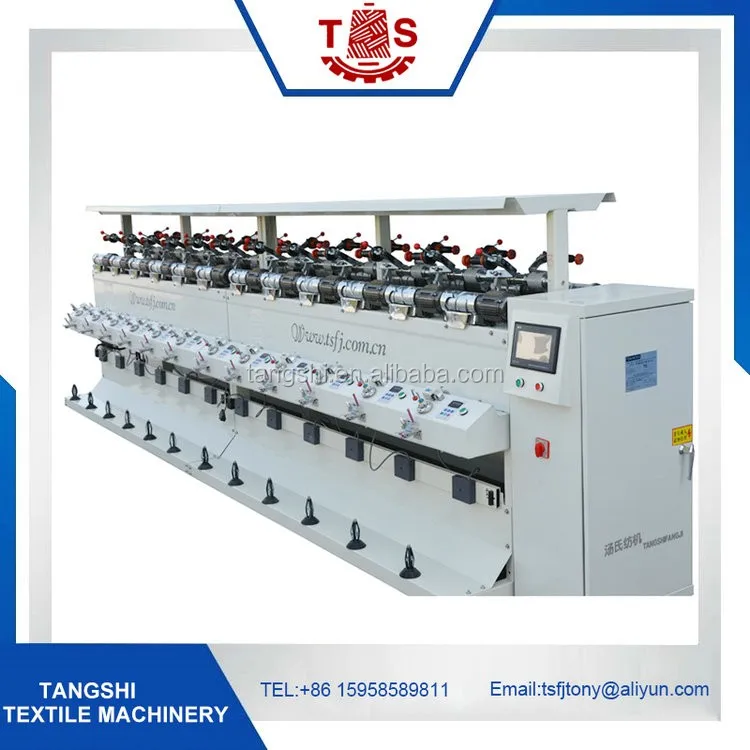

Drum type winding machine for cotton yarn

Product Overview

Description



Machine Application:

      TS008 Hard Rewinding Machine, it’s mainly for After Dyeing winding or rewinding using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.



Parameters:



Bobbin type	6’(170mm)
Layout	Double-side, can be 12-120 spindles
Power Supply	Three phases 380-400V 50/60HZ
Driving	Every spindle per motor
Power Consumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension and waxing device	each spindle has a disc tensioner and waxing device
Auto Stop Device	Each spindle has yarn detector
Electronic Anti-Stack	Inverter control
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	Optional installed
Dimensions	L 11500 x W 1100 x H 1550 mm (60 Spindles)
