China factory automatic electric A3 A4 paper cutter

Product Overview

Description

Paper guillotine (Hydraulic paper cutter) H670R /H720R

Photo album a3 a4 paper cutter machine

1. Foldable paper pushing platform patented design

Convenient to remove and pack

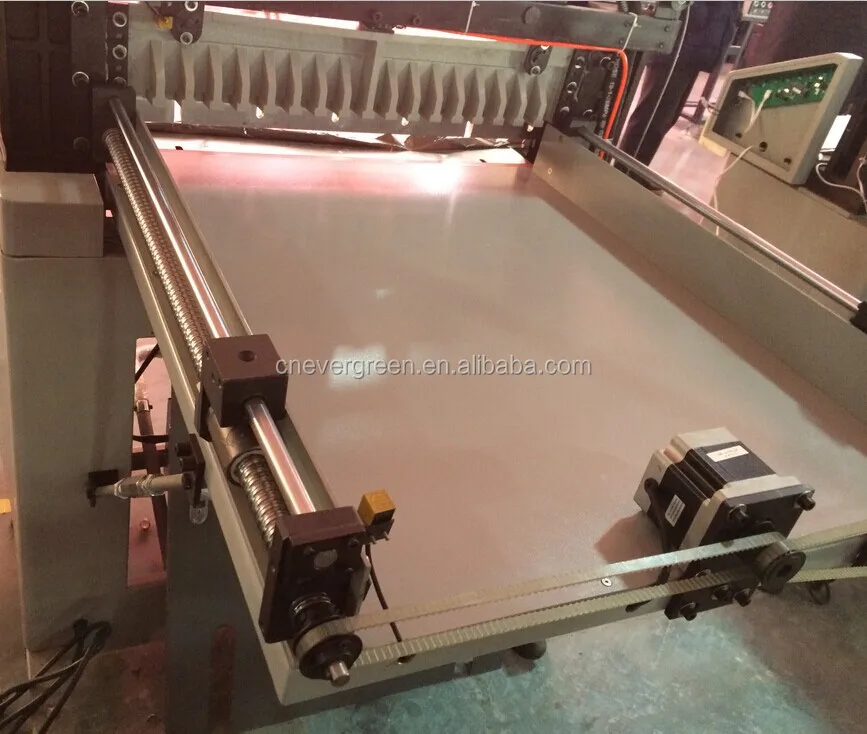

2. Double lead screws for paper pushing

Double lead screws for pushing paper platform without slot design, to make the pressure more

equal and improve cutting accuracy(ball screw or servo drive is optional)

3. Hard chromium plating table design

High durability and hard to distortion

4. Mechanical pedal

Pressure paper proofread position, easy and convenient

5. Swing arm design of blade carrier patented technology

Solving the problem that the roller slot easy to wear and tear, adjustment gap of blade carrier, ensuring cutting accuracy

6. Safety protection structure of blade lock

Preventing the blade slip and operation safer

7. Inclined blade cutting patented technology

Any thick paper can be cut smooth and easily with inclined design

8. Leak-proof design

Solving the problem of leaking in the cylinder

9. Fast changing stick device

More convenient and efficient

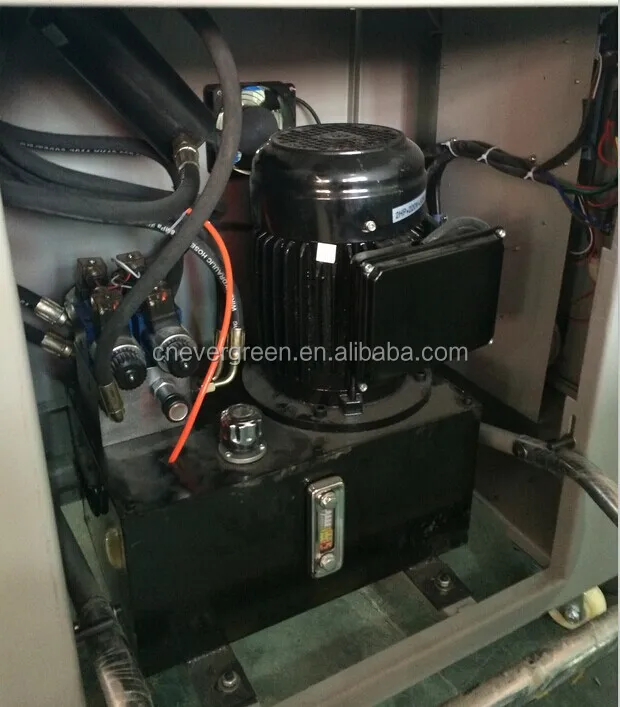

10. Double Hydraulic with strong power system design

Taiwan motor with strong power, imported hydraulic components for ensuring quality with

external knob for adjustment pressure of paper clamp

11. Intelligent control, 4.8"LCD

 The cutting depth and size calibration can be adjusted by setting the program, 100 Pieces

 programs and 21 cuts per machine, add function of the self-detection and code fault display;

 The electronic handle wheel fine tuning

12. New model of the front Photo eyes

According to the CE standard, new model of the front photo eyes, operation safety

H670R and H720R hydraulic paper cutting machine can set 100 programs, each program

can set 20 cuts. It is for cutting paper sheets, books and photo albums.

Automatic guillotine paper cutter

Model	H670R	H720R
Max. Cutting width	670 mm	720 mm
Min. cutting size	30 mm	30 mm
Max. paper thickness	80mm	80 mm
Cutting accuracy	± 0.2mm	± 0.2mm
Cutting pressing	Hydraulic +Mechanical pedal	Hydraulic +Mechanical pedal
Cutting control	Computer program 4.8inch	Computer program 4.8inch
Power motor	220/110V 50/60Hz 2.5KW	220/110V 50Hz 2.8KW
Machine weight	450KG	500KG
Dimension	1400X1150X1460mm	1550×1200×1460 mm
