compact two channel trace gas mixer
compact two channel trace gas mixer

compact two channel trace gas mixer

Share on (60066028448):


Price:$800.00 - $900.00

Quantity:


Product Overview

Description


CGM-2F is a compact two channel trace gas mixer for inert gas control in small tube furnaces, glove boxes, plasma cleaner, small PECVD system. This mixer regulates both line pressure and flow pressure, and assures that you get the precise mixture at alower cost and compact design.  You can easily adapt this unit to most operations in atmospheric chambers.

SPECIFICATIONS

Floating Flow-meterTwo Floating Flow-meter with flow rate range from 16 to 160 mL/min
Mix TankOne stainless steel mix tank built in for better gas mixing
Mechanical Pressure Gauge (mixing tank)0 - 1.0 MPa, (0.02 MPa/grit)
Fittings & ValvesThree Pipe fittings for 1/4" pipe (nylon or stainless steel)
Three vacuum needle valves made of SS304

Compact size340Lx300Dx 180H, mm    ( 13.4"x12"x7")
WarrantyOne year limited with lifetime support
Net Weight14lbs

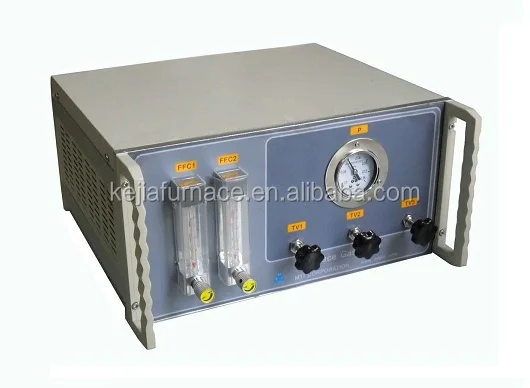

reference picture of the product

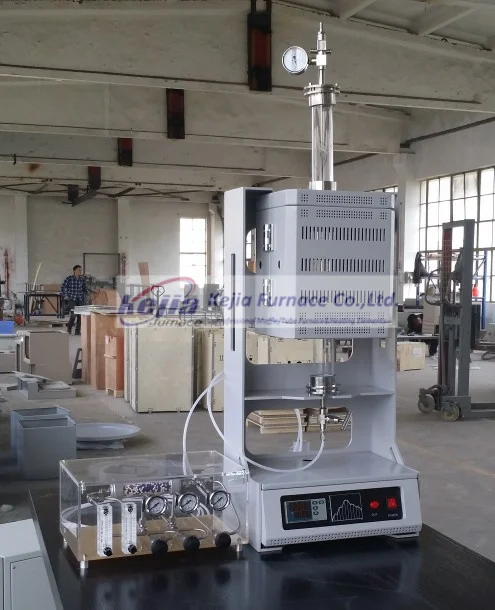

fluidized bed cvd
