Грузовой Лифт без помещений 1600 кг/грузовой Лифт

Product Overview

Description



1. Configuration parameters



Loading capacity(kg)		1000		1600	2000		3000
Rated speed(m/s)		0.63	1.0	0.5	0.5		0.5
Door opening size 4 panel center opening		1200*2100		1500*2100	1500*2100		2000*2100
Traction ratio		2:1		4:1	4:1		4:1
Car size(mm)	Width	1600		1500	1500		2000
	Depth	1500		2300	2700		2800
	Height	2200		2200	2200		2200
Hositway size(mm)	width	2500		2800	2800	2800	3470	3470
	Depth	1900		2800	3200	3180	3300	3280
Top floor height(mm)		4200		4500	4500		4500
Pit depth(mm)		1700		1700	1700		1700
Max.travelling height(m)		25	40	20	20		20







2.Delfar machine roomless freight advantages



2.1 Advanced modern craft & tech greatly reduces the building cost

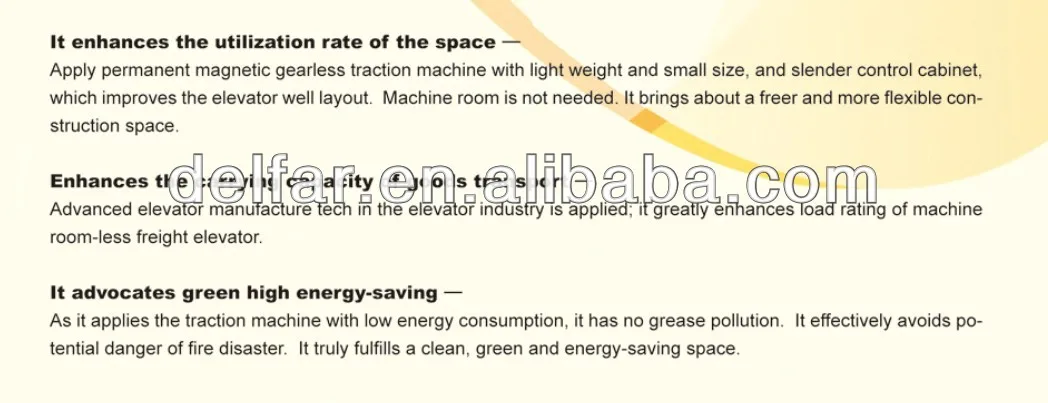

2.2 It enhances the utilization rate of the space

2.3 Enhances the carrying capacity of goods transport.

2.4 It advocates green high energy-saving.







3. The company has rich product varieties. We can   satisfy diverse requirements from various users. The products scope covers passenger elevator, observation elevator, bed elevator, freight elevator, hydraulic elevator, car elevator, small machine room elevator, machine room-less elevator, home elevator, dumbwaiter, escalator and moving walk .



Optional:











1.Company   information







Zhejiang Delfar Elevator Co., Ltd. is a professional elevator company who designs and manufactures complete elevators, escalators and moving walks, as well as elevator parts. The company covers a land area of over 40,000 square meters with more than 17,000 square meters of factory houses and 3,000 square meters of office area. Currently, 135 employees work for DELFAR, which includes 52 engineering technicians.



2.Certificates



1.Production Flow:

The superior service guarantees the outstanding product performance. In order to satisfy the requirements from different areas, users and levels, the company has established one-continuous-line of highly-efficient work system from elevator design, manufacture, installation, modernization and maintenance.

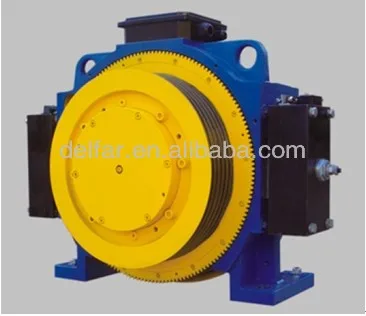

2.We use top quality and top brands main components on our elevators:



3.We use the latest technology controller

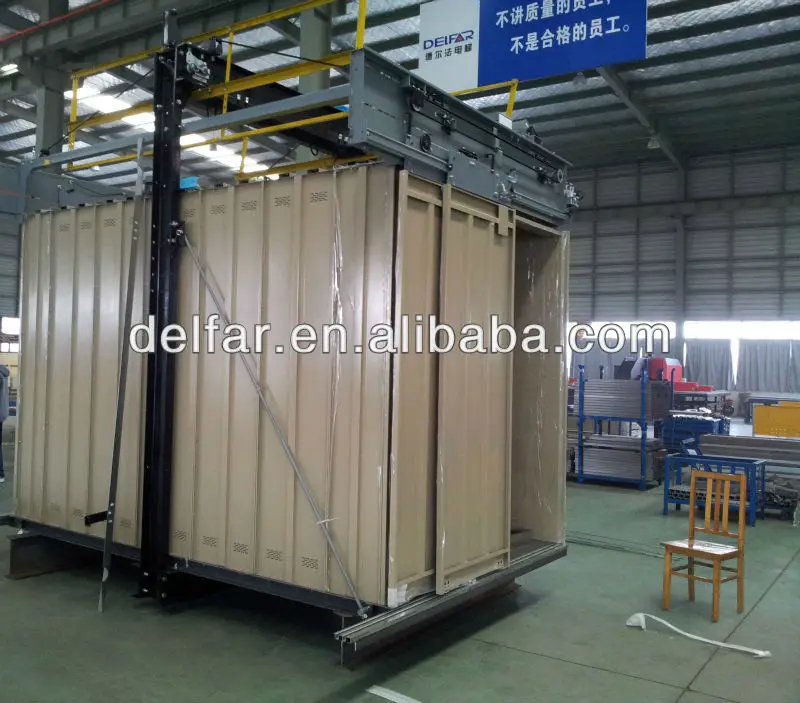

4.We do test assembly to the cabin before delivery:









1.Packing detail: packed in wooden cases

2.Delivery detail: 30 days after deposit
