B1 Fireproof Aluminum composite panel

1.Product description

Aluminum cladding for wall decoration.

PE/PVDF Aluminium Composite Materials-ACM, Excellence  in building.

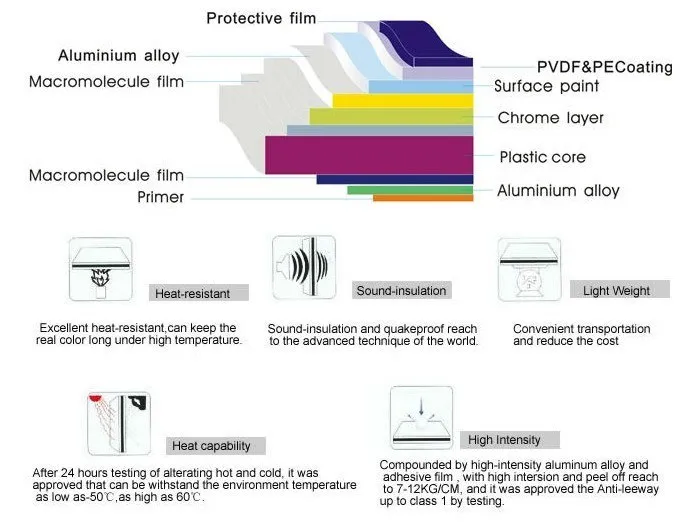

Materials:

1.Front side: aluminum alloy sheet coated with fluorocarbon resin (PVDF)

2.Core: fire-resistant plastic

3.Rear side: aluminum alloy sheet (or coated with polyester resin)

Dimensions:

Panel thickness:

4.Standard: 3mm,4mm

5.Others: 2mm up to 5mm

Aluminum skin thickness:

0.50 x 0.50mm

0.45 x 0.45mm

0.40 x 0.40mm

0.35 x 0.35mm

0.3 x 0.3mm

0.21 x 0.21mm

0.18 x 0.18mm

0.15 x 0.15mm

0.12 x 0.12mm

0.10 x 0.10mm

Width:

Standard width: 1,220mm

Maximum width: 1,550mm

Length:

Standard length 2,440mm

Maximum length: 5,800mm

Features:

KYNAR 500 fluorocarbon resin (PVDF) top coat.

Adoption of high- purified aluminum sheet from Southwest Aluminum Group

Surface treatment technologies from Heckle, Germany

Optimum for exterior decoration of skyscrapers

Super peeling strength

Lightweight, flat surface, Excellent in heat-insulation, sound-insulation, fire-resistance,

acid-resistance, alkali-resistance, weather-resistant and non-resonance

Can be easily processed and quickly installed

Unique colors can be easily maintained
