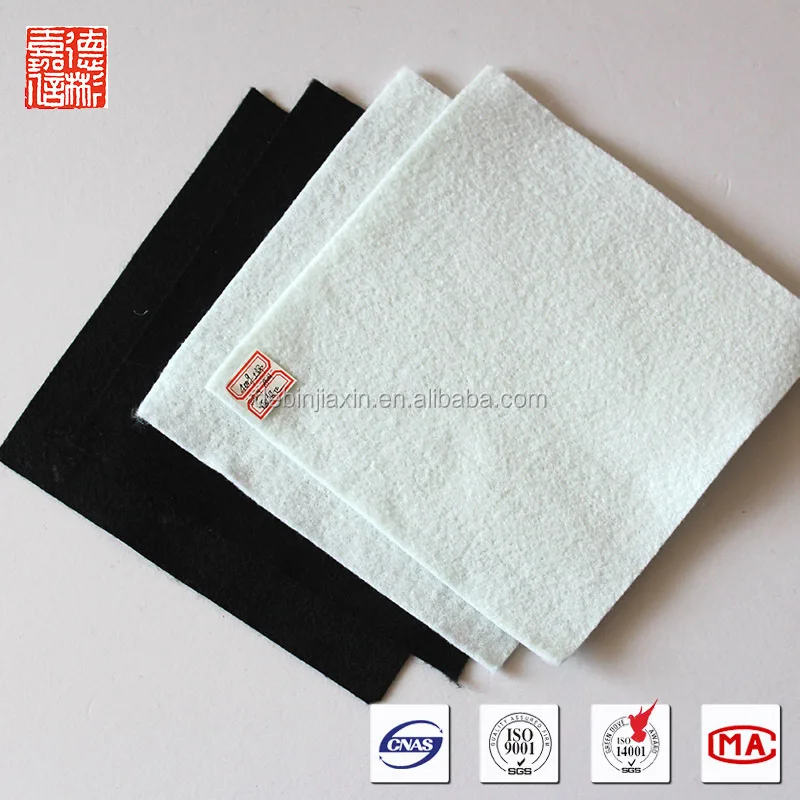

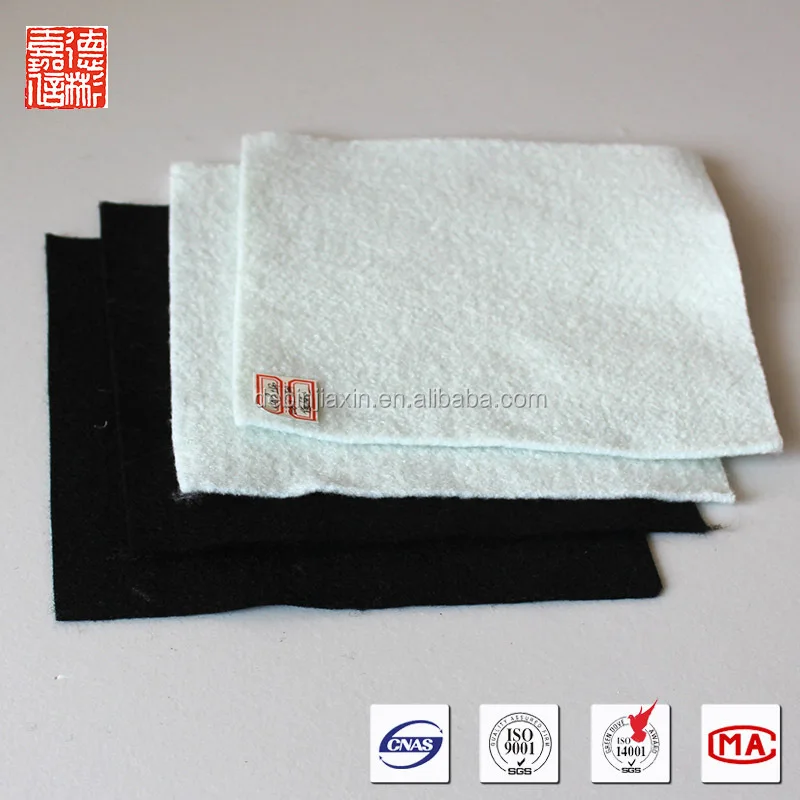

short fiber geotextile 160g/m2 for highway construction
Product Description
Product Description
Type: PET non woven geotextile
Material: Polyester
Gram weight: 100g/m2~800g/m2
Width:1m-6m
Roll length: 50m or at your request
Color: Black or white
Thickness: 0.9mm-5.0mm
Temperature range: -60oC -- +60oC
Lifetime: more than 50 years
Executive standard: GB/T 17638-1998
Specification
Short fiber nonwoven geotextile
Item
Value
Note
100
150
200
250
300
350
400
450
500
600
800
Weight Variation(%)
-8
-8
-8
-8
-7
-7
-7
-7
-6
-6
-6
Thickness(mm)≥
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
3.6
4.1
5
Width Variation%
-0.5
Breaking Strength( KN/m)≥
2.5
4.5
6.5
8
9.5
11
13
14
16
19
25
MD and TD
Elongation at break%
25-100
CBR Mullen Burst Strength KN≥
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.2
4
Sieve Size O90(mm)
0.07-0.2
Vertical Permeability Coefficient cm/s
K×(10-1-10-3)
K=1.0-9.9
Tearing Strength KN≥
0.08
0.12
0.2
0.2
0.2
0.3
0.3
0.4
0.4
0.5
0.6
MD and TD
Introduction
Short fiber pet geotextile is through the non-woven production equipment of opening, carding and clutter (short fibers intertwined together), web (fixation) normalized tangles, acupuncture and other production process made of cloth.
Property
1,Good glexibilty
2,permeability
3,filtration
4,separation
5,easy for constrution
Geotextile production

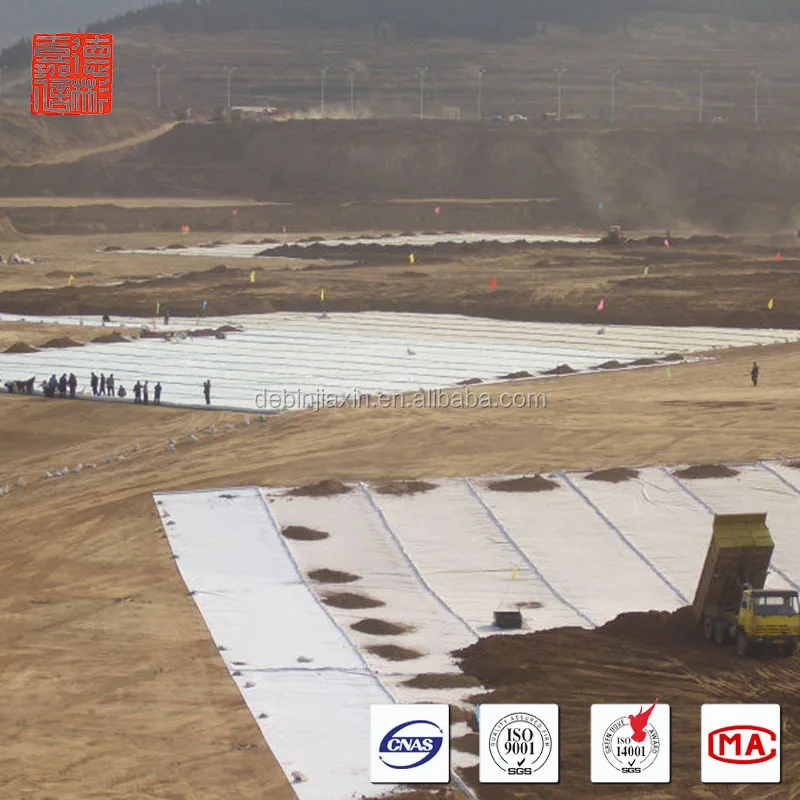

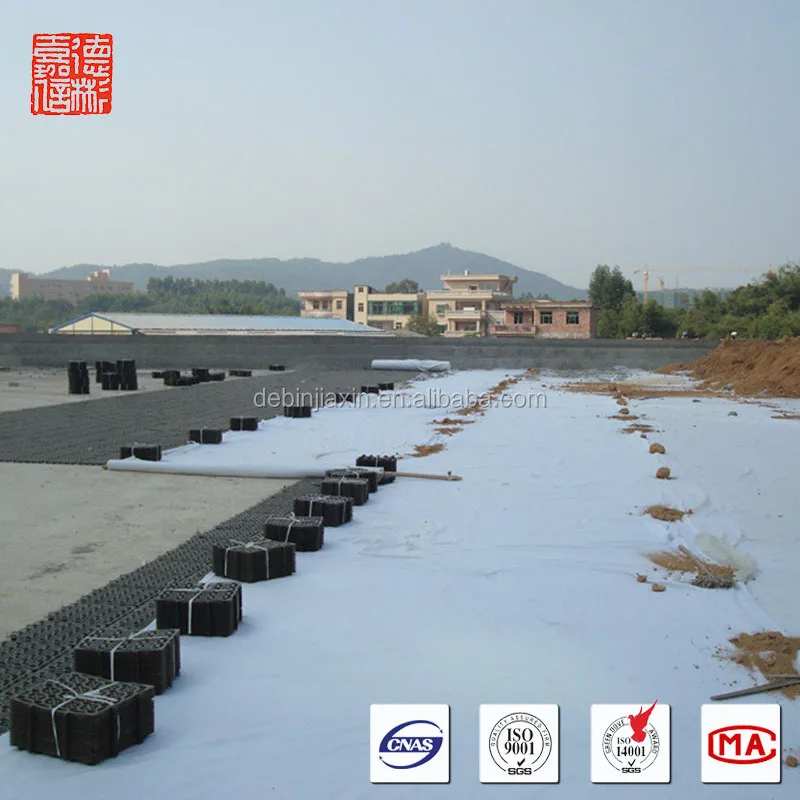

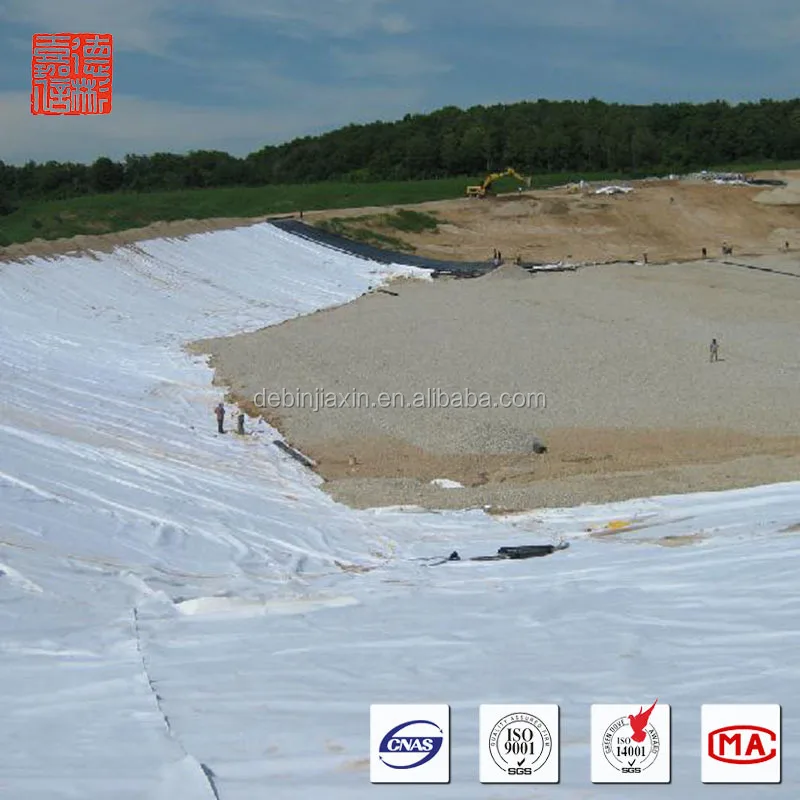

Application
(1) artificial filling foundation movement of ground water.
(2) gravel filter layer surrounding the periphery of the drain pipe drain.
(3) in water conservancy projects wells, relief wells or inclined pipe filter.
(4) for retaining wall backfill reinforcement, or for anchored retaining wall panel.
(5) reinforced flexible pavements, crack repair roads, prevent the reflection cracks of pavement.
(6) in ternal vertical or horizontal drainage, dissipation of pore water pressure in soil.
(7) water impermeable geomembrane dam or embankment in the lower part of the back or the concrete.
(8) the isolation layer between the road ballast and subgrade, isolation layer or between the embankment and soft foundation.
(9) the isolation layer soil between highway, airport, railway ballast and artificial rockfill and soil fabric.
