TOBEST nut and bolt making two die thread rolling machine screw making machine

Product Overview

Description

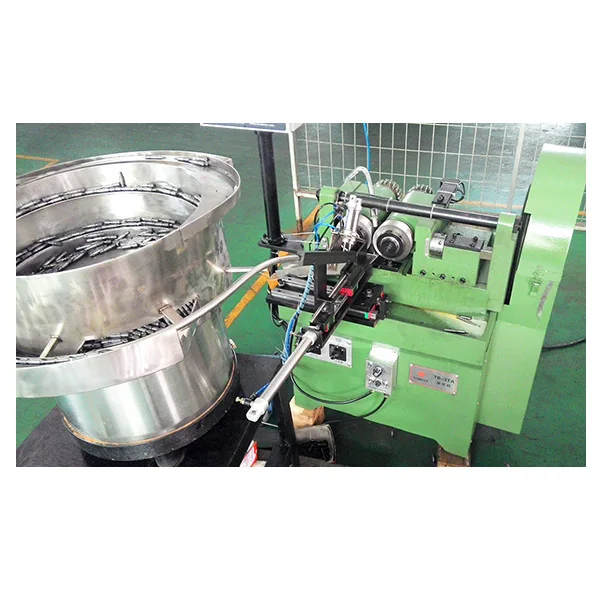

TOBEST nut and bolt making two die thread rolling machine screw making machine



Features:

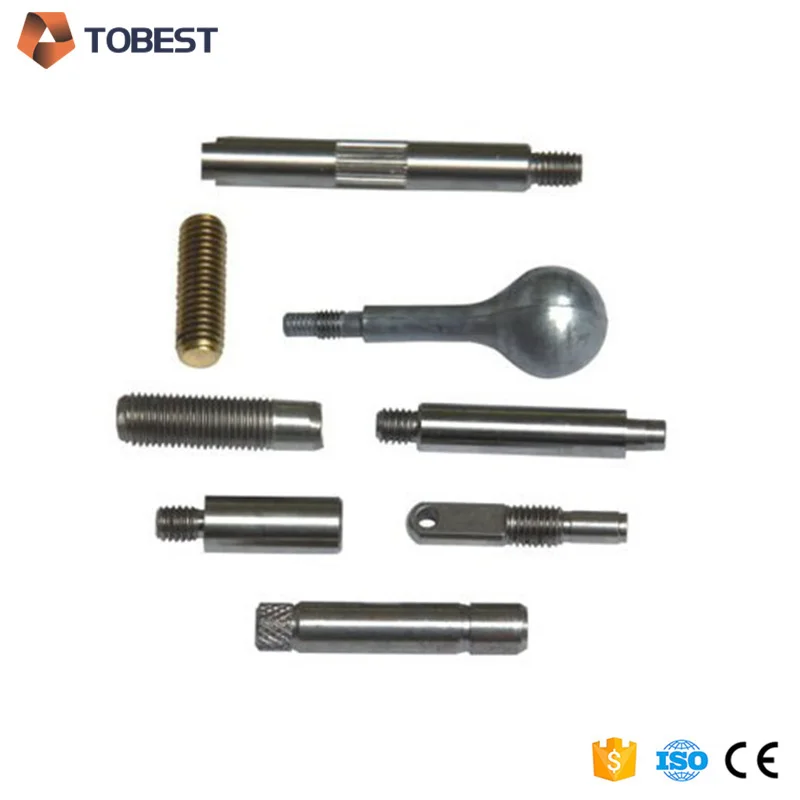

1.For a variety of industries for small shaft metal parts

2.Product structure is simple, using eccentric workpiece feed extrusion

3.Inside the tank can, external, space saving, easy to clean

4.Each roller cone has a corresponding center plate matching, easy-conditioners

5.Stand the whole cast, good rigidity, beautiful appearance



Technical parameter of Tobest TB-3TA

Work piece diameter				φ2-φ12/mm
Range of pitch rolled				0.4-1.75P
Max.length of thread rolled				30mm
Spindle speed				27rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Center distance between die spindles				90-130mm
Main power motor				2HP(1470W)
Distance from the lathe bed to rolling die				85mm
Supply voltage				380V
Weight(reference)				310(KG)
Package Dimension(L*W*H)				780*680*870mm
Dimension(L*W*H)				680*600*750mm
Bearing brand				NSK,UBC
Certification				ISO 9001-2008, CE
Application				bars,solid pipe,solid tube
Brand Name				Tobest
Color				green(or according to your need)
Warranty				12 months

Products display:













Related products:

bolts robs bars threading making machines automatic hydraulic through feed thread rolling machine manufacturer



  Model:TB-50ST





auto feeding thread rolling machine fasteners making machine TB-50S



Model:TB-50S





Automatic three die pipe thread rolling machine knurling machine roll forming machine



Model:TB-60A



Tobest thread rolling head for CNC lathe machine milling machine high precision thread rolling tools



Model:TB-01RH
