Tungsten carbide cutting insert brazed insert with various grade and type available

Product Overview

Description

Tungsten Carbide Cutting Insert Brazed Insert with Various Grade and Type Available

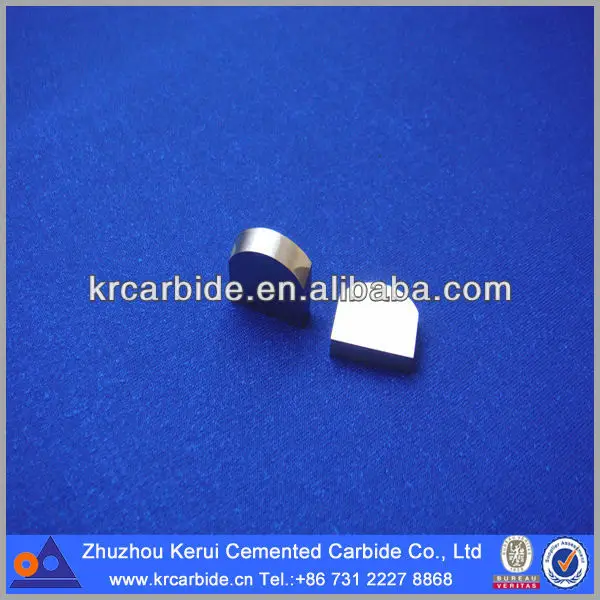

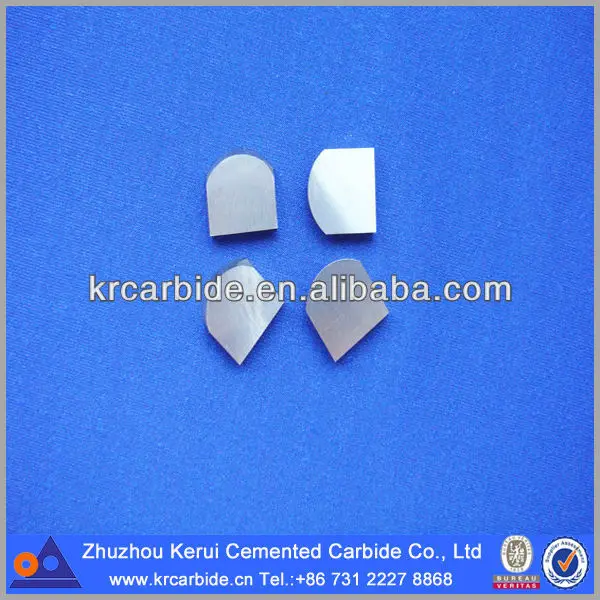

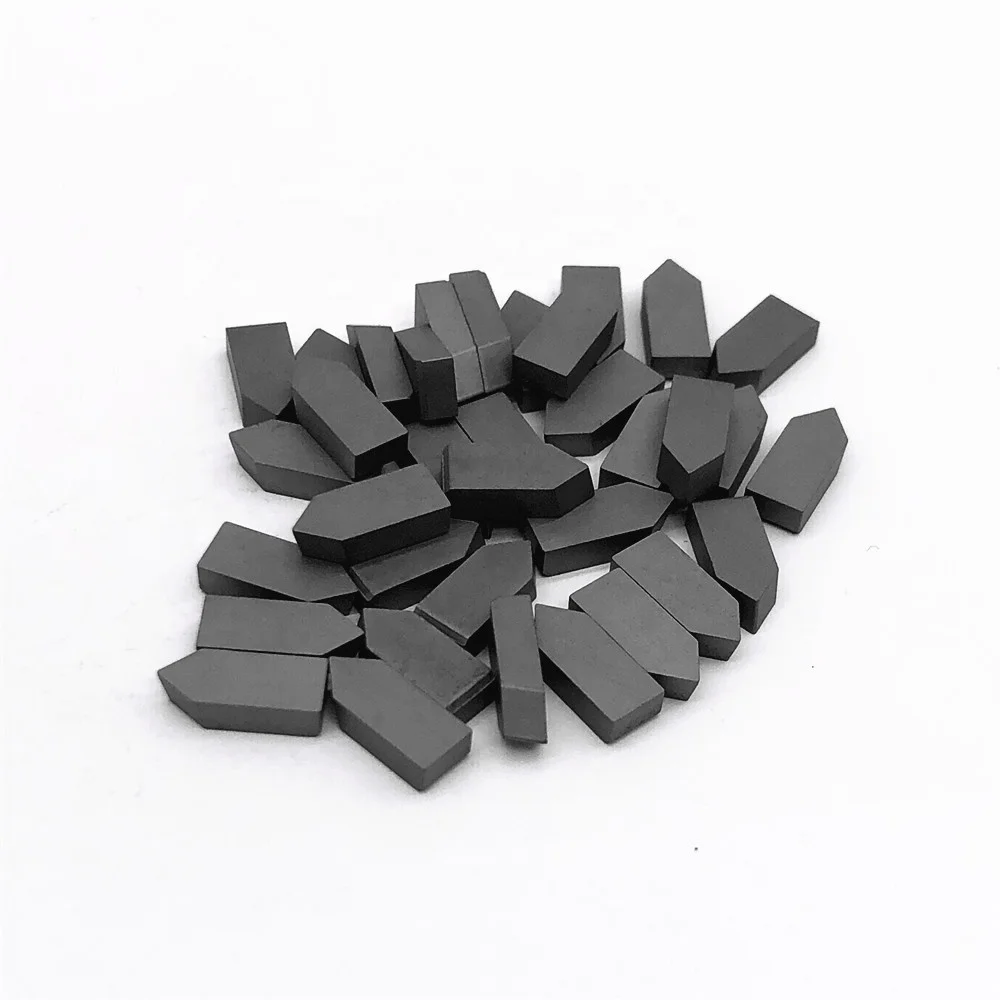

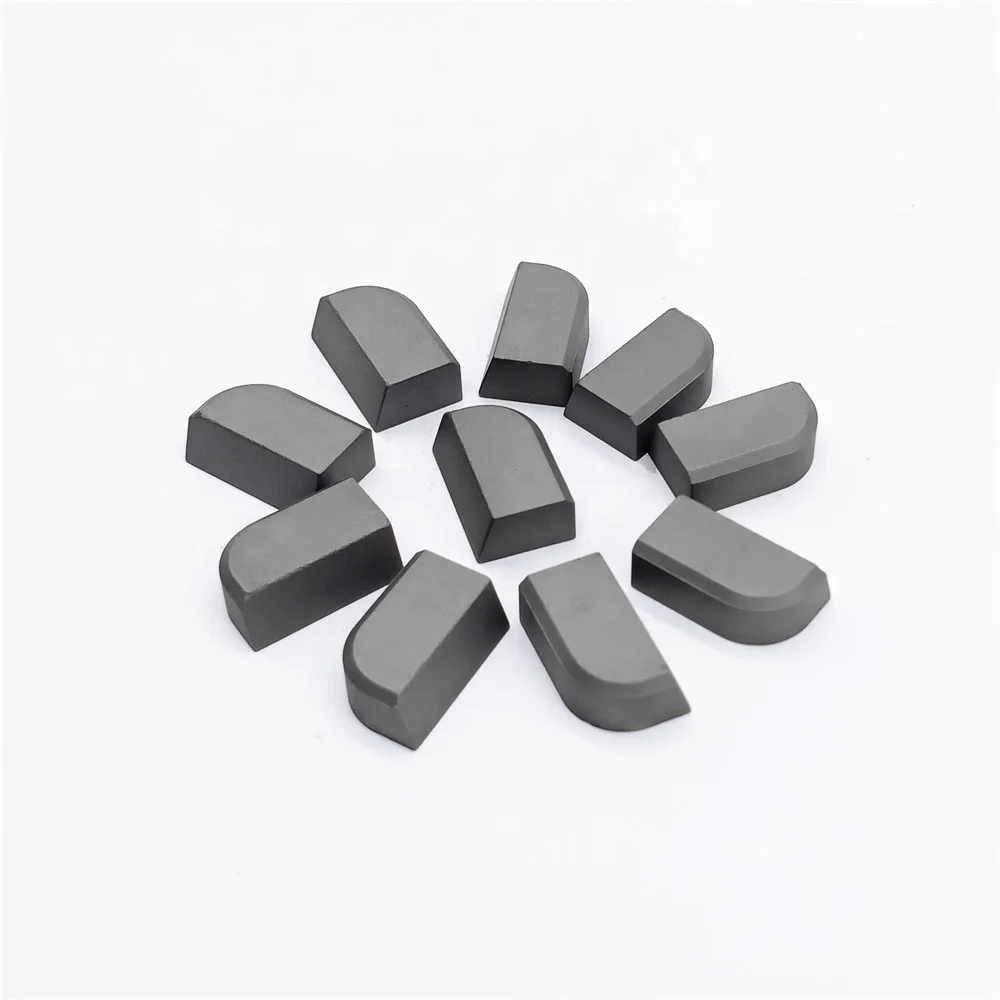

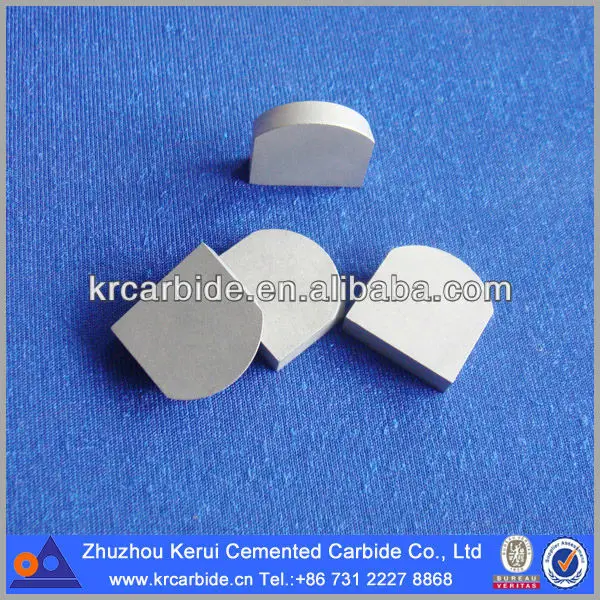

1. Product Picture Of Tungsten Carbide Brazed Insert for Type B2:



--Brazed insert with ground finish

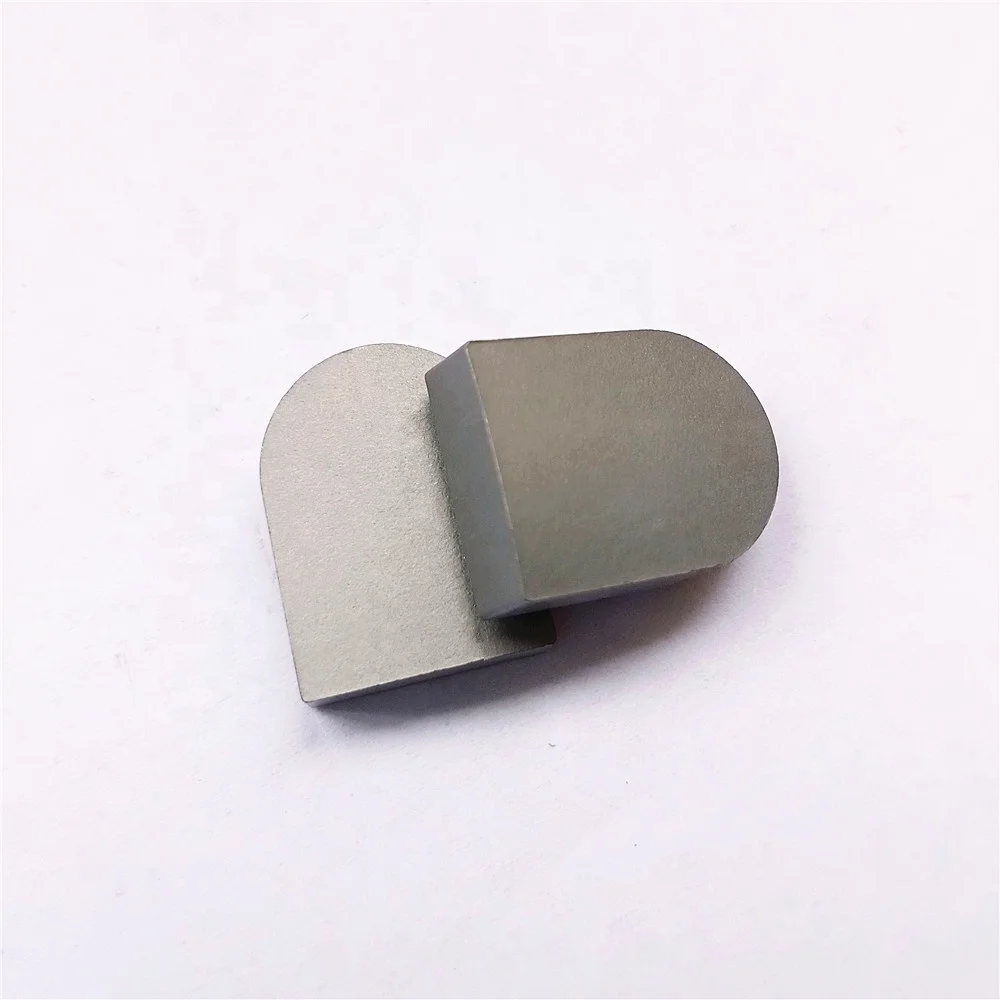

-- Brazed insert with blank finish



2. Application of Tungsten carbide brazed inserts:

With a small piece of tough carbide insert brazed to the tip of a steel shank, carbide tool can be

used for machining most materials including wood, plastic, aluminum, brass and steel etc.





3. Specification of carbide cutting insert brazed insert:

--Physical and mechanical properties of main grades:

Grade	ISO grade	Density	Hardness	TRS
		(g/cm3)	(HRA)	(Mpa)
YG6	K20	14.95	91.0	1800
YG6X	K10	14.95	92.0	1800
YKM6A	K10	14.95	92.5	1800
YG8	K30	14.7-14.8	90.0	1950
YT5	P30	13	90.8	1900
YT14	P10-20	11.5	91.5	1500
YT15	P10-20	11.3	91.8	1450
YW1	M10-20	13.1	91.5	1600
YW2	M10-20	13.1	91.0	1600
YS25	P25	12.8	91.5	1900
YC30S	P30	12.8	91.0	2000
ZP35	P35	12.8	91.0	2000
YC40	P35	13.2	90.0	1850

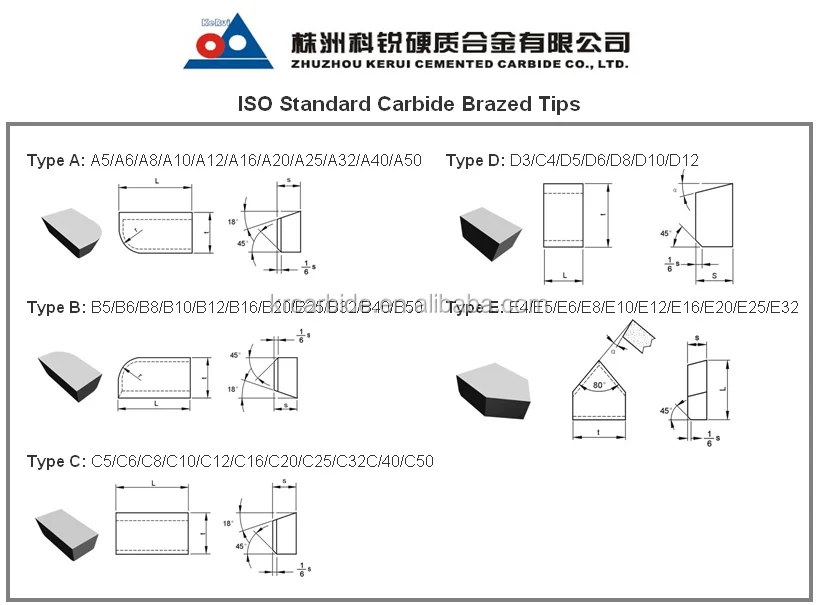

--Types for brazed tips: available in ISO standard A, B, C, D, E

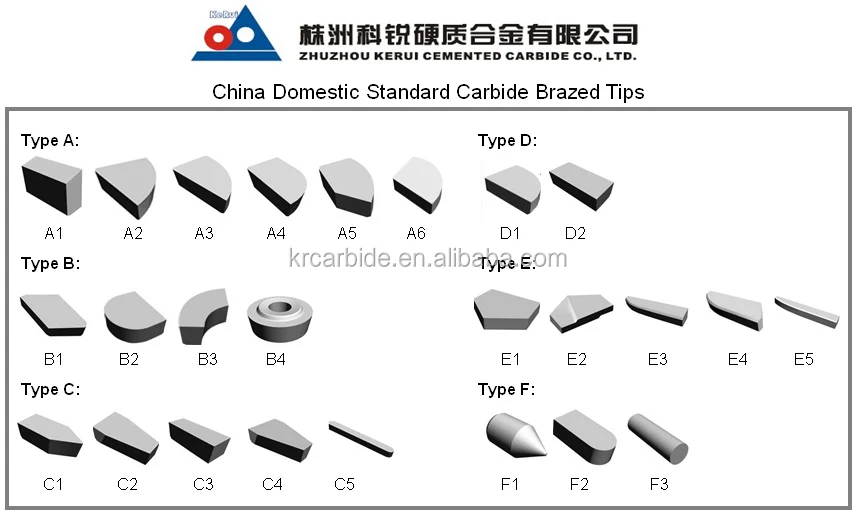

We also offer these brazed insert in China domestic standard type:

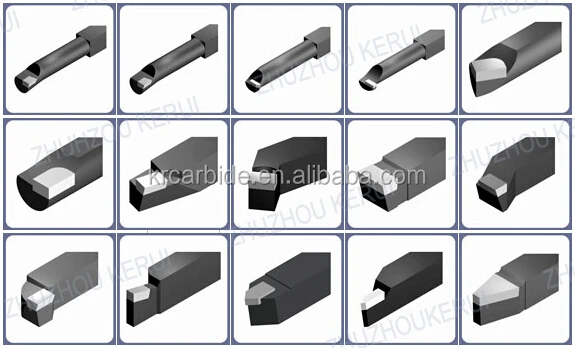

-- Tips for using of brazed tool:



1) Structure of brazed cutting tool should have enough rigidity;



2)  The brazed tips should be fixed strongly onto the holder;



3)  Check and ensure good condition of the holder before brazing;



4)  Choose the proper welding material;



5)  Choose the proper welding flux;



6)  Use correct sharpening method;



7)  Mount the brazed cutting tool properly;



8)  Resharpening the brazed cutting tool properly.





4. Packing of tungsten carbide brazed inserts:

Plastic boxes inside with carton outside. Other packaging upon request.



5. Main Products in Kerui:

Tungsten carbide brazed inserts/ tips

Tungsten carbide button, carbide gauge protection for drill bits

Tungsten carbide rod/ round bar/ solid carbide rod/ coolant hole rods

Cemented carbide stone cutting tips

Tungsten carbide bar for VSI crusher

Tungsten carbide strip/ plate/ inserts for wood working

Carbide milling/ turning inserts

Carbide wear parts

Tungsten carbide sheet for tool parts

Customized carbide products

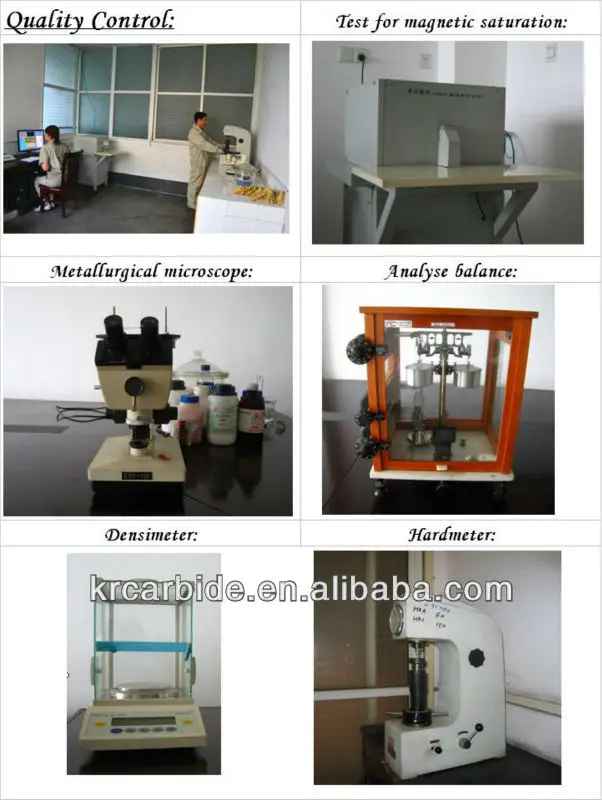

6. Quality Control System:

Everything single piece will be inspected in and after production to make sure it can match your

requests and we guarantee full payment returned if any quality problems.







7. Transportation of carbide cutting inserts brazed inserts:

    Fast and reliable delivery via air, sea and land transportation.



8. About us:

9. Customer Feeback

10.  FAQ:

1. Are you trading company or manufacturer ?

 We are manufacturer.



2. Whether accept customized tungsten carbide brazed inserts according to customers' requirements ?

Yes, We accept customized carbide cutting insert or any other customized carbide products, no matter what size and type ,and MOQ is 1 piece .



3. About lead time and shipping time for the carbide cutting brazed inserts?

The lead time depend on quantity of order. Usually it will takes 3-5days shipping to Shanghai port, China .Even the small order or urgent order we can send you by air after received your agreement. According the distance from china to your port, usually from China to European about 25-30 days. To West of American 20-25 days.



4. It is produced according to the standard?

Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request,we had strictly inspection in the production.  Exported to the Middle East, Europe, North America, South America, Australia and other countries and regions.



5. Can I expect a quality tungsten carbide brazed insert product?

Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.



6. How do you guarantee your brazed insert cutting insert quality?

We select the advanced production technology and equipment, strictly control the whole production process,and we inspected the finished drill bits,we can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
