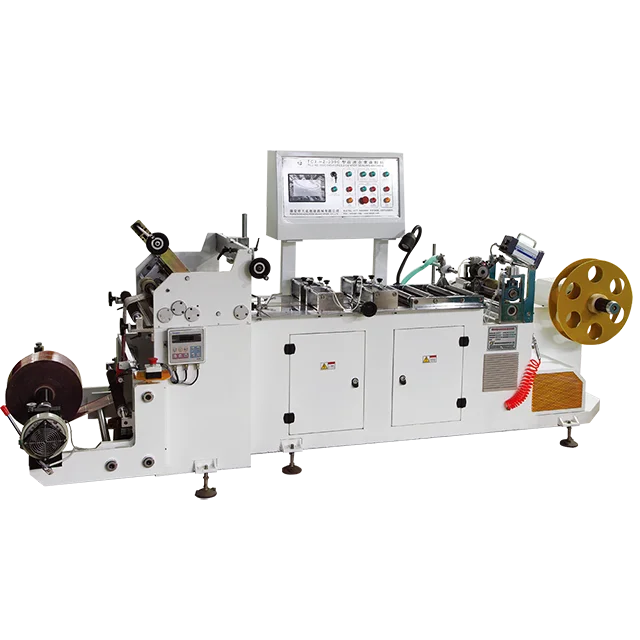

TCJ QD High speed high speed juice bottle label sleeve cutting machine (factory)

Product Overview

Description

 HIGH SPEED JUICE BOTTLE LABEL SLEEVE CUTTING MACHINE



  TCJ-QD350/450/600 High speed Juice bottle label sleeve cutting machine







Application	TCJ-QD350/450/600  High speed juice bottle label sleeve cutting machine is specialized in cutting pvc, pet, papers etc. labels.
Parameter	Raw material	PVC,PET,PET-G ,PAPER LABELS etc.
	Max.unwinding width	350mm
	Max. speed	500 cuts per min
	Length range	0-999mm
	Position precision	±0.2mm
	Total machine power	1.5kw
	Voltage	380V 50hz China.(Depend on customer)
	Weight	800kg
	Overall Dimensions(L*W*H)	2580*1050*1150mm3
Note: The Max cutting width ,we will depends on Customer requirements
Feature	1. Controlled by computer.
	2.Driven by step motor (Servo motor system is optional)
	3.Good quality inverter system
	4.Lable length setting freely
	5.Photoelectric sensor
	6.Automatic counting and warning system.
	7.High speed ,high precision, low cost
	8.Label conveyor is optional
	9.Unwinding airshaft and web guide system is optional













TCJ-QD350 High speed juice bottle label sleeve cutting machine   :













Edge position controller system(Optional configuration ):













OUR SERVICE:



 1. Installation Services



 Installation Services are available with all our new machines. We can send our technician to your factory to help you install your purchased machines from our factory. Of course, your factory need to supply the round trip tickets food, hotel and salary to our technician.





2. Clients Training Services



We advise each customer can send your own technician come to our factory to learn how to operate our machines. We will let our technician teach and train your technician hand by hand till he can operate our machine by himself.





3. After Sales Service



Our machine guarantee time is one year.



We will send many easy broken spare parts in the tool box together with machines.



If any parts broken, please take a pictures or a videos to us.



We will help you to change it.





SHOULD ANY FURTHER INFORMATION BE REQUIRED, PLEASE FEEL FREE TO CONTACT WITH US
