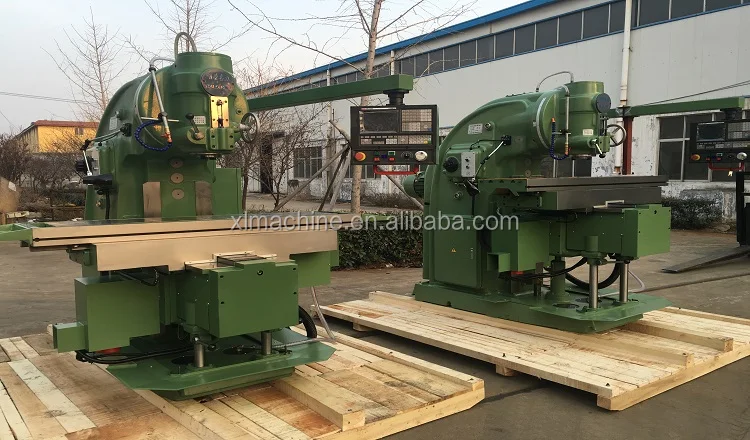

XK5040 heavy cutting knee type 3 axis CNC Milling Machine
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60067392079):
Product Overview
Description
XK5040 heavy cutting knee type 3 axis CNC Milling Machine
Brief Introduction
1). vertical milling machine, installed Siemens 808D system
2). milling head can swivel ±45°
3). 18-step spindle speed, gear driven directly, ensures powerful milling
3). 18-step spindle speed, gear driven directly, ensures powerful milling
_____________________________________________________________________
Optional devices available such as:
pneumatic tool clamping,
the 4th axis (CNC rotary table) etc.

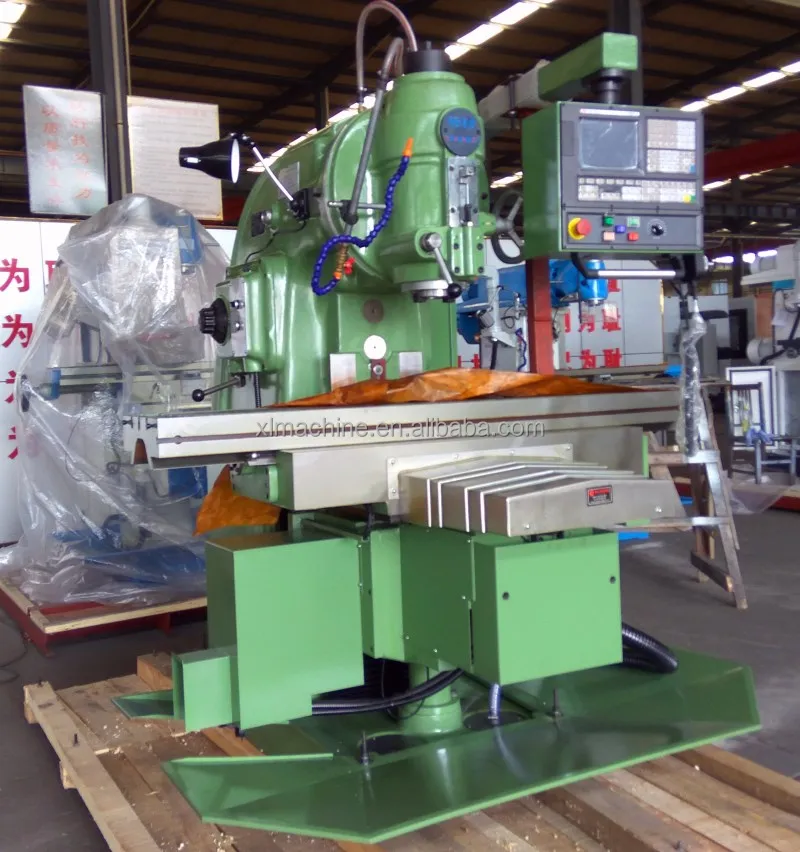

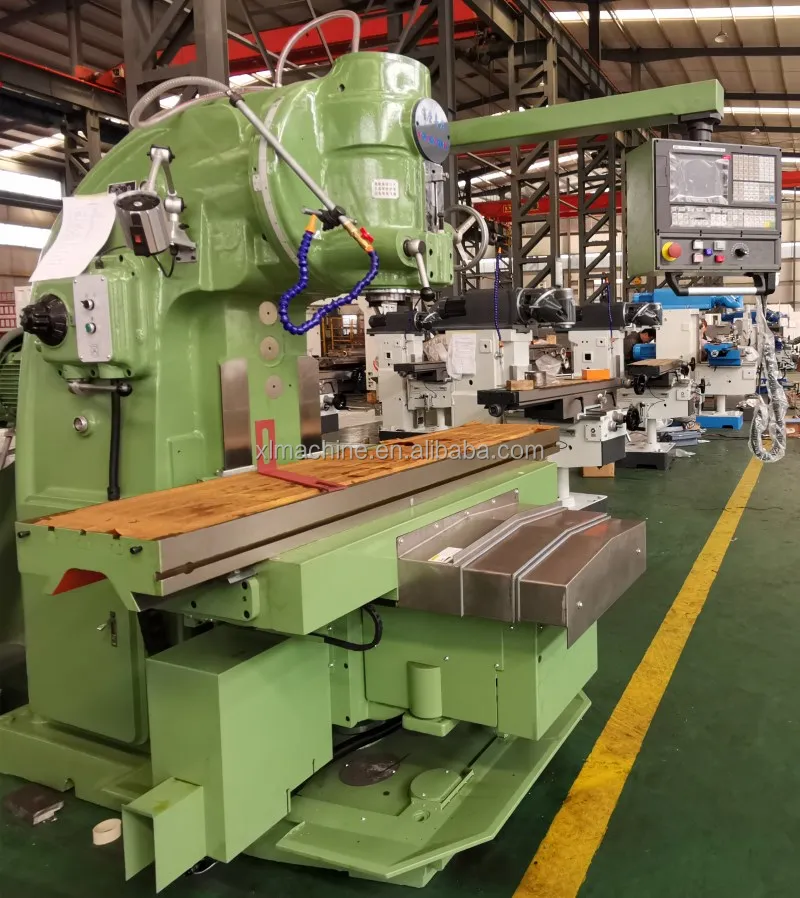

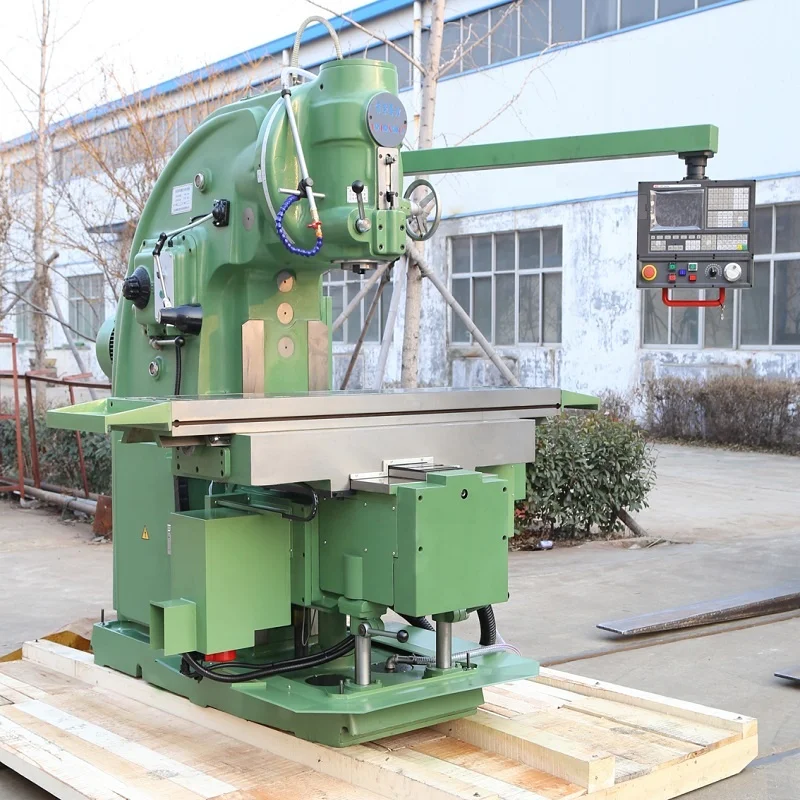

XK5040 vertical CNC milling machine
XK5032 vertical CNC milling machine
Specificaitons of This Series
ITEM | UNIT | XK5040 | XK5032 | |
table size | mm | 400*1700 | 320*1600 | |
T-slots (N/W/D) | 3/18/90 | 3/18/70 | ||
X travel (manual/auto) | mm | 1000 | 900 | |
Y travel (manual/auto) | mm | 350 | 310 | |
Z travel (manual/auto) | mm | 385 | 350 | |
table feed speed-X | mm/min | 6-3200 | ||
table feed speed-Y | mm/min | 6-3200 | ||
table feed speed-Z | mm/min | 3-1600 | ||
distance from spindle nose to table surface | mm | 80-465 | 35-385 | |
spindle taper | ISO50 | |||
spindle speed | rpm | 30-1500 | ||
spindle speed steps | 18 steps | |||
spindle stroke | mm | 85 | 70 | |
main motor power | kw | 11 | 7.5 | |
torque of servo motor (X/Y/Z) | N.m | 15/15/23 | 10/10/18 | |
overall size | mm | 2760*2160*2250 | 2040*1800*1910 | |
N.W. | kg | 4200 | 2900 | |
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
