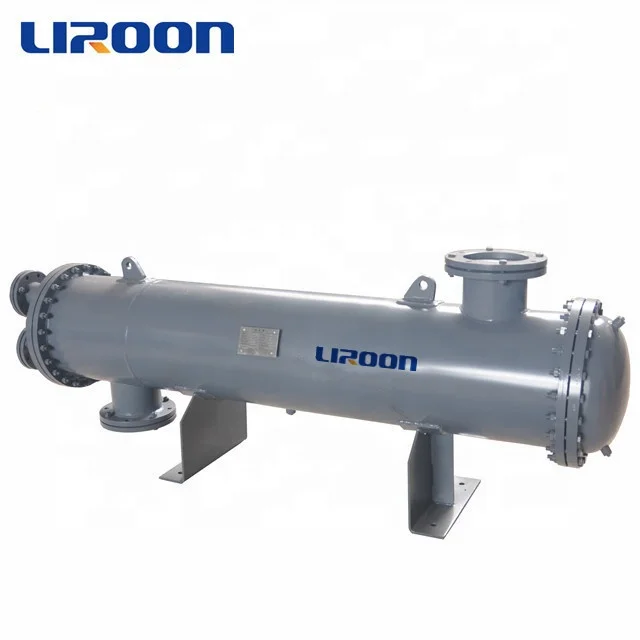

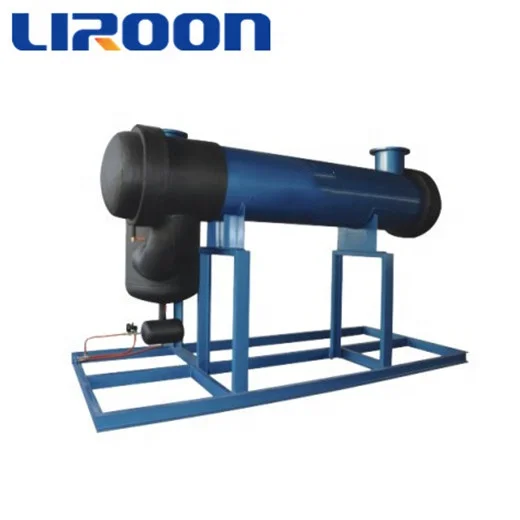

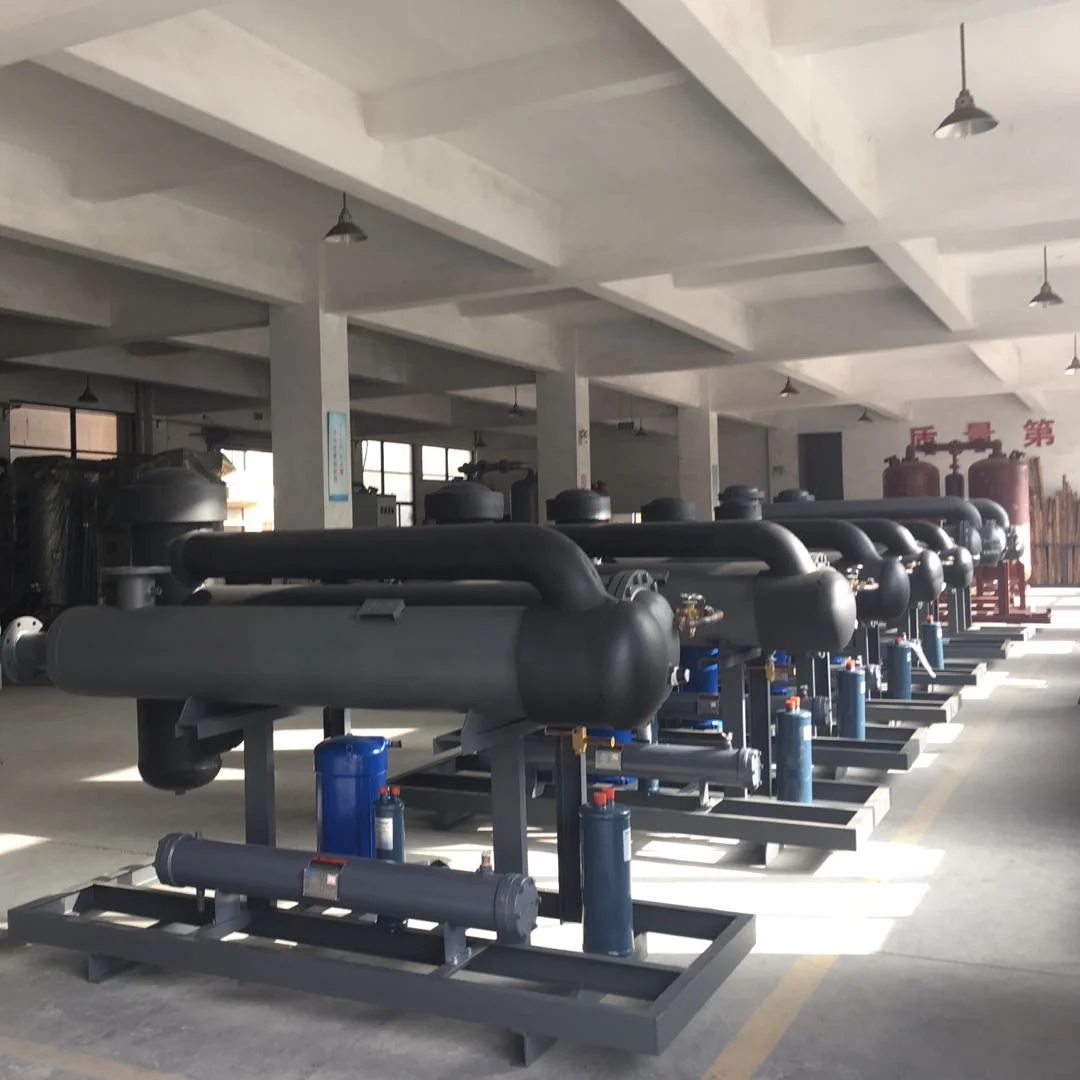

Air compressor after cooler

Product Overview

Description



Introduction of compressed air after cooler

LNH series compressed air after cooler is to pre-cool the high temperature compressed air via the cooling medium, to satisfy the required inlet air quality for the drying purification equipment.



It can be classified air-cooled style and water-cooled style, separately be indicated as LNHF and LNHS



The characteristic of water cooled after cooler

1. 1.      the heat exchanging process adopt the air getting through the heating exchanging tube pass( double tube pass), cooling water getting through the shell pass


2. 2.      the heat-exchanging pipe adopts the high effective tooth thread cooper tube


3. 3.      the auto drainer is installed



Technical data

u      Rated working pressure: 0.6~0.95MPa

u      Cooling water temperature: 2°C~35°C(only for water cooling style)

u      Inlet air temperature:  ≤80°C

u      Ambient temperature: 38°C(only for air cooling style)

u      Outlet air temperature   ≤45°C

u      Pressure drop: ≤0.015MPa



Compressed air after cooler

Model	Capacity Nm3/min	Air connection	Cooling water size	Cooling water volume T/H	Length mm	Width mm	Height mm	Weight KG
LNHS-3	3	Rp1″	Rp½″	0.75	1150	340	400	80
LNHS-6	6	Rp1½″	Rp1″	1.5	1260	450	480	210
LNHS-10	10	Rp2″	Rp1″	2.8	1450	500	550	280
LNHS-20	20	DN65	Rp1½″	5.3	1560	550	680	340
LNHS-30	30	DN80	Rp1½″	8.2	1650	580	620	450
LNHS-40	40	DN100	Rp1½″	10.5	1850	640	700	580
LNHS-60	60	DN125	Rp2″	15.4	2220	700	740	690
LNHS-80	80	DN125	Rp2″	21	2360	750	820	830
LNHS-100	100	DN150	Rp2½″	25	2600	800	850	950
LNHS-150	150	DN200	Rp2½″	37.5	2950	950	1050	1210
LNHS-200	200	DN200	Rp2½″	50	More detail, do contact with LINUO
LNHS-300	300	DN250	Rp3	75
