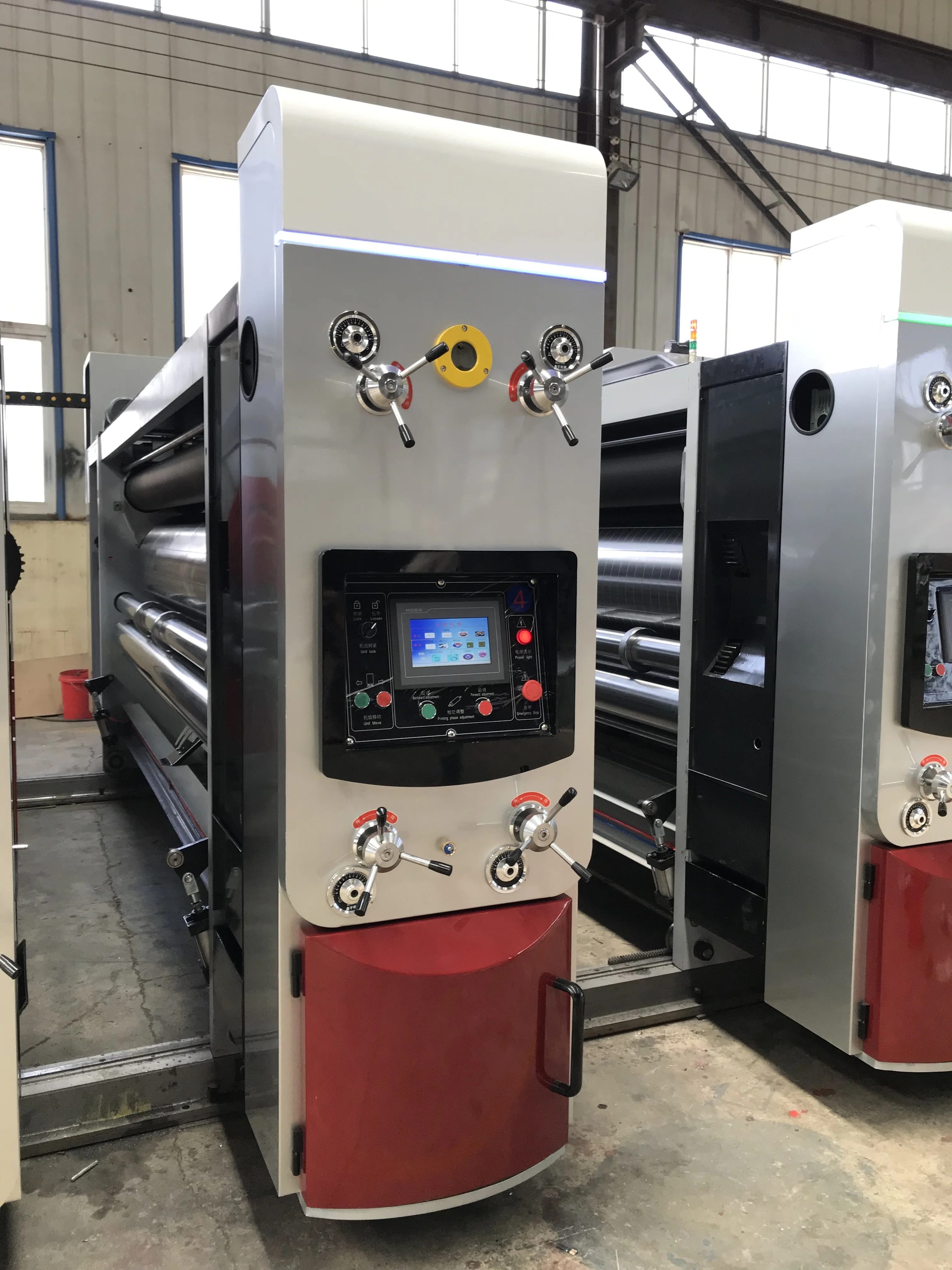

High speed 4colors printer slotter die cutting stripping auto stacking machine
Product Description
Design speed
200(piece/min)
Economic speed
180 (piece/min)
Max Cardboard size
1600*2600mm
Min cardboard size
480*600mm
Max printing size
1600*2400mm
Max skip cardboard
2000*2600mm
Slot width*slot depth
7×400mm
Min slot distance
300*100*300*100mm
Max die cutting size
1600*2600mm
Standard plate thickness
Hanging plate7.2mm
Main motor power
37kw
Air fan power
7.5kw
Total power
45kw
Tinted precision
±0. 5mm
slotting precision
±1.5mm
Die cutting precision
±1mm
weight about
38Ton
Whole machine introduction :
1. The whole machine is designed according to high specification .it is based on human and machine consistent principle , it is easy operation and convenient maintain and long life . It is a cost-effective product with multi-protect function
2. Make machine and human conversation by touch screen and retain electrical control system . It is return-zero automatically and reset automatically and store order
3. Human control machine by computer .PLC controller . Frequency inverter all choose famous brand from all over the world
4. Main driving gear material adopts excellent alloy steel (20CrMnTi)processing , by many ways process to be a shaped . Hardness of Gear surface after fine grinding and high frequency quenching can up to HRC-60 to ensure transmission perfectly for a long time
5. All spare parts like rollers and shafts is heavy-matched test by static and dynamic balance . Ensure stable and reliable when high speed working . Roller surface is hard chrome plating protective layer
6. All rollers adopts keyless connect to avoid gap from transmission connection and keep good printing chromatograph
7. Transmission lubricating system adopts spray splash-avoiding advice and cycling automatically
8. Vacuum adsorption feeding to avoid feeding roller wheel damage pattern on printing plate and ensure exact accurate overprint
9. You can choose sealed chamber with double knife system
Lead edge feeding part:
1. Lead edge feeding system , easy operation and accurate
2. 7.5kw high pressure centrifugal ,frequency converter control blower pressure to ensure feeding warp cardboard exactly
3. Position of Right and left side apron is adjusted by electric with screw drive
4. Front apron lower and upper gap is sync adjustment
5. Skip feeding device , you can choose this as your request to ensure large size cardboard can be processed
6. Install 7.5 inch touch screen and can show productivity number and speed and also to set speed
7. Slotting die-cutting part with chain control switch and it can realize stop or start feeding
2. Adjust box height electrically and inside gear adjustment structure
3. Polyurethane pre-pressing wheel to ensure cardboard in good situation
4. Length and width of box is adjusted electrically sync adjustment
5. You can choose positive and negative knife
6. With handle attachment device and order management function
Die-cutting part:
1. Axial position cycling moving automatically
2. Choose excellent durable rubber imported from Taiwan
3. With repair-auto rubber device
4. Track and compensate after lower and upper roller repair
5. Slotting slitting knife is special designed and installed on special fixtures , four blade can sync adjust box height . Load and install is convenient and it can replace rotary slotting machine . Blade incision is smooth
6.Die-cutting roller lift pneumatically and make rubber good when idling and phase adjustment to save cost
7. Rubber shaft axial moving 40mm automatically . Creasing not repeat and improve rubber using life
8. Rubber shaft with repair device auto and can repair 3-4 times
Stacking part
1. Receiving arm can be manual or auto operation , it is with insurance system to avoid receiving arm fall down suddenly that make worker safe
2. Bed desk lift by strong chain driving
3. Stacking height is 1600mm 1800mm 2000mm
4. Adjust bed table tilt height as stacking height , lifting motor , brake function , bed table can keep fixed position
5. Paper-lifting system pneumatically , when cardboard stacking up to desire height , paper-receiving tray is open automatically , tray seat hold cardboard
Packaging & Shipping
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
