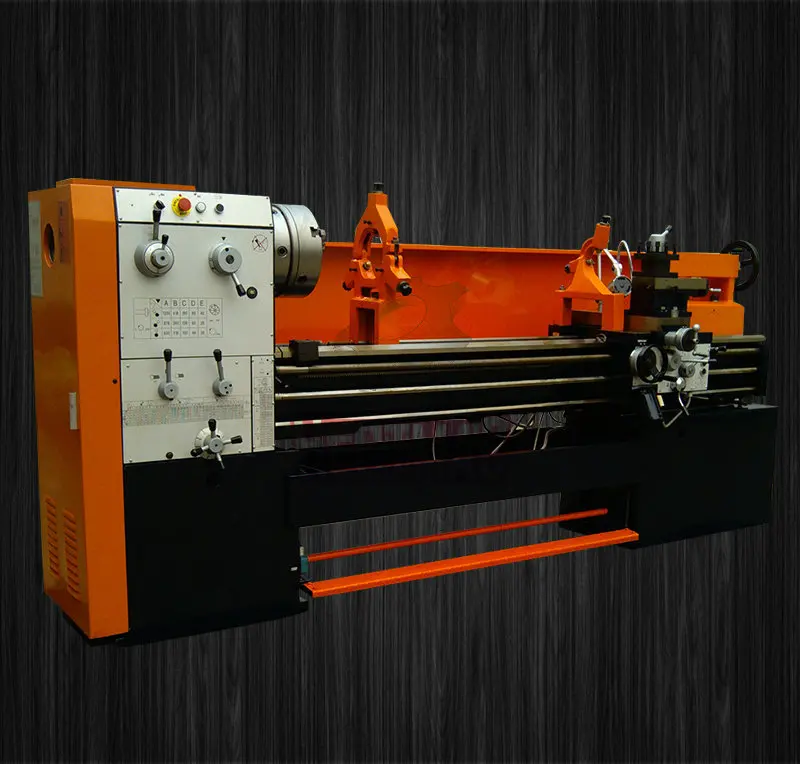

CH6236G HIGH PRECISION CHINA LATHE MACHINE WITH COMPETITIVE SALE PRICE
- Category: >>>
- Supplier: Nantong Brillante Industrial Enterprise Co. Ltd.
Share on (60067721679):
Product Overview
Description
Product Description
| Model | CH6236G/750MM | CH6236G/1000MM | |
| CAPACITY | Max.swing over bed | 360mm | |
| Max.swing over cross slide | 198mm | ||
| Max.swing over gap | 476mm | ||
| Center Distance | 750mm | 1000mm | |
| HEADSTOCK | Spindle hole | 38mm | |
| Spindle nose | ISO-D5 | ||
| Spindle taper | MT5 | ||
| Spindle speed(Number) | (8steps)70-2000rpm | ||
| FEEDS | Metric threads range | 26kinds 0.4-7mm | |
| Inch threads range | 34kinds 56-4 T/inch | ||
| Longitudinal feeds range | 20kinds 0.052-1.392 mm/r | ||
| Cross feeds range | 20kinds 0.078-1.044 mm/r | ||
| TAILSTOCK | Taper of tailstock sleeve | MT3 | |
| Max.travel of tailstock | 100mm | ||
| MOTOR | Main drive motor | 1.5KW | |
| PACKING L*W*H | Center Distance(750mm) | 175*75*100cm | 200*75*100cm |
| N.W/G.W | Center Distance | 570/620kg | 640/690kg |
| ***STANDARD ACCESSORIES | |||
| 3-jaw & 4-jaw | |||
| Steady rest & follow rest | |||
| Face plate | |||
| Drive plate | |||
| Longitudinal touch stop | |||
| Work lamp | |||
| Coolant system | |||
| Full-length splash guard | |||
| Foot brake | |||
| Change gears | |||
| Live center and centre sleeve | |||
| Paddings | |||
| One whole set spanner | |||
