automatic door system for car / bus / truck pass

Product Overview

Description

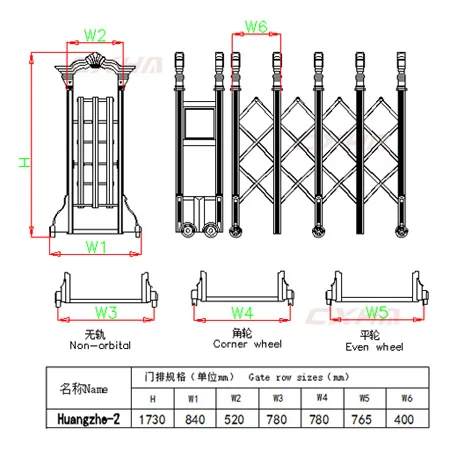

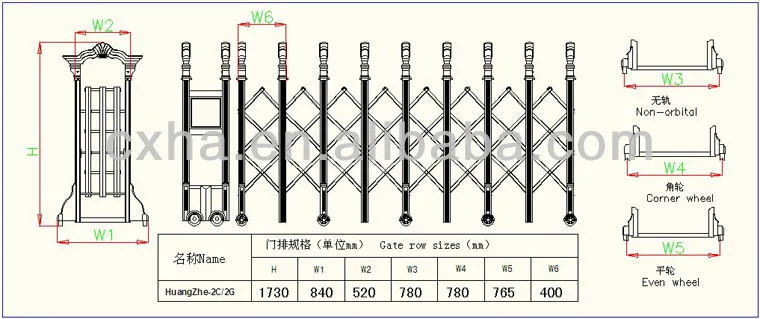

Model Number	Huangzhe-2C
Materials	Aluminum-alloyed materials
Standard Height	1730mm (customized height available)
Gate Width	840mm
Wheel Base	780mm (center-center)
Gate Color	Blue
Power Voltage	AC220V±20% 50Hz; AC110V±10% 60Hz
Power Consumption	250W - 370W
Working Temperature	-30°c - +50°c
Working Humidity	≤90%
Moving Speed	≈15m/min
Remote Control Distance	≤50m
Max. Length	≤30m
Main Parts Material	60×50x1.0 mm
Auxiliary Parts Material	50×30×0.9 mm













1, The model of door design adopts intelligent motor with over temperature protection and automatic recovery function.



2, The door hardware material adopts high strength aluminum-alloyed, with proper structure design and no color fading away after long time using.



3, The base board of motor is with hot pressing steel plate which will be difficult to break down or out of shape.



4, The door wheels are with die-casting Aluminum for axel and imported rubber so they are of high strength, abrasion resistant, low-noise and long life.



5, All plastic parts are with fully new ABS, strong and durable.



6, The infrared device will further protect the security of person or car crossing the gate.



7, The special anti-wind device will effectively avoid falling down by strong wind.



8. Extra anti-climb device or lighting alarm can be also equipped if required.



9, The automatic door is with clutch key by which the gate can be controlled for opening or closing manually in special case or power failure situation.



10, The infrared remote control distance can be 50m at max in clear open space. 2 piece of handset remote control and 1 piece of desktop control are provided as standard.



11, The sliding door opening or closing speed is around 320mm/s and each gate is better with 30m length less.



12, The aluminum door can be made for trackless model, single-track model or double-tracks model according to customers’ requirement.



13, The display screen on both front and back sides can also be customized but it should be concluded before the order production.



14, The main door length shall be made according to project requirement and height can be standard or customized.



15, The automatic door is widely applied to the main entrance of factory, government building, school, warehouse, villa, residential community and so on.
