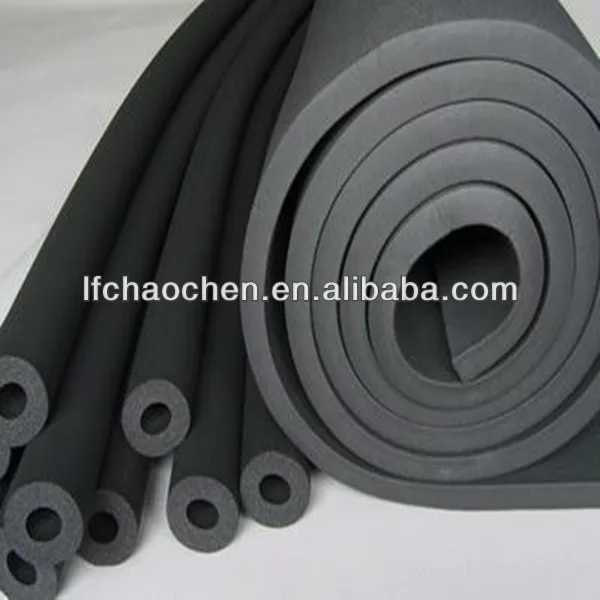

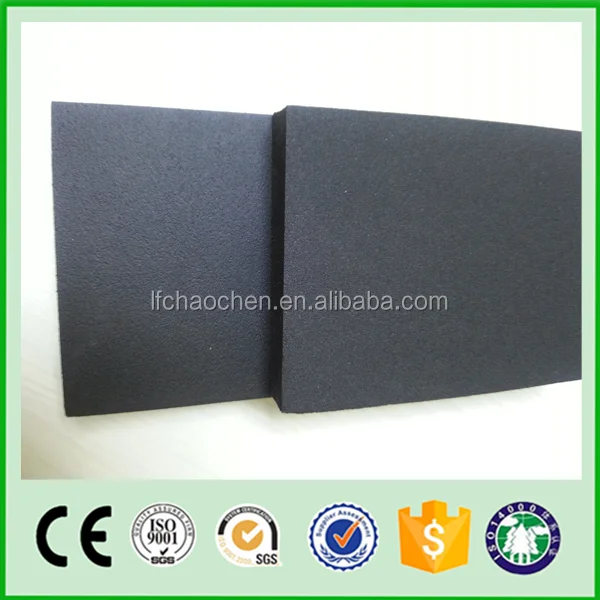

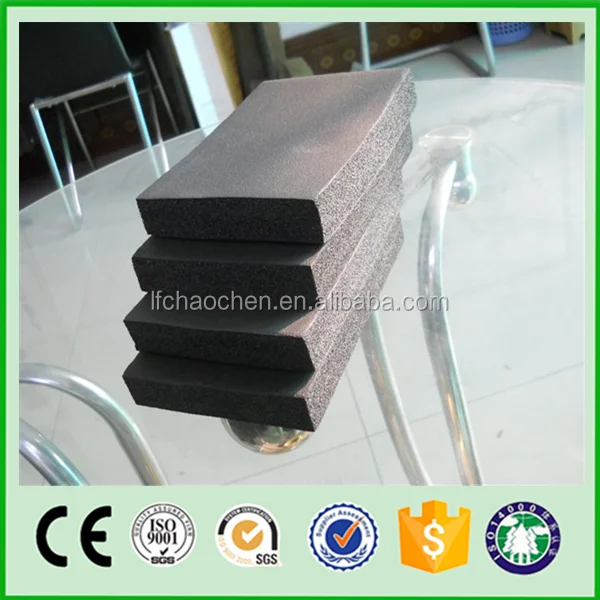

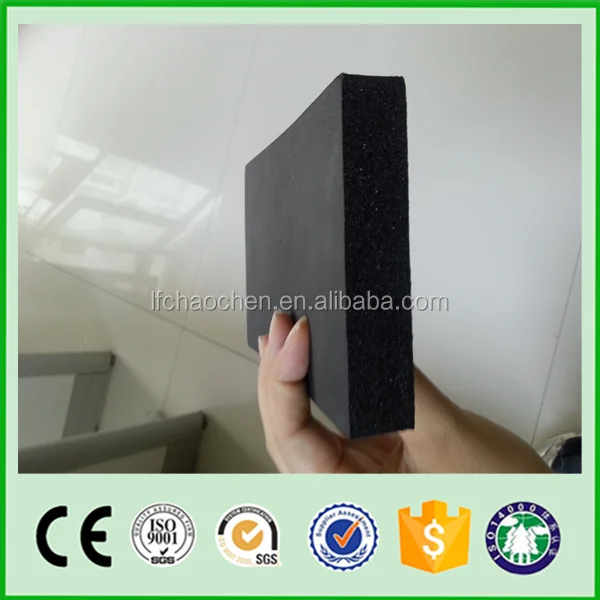

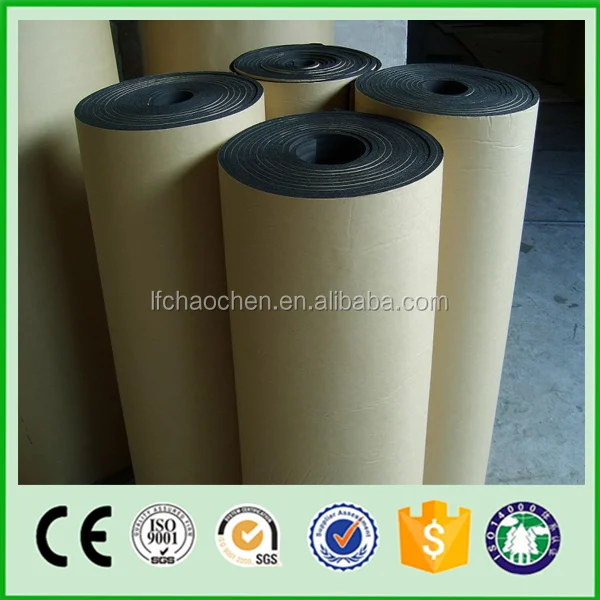

Thermal Insulation Rubber Foam In Roll Sound Vibration Absorption Nbr Rubber Foam

Product Overview

Description



Introduction

With the introduced advanced skill and technology and automatic working line, our product PVC/NBR thrermal insulation materials, are manufactured through special technologies such as banburying and sulfur foaming.

Characteristics

• Environment friendly: no chlorine and fluoride, confirm to the requirements of ISO14000 International Environmental Certification, so in installation or use it will not produce any pollutant to harm human;


• Low heat conductivity: Rubber plastic insulation board is high-quality insulation and energy-saving material, and is the invincible opponent of cold insulation, thermal insulation and anti-condensation. Its low and stable heat conductivity makes an excellent thermal insulation effect to any thermal medium;


• Good fire proof performance: Rubber plastic material confirms to the National Standard GB8624, Building Materials Combustion Performance Analysis has tested and graded it as GB8624B1 Flame retardancy material;


• Closed-bubble structure: Rubber plastic is closed-bubble structure, and the moisture in external air can not permeate into material, so it has an excellent vapor permeation resistance, and cold insulation and thermal insulation will not need extra water vapor barrier. μ value of damp obstruction factor of rubber plastic is more than 3500 (ISO9346), which constitute the built-in water vapor layer, so that scratching will not influence the whole vapor proof effect. Rubber plastic is both insulation layer and damp proof layer;


• Thin material, space-saving: The service thickness of rubber plastic is 2/3 thinner than other insulation material, so it can save the space above ceiling of every floor, and improve the interior altitude;


• Long service life: Rubber plastic has properties of weather resistance, cold resistance, heat resistance, dry resistance, damp resistance, UV resistance, ozone resistance, ageing resistance for 25 years, deformation resistance, and long service life under maintainance-free;


• High-end appearance, neat and beautiful: Rubber plastic has characteristics of high elasticity, smooth surface, and soft texture, even if installed on bend, tee joint or valve such kind of irregular parts, it will still maintain complete and beautiful; its appearance doesn’t need decoration, even if suspended ceiling is not installed, its high-end effect can still be ensured;


• Easy and convenient to install: Because of its soft material and no need of other Auxiliary Stratotype, it’s easy to install, and for the installation of pipelines, it can be adjustable according to the installation of pipelines.



Technical Index

Item		Unit	Performance Index
			0		Ⅰ		Ⅱ
			Board	Pipe	Board	Pipe	Board	Pipe
Apparent Density		Kg/m3	65-70		60-65		60-65
Combustion Performance		--	Grade	0	Grade	B1	Grade	B2
			Oxygen Index	≥40	Oxygen Index	≥32	Oxygen Index	≥28
			Smoke Density	≤70	Smoke Density (SDR)	≤75	Smoke Density (SDR)	≤75
Heat Conductivity(Average temperature)		W/m·k	≤0.034
Water Vapor Permeability	Coefficient	G/m, s, p, a	≤10×10-10 ≤7×10-10 ≤4.5×10-10
	Factors	--	≤10×10-10 ≤7×10-10 ≤4.5×10-10
Water Absorption Ratio in Vacuum		%	≤10
Dimension Stability (105±3, 7d)		%	≤10
Tear Strength		N/cm	≥3.0
Compression Resilience Ratio (Compression Ratio 50% Compression Time 72h)		%	≤70
Ozone Resistance (Ozone Partial Pressure 202Pa 200h)		--	No chap
Aging Resistance (150h)		--	Slight corrugation, no flaw, no pin hole, no deformation
