§   Cantilever Rack

This type of racking is suitable for storing the irregular shape items, long items, such as tubing, pipes, lumber..., is divided into single side cantilever rack and double side cantilever rack according to the structure.

1. Easy installation, Easy management

2. Size and capacity can be fixed by users, Allows extra long items to be stored.

3. Cantilever racking is mainly composed of columns, and other components of the cantilever beam.

4. Its characteristic overhanging cantilever arm is lighter,but heavy loading.

§   Necessary Data - for quotation

1) Rack Size: Width*Depth*Height;    2) Length of the Arm?    3) Loading capacity?     4) How many levels?

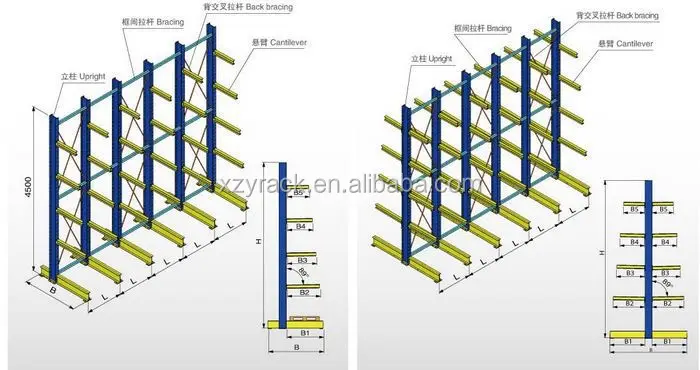

§    Cantilever Rack Main Parts

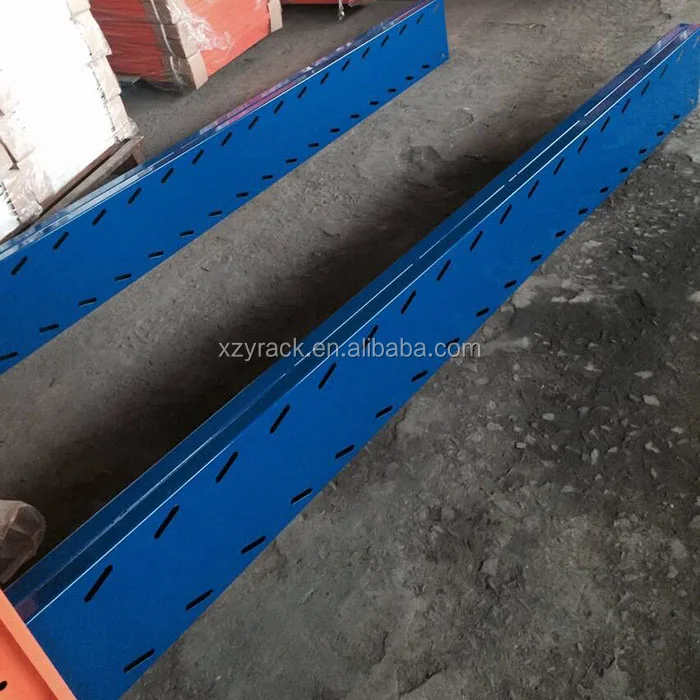

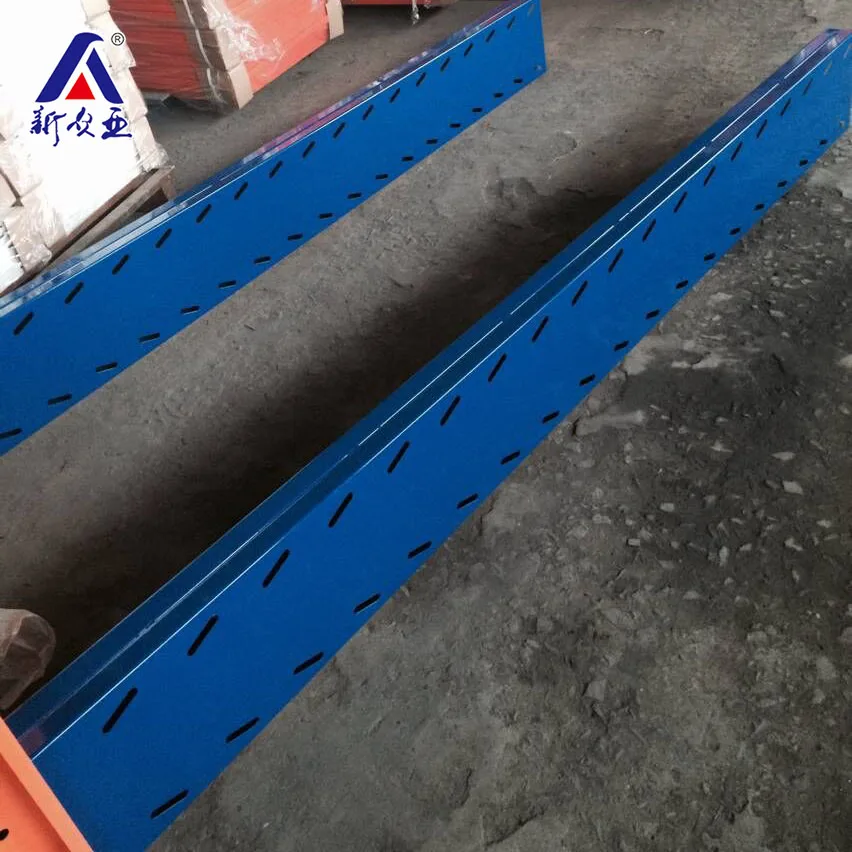

• Upright/Post

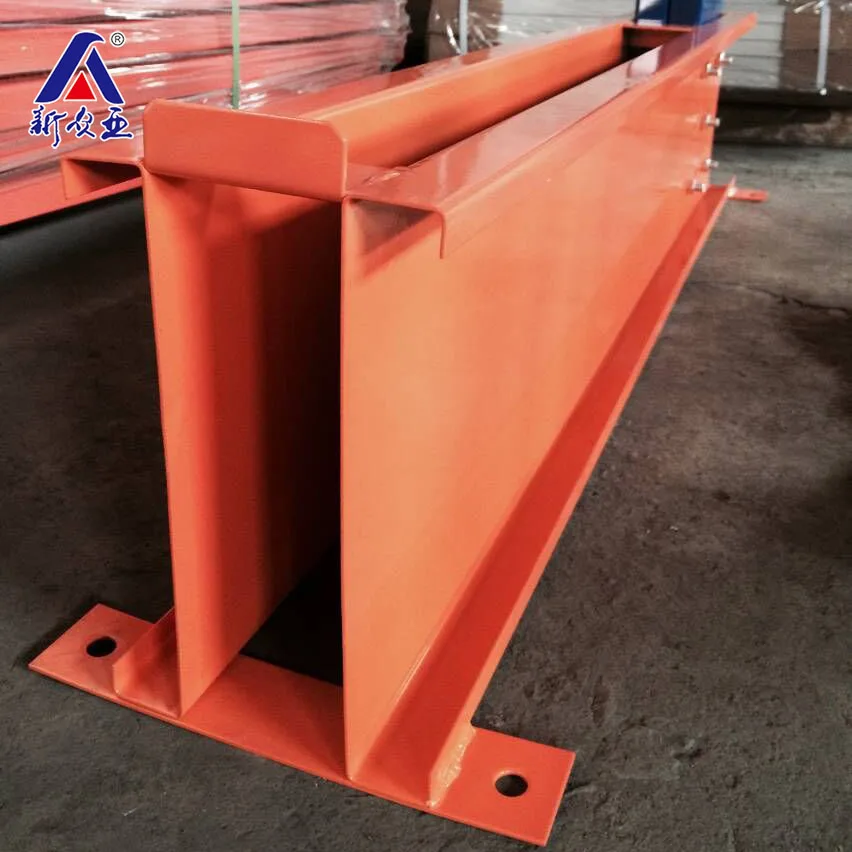

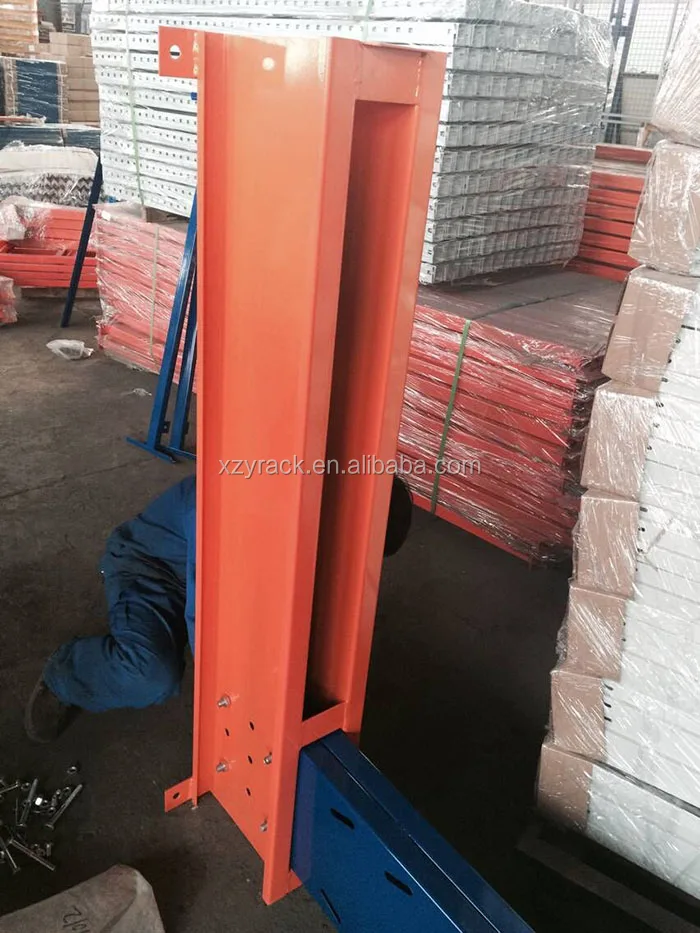

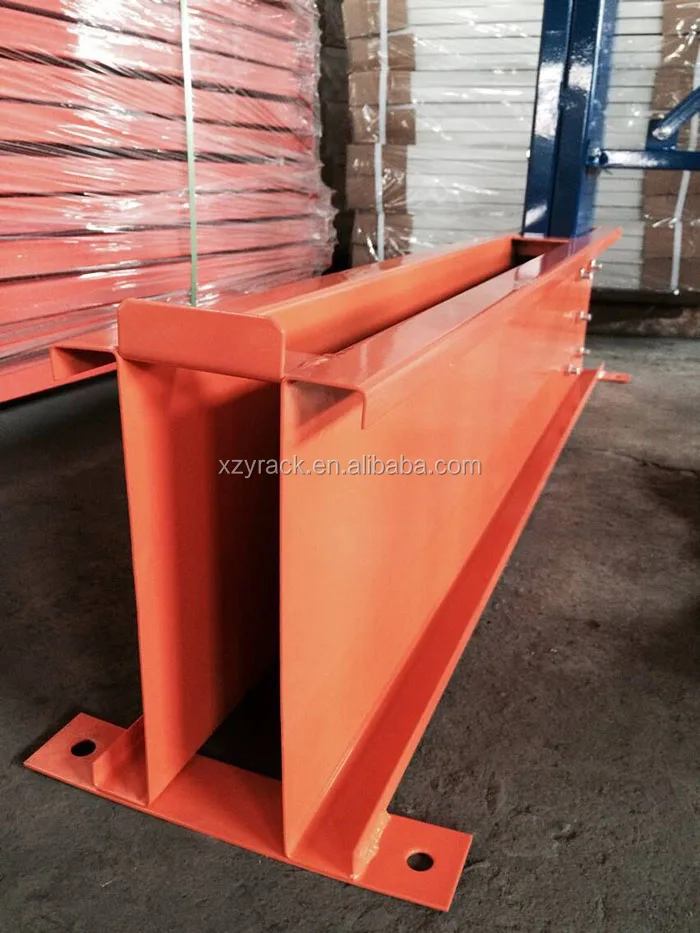

• Base

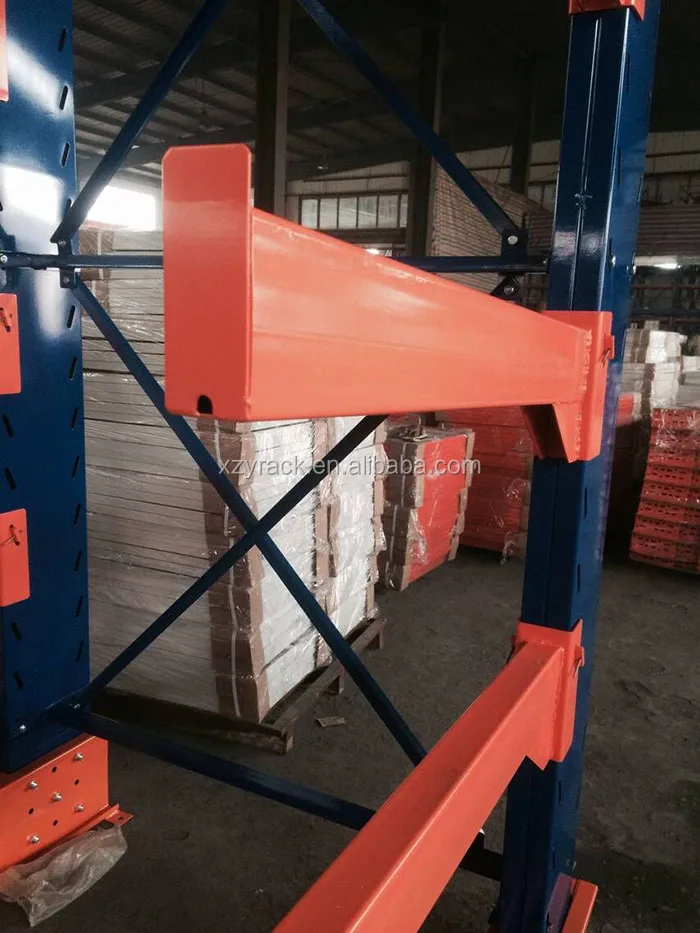

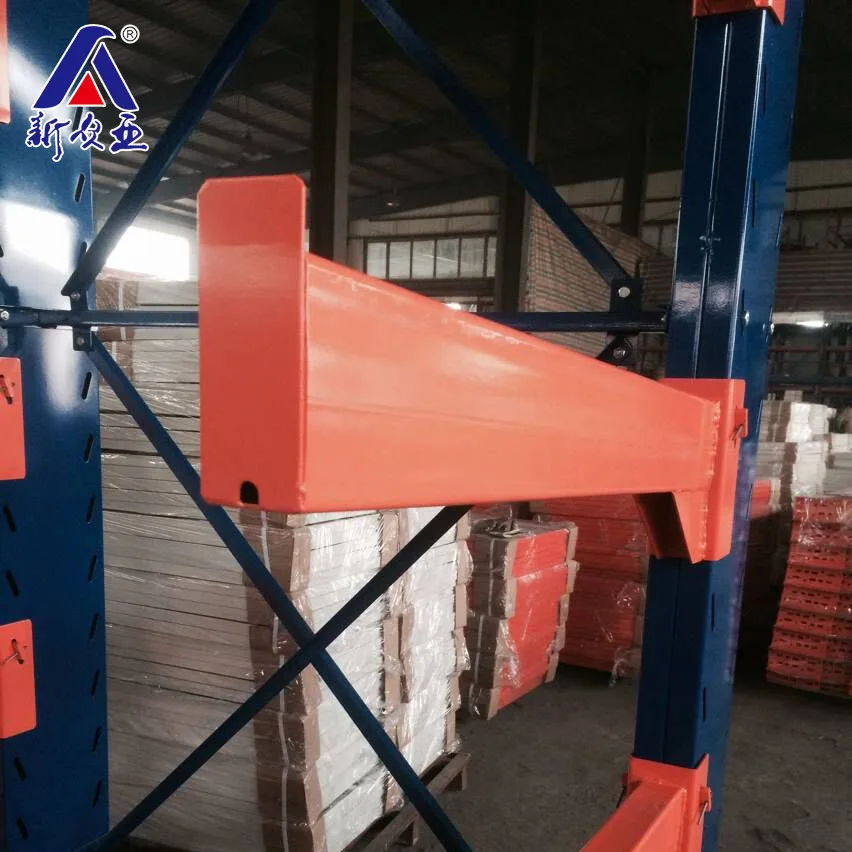

• Arm

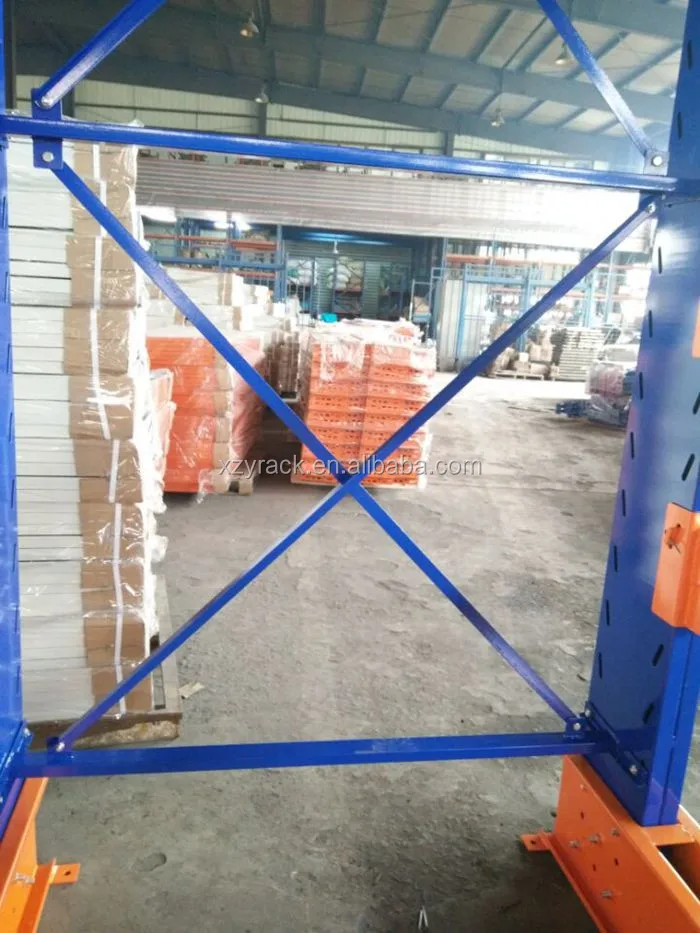

• Horizontal brace and diagonal brace

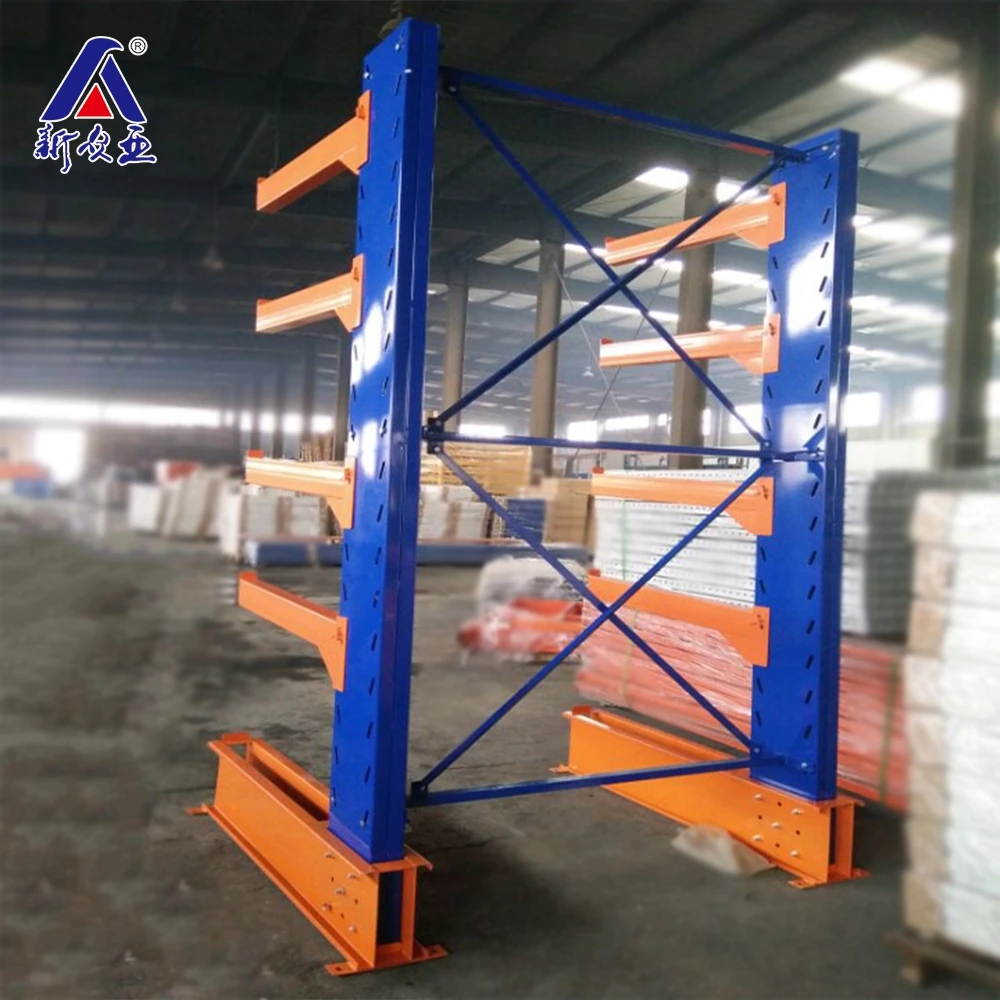

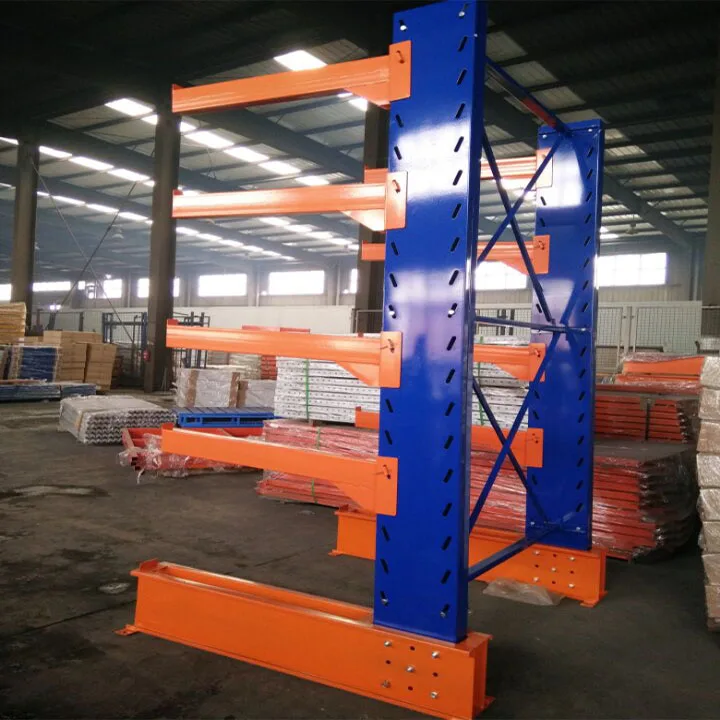

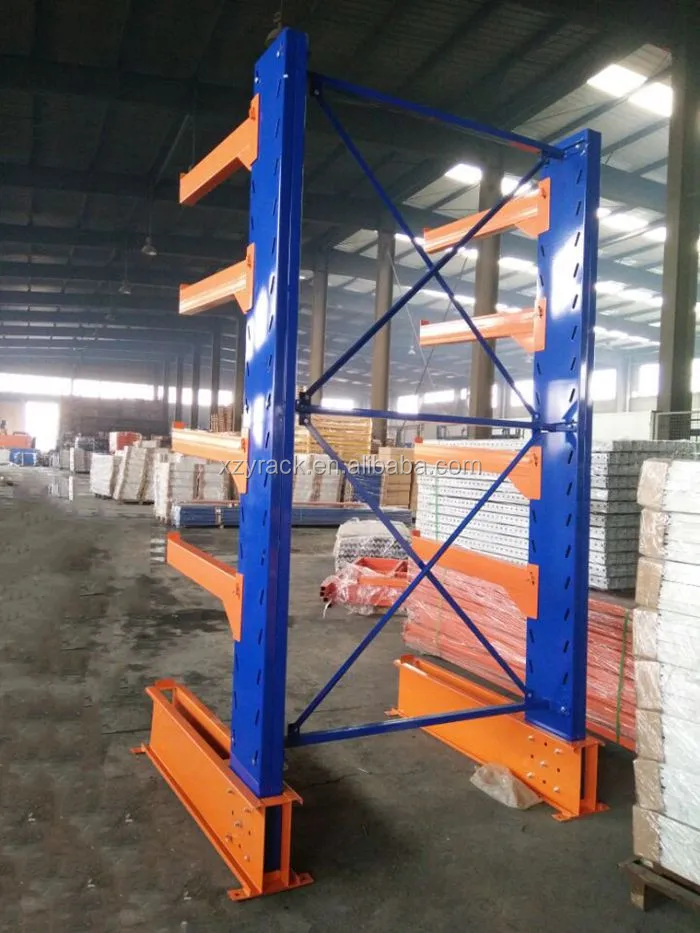

§  Single/Double side

§  Application

                       # For pipe/plate

                           # For Lumber
