Vaisala DMT143 compressed air dew point sensor

Product Overview

Description







Dew point meter contains a dew pint display, a VAISALA DRYCAP DMT143 dew point sensor/transmitter.

Feature of Model DMT143 dew point sensor/ transmitter
1.protection of probe: IP65
2.output signal: 4-20mA
3.measurement range: -80 ~ 20°C
4.maximum pressure: 50bara/725psi
5.work ambient: -5~55°C/ 0~ 99%RH
6.accuracy: ±3°C
7.material of probe is 316L stainless steel
8.interface of probe is G1/2'' (outer screw thread)
9.max. cable length: 5m

Function of Model XJZ-3S5 dew point display
1.display dew point value
2.output alarm signal via relay (N.O dry contact) when dew point is abnormal
3.detect range is programmable
4.RS485 communication

Technical parameter of Model XJZ-3S5 dew point display
1.rating voltage: AC 220V
2.dew point range: -80 ~ 20C
3.display: 3 pcs of 0.8’’ LED
4.installation method: panel-mounted
5.install hole size: 92x92mm
6.box size: 96x96x90mm



Parameter list table

Code	Definition	Set range	Unit	Typical value	Explanation
C1	Signal type of dew point	0/1		1	0: 4~20mA;   1: 0-1 V
C2	Compensation of dew point	-9~9	°C	0
C3	Upper limit of detect range	0~99	°C	20
C4	Lower limit of detect range	-99~0	°C	-80
C5	High dew point alarm	-99~99	°C	-30
C6	Return difference	5~30	°C	10
A	Communication guest address	1~99		1

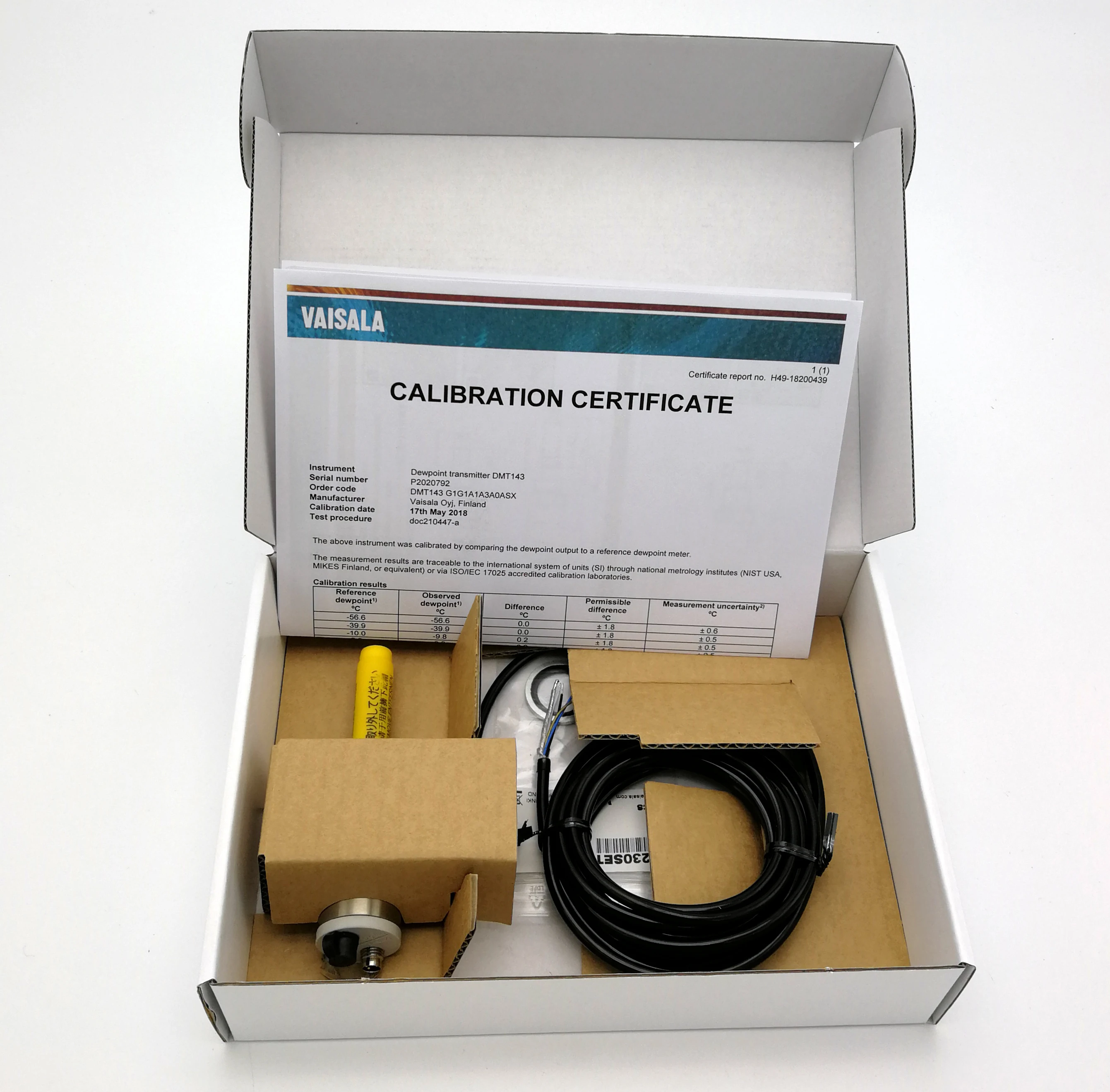

Product pictures:
