CNC round steel bar metal mirror polishing machine
- Category: >>>
- Supplier: Yantai Haige Machine Tools Co. Ltd.
Share on (60068690242):
Product Overview
Description
Product Description

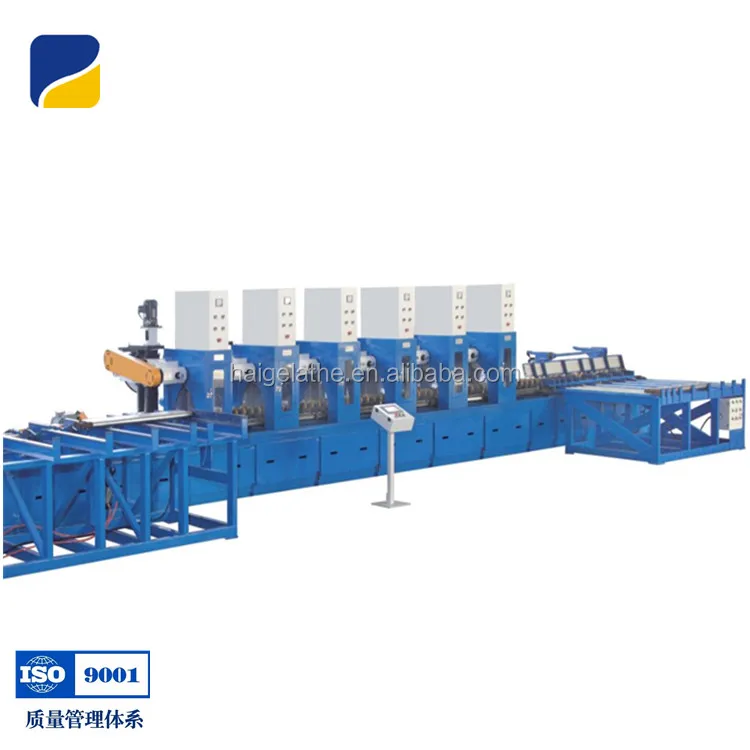

CNC Round Steel Bar Mirror Polishing Machine
dia 20mm to 130mm
Our Service
1. our engineers available to sevice overseas
2. free training operator in our factory
3. 1 year guarantee period except for wearing parts
Contact Person
Lily
Technical Parameters
| Main Technical Parameters | ||
| 1 | Diameter Range(mm) | φ20-φ130 |
| 2 | Length Range(mm) | 750-2500 |
| 3 | Working Condition | Automatic(including loading and unloading racks) |
| 4 | Number of polishing heads | 6 sets |
| 5 | Speed of main shaft | 1950Rpm |
| 6 | Transmission speed | 0~15m/min |
| 7 | Vertical stroke of main shaft | 150mm |
| 8 | Vertical speed of main shaft | 105mm/min |
| 9 | Cycle | 1.2-12min |
| 10 | Roughness Ra | 0.2-0.8J |
| 11 | Air Pressure | 0.6Mpa |
Automatic Production Line
Pre straightening --- Peeling --- Precision straightening --- Polishing
Working videos links for your reference
1. //www.tudou.com/programs/view/Vf-Ii6I7r00/
semi-automatic steel round bar peeling machine working video
2. //www.tudou.com/programs/view/ykH3aavVHow/
CNC steel round bar peeling machine working video
3. //www.tudou.com/programs/view/gabTXYCHxZA/
//www.tudou.com/programs/view/9KlXb6WBqso/
Pre straightening-peeling-precision straightening automatic production line
4. //www.tudou.com/programs/view/9_9Q6X2Mt1A/
CNC steel round bar mirror polishing machine
5. //www.tudou.com/programs/view/hxxKFELuiuU/
CNC circular saw machine (double-heads) (cutting machine)
6. //www.tudou.com/programs/view/otte05MnKVs/
automatic double-heads chamfering machine
