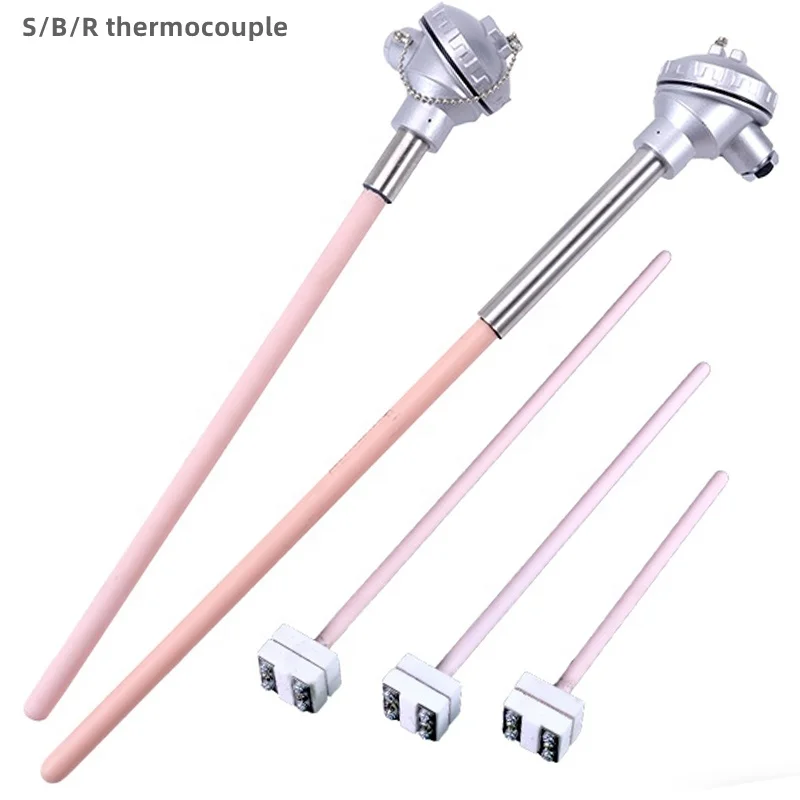

High temperature 1600C ceramic probe thermocouple type S B R type platinum rhodium thermocouple for furnace use
- Category: >>>
- Supplier: Jiangsu Plaza Premium Electric Instrument Co. Ltd.
Share on (60069266204):
Product Overview
Description

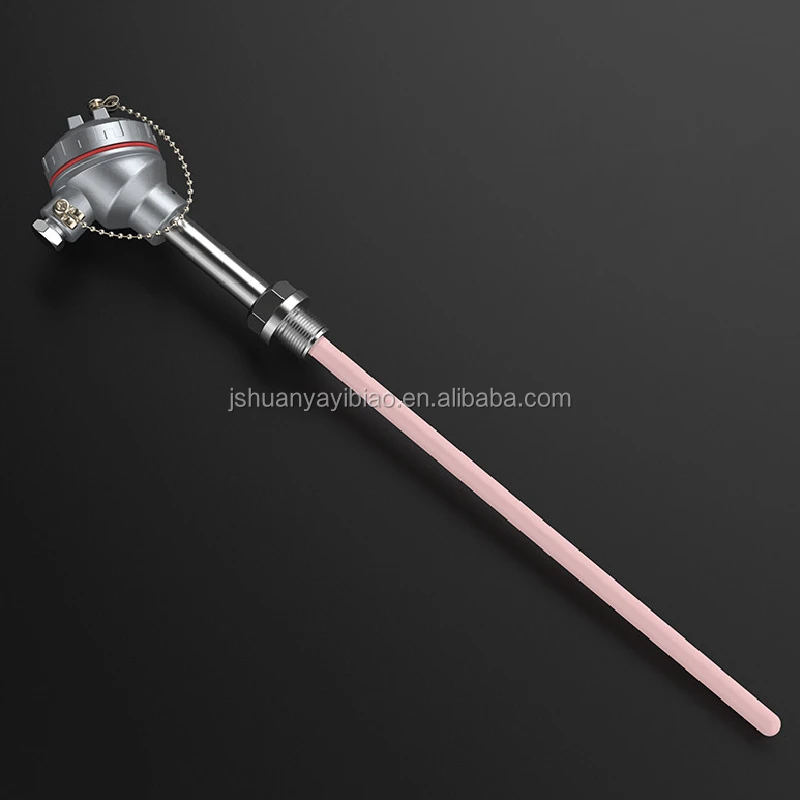

S/B/R Platinum Thermocouple With Ceramic Protection Probe Tube Assembly Temperature Sensor
This link price is for
S type thermocouple of wire diameter 0.3mm, total lentgh 300mm,
if you want other wires and size, kindly Send us an Inquiry.
Product Description
Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics.
It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Conductor Material | Type | Graduation | Continuous temperature | Short-term temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Specification
Product name | Platinum rhodium thermocouple |
Type | S/R/B |

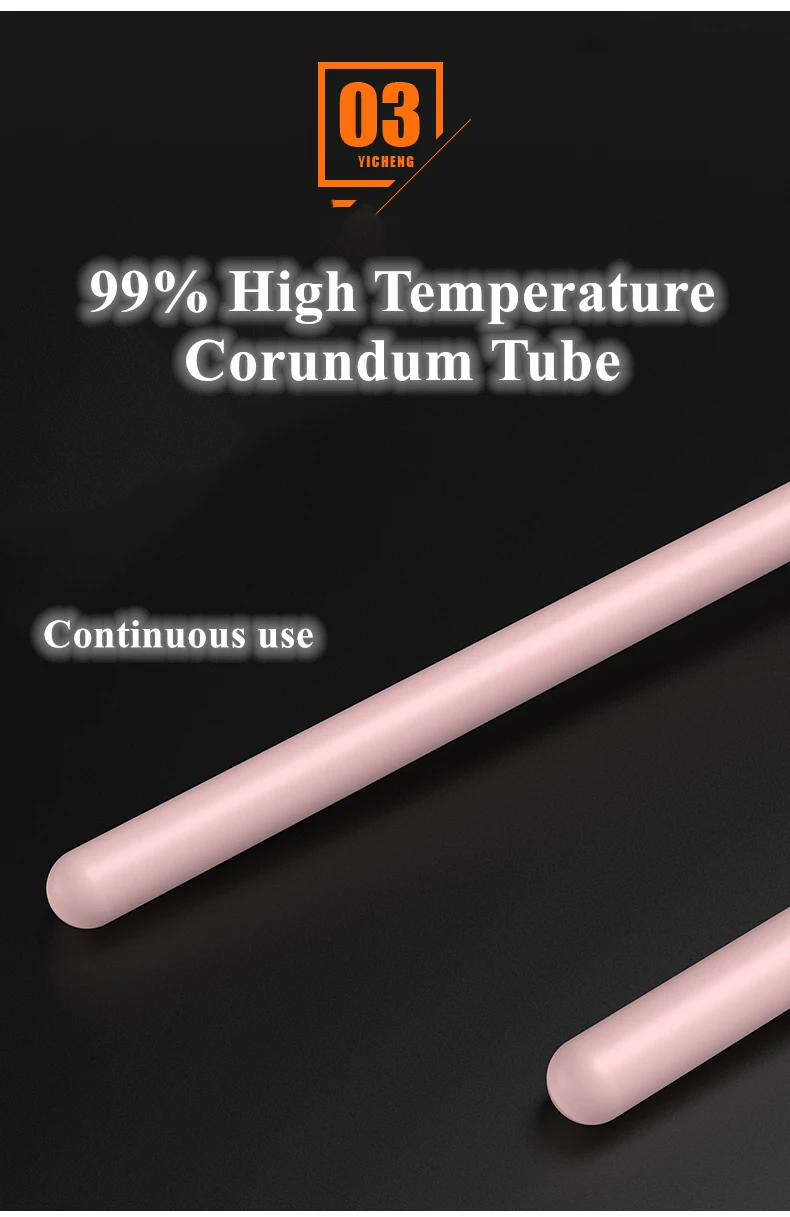

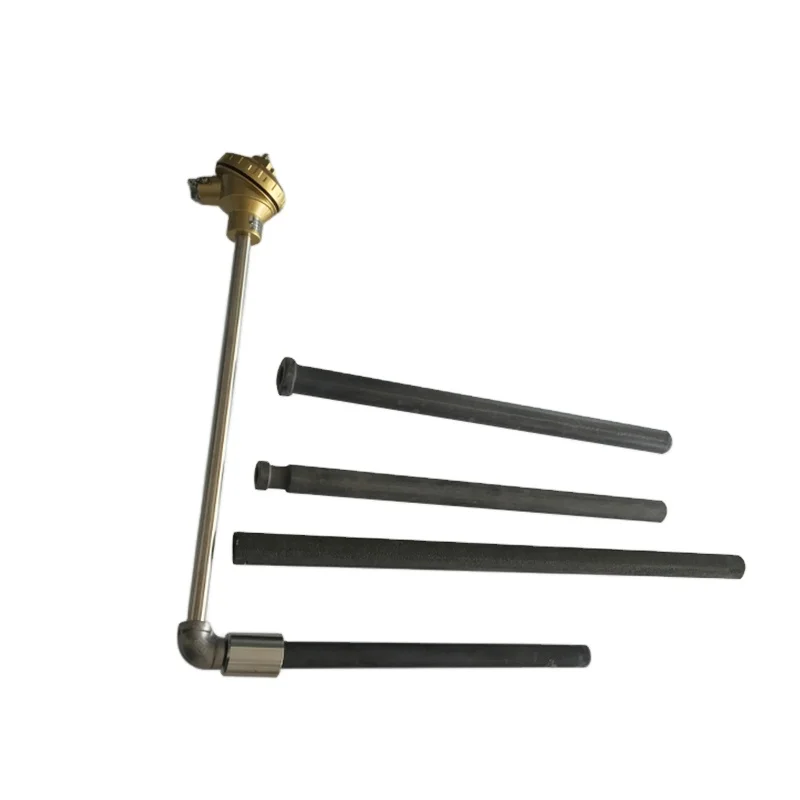

Material | 99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube |
Stainless steel tube | OD φ22mm |
Ceramic tube | OD φ16mm |
Wire diameter | 0.3mm, 0.4mm,0.5mm. |

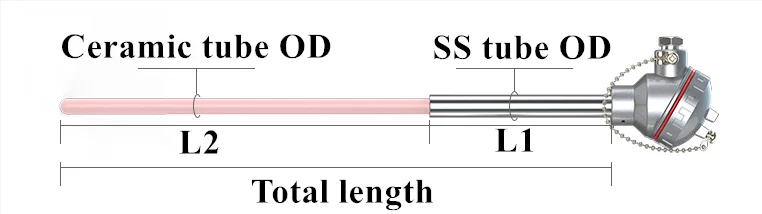

Ceramic tube OD | Total length | L2 (Insert length) | SS tube OD | L1(SS tube length) | Wire diameter |
16MM | 300MM | 150MM | 22MM | 150MM | 0.3MM |
16MM | 400MM | 250MM | 22MM | 150MM | 0.3MM |
16MM | 500MM | 350MM | 22MM | 150MM | 0.3MM |
16MM | 600MM | 450MM | 22MM | 150MM | 0.3MM |
16MM | 700MM | 550MM | 22MM | 150MM | 0.3MM |
16MM | 800MM | 650MM | 22MM | 150MM | 0.3MM |
16MM | 900MM | 750MM | 22MM | 150MM | 0.3MM |
16MM | 1000MM | 850MM | 22MM | 150MM | 0.3MM |
If you have any other questions, please click here to " Send an Inquiry "
