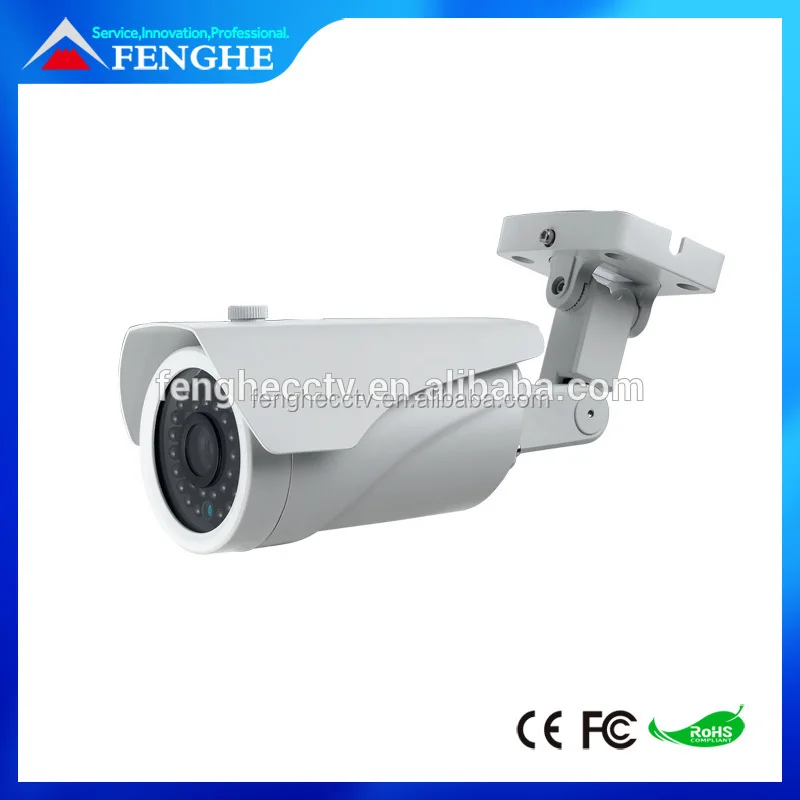

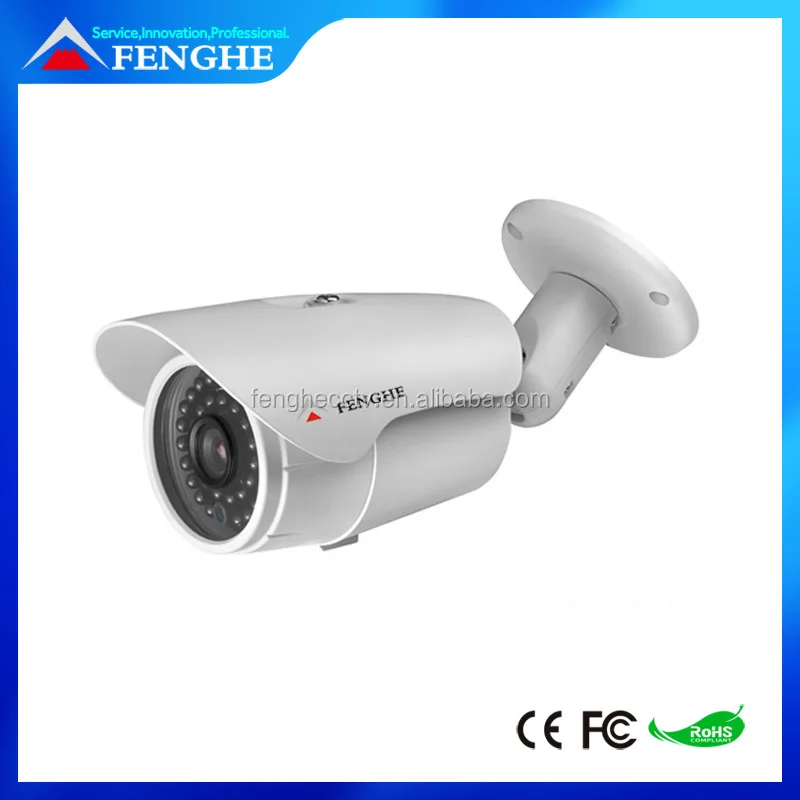

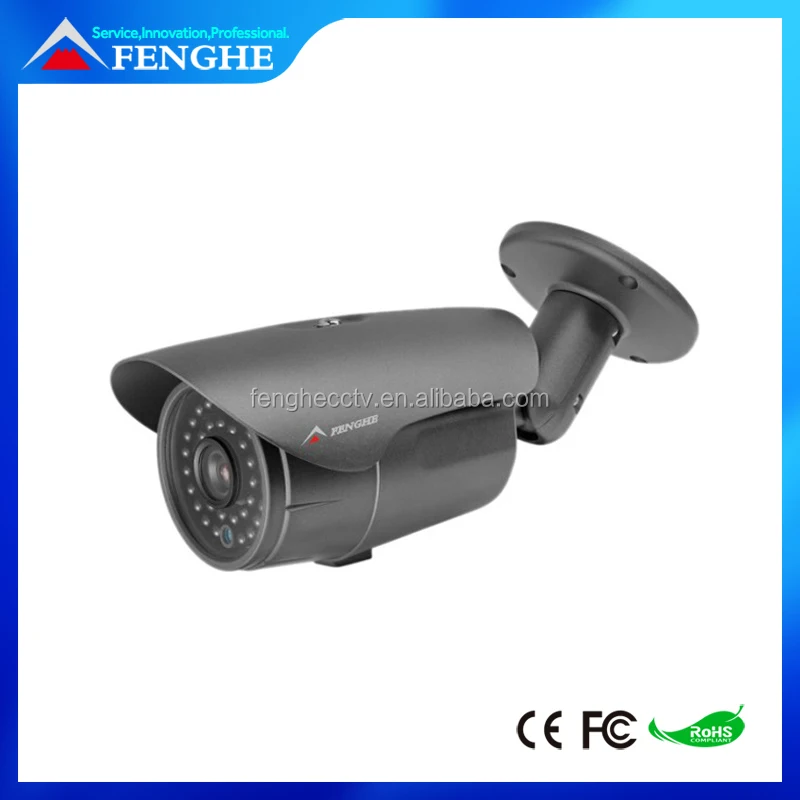

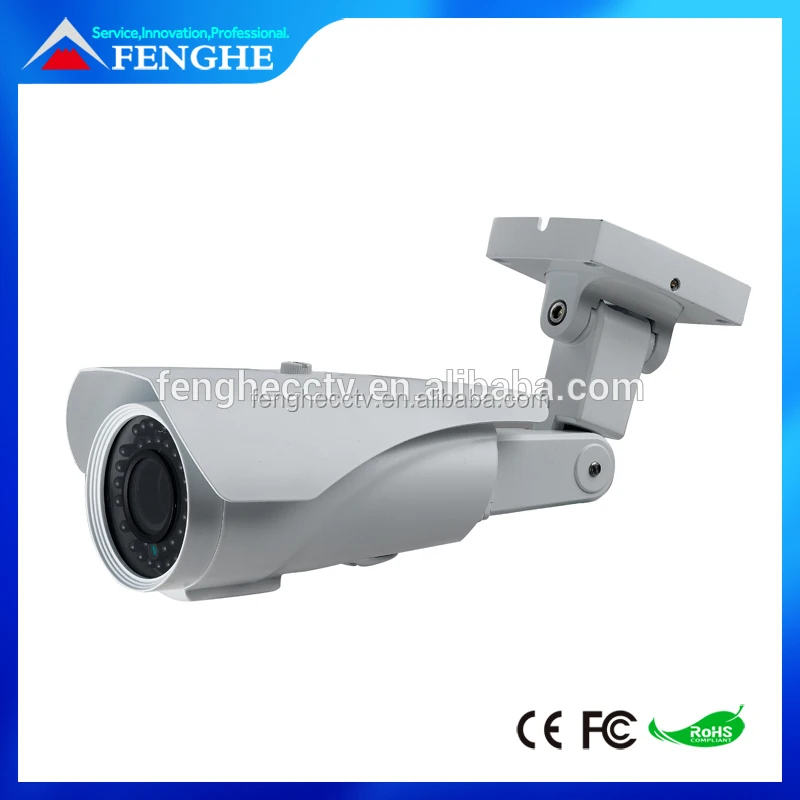

Home Surveillance Security Dummy IR Simulation Fake Camera

Model No.

 FH-WM200

General Function

Feature

 High-resolution

CMOS Type

 Aptina Imaging CMOS

CMOS Model

 1/3″300 Mega Pixel

HD Output

Image Adjustable

2MP:1920*1080@30fps

1MP:1280*720@30fps

WDR

Non

Illumination

Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON)

IR Distance

30M Night Vision (36pcs IR led)

Lens

Standard 6mm(F1.2/M12 Mount)Mega HD Lens

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Exposure Control

DSP Auto Adjust

AGC & WB

AGC: Auto(high, media, low )    White Balance: Auto, Close

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support

Agreement

Support ONVIF 2.0, PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,

UPNP,SMTP,FTP,NTP,DDNS,DNS etc.

Dual Stream

Dual Stream Transfer(H.264,CBR/VBR Adjustable

Main Stream(1M~8Mbps)With Local Skim, SD Card etc.

Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Upgrade

Support Remote Upgrade, With Password Protect.

P2P

Adapting P2P Intelligence Mobile Phone Visit

Special function

Local TF Storage

Charge for Optional, Adapting TF Card Storage(optional)

WIFI

Support protocol: 802.11 b/g; Support encrypt: WEP64, WEP128, WPA, WPA2(optional)

POE

Power over Ethernet

Alarm

I/O alarm Port (optional)

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image by Mouse

2-Axix

With portable & fast 2-Axis Construction for Adjust

Appearance quality

Metal Case

Waterproof

Strong waterproof stopper for IP67

Video efficiency

Image Capture

JPEG snapshot

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust

Audio

Audio Encoding

With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed (optional)

Audio Function

Audio Broadcast Audio Playback (optional)

Mount Standard

Power Mount

DC Female Connector,5.5×2.1mm

Network Mount

1c h 10M/100M  Ethernet Mouth, RJ45 Mount

Video Output

1ch Local Analog Output, BNC Interface

Other standard

Working Environment

Environment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W
