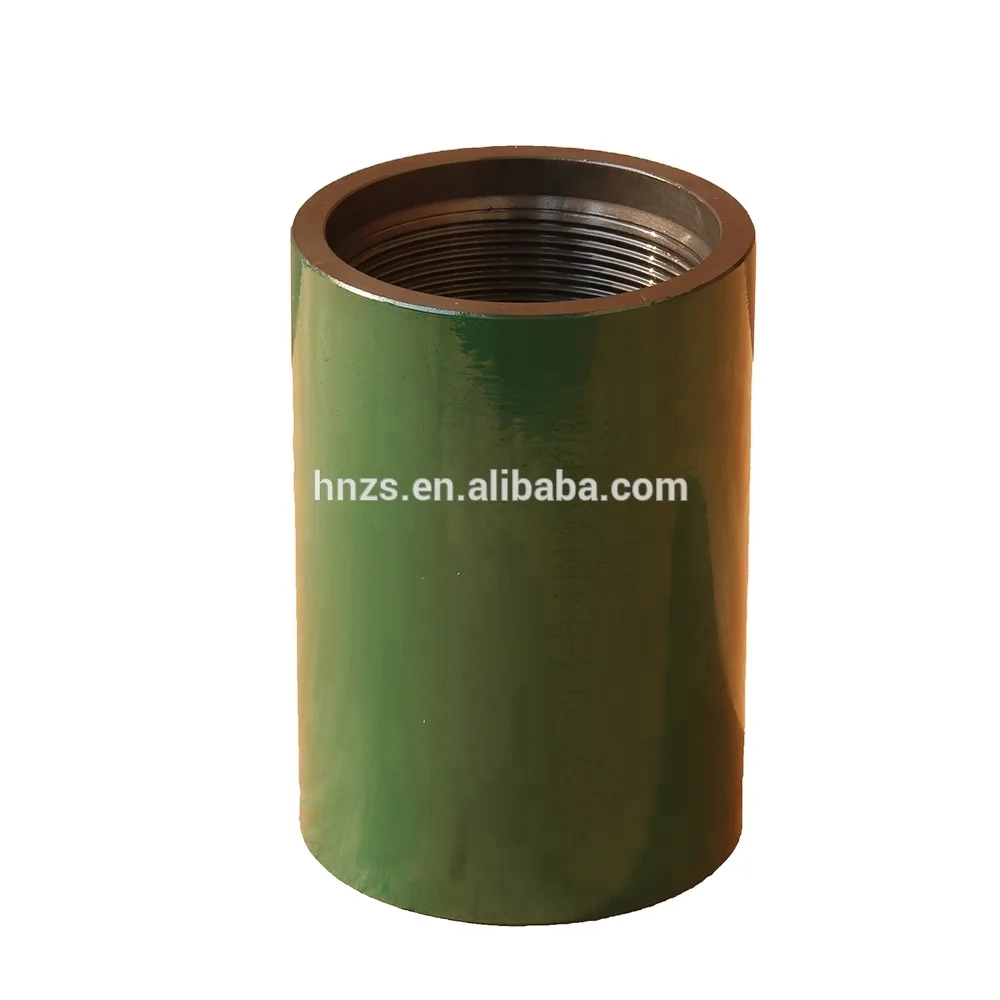

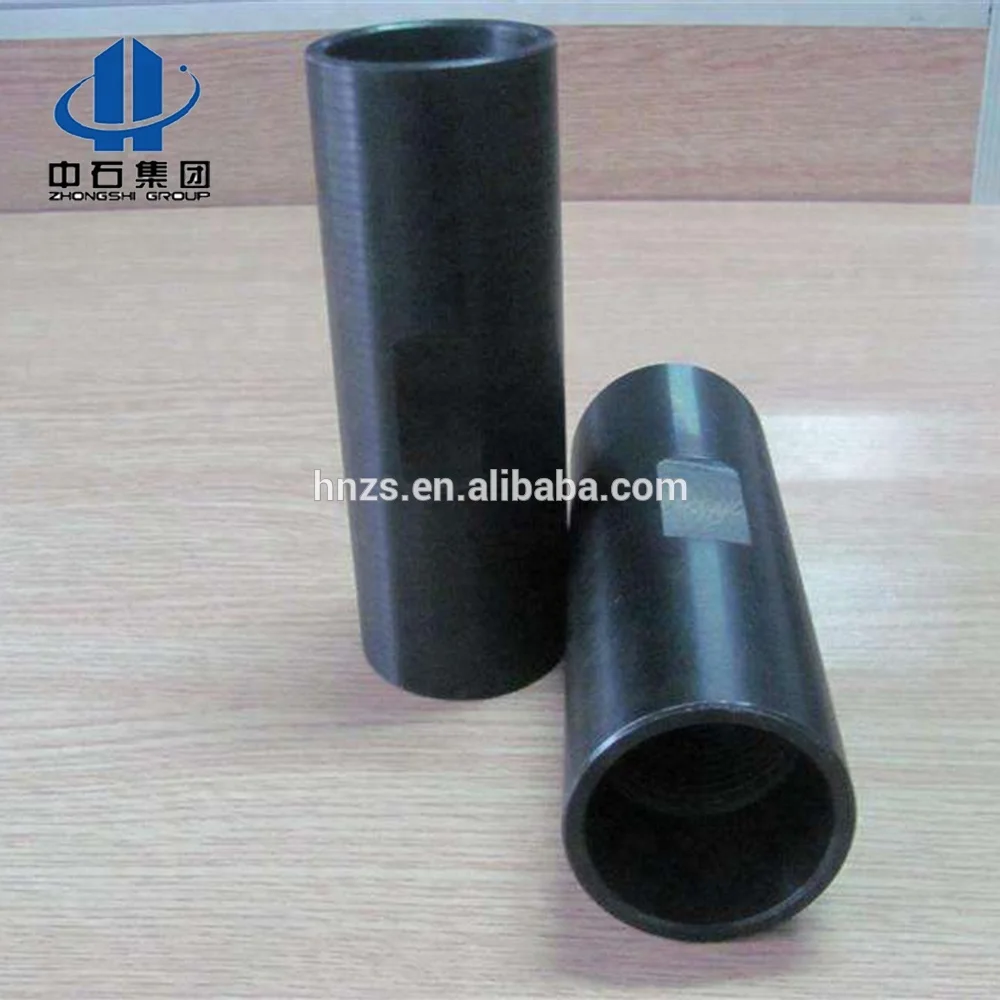

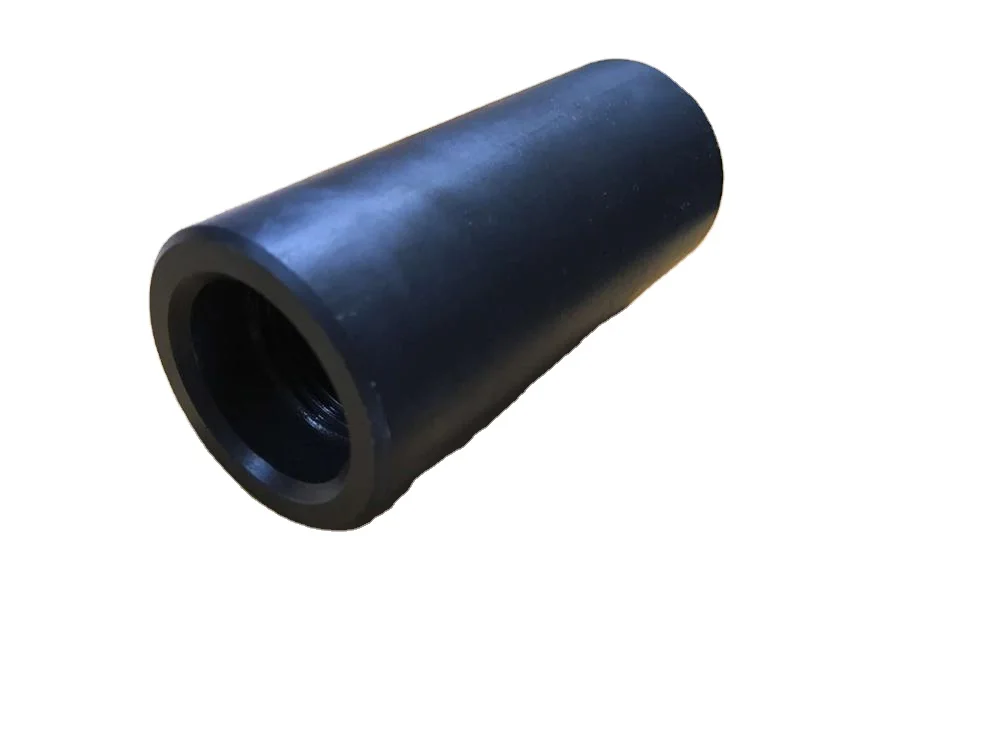

special clearance tubing couplings /API / NUE coupling

Product Overview

Description

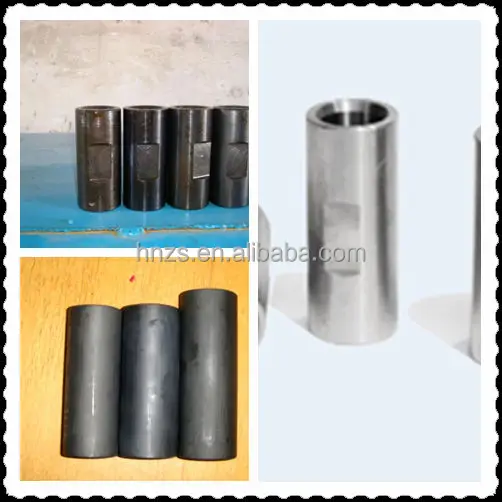

special clearance tubing couplings/API / NUE coupling



Tubing Coupling can be widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. It has already replaced welding fittings in most Europe countries, Asia countries, America, Australia and some other countries.



The API couplings for tubing and casing pipes
Size and Specifications For Tubing and Casing Couplings
Descriptions and size		Type of Therad	O.D*L (mm)	Weight (kg)
Tubing Coupling	1.050	NUE	33.35*80.96	0.23
	1.050	EUE	42.16*82.55	0.38
	1.315	NUE	42.16*82.55	0.38
	1.315	EUE	48.26*88.90	0.57
	1.660	NUE	52.17*88.90	0.59
	1.660	EUE	58.88*95.25	0.68
	1.900	NUE	55.88*95.25	0.56
	1.900	EUE	63.50*98.42	0.84
	2-3/8"	NUE	73.02*107.95	1.28
	2-3/8"	EUE	77.80*132.82	1.55
	2-7/8"	NUE	88.90*130.18	2.34
	2-7/8"	EUE	93.17*133.35	2.40
	3-1/2"	NUE	107.95*142.88	3.71
	3-1/2"	EUE	114.30*146.05	4.10
	4"	NUE	120.65*146.05	4.35
	4"	EUE	127.00*152.40	4.82
	4-1/2"	NUE	132.08*155.58	4.89
	4-1/2"	EUE	141.30*158.75	6.05
Casing Coupling	4-1/2"	STC	127.00*158.75	5.23
	4-1/2"	LTC	127.00*177.80	4.15
	4-1/2"	BTC	127.00*225.42	4.55
	5"	STC	141.30*165.10	4.66
	5"	LTC	141.30*196.85	5.75
	5"	BTC	141.30*231.78	5.85
	5-1/2"	STC	153.67*171.45	5.23
	5-1/2"	LTC	153.67*203.20	6.42
	5-1/2"	BTC	153.67*234.95	6.36
	6-5/8"	STC	187.71*184.15	9.12
	6-5/8"	LTC	187.71*222.25	11.34
	6-5/8"	BTC	187.71*244.48	11.01
	7"	STC	194.46*184.15	8.39
	7"	LTC	194.46*228.60	10.83
	7"	BTC	194.46*254.00	10.54
	7-5/8"	STC	215.90*190.50	12.30
	7-5/8"	LTC	215.90*234.95	15.63
	7-5/8"	BTC	215.90*263.52	15.82
	8-5/8"	STC	244.48*196.85	16.23
	8-5/8"	LTC	244.48*254.00	21.67
	8-5/8"	BTC	244.48*269.88	20.86
	9-5/8"	STC	269.88*196.85	18.03
	9-5/8"	LTC	269.88*266.70	25.45
	9-5/8"	BTC	269.88*269.88	23.16
	10-3/4"	STC	298.45*203.20	20.78
	10-3/4"	BTC	298.45*269.88	25.74
	11-3/4'	STC	323.85*203.20	22.64
	11-3/4'	BTC	323.85*269.88	28.03
	13-3/8"	STC	365.12*203.20	25.66
	13-3/8"	BTC	365.12*269.88	31.77
	16"	STC	431.80*228.6	34.91
	16"	BTC	431.80*269.88	40.28
	18-5/8"	STC	508.00*228.60	51.01
	18-5/8"	BTC	508.00*269.88	62.68
	20"	STC	533.40*228.6	43.42
	20"	LTC	533.4*292.10	57.04
	20"	BTC	533.40*269.88	50.10





Pls contact me for more details and prices!
