FST100 7102 Lora wan Battery Powered Wireless Liquid Water Level Indicator Sensor
- Category: >>>
- Supplier: Hunan Firstrate Sensor Co. Ltd.
Share on (60070238236):
Product Overview
Description
FST100-7102 Lora wan Battery Powered Wireless Liquid Water Level Indicator Sensor
Our Advantages
♦ Focus on sensor production for more than 50 years;
♦ Factory Outlet, Low price;
♦ 12 months free repaire warranty;
♦ Firstrate products have past CE, ROHS, ISO9001 etc.
Product Description
| Product Introduction | |
| FST100-7102 IOT Wireless 470MHz 868MHz Tracking Fuel Level Sensor for Lorry Auto truck adopts high quality imported pressure sensitive core body, and is equipped with ultra low power consumption microprocessor and high precision sensor signal conditioning circuit. It is added to remote transmission module and adopts LoRa transmission mode to realize on-site monitoring data to the cloud. Wireless transmission. The customer can obtain the measurement data by logging in to the relevant website through the Internet PC or the mobile terminal, and realize the statistics and analysis of the collected data, and form the report and the data curve, which is intuitive, accurate and efficient. The product is mainly used in hydrological monitoring and control systems, water pipe network monitoring, reservoir high and low liquid level monitoring, building automation, constant pressure water supply systems and other automation and inspection systems. | |
| Product Features | |
♦ Low power design, lithium battery / power supply optional ♦ LoRa wireless transmission method | |
| Applicable Scope | |
♦ Industrial process level measurement and control ♦ Other automated system level measurement and control | |
| Product Specification (Technical Parameters) | |
Range range (mH2O) | 0~1...50 meters |
| Measurement range | -100kPa~0~20kPa...60MPa |
Power supply voltage | 3.6V battery power supply 12~30VDC external power supply |
Accuracy | ±0.5 %FS ±1%FS |
Temperature compensation | -10~+70℃ |
Working temperature | -20~+60℃ |
Long-term stability (1 year) | ≤0.2%FS |
| Overload pressure | 200%FS |
Working frequency band | 470MHz/868MHz |
Sampling frequency | 10s~12h can be set (default 10s) |
Sending frequency | 1min~1440min can be set |
| Communication Protocol | Private Protocol/LoRaWAN (Class A, OTAA Mode Activation) |
Protection grade | Contact unit: IP68, Industrial housing: IP65 |
Housing Material | Liquid Contact Material: 304 Stainless Steel, Industrial Housing: Aluminum Die Casting or ABS |
Power consumption current | Sleep current: ≤20uA, sampling current: ≤5mA (for 1s) |
current | Average communication current: ≤60mA (for 15s), online current: ≤10mA (for 60s) |
Battery capacity | 12000mAh |
Display mode | 6-segment LCD display |
Storage environment | Temperature -40~+80°C, humidity: 0~95%RH |

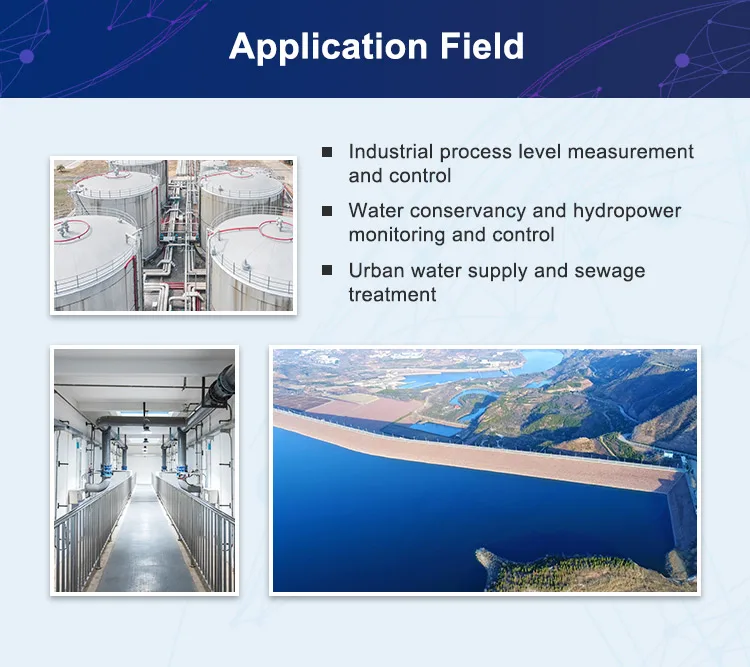

Application
Company Information
Packaging & Shipping
FAQ
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Test range? Cable length?
2. Output: 4-20mA , RS485 or others?
3. Test medium, water, oil, or others?
4. Order quantity: ?
