15A:1V split core current transformer SCT 013 015

Product Overview

Description

Split core current transformer



Model:   SCT-013-015

Characteristics:

Opening size: 13m×13m

Non-linearity±3% (10%-120% rated input current)

1.5m leading wire, Φ3.5 three core plug standard output

Current output type or voltage output type ( voltage output type built-in sampling resistor )

Purpose:

Suitable for the current measuring

Monitoring and protection of AC motor

Lighring equipment

Air compressor and so on

Core material: the number of swiching is not less than 1000 times ( test under 20)

Safety index: dielectric strength ( between shell and output )6000V AV/min

Working temperature: -25^oC--+70^oC

Fire resistance propety: in accordance with UL94-VO

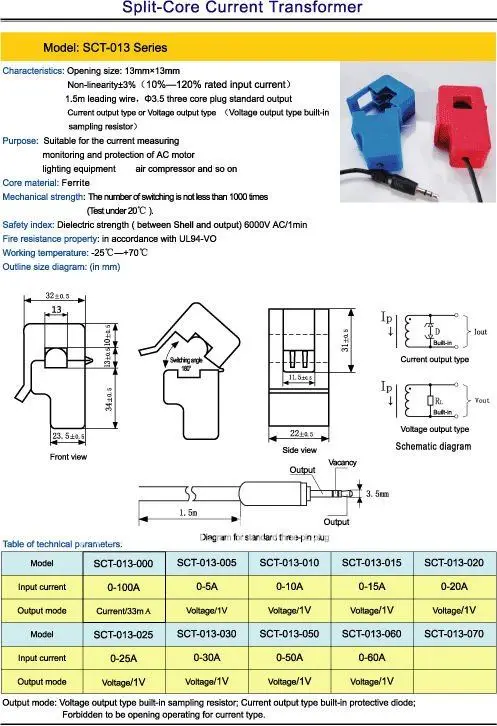

Outline size diagrm:(in mm)











General table of technical parameters



Model	SCT-013-000	SCT-013-005	SCT-013-010	SCT-013-015	SCT-013-020
Input current	0-100A	0-5A	0-10A	0-15A	0-20A
Output mode	Current/50mA	Voltage/1V	Voltage/1V	Voltage/1V	Voltage/1V
Model	SCT-013-025	SCT-013-030	SCT-013-050	SCT-013-060	SCT-013-000V
Input current	0-25A	0-30A	0-50A	0-60A	0-100A
Output mode	Voltage/1V	Voltage/1V	Voltage/1V	Voltage/1V	Voltage/1V



      Output mode: Voltage output type built-in sampling resistor; Current output type built-in protective diode;



                 Forbidden to be opening operating for current type.
