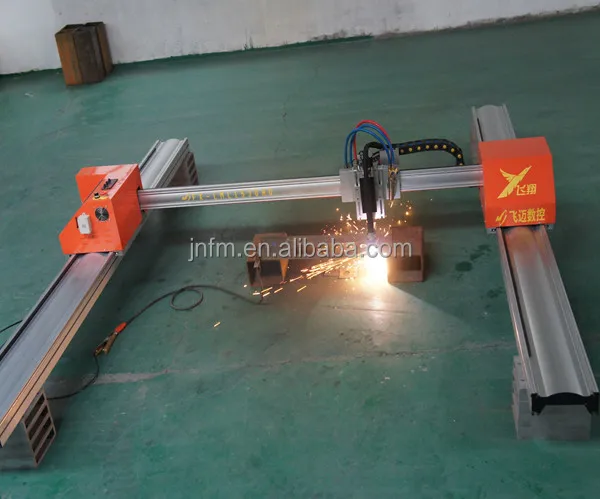

Gantry Robot Cnc Plasma Cutting Machine Small Steel Cutting Machine

Product Overview

Description

Small Steel Cutting Machine     :



Features :





1. Adopt newest aviation aluminum meticulously processing, full of The Times flavor, beautiful and liberal, delicate and durable. New transmission structure, precision rack and special reducer, ensure the accuracy of the transmission, Y axis double motor drive, provide large torque drivers. Control cables is import block flame retardant wear-resistant materials refined.



2. The drive system adopts American chip control, high precision motor, ac power, large torque, ensure smoothly under the high speed.



3. CNC system adopts 7 "numerical control system, transformation in both Chinese and English. High accuracy arc pressure type automatically height control.



4. Optional models: 1530\\1540\\1560\\2030\\2040\\2060\\2040\\20120\\3060.



 Parameter :





Model	FX-LML1530HD
Cutting method	plasma/flame
Cutting size	1500*3000mm
lifting travel	≤100mm
Height control	Automatic THC/Capacitive THC
Max idle speed  Cutting speed	18000mm/min  0-15000 mm/min(according to the thickness of material)
Running accuracy	plasma≤0.005mm/  flame≤0.1mm
Cutting thickness	Plasma< 20mm  /  flame Cutting<150 mm
Plasma cutting gas	air
Flame cutting gas	Oxygen + ethyne
Gas pressure	0.4-0.5Mpa for normal plasma power
Power	220V/380V    50HZ(we suggest 63A,100A,120A,160A,200A etc)
No. of cutting torch and nozzle	One set of plasma cutting torch, One set of flame cutting torch,10pcs nozzle
Nesting software	Starcam(Optional:Fastcam))













Cutting Effective  :



CE Certification  :
