Buoy Floats For Floating Pipes and Cables
- Category: >>>
- Supplier: Luoyang Max Pipe Industry Co. Ltd.
Share on (60070973946):
Product Overview
Description
Buoy Floats For Floating Pipes and Cables
Product Description
Brief Introduction of Buoy Floats:
| Structure | 2 pieces for 1 set pipe floats with accessories: bolts,nuts & washers. |
| Material | Floats' hull: medium density polyethylene material; Inside: high strength polyurethane foam; |
| Features | Anti-impact; Anti-corrosion; Easy installation; Anti-UV; Long lifespan; Lower cost than steel floats. |
| Applications | Floating pipes or cable on the water; Used in dredging sand pipeline; Used in laying the pipes on the water; |
Remarks of Buoy Floats:
1.1 pair of floaters could float 4 meters long HDPE dredging pipe and 1.5m long rubber hose.
2. The floaters customerized is available.
Structure of Buoy Floats:
Technical Properties of Buoy Floats:
Item | Technical Index of Hull | Item | Inside Technical Index |
Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance After total aging energy≥3.5GJ/m2 | Break Elongation %≥ | 10 | |
Oxidative Induction Time 200°Cmm≥ | 10 | ||
Specification Table of Buoy Floats:
Pipe I.D. | Thickness of Pipe | Float I.D. | Float O.D. | Float Length | Thickness of Plastic | Net Buoyancy |
mm | mm | mm | mm | mm | mm | KGS/Float |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
285 | 6 | 300 | 700 | 1200 | 7 | 420 |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
500 | 10 | 580 | 1400 | 1500 | 9 | 2219 |
550 | 10 | 580 | 1400 | 1600 | 10 | 2310 |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
850 | 15 | 880 | 1800 | 2200 | 15 | 5140 |
900 | 18 | 940 | 2200 | 2500 | 16 | 8180 |

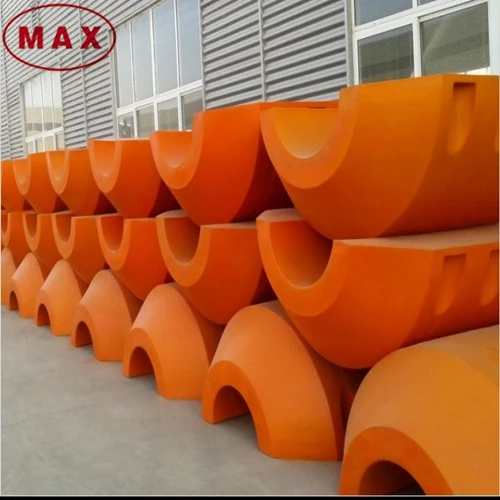

Product Show of Buoy Floats
Application Fields of Buoy Floats
Packaging & Shipping
Transport of Buoy Floats
Main Products:
Our Services
Customer Visit
FAQ
Thanks for concentrating your attention on our products,
we shall make you feel satisfied in return.
