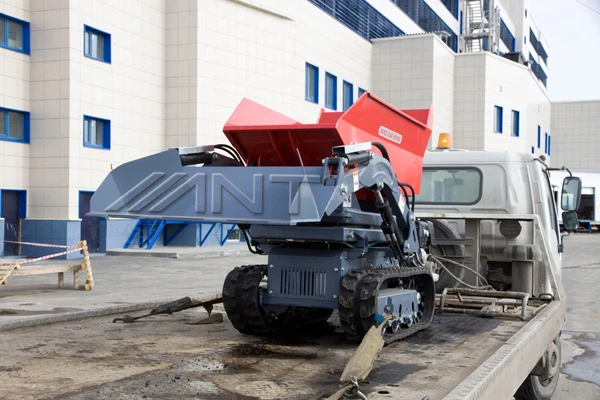

China mini tracked power barrows crawler tractor BY800 for sale
- Category: >>>
- Supplier: Nantong Ant Machinery Co. Lid.
Share on (60070987544):
Product Overview
Description

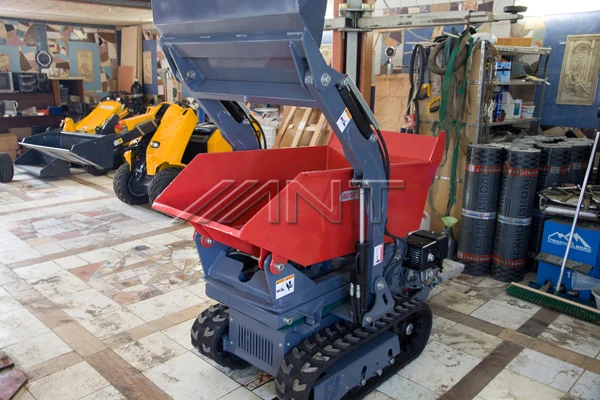

China mini power wheelbarrows BY800
Product Description
China mini power wheelbarrows BY800
Best quality and hot sale!
Detailed Description:
1) Maximum loading weight is 800kgs.

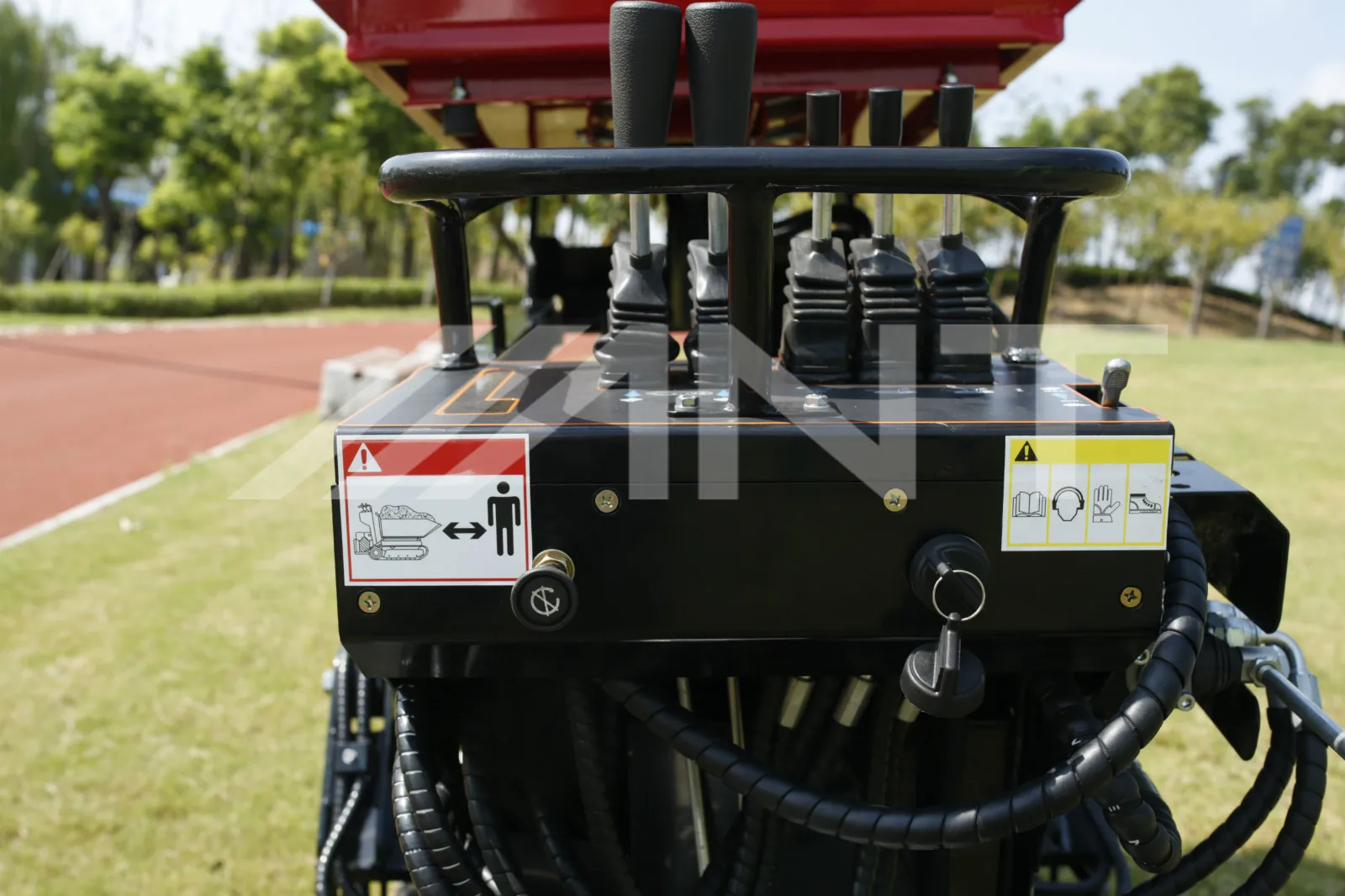

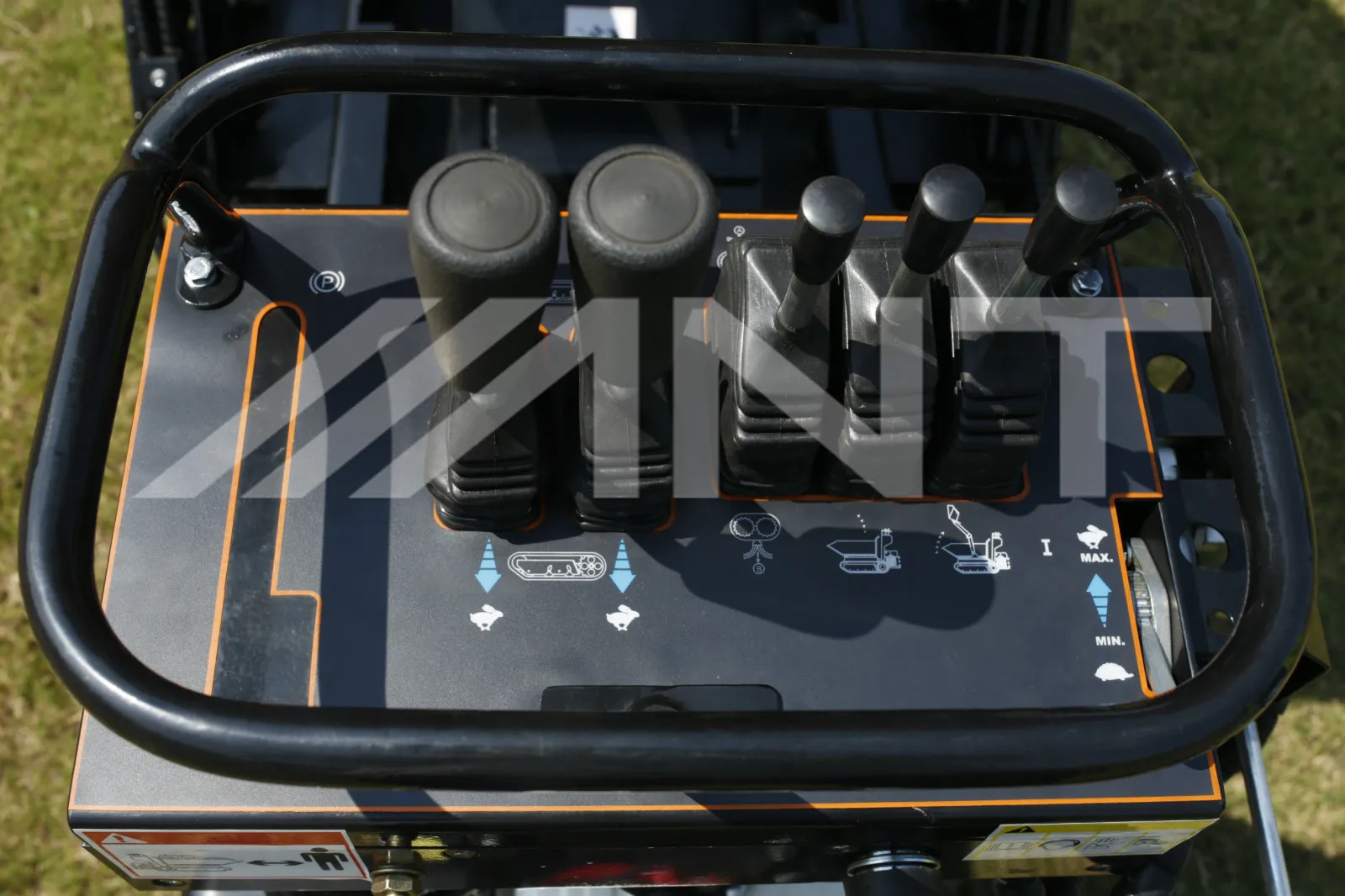

2) Easy and comfortable operation due to the intuitive controls.

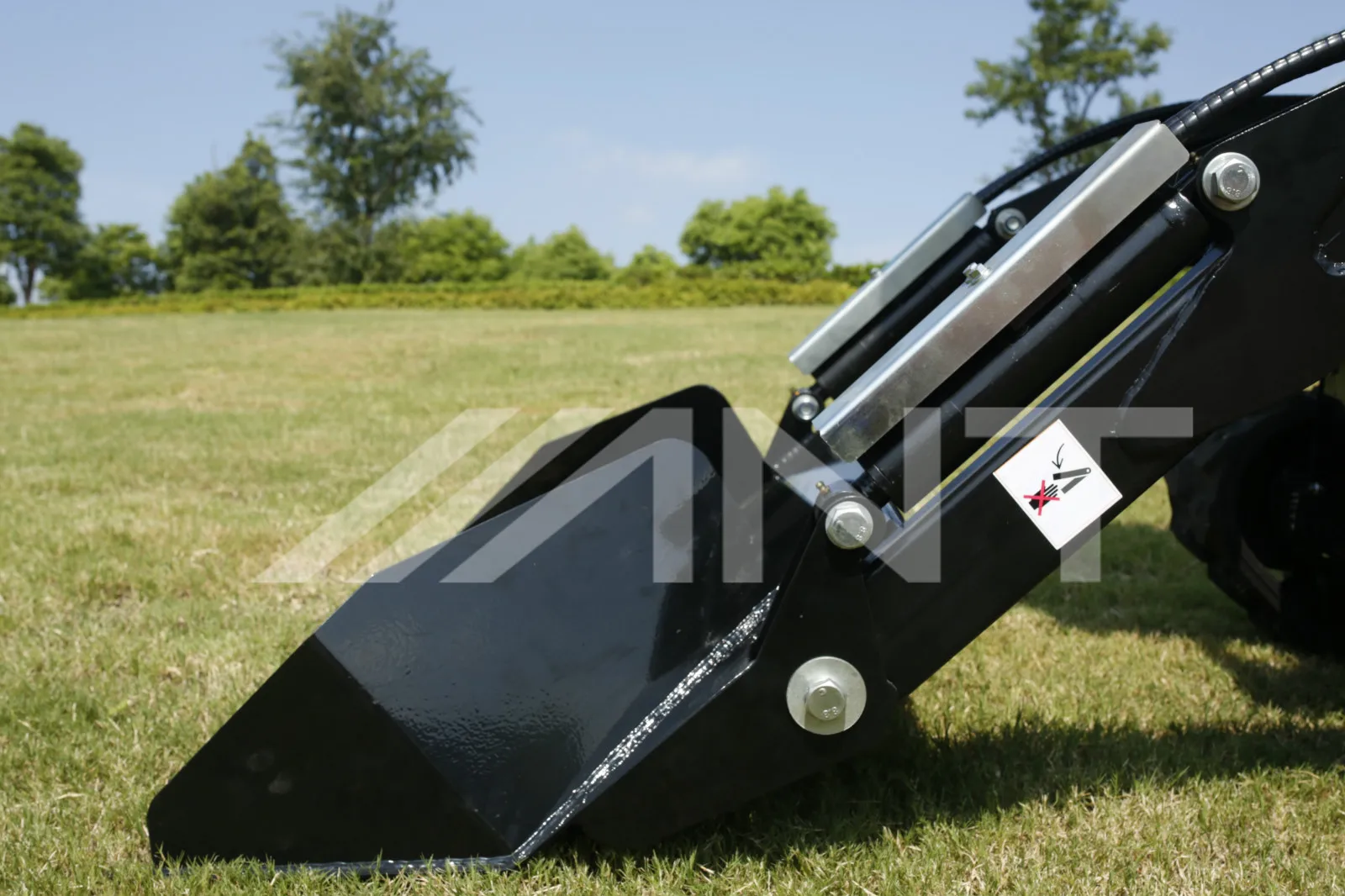

3) Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

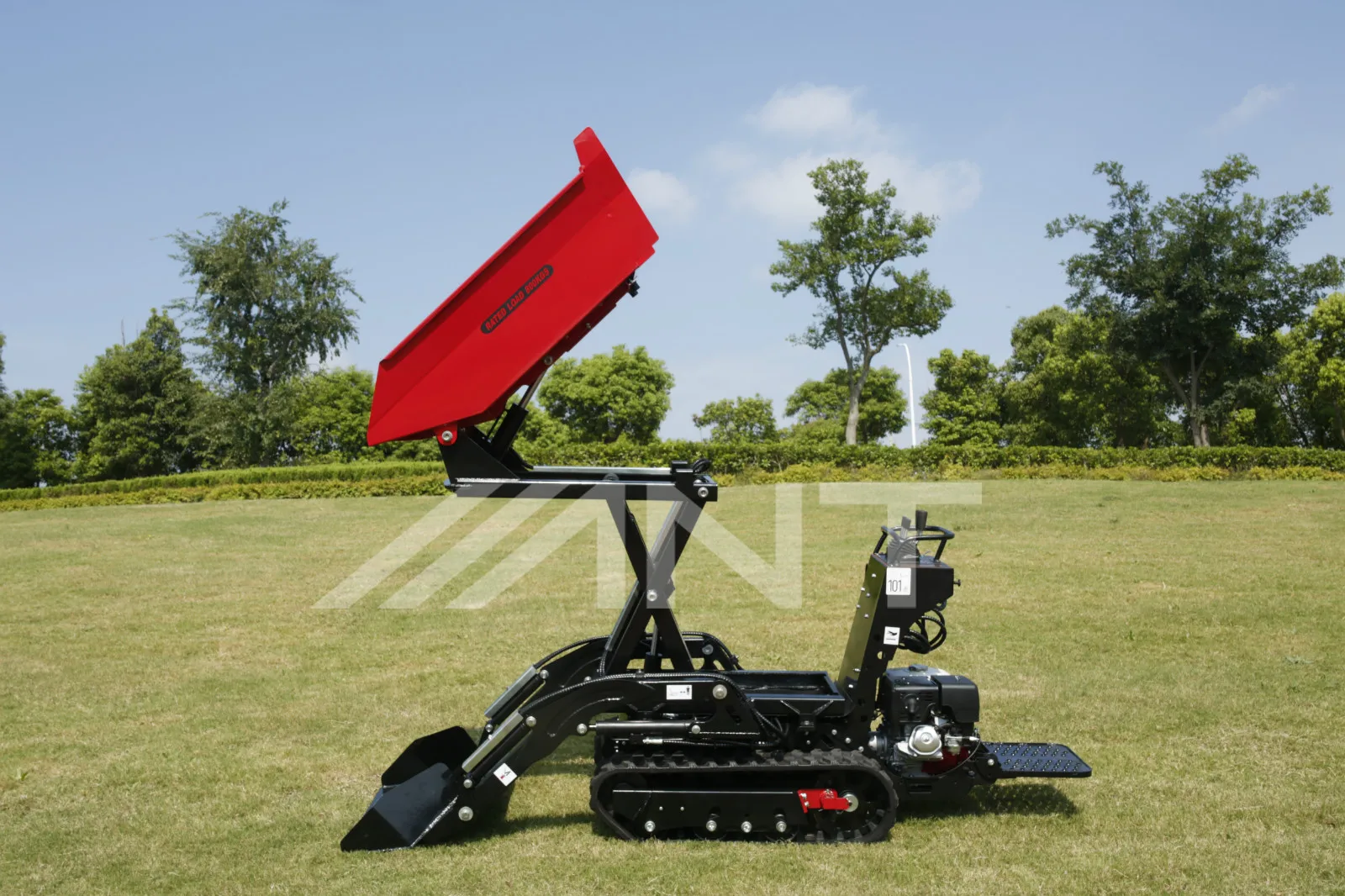

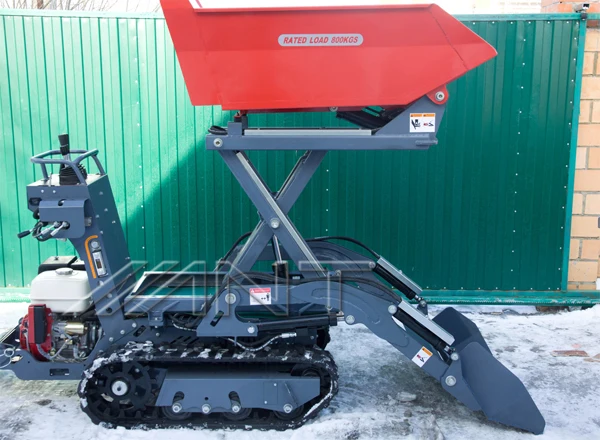

4) Lifting height reaches to 1.4m by X-support.
5) Easy climbing and stable crossing the obstacles.
6) Spot turning ,mini slipping.
| MODEL | BY800 |
| Engine | 13hp 4stroke gasoline or diesel |
| Operative weight | 800kgs(1762lbs) |
| Max travel speed | 0-4.8km/h(0-3.0mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4Vmin(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Hydraulic pump | Gear pump |
| Flow | 1*13.5Vmin(1*3.5gpm) |
| Hi-flow | 1*22Vmin(1*3.5gpm) |
| Max pressure | 150bar(2180psi) |
| Main valve | 2-3way |
| Cooled system | air-cooled |
| Skip tipping system | Hydraulic |

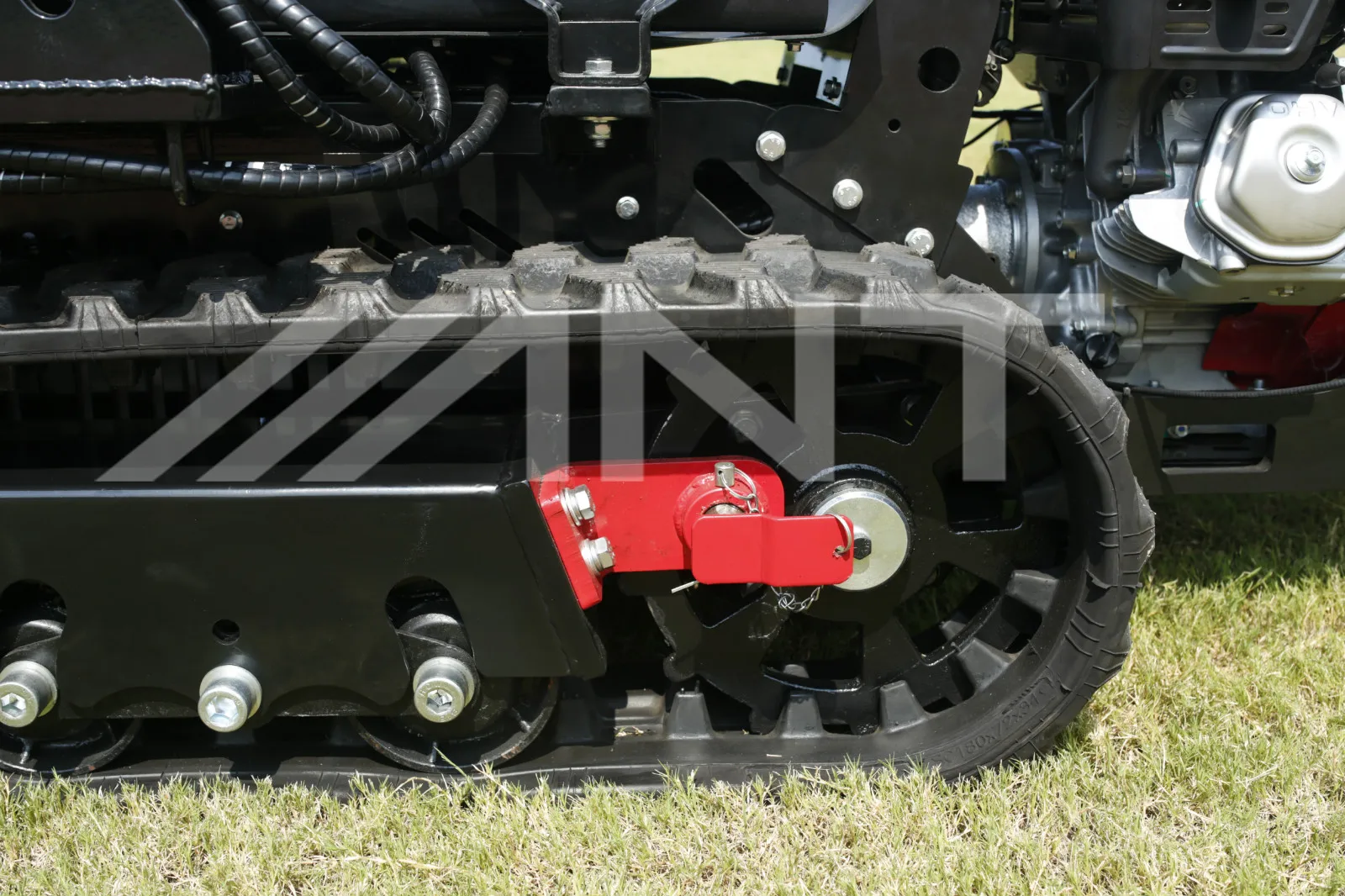

| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | Yes |
| Track tensioning | Yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 650kgs |
| Dimension | 220*96*145(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |

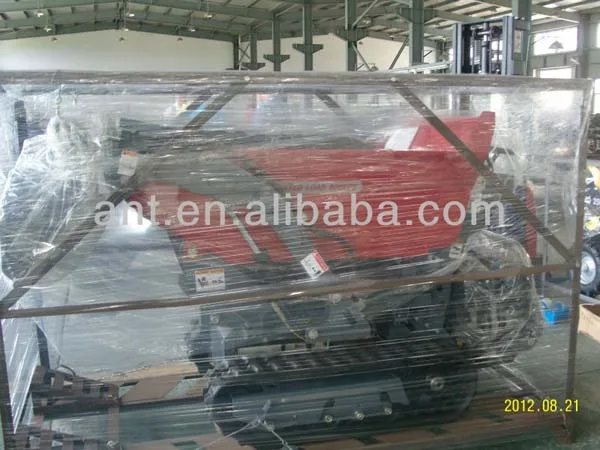

Packaging & Shipping
Our Services
Warranty
Mini dumpers are guaranted for 6 months from the date of its delivery and includes the substitution of anything in partichlar that has resulted as, in the opinion of our Technical Office, affected by construction defects.
Company Information
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields
Global market
Europe, America, southeast, Asia and Africa
Exhibition
Our clients
FAQ
*Q:What's your MOQ of this term?
A:1 pcs
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months for used or 1 year after leave factory
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A: 30% T/T advance as a deposite,the balance paid off before transported to the loading port
*Q:What's your delivery time?
A:Delivery timely about 30-40 days after receiving the deposit
