CNC Drilling and Milling Machine DM 45NC of ALMACO company
- Category: >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (60071454584):
Product Overview
Description
Product Description

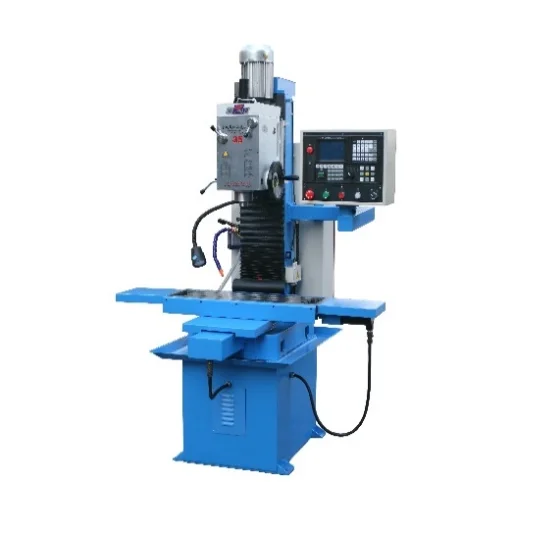

CNC Drilling and Milling Machine DM-45NC
Features:
DM45-NC mchine can operate with manual feed or NC program.With ball leadscrew,stepping motor for all 3 axes.
Position accuracy≤0.02mm/300mm
Reproduction accuacy≤0.01mm
With limit switch for all 3 axes
put unit 0.01mm
Feed speed 0.1.2m/min
Data
CNC Drilling and Milling Machine DM-45NC
| Model | DM-45NC |
| Max.distance Spindle to table(Z axis) | 500mm |
| Max.distance Spindle to table | 285mm |
| Working table size | 800x240mm |
| Working table cross travel | 500mm |
| Working table longitudial travel | 230mm |
| Spindle taper | MT4/MT3 or R8 |
| Spindle stroke | 120mm |
| Spindle stroke | 70-3360rpm(12step) 50-3500rpm(Vario) |
| Max. drilling capacity | F45mm |
| Max. drilling capacity | F32mm |
| Motor power | 1.1/1.5kw |
| Head tilt left right | ±90° |
| NW/GW | 700/800kg |
| Package size | 1330x1175x2220mm |
Product show
CNC Drilling and Milling Machine DM-45NC
engineer team
Our Services
Our service:
1.All of our goods will pass QUALITY INSPECTIONS before shipment. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2.More than 10 years experience in exporting to make your order more smooth.Less than one container loading is accepted.
On time delivery, in general 30 days. Multimode payment:T/T,L/C.
3.Special dimensions available according to request.
4.We have many certificates of our Products.
5.Accessories replacement if our product itself has quality problems during one year after receiving.
