Автоматическая машина для розлива и укупорки бутылочной воды, 5 галлонов

Product Overview

Description

5 Gallon Barreled Pure Water Filling Machine - commission fee for referrer / middleman  :

Product Description:

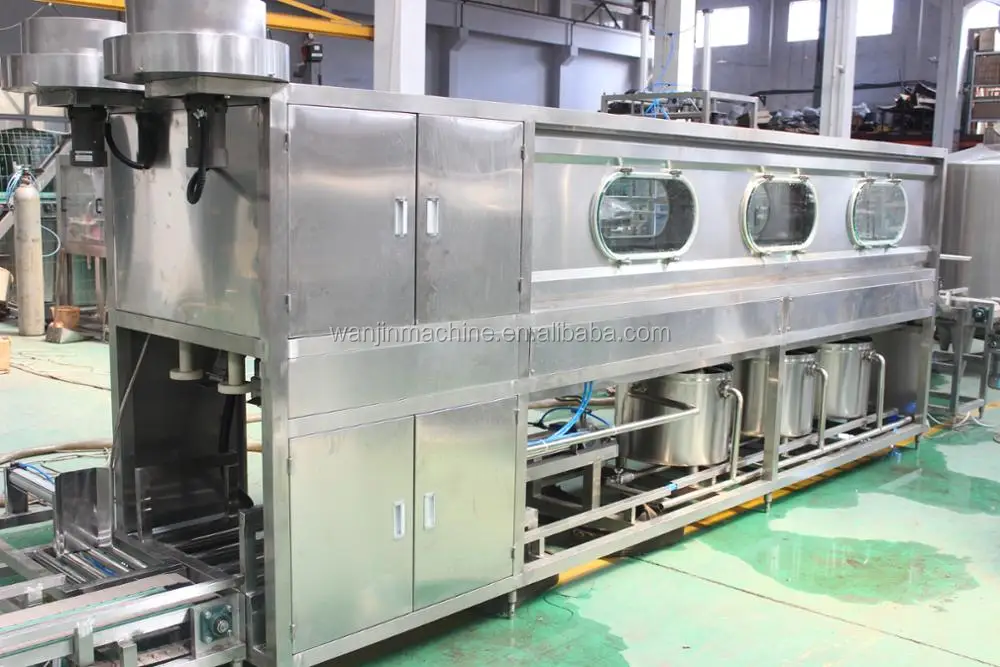

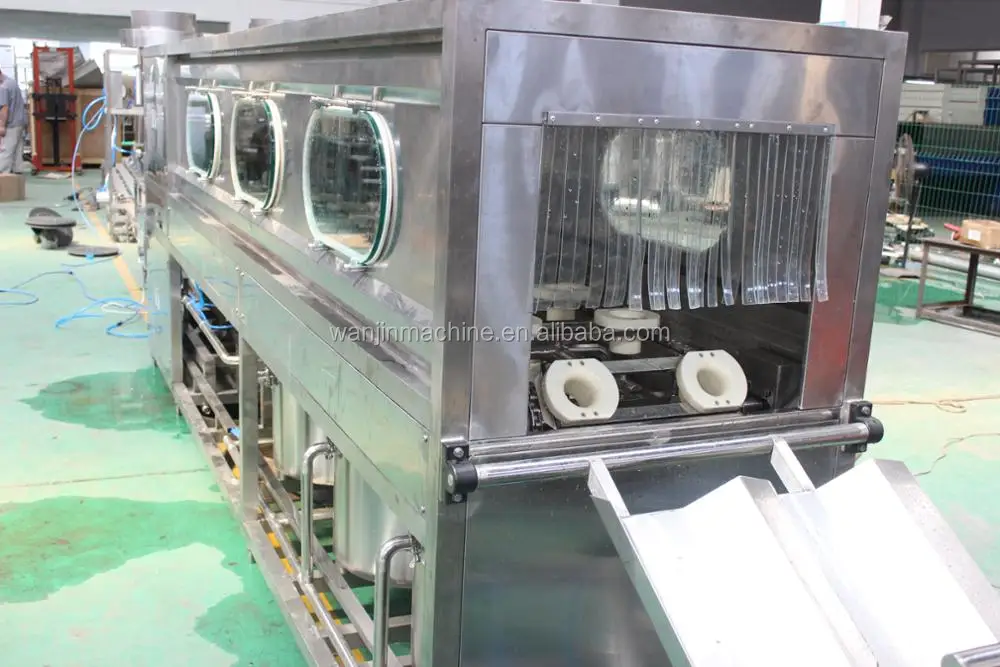

This inside washer machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.



Detailed Information:

(1)This filling line specially produces 3&5 gallons barreled drinking water.

(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.

(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.

(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.

(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.



























5 gallon water filling machine technical parameters:

Model	QGF-80	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900
Filling heads	1	1	2	3	4	6
Volume	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size	270*490	270*490	270*490	270*490	270*490	270*490
Capacity	80	150	300
Gas pressure	0.4 -0.6	0.4 -0.6	0.4 -0.6	0.4 -0.6	0.4 -0.6	0.4 -0.6
Gas consumption	0.37	0.37	0.6	0.8	1	1.2
Motor power	1.38	1.75	3.8	3.8	7.5	9
Motor voltage	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight	500	700	1200	1600	2000	3500
Dimension	2500*1100*1600	2800*1100*1600	3800*1300*1600	4200*1600*1600	4800*1800*1600	4200*2300*1600 2800*1000*1600





Spare parts list for oil filling machine:

Name of parts Producing area Programmed controller OMRON On-off device Taiwan Low-pressure breaker Siemens Fuse  Japan AC electromagnetic contractor Siemens contractor Siemens Heat-break device Siemens Multi-continuous electrical device Siemens Middle-continuous electrical device Japan Alarm Hang Zhou Speed adjusting device USA
