Heat Resistance PVC Spiral Steel Wire Hose

Product Overview

Description

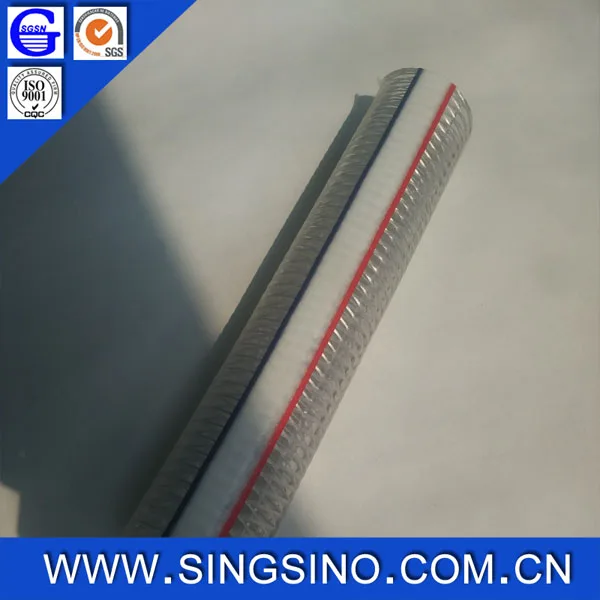

Heat Resistance PVC Spiral Steel Wire Hose







APPLICATIONS

The hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines. The hose used for foodstuffs is made of special materials. It is non-toxic, light, without odor and transparent. This hose can be used for conveying milk, beverage, distilled liquor, beer, jam, and other foods.



We can also insert the copper wire into the hose. This hose can avoid the block of the following in the hose due to the static, and protect users from getting electric shock or electric current impingement.



CHARACTERISTICS

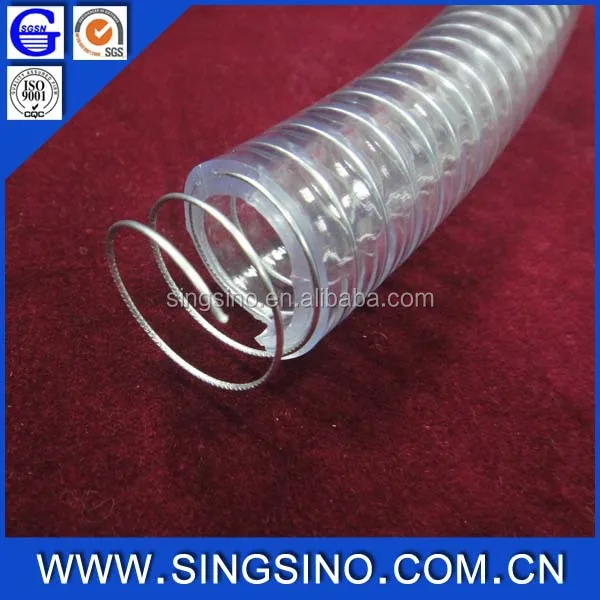

This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure. With colorful symbol lines on the surface of the hose, it can be more beautiful.



WORKING TEMPERATURE -5°C-65°C

Item No.	Inch	I.D.	O.D	M/Roll	W.P.	B.P.		Weight	CBM/Roll
						AT23°C	AT60°C
		MM	MM	MM	Bar	Bar	Bar	KG/Roll	M³
SWRH-006	1/4”	6	11	100	-1-11	33	16	11.5	0.028
SWRH-008	5/16”	8	14	100		33	16	15	0.039
SWRH-009	3/8”	9	15	100		33	16	18	0.029
SWRH-010	3/8”	10	16	100		33	15	20	0.045
SWRH-012	1/2”	12	18	100	-1-10	30	15	22	0.049
SWRH-015	5/8”	15	22	100		30	13	31	0.074
SWRH-019	3/4”	19	26	50		30	12	18	0.052
SWRH-025	1”	25	33	50		25	10	27	0.08
SWRH-032	1-1/4”	32	41	40	-1-7	20	9	31	0.106
SWRH-038	1-1/2”	38	48	40	-1-6	18	8	42	0.154
SWRH-050	2”	50	62	40	-1-5	16	7	64	0.276
SWRH-063	2-1/2”	63	80	30		14	5	84	0.331
SWRH-075	3”	75	91	30		13	5	105	0.436
SWRH-100	4”	100	118	20	-1-3	10	5	96	0.505
SWRH-127	5”	127	143	20		10	5	120	1.243
SWRH-152	6”	152	170	10		10	5	90	0.765
SWRH-180	7”	180	196	10		10	5	85	1.156
SWRH-200	8”	200	224	10		10	5	120	1.426



Welcome to Singsino

Qingdao Singsino Group Limited under Singsino Group is a leading supplier of flexible technical hoses made from PVC materials. In the market since 2004, it has been able to renew itself over the years, keeping at the forefront of the market.

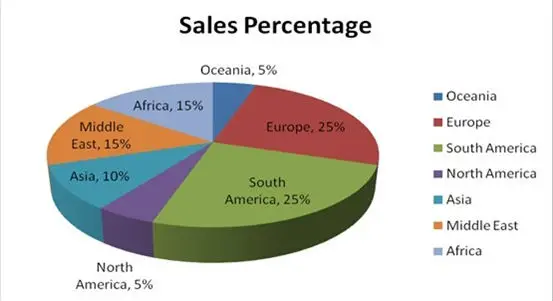

80% of our product sales are in overseas market, with a sustained and stable annual growth at the rate of 30%. Our products are being exported to clients in North/south America, Europe, Asia, African ,Oceania, more than 80 countries.
