sliding bearings,steel sleeves for pump

Product Overview

Description

________________________________________________________________________________________________



sliding bearings,steel sleeves for pump



1.Moder number:SF-1S
2.Material:stainless steel,ptfe
3.carbon steel sleeve
4.stainless steel sleeve

5.bronze bushing



SF-1S

Stainless Steel Pb-free Self-lubricating Bearing



Material Features

SF-1S is of oil resistant,acid resistant,alkaliresistant and seawater resistant,more over,there is no lead in the PTFE surface layer and so is particularly fit for bushings in food stuff machines,alkali flow meters,pumps motion elements in pharmaceutical machines,pringting machines chemical engineering machines and other ocean industry.This is a triple layers composites bushi,th base material being abronze plate and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.



Technical

PTFE with oil fibre	0.01~0.03mm
Porous bronze	0.2~0.3mm
Stainless steel backing	0.7~2.3mm

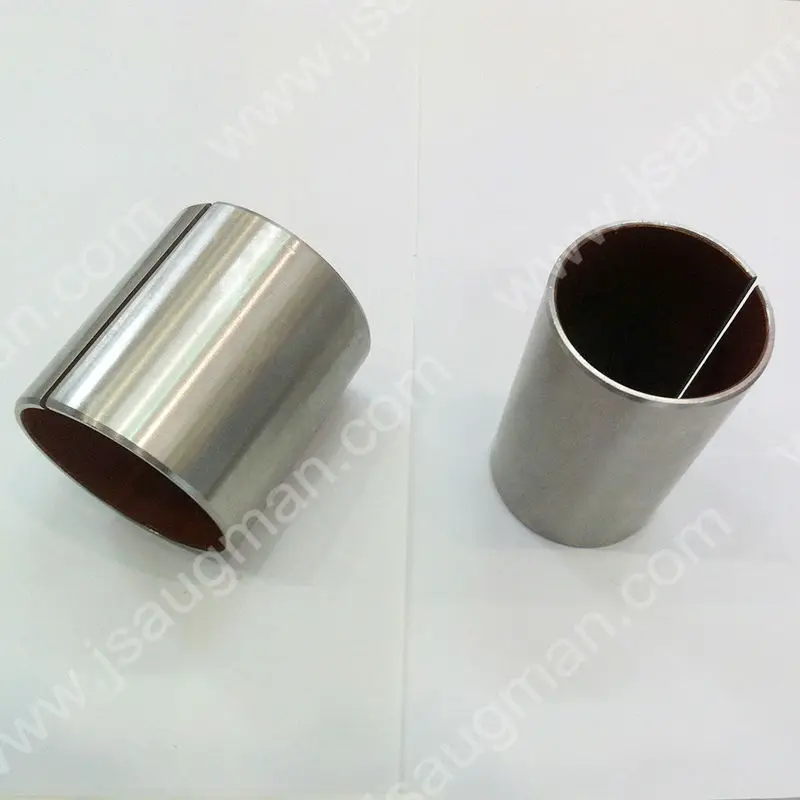

Product picture

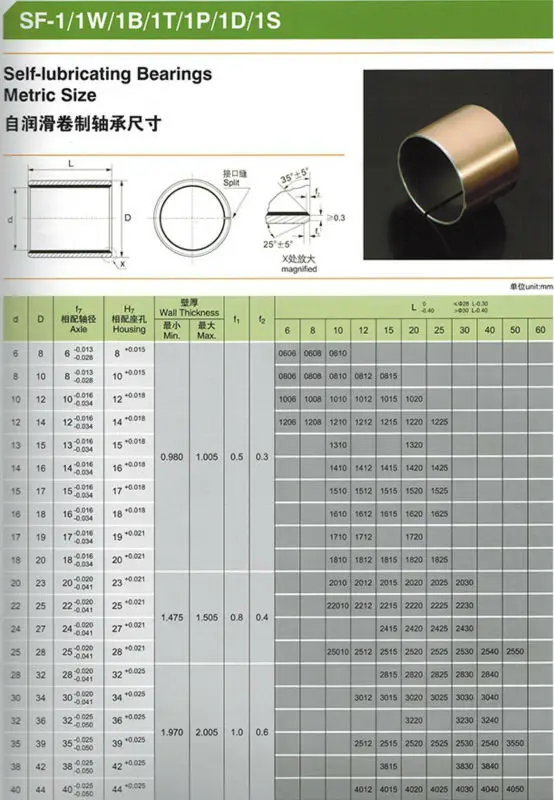

Size



Application Feature
1.PTFE with oil fiber can protect the shaft,while machine in operation.
2.It is of low friction coefficient,good anti-wear.
3.Good running in property.
4.It fits well in motion of circumgyration,sway and reciprocate.
5.Good anti-corrosion.
6.It can be used in food machine,pharmaceutical etc,due to lead-free.
7.It is mainly used in the condition of strong acid and alkali,such as chemical industry,pumps valves etc.



Factory

Our factory located in the centre of yangtze economy delta zone.

we producing of self-lubricated bearings.

The main products are:

- SF non-oil lubrication bearing -

- JF double metal bearing -

- FB bronze bearing -

- JDB inset solid lubrication bearing -

- FZ straight bearing -

The company is looking forward to have an opportunity to work and cooperate with you!









Our services

1.Sample order is available

2.Small order is acceptable

3.Customized is available as per drawing or sample



Original documents

1.B/L(bill of lading )

2.C/O(certificate of origin )

3.Commercial invoice

4.Packing list



After-sale service

1.Goods quality following

2.Accept feedback and solve the problem

3.Regular return visit











We are at service in 24 hours.



Tel: 0086-573-84181880

Fax:0086-573-84838381

cell: 0086-13600550024

Skype: augmanjohnson
